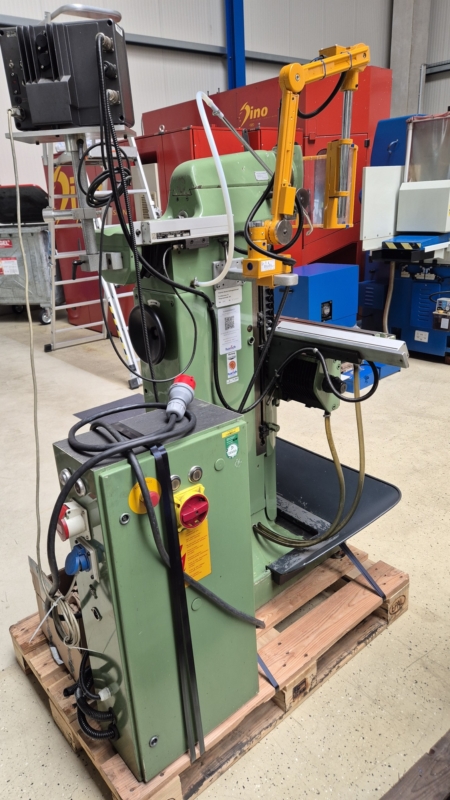

Fresadoras e máquinas de perfuração universales DECKEL FP 1

x-travel: 290/300 mm
y-travel: 150/160 mm
z-travel: 330/340 mm
total power requirement: kW
weight of the machine ca.: 675 kg
dimensions of the machine ca.: 2700 x 2500 mm
The machine was overhauled by the company Harich in 2017.
Machine number: 57330/08

Technical data:
Table longitudinal movement (motorized/manual): 290/300 mm
Spindle head transverse movement (motorized/manual): 150/160 mm
Support vertical movement (motorized/manual): 330/340 mm
Angle table clamping surface: 600 x 210 mm
Spindle speeds: 40 – 2000 rpm
Tool holder: Standard taper 40
Motor power: 1.5/1.9 kW
Feed rate range (infinitely variable): 5 – 500 mm/min
Rapid traverse: 1200 mm

Equipment:
3-axis digital readout (Heidenhain)
Vertical milling spindle with quill adjustment
Additional horizontal spindle
REPAR 2 safety device (www.repar2.com)
Operating manual

The machine will be loaded onto a Euro-pallet, total height: 1900 mm.



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1022-2439
