EUMACH FBM 10040 Mecanismos de perfuração de placas para suportar de mangas

spindle diameter: 160 mm
x-travel: 10000 mm
y-travel: 4000 mm
z-travel: 1200 mm
W-axis (spindle longitudinal): 700 mm
tool taper: BT 50
spindle turning speed - stepless: 3000 U/min
spindle motor: 34 / 42 kW
max. torque on the spindle: 170 / 220 Nm
dimension of the ram: 450 x 450 mm
feeds: X,Y,Z,W = 1 - 8000 mm/min
rapid traverse feeds: X + Y = 18000 mm/min
rapid traverse: Z + W = 10000 mm/min
Control: HeidenhainTNC 530
total power requirement: kW
weight of the machine ca.: - t
dimensions of the machine ca.: 16 x 6,2 m
- CNC path control Heidenhain iTNC 530
- Cytec milling head with A-axis (0.001 x 180°)
- Tool changer with 60 places

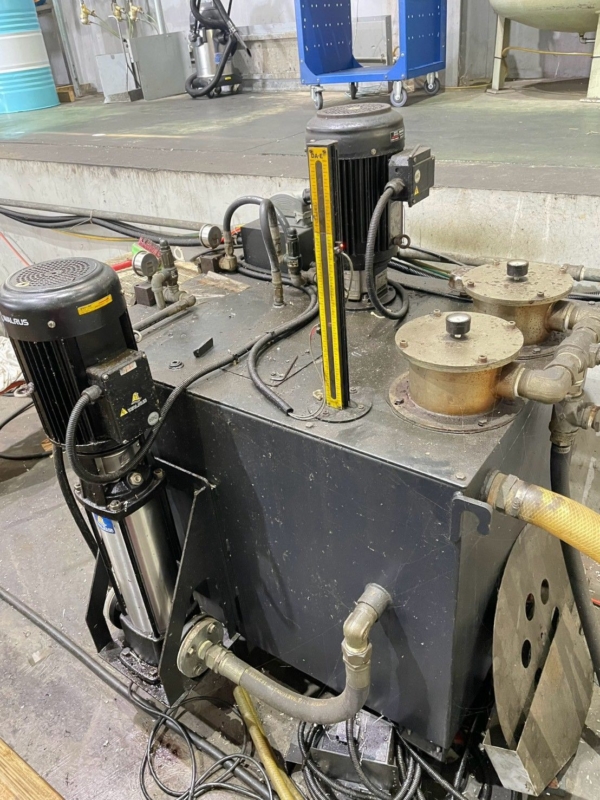

- Coolant system
- Internal spindle cooling 20bar
- NC boring machine table 2500 x 2500mm, v-axis 1500mm, 30t load

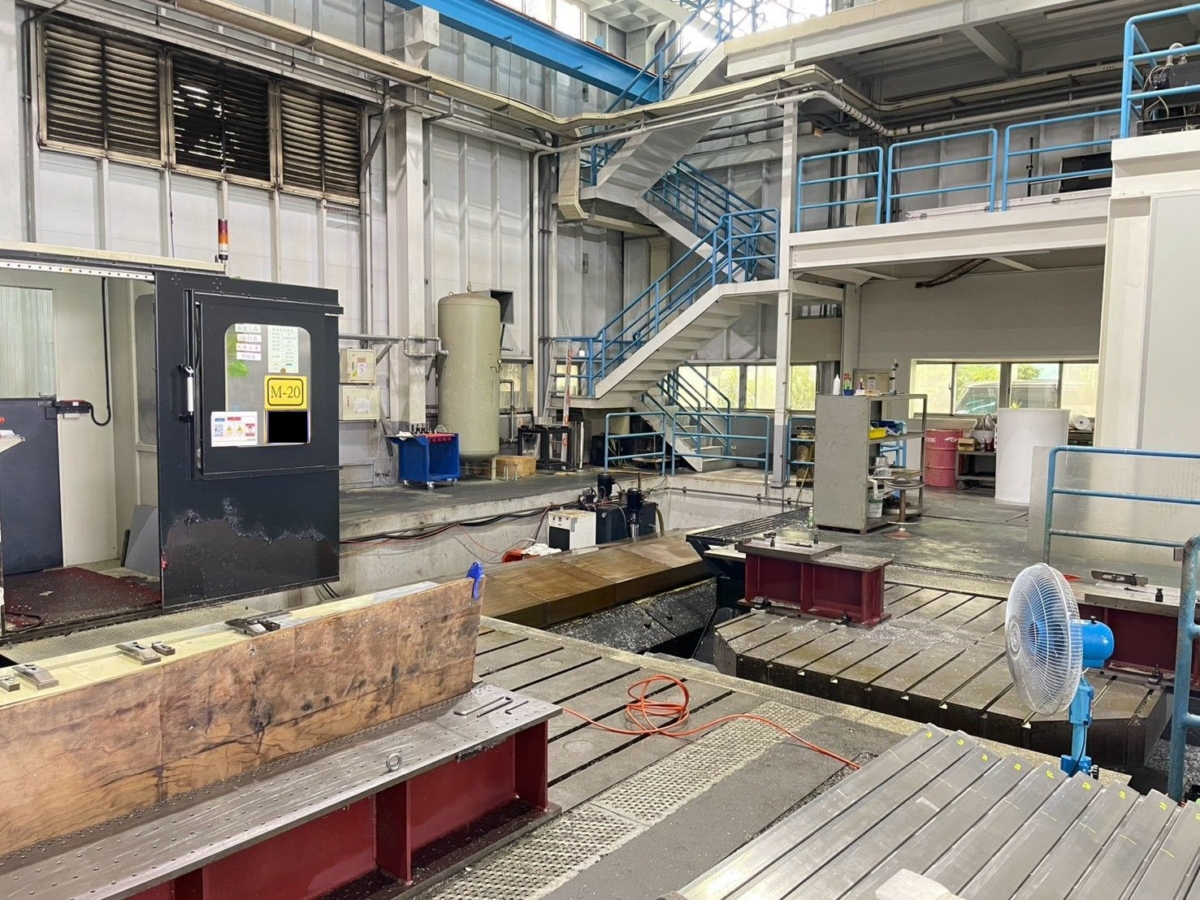

- Plate field 7000 x 2500mm
- Oil skimmer
- Linear scales in X/Y/Z
- Chip conveyor
Switch-on hours: approx h Programme hours approx h, programme run approx h
