Geradores a gás NIIGATA Natural Gas 2x18V22AG

Rated capacity: 5760 KW Output voltage: 3450 V Niigata Natural Gas Generators 2 × 2,880 kW / 60 Hz

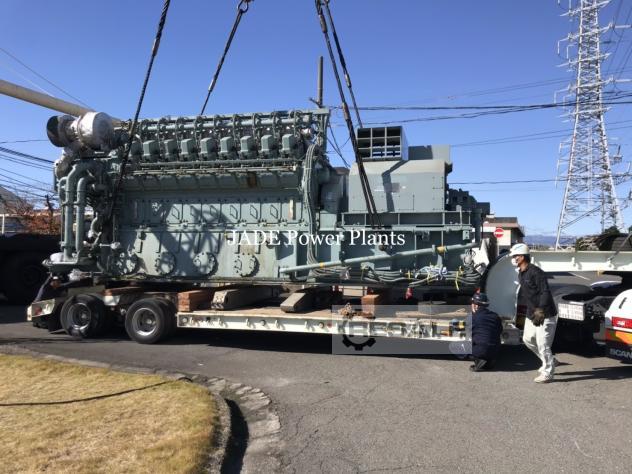

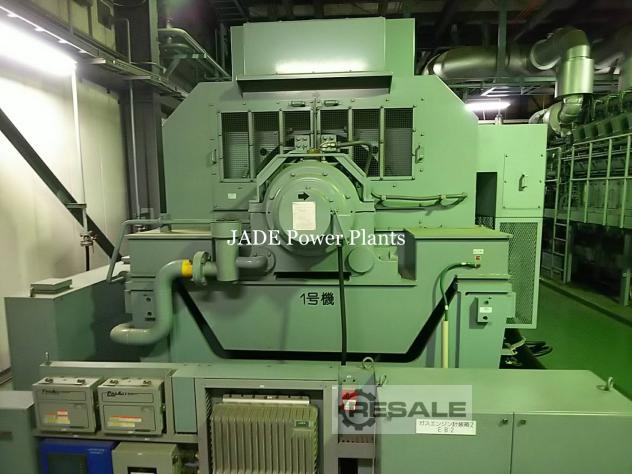

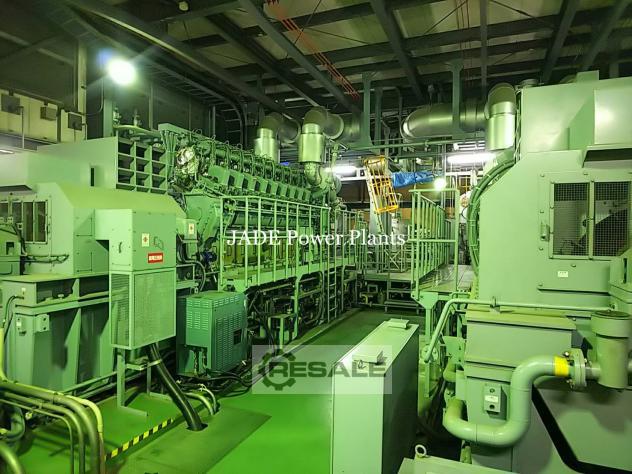

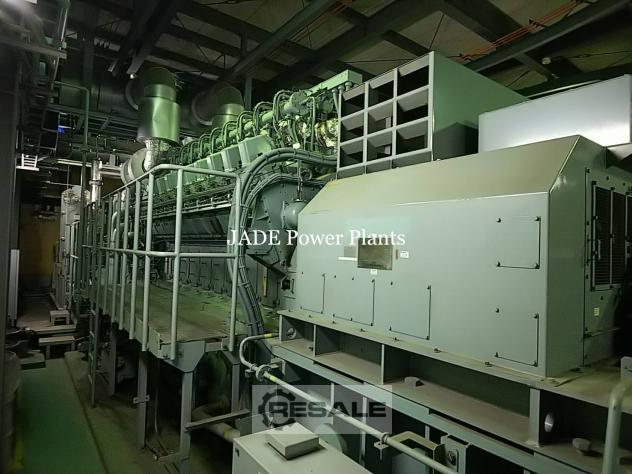

Two well-maintained natural gas generator sets manufactured by Niigata in 2005, each with an electrical output of 2,880 kW at 60 Hz.

The plant was operated until 2020 and maintained in accordance with Niigata’s maintenance procedures. The most recent scheduled 30,000-hour major maintenance for both engines was completed in April 2019. At the time of shutdown, the total accumulated operating hours were approximately 31,000.

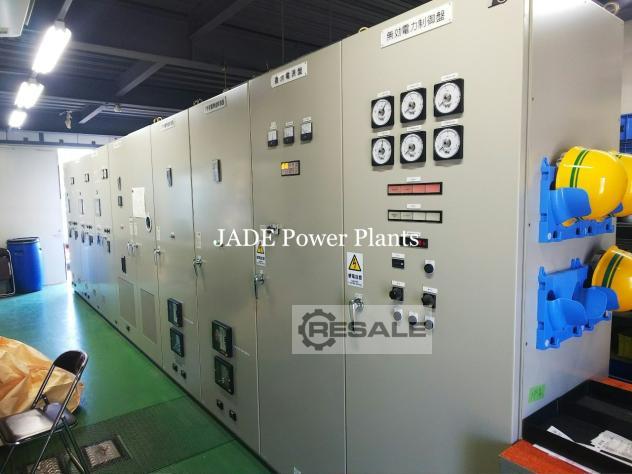

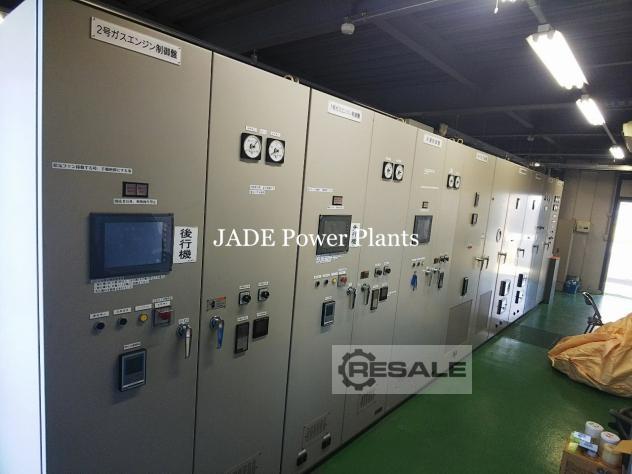

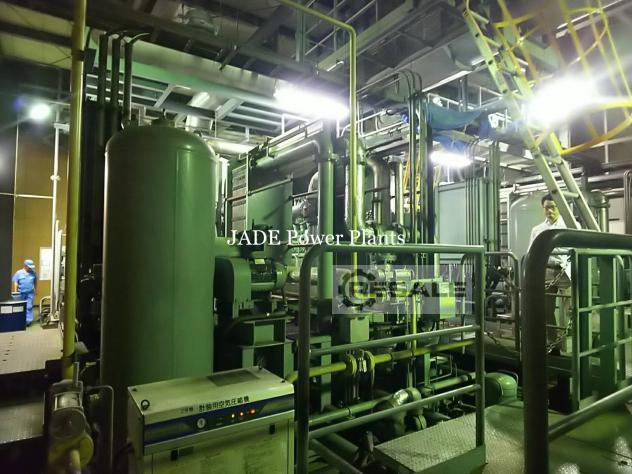

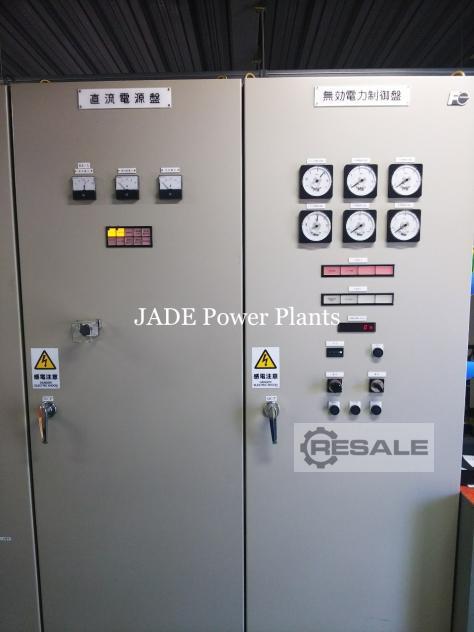

The plant was professionally dismantled in 2022. The scope of supply includes the plant control system, all mechanical and electrical indoor auxiliaries, high-voltage circuit breakers, and motor control center (MCC) cabinets.

Technical Data:
Product Gas Engine Generators with auxiliaries
Model Niigata18V22AG
Electrical output 2880kWe
Manufacturing year 2005
Rotation speed 900rpm
Number of gensets 2 pcs
Running hours approx. 31100
Voltage 3450V / 60 Hz
Frequency 60Hz
Alternator NTAKL-SE
Genset dry weight approx. 66300 kg
AC Exciter Nishiba NTAA-SU
seller offer No. resale 10702025
