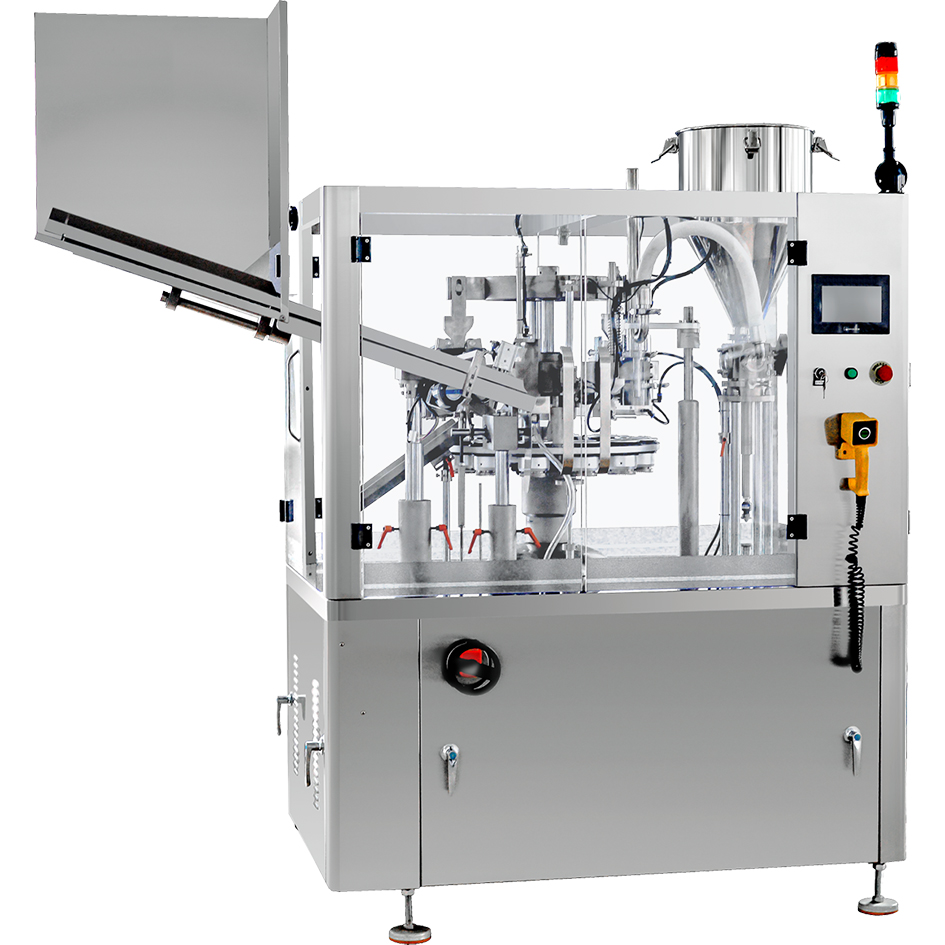

AMTEC TF 400-80 Enchimento de tubo

Fully automatic tube filler for pastes and liquids. Typically for cosmetics such as make-up, creams, general care products such as shower gel, hair shampoo, hair gel, toothpaste, sun blocker etc. Suitable for pre-made tubes (with closed cap) made of plastic, aluminum or laminated composite material. Fully automatic feeding, alignment of the tubes (rotation in the mould) based on print markings as well as filling and sealing of the tubes. Before filling, the tube is air-flushed to prevent contamination. No-tube-no-filling is also a standard function. Water chiller, batch/date printer and dosing unit, consisting of pneumatic piston pump and storage hopper with level sensor, are included. PLC controlled, operation via touchscreen. Optional at surcharge: heated stirrer for storage hopper, additional format sets (moulds) for different tube diameters, external tube feed lift. - Specifications: max. speed of the machine in neutral: 80 cycles/minute | filling range: 1-400ml | accuracy: ?0.5% | tube diameter: 10-60 mm (one mould is required for each tube diameter) | tube length: 50-240 mm | number of filling heads: 1 | storage hopper capacity: 40L | parts in contact with the product are 316L stainless steel | power supply: 220/380V, power consumption: 9kW | compressed air: 0.4-0.6MPa.
Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.
