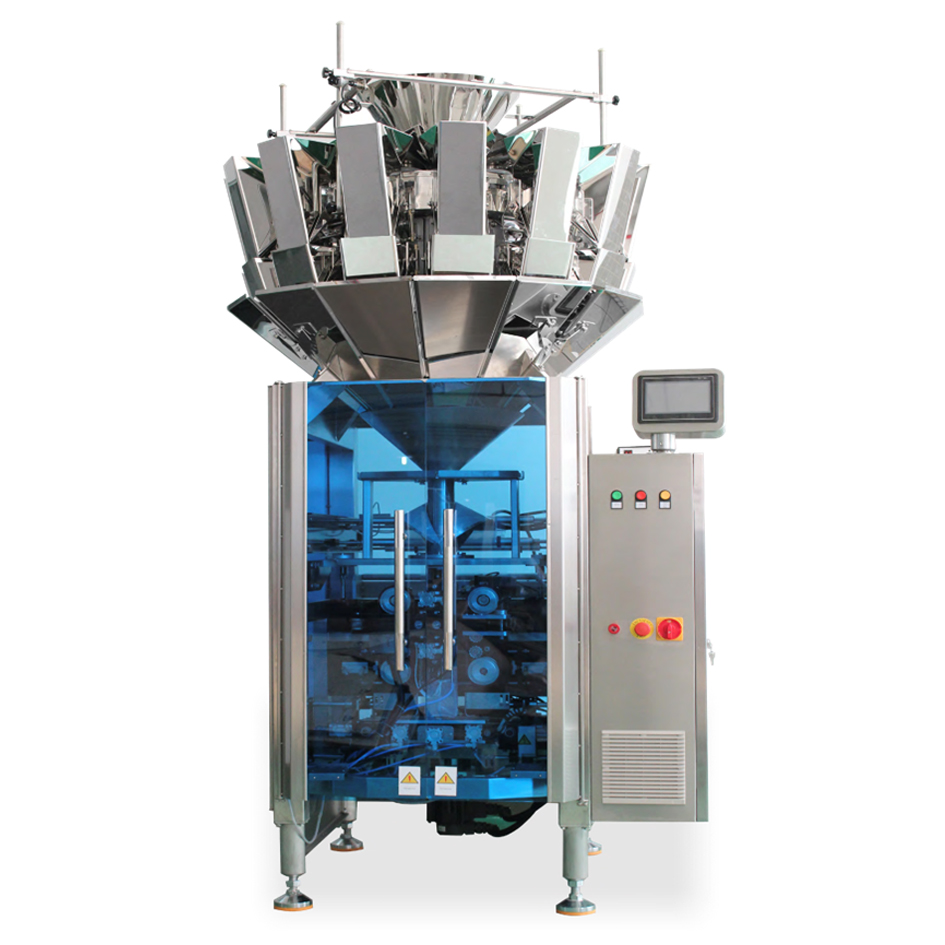

AMTEC VFFS-MW H14-S80L1 Máquinas de sacos tubulares

VFFS machine with 14-head multihead weigher for bulk materials and granulates. Compact design without platform stand. Suitable for form, fill and seal of pillow bags and gusseted stand-up pouches (gusset tool needed) OR for pyramid shaped bags (special sealing unit is than mounted just for it). The packaging machine is equipped with: touch screen operating interface | plc | eye mark sensor for seal/cutting position | servo driven sealing unit for end sealing | servo motor for film pulling | ribbon printer for batch number, date, BBD. - Specifications multihead weigher: number of weighing heads: 14 heads | weighing range (single dump): 10-1500g | volume per weighing head: 1.6L | weighing accuracy: X(0.5) | discharge flap: single flap | surface finshing: plain surface (optional for surcharge dimpled surface) | product contact parts from: AISI 304 (optional for surcharge AISI 316). - Specifications VFFS machine: max. speed of the machine in neutral: 80 cycles/min | bag sizes: L(40-300)xW(70-270)mm, (double film pulling possible for longer bags) | suitable film width: 160-560mm | product contact parts from: AISI 304 (optional for surcharge AISI 316) | power supply: 220V, 50/60Hz | power consumption: 5.5kW | air pressure: 0.4-0.8MPa | compressed air consumption: 0.2m?/min | dimensions (LxWxH): 2266*1416*2538mm | weight: 940kg.
