Geradores a diesel CAT 3516 BHD / 50Hz

Diesel Generators 1600 kWe / 50Hz with CAT 3516B engines and local control panel

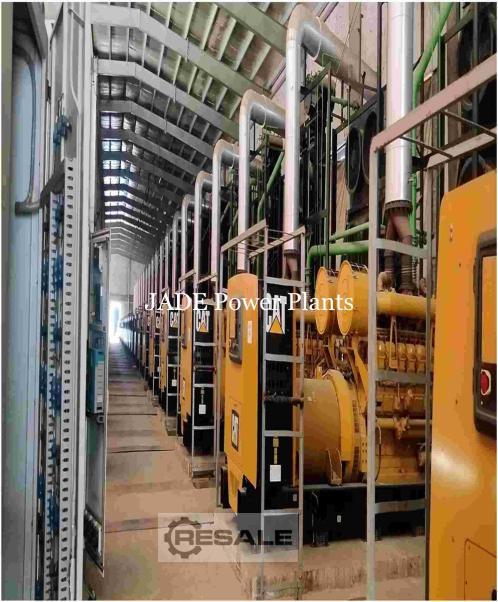

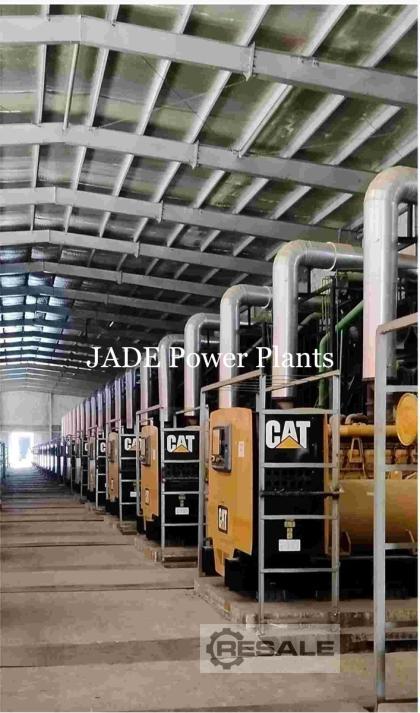

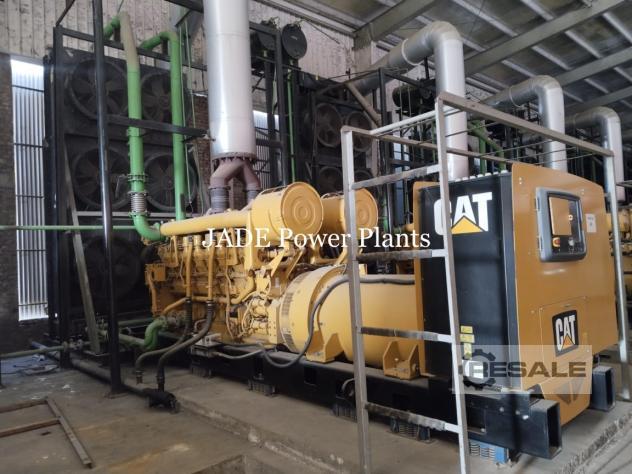

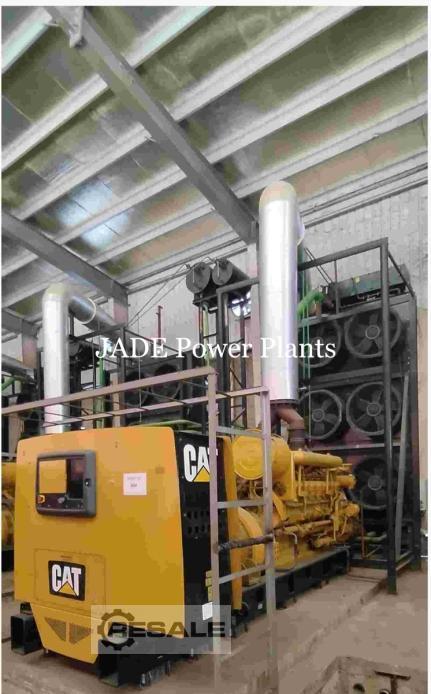

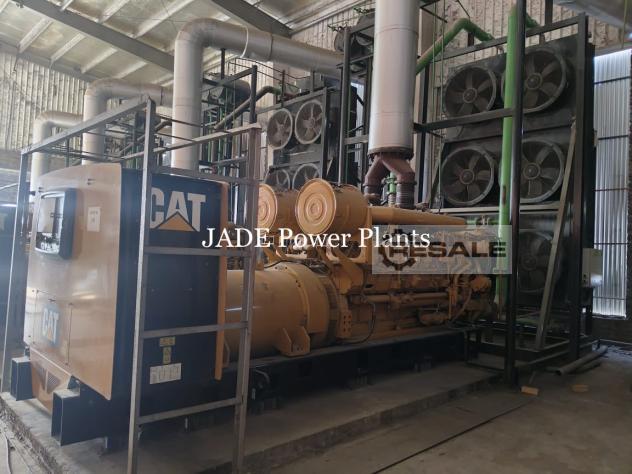

We have multiple identical CAT 3516B skid-mounted diesel generating sets available, all manufactured in 2018 and installed in the same HFO power plant, complete with full HFO plant auxiliaries.

Each engine is coupled to a 2000 kVA / 415 V / 50 Hz brushless synchronous alternator via a flexible coupling, both mounted on a rigid base frame. These units are optimized for low emissions, high efficiency, and continuous base load operation.
The generators have been serviced exclusively by the local CAT dealer and have only 1,500–2,000 operating hours.

The standard scope of supply includes:
• Engine control panel (EMCP 4)
• 24V electric starting system
• Radiator cooler
Balance of Plant (BOP) equipment is available for customers requiring multiple units.

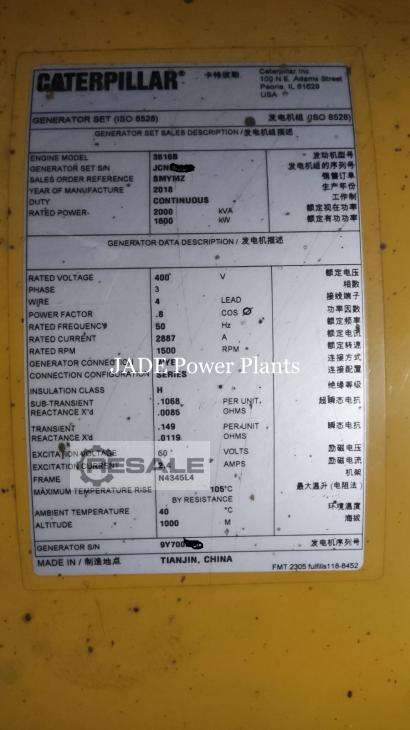

Technical data
Engine type CAT 3516B – 16-cylinder, 1500 rpm diesel engine
Manufacturing year 2018 (assembled in China)
Output (continuous operation) 2000 kVA / 415V / 50Hz
Cos phi 0.8
Operating hours from 1500 to 2000 hours only
Number of units available up to 30 pcs
Prime rating 2000 kVA (1600 kW)
Stand by rating 2240 kVA (1800 kW)
Control system EMCP 4
Condition Installed, good condition
seller offer No. resale 10482025
