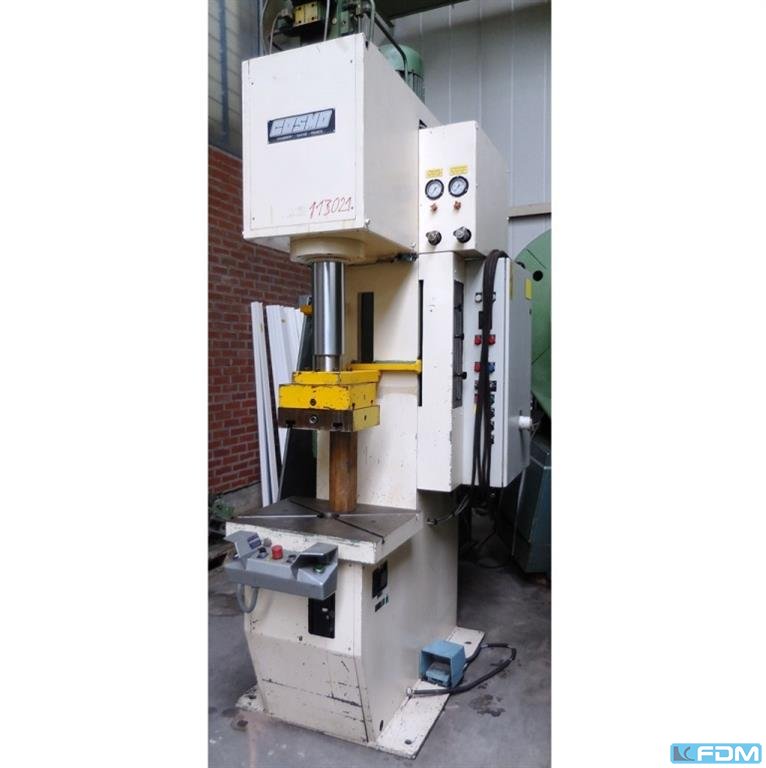

COSMO PVS 403 Hydraulic C-Frame (Drawing) Press
usadoVendedor verificado
Pedir preço
Diretamente ao vendedor
1 / 3
Dados técnicos
· ID 170392455Máquinas usadas
- Estado
- usado
- Ano de fabrico
- 1989
- Localização
- Lager Eislingen, Baden-Württemberg
Identifikation
FabricanteCOSMO
ModeloPVS 403
Número do artigo1050-113021
Technik
Quantidade1
Descrição
pressure:40 t
throat:360 mm
stroke:400 mm
distance table/ram, max. stroke up, adjustment up:600 mm
table surface area:620 x 500 mm
pressure of drawing cushion in table:16 t
stroke of drawing cushion in table:150 mm
table height over floor:850 mm
ram surface:300 x 250 mm
speed down:200 mm/s
speed up:200 mm/s
working speed:40 mm/s
power requirement:11,0 kW
weight:2,8 t
dimensions (WxDxH):1,1 x 1,7 x 3,0 m
drawing cushion in table:hydraulisch
throat:360 mm
stroke:400 mm
distance table/ram, max. stroke up, adjustment up:600 mm
table surface area:620 x 500 mm
pressure of drawing cushion in table:16 t
stroke of drawing cushion in table:150 mm
table height over floor:850 mm
ram surface:300 x 250 mm
speed down:200 mm/s
speed up:200 mm/s
working speed:40 mm/s
power requirement:11,0 kW
weight:2,8 t
dimensions (WxDxH):1,1 x 1,7 x 3,0 m
drawing cushion in table:hydraulisch
