CNC EXERON HSC 300/3

high-speed CNC machining center

Type: HSC 300/3

Manufacturer: Exeron

Year: 2019

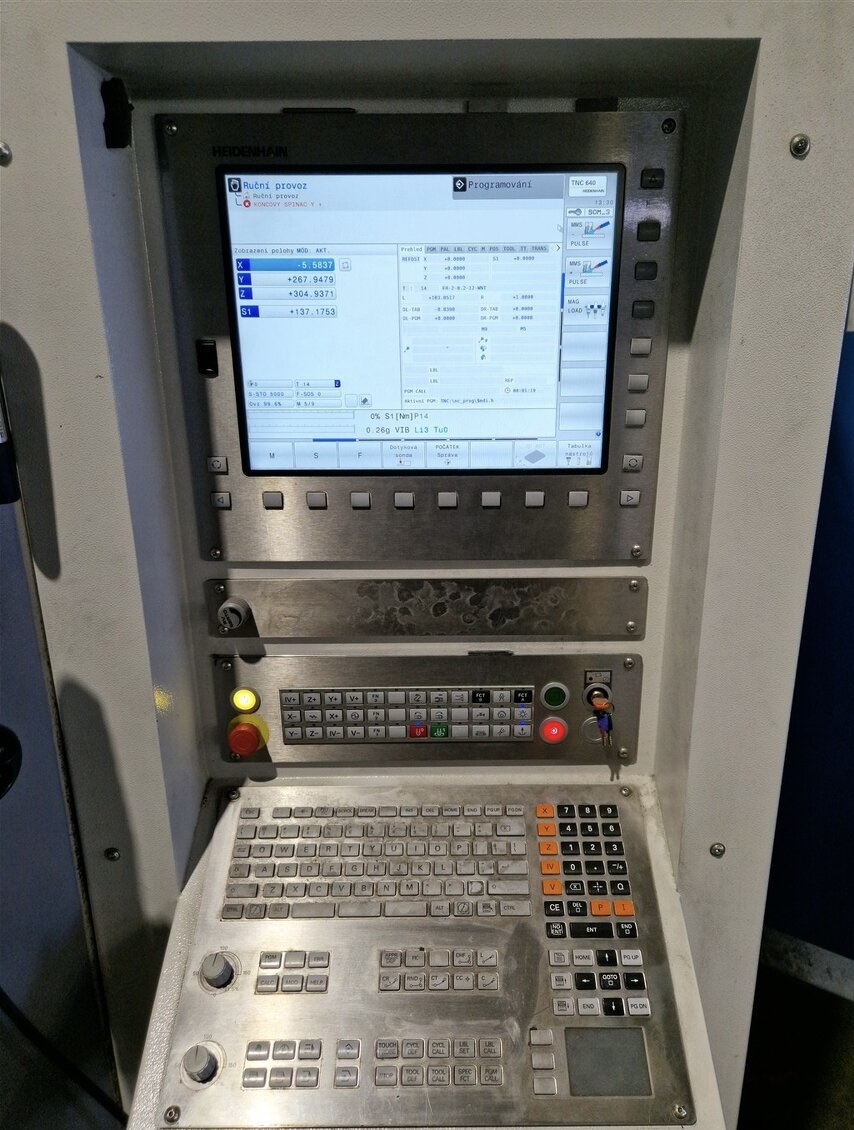

Control: Heidenhain iTNC 640

Spindle hours: 9500

X: 525 mm

Y: 340 mm

Z: 355 mm

Max spindle speed: 42000 rpm

Max table load: 500 kg

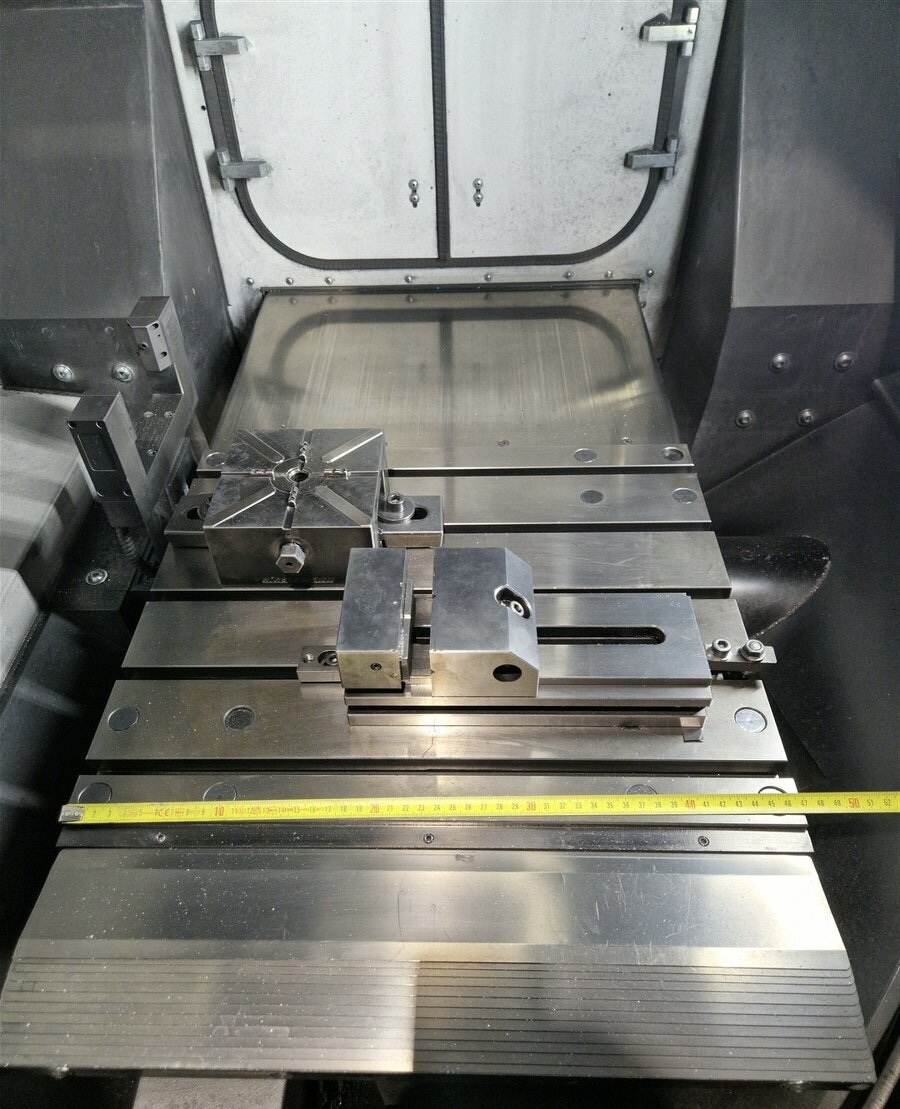

Clamping table size: 400 x 470 mm

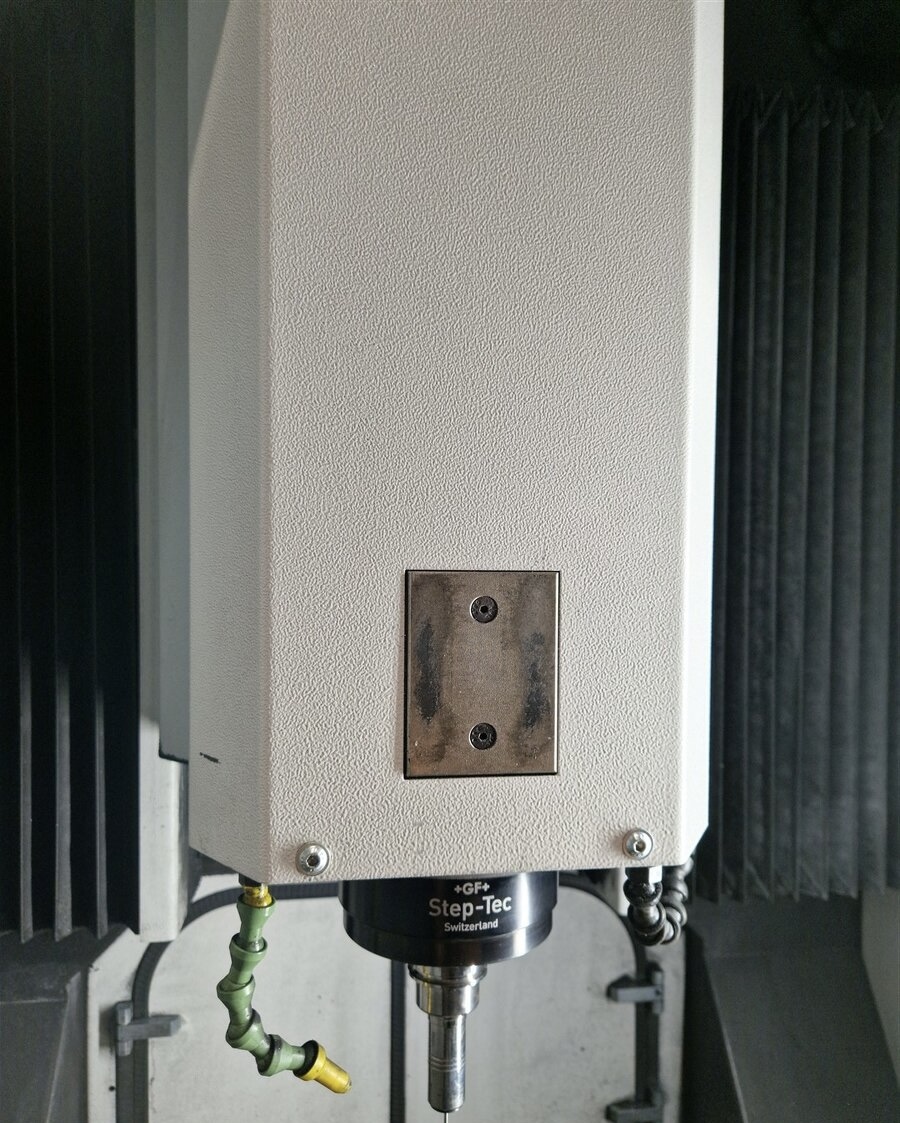

HVC140 HSK-E40 milling spindle – S1/S6 40% milling power: 10 kW/13 kW. Ceramic ball bearings with minimal oil and air lubrication.

Tool magazine with 16 positions for HSK-E40 tools, with a diameter of up to 16 mm and a maximum length of 75 mm.

Blum laser tool measurement, located on the left side, including a tool damage control system.

Rotating tools with a diameter of 0.2 to 16 mm are measured directly in the machine working area.

The minimum tool length is 45 mm.

Graphite extraction system including preparation of the machine for extraction.

Air flow rate approx. 1,400 m³/h.

Motor power 2.2 kW, noise level approx. 73 dB(A).

Residual dust content in the exhaust air is max. 0.5 mg/m³. This value is approximately 15 times lower than the permissible MAK limit.

Sound absorber for the L-CUT system. Reduction of the sound pressure level by approximately 9 dB(A).

Heidenhain remote control for manual operation of the machine, equipped with setting functions, electronic handwheel and activation button.

Hydac cooling system for the spindle. Automatic lubrication system. Additional LED lighting of the working area. Oil mist lubrication unit. System language: English.

Renishaw OMP400 infrared measuring probe with HSK-E40 holder.

Machine in good condition, fully functional, under power
