JKF AC 2 LK

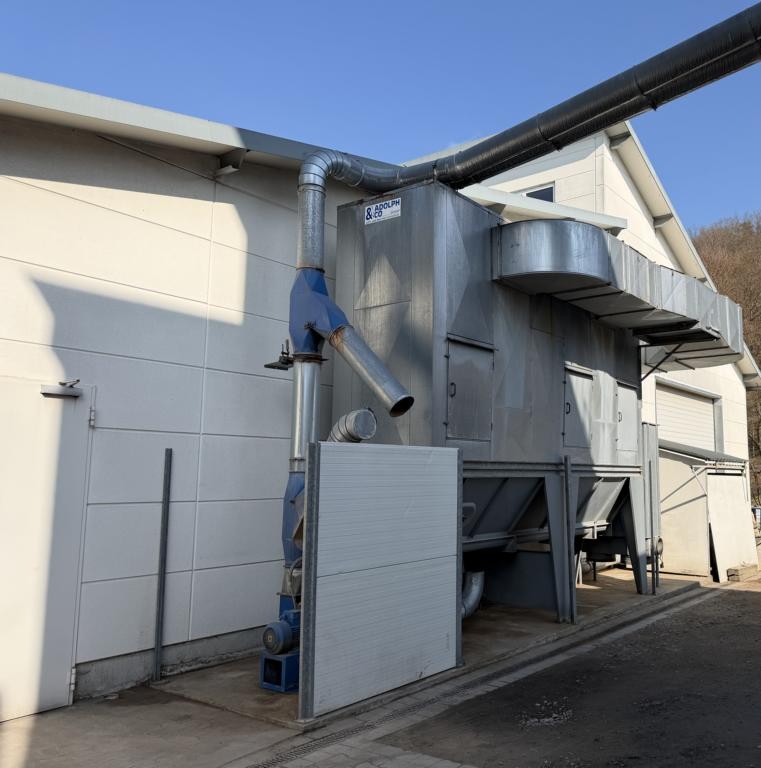

Central extraction system Adlolph & Co. (JKF) with screw conveyor and rotary valve. Manufacturer: Adolph & Co. (JKF) Type: AC 2 LK Year of manufacture: 2003 Suitable for dust and chips Volume flow: approx. 16,000 m³/h With air recirculation 1 piece Sluice filter, galvanized
- Year of manufacture 2003
- AC 2 LK
- Filter area: approx. 150m²
- Cleaning of the filters via a vibration motor
- Filter housing made of galvanized sheet steel
- 3 inspection doors
- Pressure relief surfaces
- Exhaust air connection according to local requirements
- Filter base frame in welded steel construction, galvanized.
- Including dry extinguishing line, C connection 3 pieces Extraction fans: 1 piece Manufacturer: JKF Type: JK
- 40K L Motor power: 11.0 kW Speed: 2,400 rpm Air flow: ~ 10,800 m³/h 1 piece Manufacturer: JKF Type: JK
- 30K L Motor power: 7.5 kW Speed: 2,900 rpm Air flow: ~ 7,500 m³/h 1 piece Manufacturer: JKF Type: JK
- 30K L Motor power: 7.5 kW Speed: 2,900 rpm Air flow: ~ 7,500 m³/h1 piece Pipe components Air return
- incl. galvanized ducts
- Must be supplemented for a new location 1 piece Control cabinet With PLC Siemens control, in dustproof sheet steel standard housing, designed as a wall cabinet.Designed for: Installation dimensions:
- Length: 5,250 mm
- Width: 1,300 mm
- Height: 4,650 mm (may vary depending on equipment) Electrical connection value:
- Approx. varies depending on number of fans
- 400 V/50 Hz
- Control voltage 230 V AC/24 V DC
- Location, not in stock
