Unidades de engarrafamento e de embalagem LEICHT Cobert type Olimpia20/95

For sale is a small complete filling line for vinegar or oil in plastic bottles.

Currently, the line is at 0.75 ltr. cylinders and has a maximum output of 4,000 bottles/h.

The entire plant consists of the machines listed below:

1. Bunker for empty plastic bottles, about 6m long, capacity: about 400-600 containers

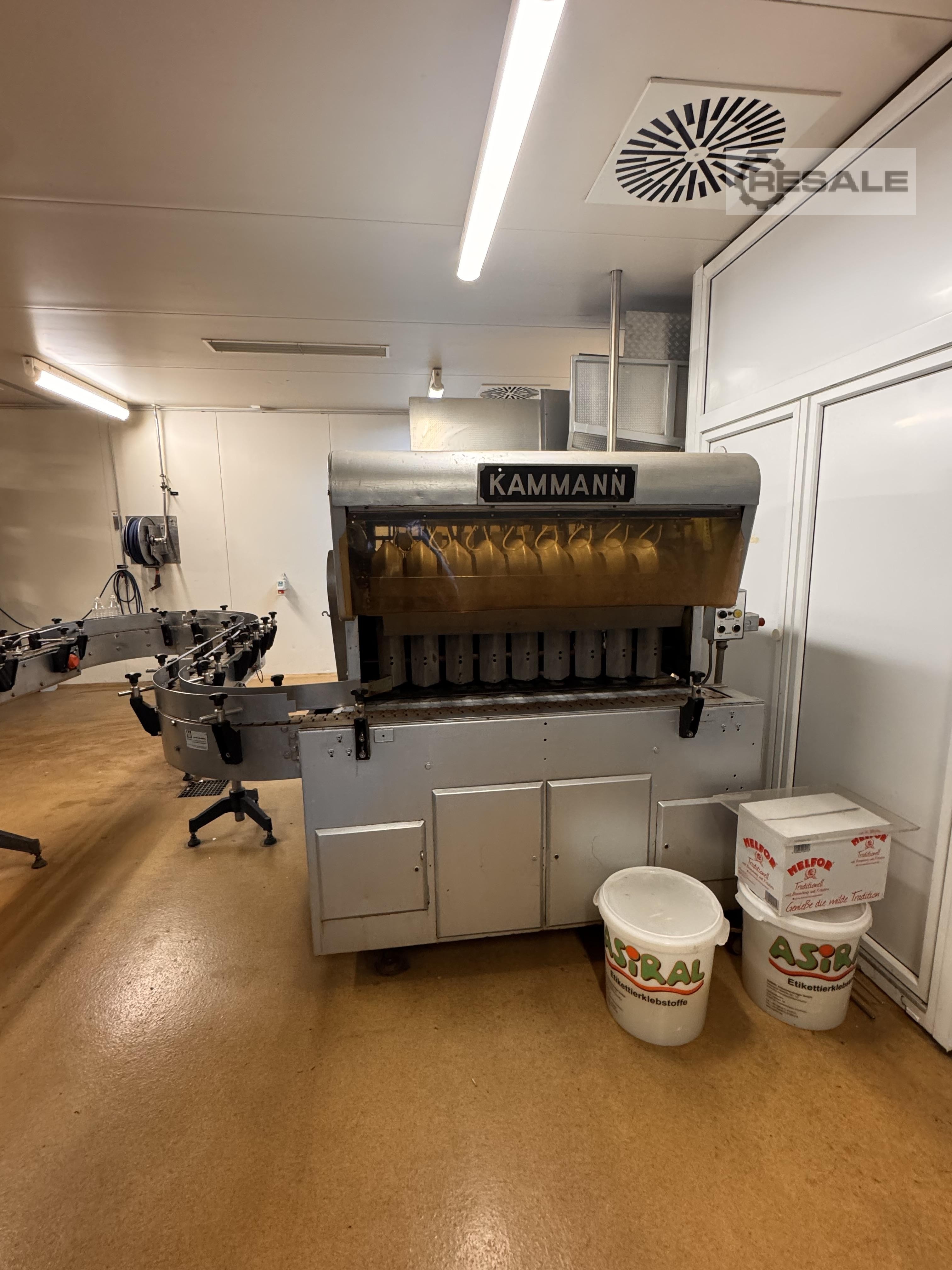

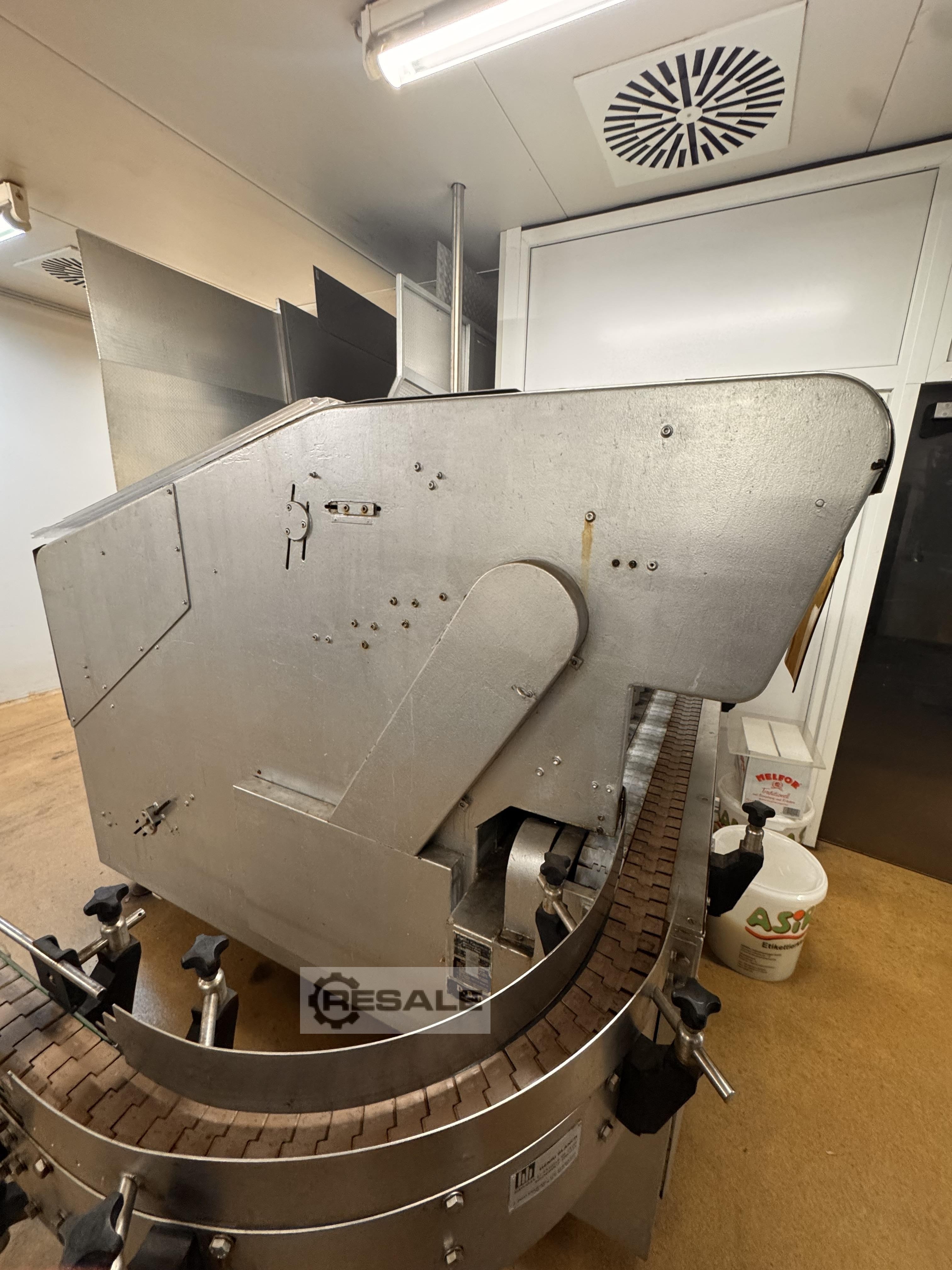

2. Kamman bottle sorting system type K23F
Machine ensures that the bottles to be filled are transported out of the machine vertically, with the mouth facing upwards
Sorting capacity: approx. 3,000-6,000 pieces/h

3. Conveyor belts

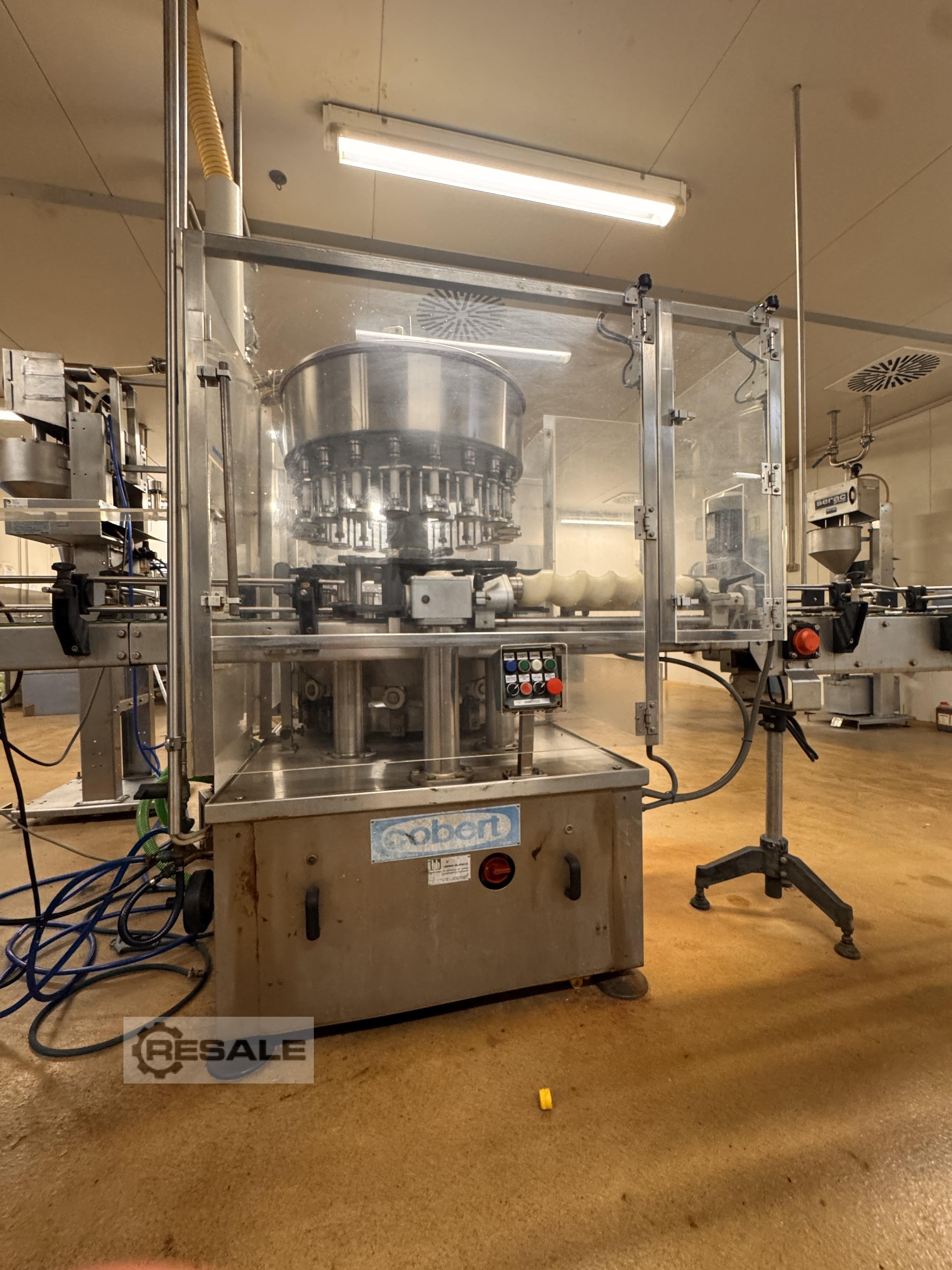

4. Leicht vacuum filler, make Cobert type Olimpia20/95
With 20 filling stations
Dimensions: LxWxH: 1,520x1,250x2,330 mm
Possible bottle diameter: 55-120 mm
Built in 1989

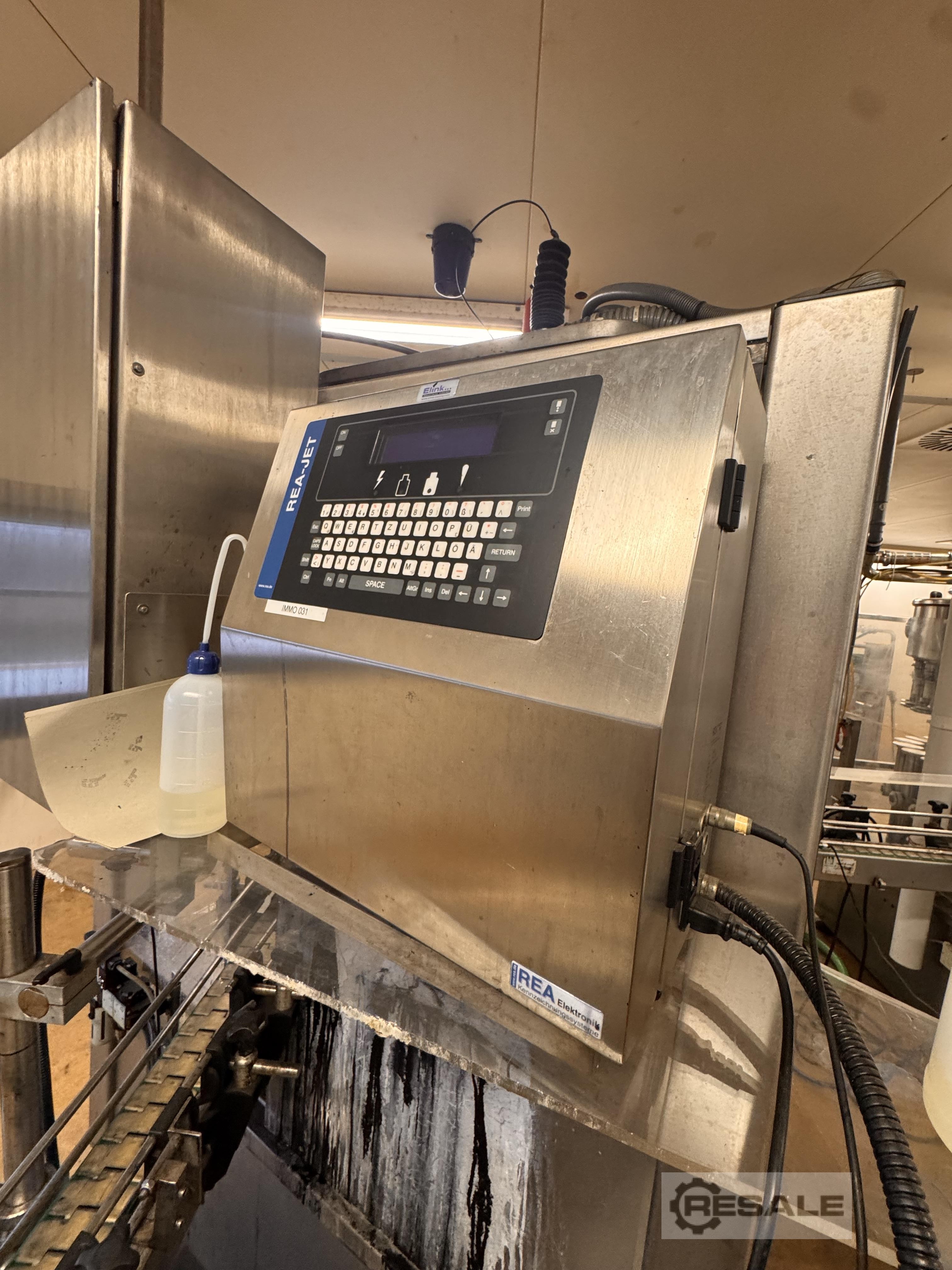

6. Inkjet encoder, make REA-JET, for applying the lot marking or best-before date coding to the filled and sealed bottle
Year 2008

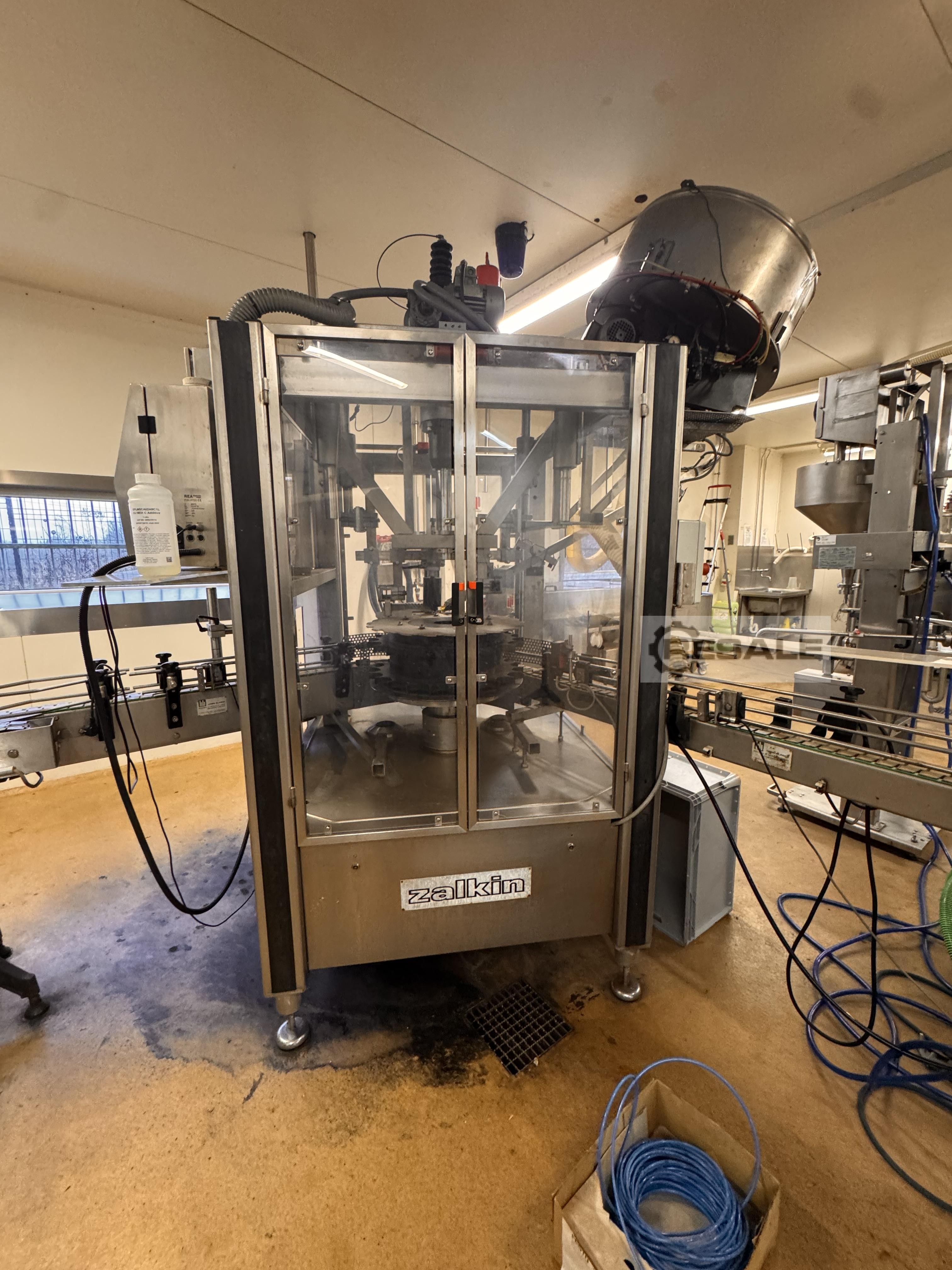

5. Capper for plastic caps, make Zalkin type CA3/320NG
A capping station
Closures are pressed open
Capacity: 3,000-4,000 caps/h

7. Labeling machine, make Langguth type E20/L-160
Wrap-around or label labels on cylindrical containers

8. Rotary table, diameter: 1,000 mm

9. Carton sealer, make Normpack, type GEMF47, built in 2003 with automatic, upper lid folding device
Possible formats:
Length: 150-700 mm
Width: 100-510 mm
Height: 120-510 mm
Capacity: up to max. 20 packages/min.
Sealed with adhesive tape, width 50 mm, from top and bottom (2 units)

10. Carton encoder, make Imaje type CrayonPlus, year of manufacture 2005

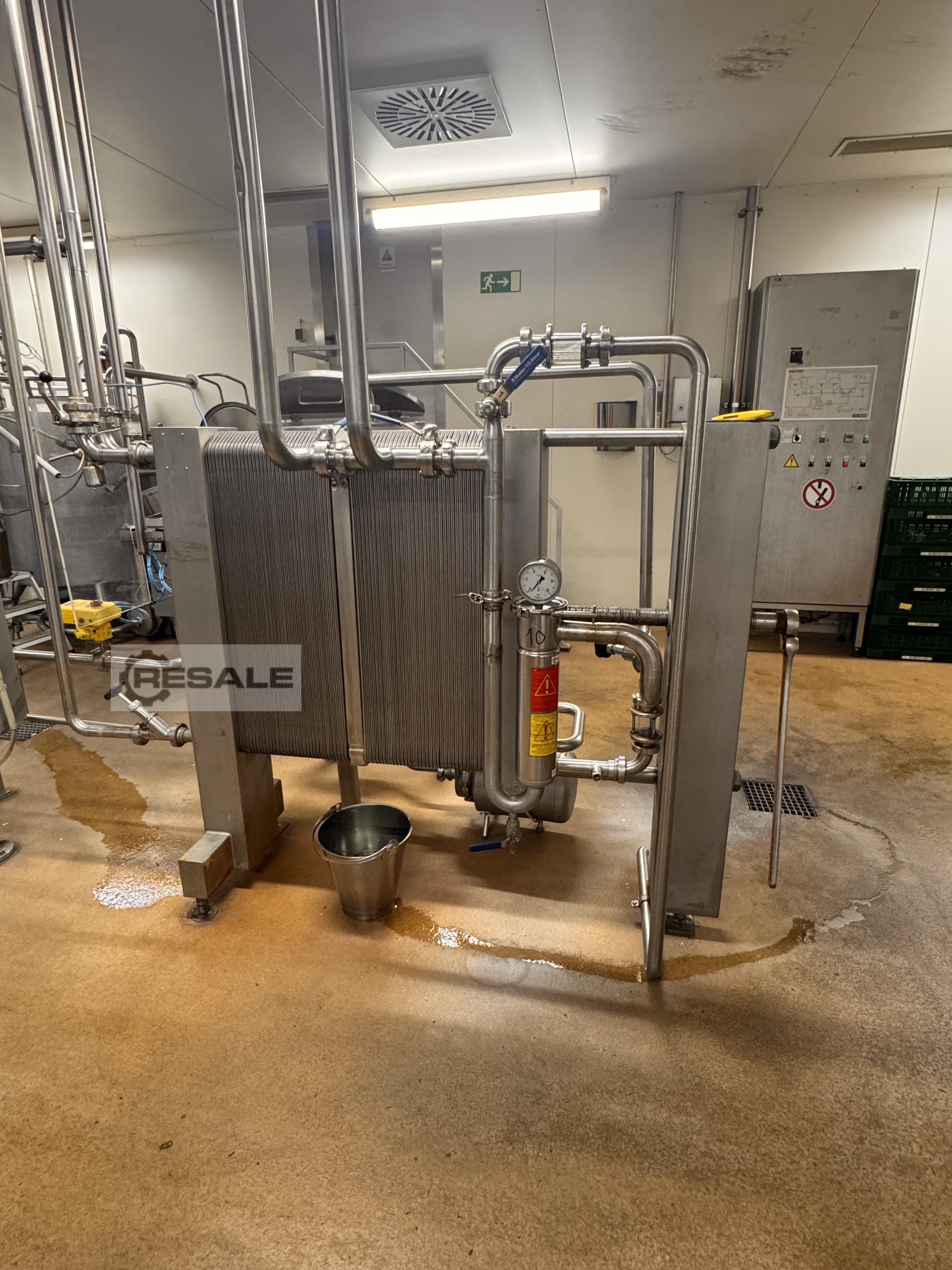

11. Plate heat exchanger, make Schmidt, type Sigma16ZAV, built in 1990
For thermal preservation of the vinegar product

A video showing the entire system can be sent on request.

If you have any questions or would like more information, please feel free to contact us.
