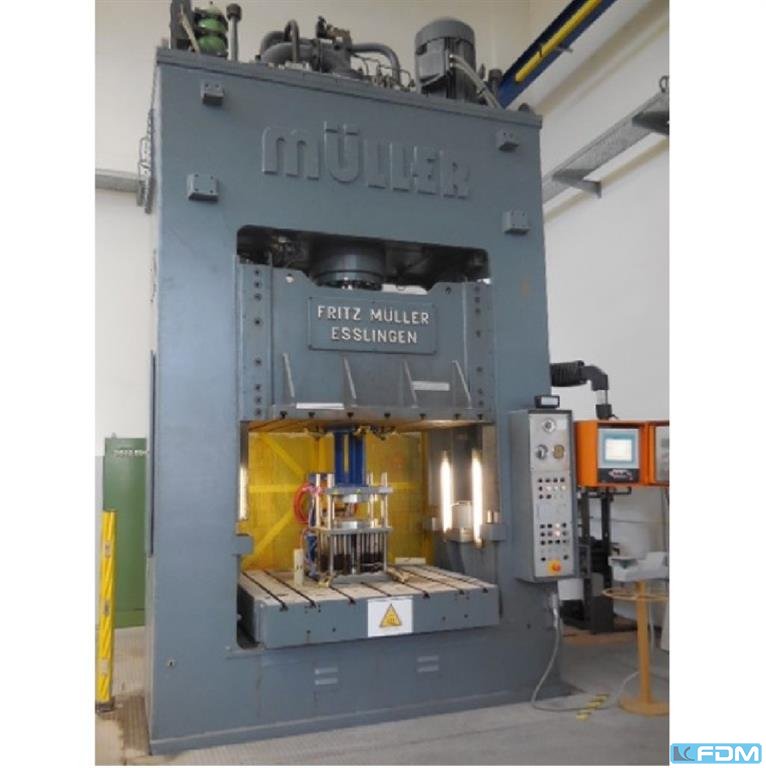

MUELLER ZE 315-16.24.1 (CE) Hydraulic Double-Column (Drawing) Press
usadoVendedor verificado
Pedir preço
Diretamente ao vendedor
1 / 5
Dados técnicos
· ID 170392518Máquinas usadas
- Estado
- usado
- Ano de fabrico
- 1983
- Localização
- Lager Eislingen, Baden-Württemberg
Identifikation
FabricanteMUELLER
ModeloZE 315-16.24.1 (CE)
Número do artigo1050-143044
Technik
Quantidade1
Descrição
pressure:315 t
distance between columns:1750 mm
stroke:700 mm
distance table/ram, max. stroke up, adjustment up:1200 mm
table surface area:1600 x 1500 mm
pressure of drawing cushion in table:125 t
stroke of drawing cushion in table:200 mm
die cushion area:1200 x 1400 mm
table height over floor:750 mm
ram surface:1640 x 1500 mm
power requirement:55,0 + 11,0 kW
weight:29,5 t
dimensions (WxDxH):3,2 x 4,5 x 5,8 m
Height above floor:5,1 m
German Safety: permitted for manual loading:CE-Norm - EN 692, BGR 500
drawing cushion in table:hydraulisch
cutting impact absorption:hydraulic
distance between columns:1750 mm
stroke:700 mm
distance table/ram, max. stroke up, adjustment up:1200 mm
table surface area:1600 x 1500 mm
pressure of drawing cushion in table:125 t
stroke of drawing cushion in table:200 mm
die cushion area:1200 x 1400 mm
table height over floor:750 mm
ram surface:1640 x 1500 mm
power requirement:55,0 + 11,0 kW
weight:29,5 t
dimensions (WxDxH):3,2 x 4,5 x 5,8 m
Height above floor:5,1 m
German Safety: permitted for manual loading:CE-Norm - EN 692, BGR 500
drawing cushion in table:hydraulisch
cutting impact absorption:hydraulic
