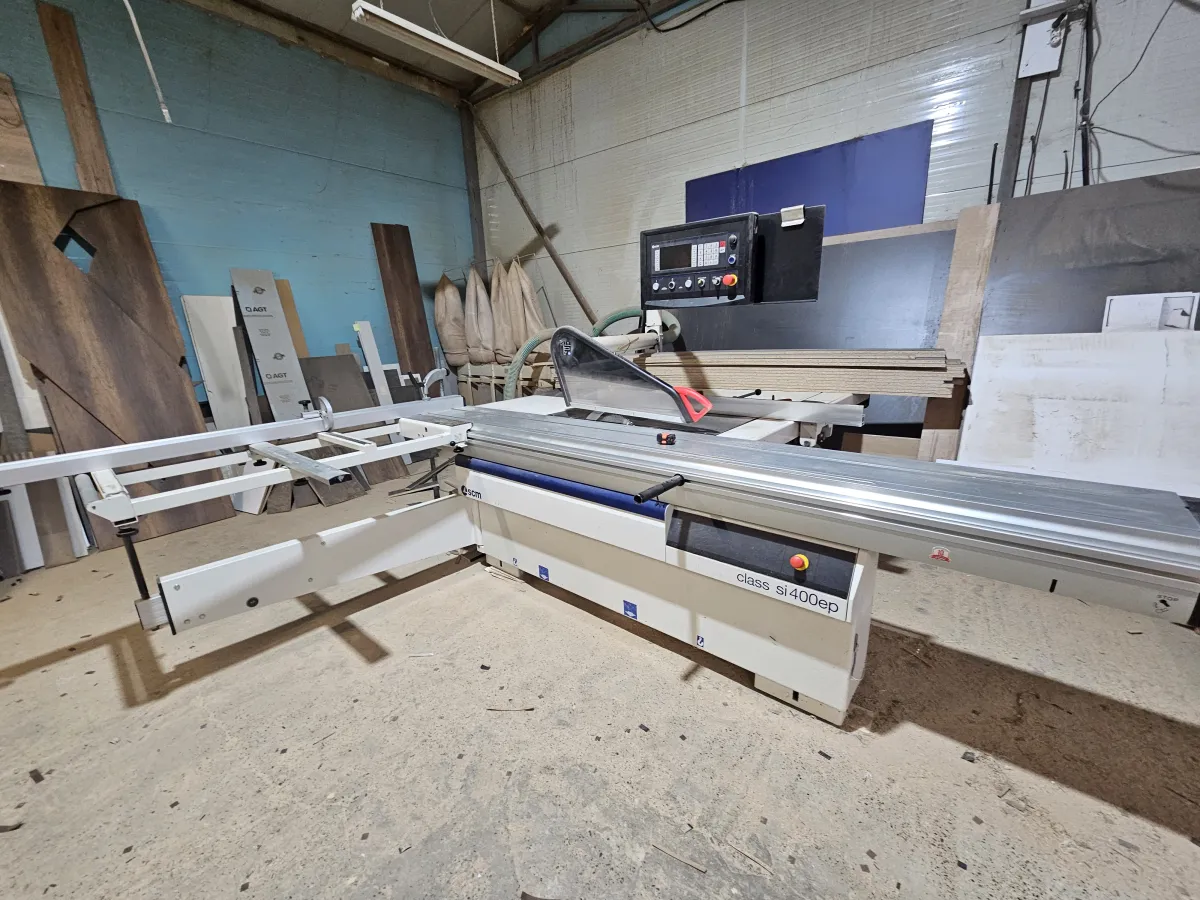

SCM Class SI 400 EP Serra

Manufacturer: SCM

Type of Machine: Sliding Table Saw / Circular Saw for Panel Sizing

Model:Class SI 400 EP

Year of Manufacture: 2019

Technical Specifications:

- Maximum cutting height at 90 degrees: 140 mm (with 400 mm blade)
- Maximum cutting height at 45 degrees: 97 mm (with 400 mm blade)
- Main saw blade diameter: 400 mm
- Scoring blade diameter: 120 mm
- Saw blade tilt: 45 degrees
- Main saw blade speed: 3,000 / 4,000 / 5,000 rpm
- Scoring blade speed: 8,500 rpm
- Main motor power: 7 kW / 9.5 HP
- Scoring motor power: 1.3 kW / 1.7 HP
- Sliding carriage dimensions: 3,200 x 320 mm
- Parallel fence cutting width: 1,270 mm
- Suction outlet diameter (blade guard): 120 mm
- Suction outlet diameter (machine base): 100 mm

Control System (EASY 3 UP PLUS CE Version):

EASY2 electronic control with 7-inch 16:9 monitor; suspended, orientable control panel; programmed display and control of main blade lift and tilt; CNC-managed parallel fence with linear guide and recirculating ball movement, ball screw transmission, automatic calibration and incremental positioning; 300 storable programmes; parallel fence cutting width 1,500 mm; start/stop controls integrated on mobile carriage.

Automatic 2-Axis Scoring Unit:

Motorised vertical and horizontal positioning; automatic scoring blade exclusion at its own height

Safety and CE:

CE suspended blade guard with built-in suction outlet (100 mm); emergency stop button on machine front; emergency stop button on parallel fence; rapid panel-access door with safety lock; magnetic protection; general switch; auxiliary circuit transformer 110 V.

Standard Equipment:

10-year warranty on mobile carriage sliding system (subject to manufacturer servicing requirements); mobile aluminium double-roller carriage with hardened steel sliding system and recirculating ball bearings; motorised saw blade lift and tilt; automatic scoring unit adjustment in 2 axes; eccentric wood clamp; quick positioning frame for angular table guide; board support extension; crosscut/squaring capacity up to 3,110 mm
