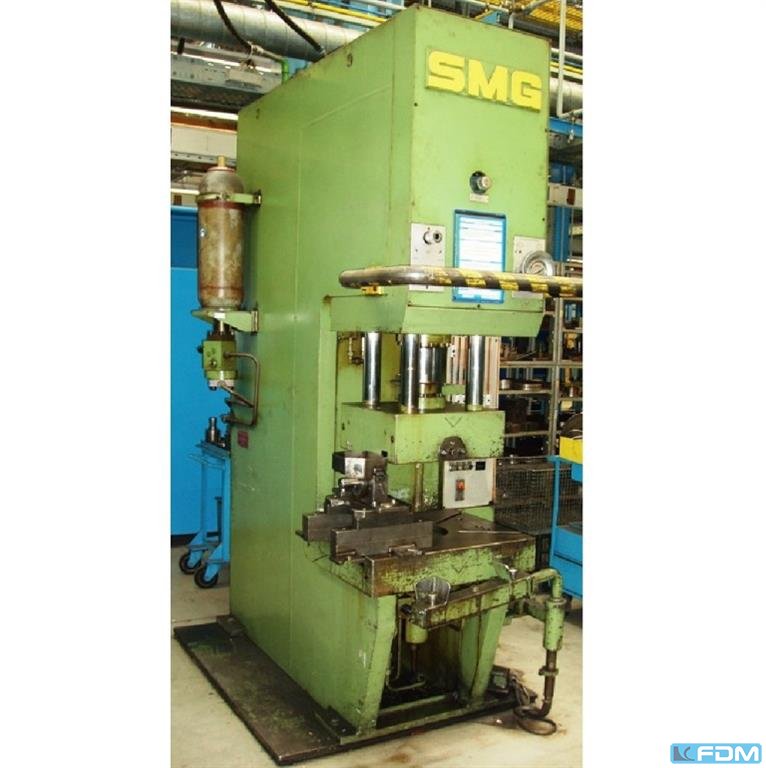

SMG CSZ 63 Hydraulic C-Frame (Drawing) Press

pressure:63 t
throat:320 mm
stroke:200 mm
distance table/ram, max. stroke up, adjustment up:450 mm
table surface area:750 x 600 mm
pressure of drawing cushion in table:6,5 t
stroke of drawing cushion in table:80 mm
die cushion area:240 mm
table height over floor:800 mm
ram surface:500 x 450 mm
capacity of ejector in ram:0,5 t
ejector stroke in ram:70 mm
speed down:300 mm/s
speed up:300 mm/s
working speed:50 mm/s
oil volume:380 l
power requirement:12,0 kW
weight:6,5 t
dimensions (WxDxH):1,3 x 2,0 x 2,75 m
drawing cushion in table:hydraulic
ejector in ram:hydraulic
depth stop:mechanical
cutting impact cushioning:hydraulic
