Máquinas de endentar e máquinas de teste universais (16)

Electromechanical recirculating bending testing machine Machine for determining flexural fatigue strength max. bending moment of 27 Nm with a specimen diameter of 6.74 mm, frequency: from 0 to 120 Hz 200 Hz possible, trapezoidal torque curve between the bearings The blue boxes in the background are not one of them. The control cabinet pictured belongs to this auction and can control up to two of these recirculating bending machines. However, there is only one PUNZ up for auction Auction-ID: A1-51071-18

- Electromagnetic resonance testing machine, Amsler - High-frequency pulsator - Max. one-sided tensile compressive load: 20 kN Max. alternating load: ±10 kN, max. travel: ±1.2mm, frequency range: depending on the stiffness of the structure and the number of additional weights between 35 and 240 Hz - Round specimens with threaded heads, flat specimens, bending specimens - Static pre-force adjustable by hand. Device for 4-point bending in pull/compression direction available Electromagnetic resonance test bench from Amsler with control unit from RUMUL. Unfortunately, the control unit cannot be switched on. With concrete cube as building decoupling, weight 2t. The specified dimensions are device incl. foundation cube. Auction-ID: A1-51071-10

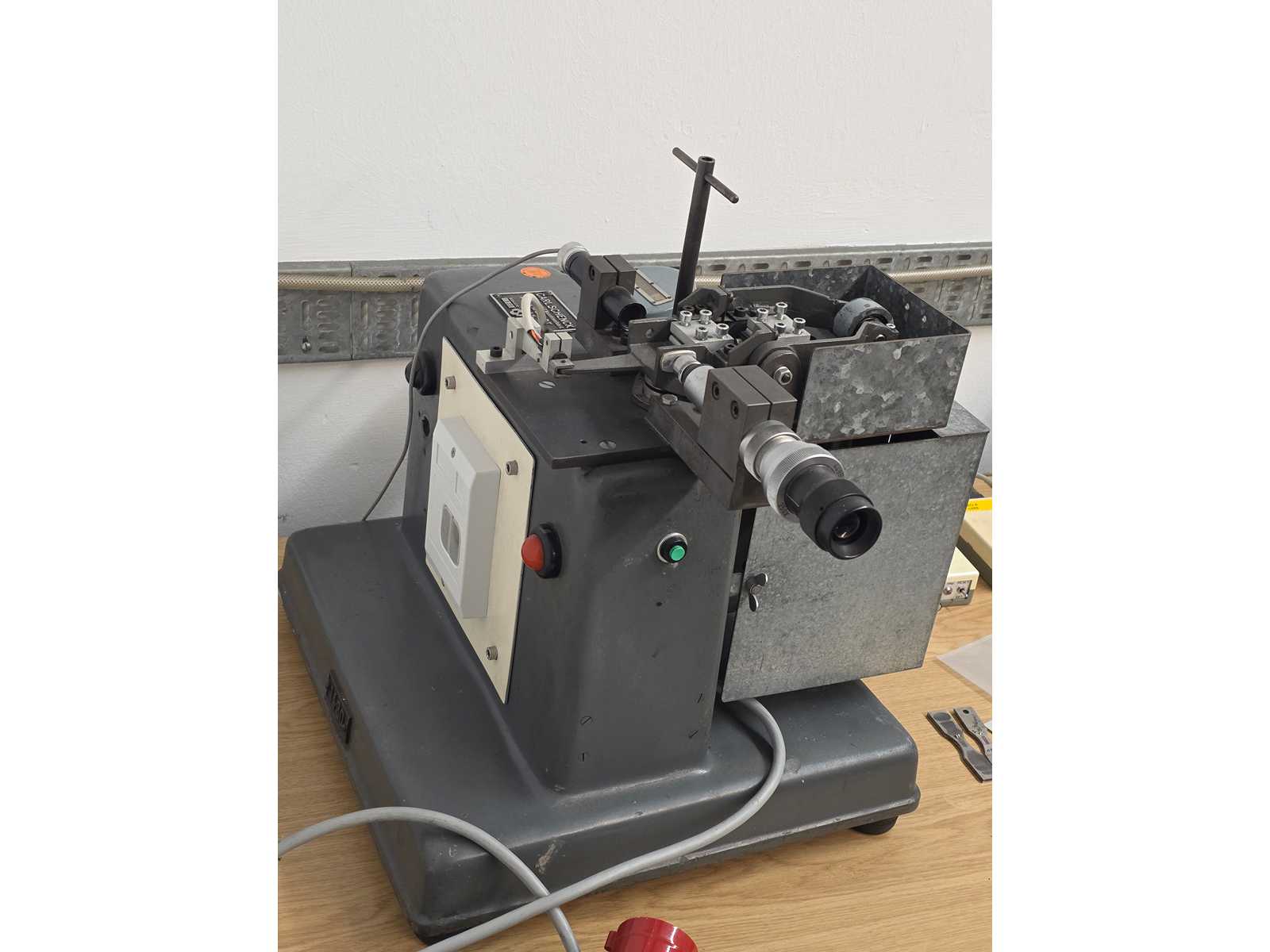

Fatigue testing machine max. bending moment: ±12Nm alternating max. bending moment: 24Nm swelling, 3 different measuring springs are available, test frequency: 23Hz Waisted flat sample possible in three different variants Optical measuring device, preload and load amplitude can only be adjusted via travel Auction-ID: A1-51071-13

Fatigue testing machine max. bending moment: ±12Nm alternating max. bending moment: 24Nm swelling, 3 different measuring springs are available, test frequency: 23Hz Waisted flat sample possible in three different variants Optical measuring device, preload and load amplitude adjustable via travel Auction-ID: A1-51071-14

Fatigue testing machine max. bending moment: ±12Nm alternating max. bending moment: 24Nm swelling, 3 different measuring springs are available, test frequency: 23Hz Waisted flat sample possible in three different variants Optical measuring device, preload and load amplitude adjustable via travel Auction-ID: A1-51071-12

Servo-Hydraulic Testing Machine Machine for dynamic and static tensile / compressive testing of materials and components Max. static and dynamic swelling load: ±100 kN Max. dynamically changing load: ±80 kN, max. piston travel: 100mm, frequencies: 0 to 20 Hz possible ZD_Kegelkopf, ZD_Kegelkopf_kurz6, ZD_Kegelkopf_kurz8, 4PB_Balken Integrated hydraulic power unit Control: Instron Fast Track 8800 100kN version Instruction manual included Enclosed disks: Console 8, WaveMatrix, National Instruments NI-488.2 (GPIB driver) With defect, cannot be started. Auction-ID: A1-51071-9

Servo-hydraulic testing machine from Schenck/Instron with control unit Instron Fast Track 8800 and oven option from Instron. Of course, the furnace control unit from Instron is also included. In addition, various data carriers from Instron come with the control software: CD1: RS Labsite V2.3; CD2: Instron 8800 Firmware V07.89.00 Upgrade Disk; CD3: RS Console V7.19). A PC does not come with it for data protection reasons. Also included is the breakout box for all the plug connections and the extensive documentation in several folders. The oven was retrofitted in 2009 and is still as good as new. - Servo-hydraulic testing machine, PPE - Machine for dynamic and static tensile / compression testing of materials and components - max. static tensile force: less than 80 kN, max. dynamic force: 80% of the nominal force, max. piston travel: 100mm, frequencies: 0 to 20 Hz possible - ZD_Kegelkop ...

Bending Tensile Testing Machine Testing of large specimens for bending tensile strength Load ranges: 40kN, 100kN, 200kN Specimen width maximum 1.32 m Specimen length depends on the space required and the specimen weight The buyer must dismantle and load the machine/system. Auction-ID: A1-51071-16

- Electromagnetic Resonance Testing Machine - High-frequency pulsator - Max. one-sided tensile compressive load: 20 kN Max. alternating load: ±10 kN, max. travel: ±1.2mm, frequency range: depending on the stiffness of the structure and the number of additional weights between 35 and 240 Hz - Round specimens with threaded heads, flat specimens, bending specimens - Static pre-force adjustable by hand The device stands on a concrete foundation cube, which weighs about 2t and is part of the auction scope. The device has a RUMUL control cabinet. This cannot be started. Auction-ID: A1-51071-11

To be visited under power after consultation Auction-ID: A7-50850-1

Auction-ID: A7-50851-98

see photos for more details Auction-ID: A7-50677-149

SmartDM Multimeter 32-2k.k SmartDC Power Supply Tradinco Osciloscopee 35-4Q. KZ102 Including workbench Already disassembled Auction-ID: A1-50076-14

Frame 10x40x120 cm Auction-ID: A1-50076-1012

including workbench Auction-ID: A1-50076-1024

Auction-ID: A7-50851-99
