Tijeras de las pizarras de los motores (13)

sheet width: 2050 mmplate thickness: 3.0 mmdistance between columns: 2100 mmback stop - adjustable: 550 mmno. of strokes: 35 Hub/mincutting angle: 2°12 table width: 400 mmtable height: 850 mmControl: konv. total power requirement: 3.0 kWweight of the machine ca.: 1280 kgdimensions of the machine ca.: 2400 x 1500 x 1300 mm Current new price approx. 20.000 Euro from a maintenance workshopEquipment:- robust / powerful electro-mechanical guillotine shears- manual material backgauge stepless adjustment range adjustment from behind - by handwheel including mm scale max. adjustment range 550 mm- Manual kerf adjustment, from the front- 1x side stop with mm-scale- 1x support arms- 1x free-moving foot switch- rear sheet metal chute- rear safety device (light barrier)- Operating instructions (machine control)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

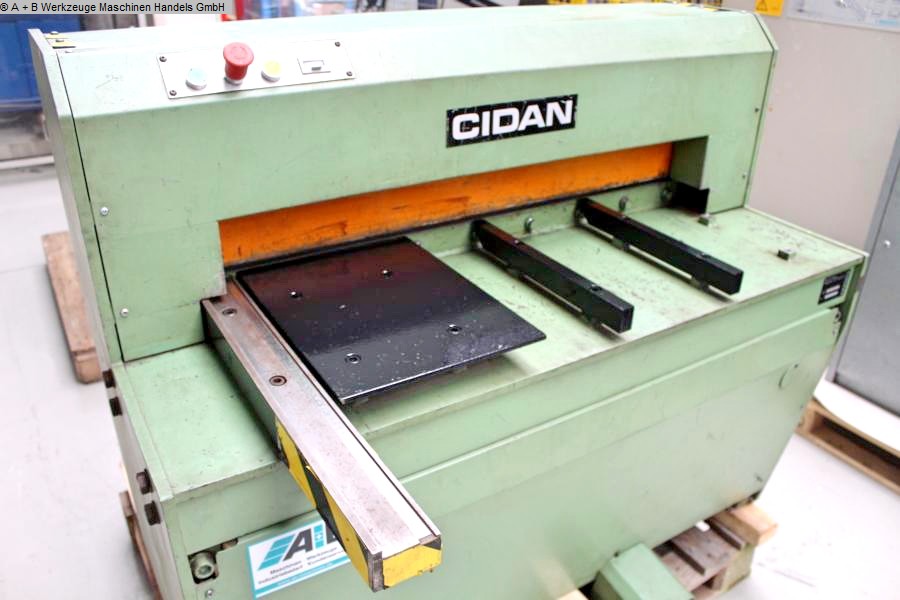

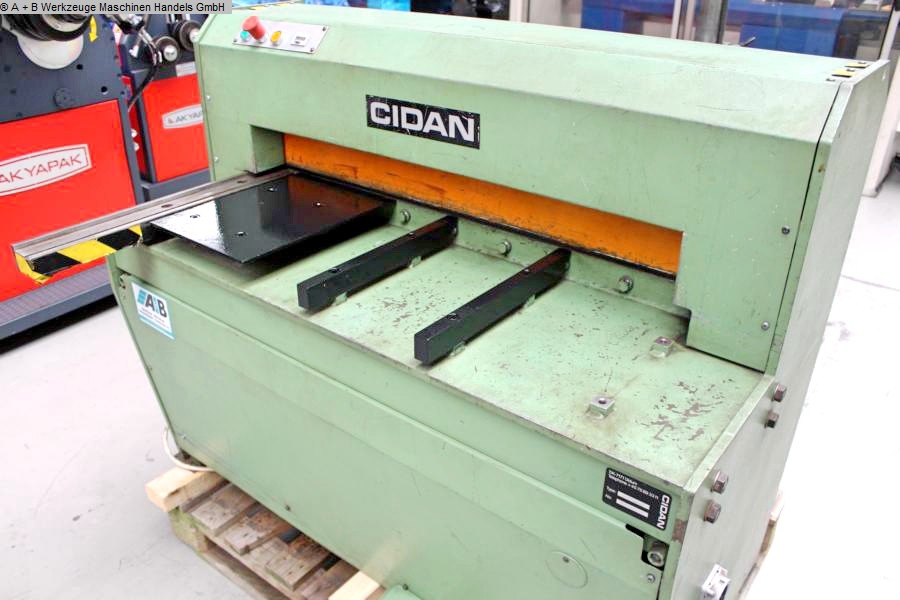

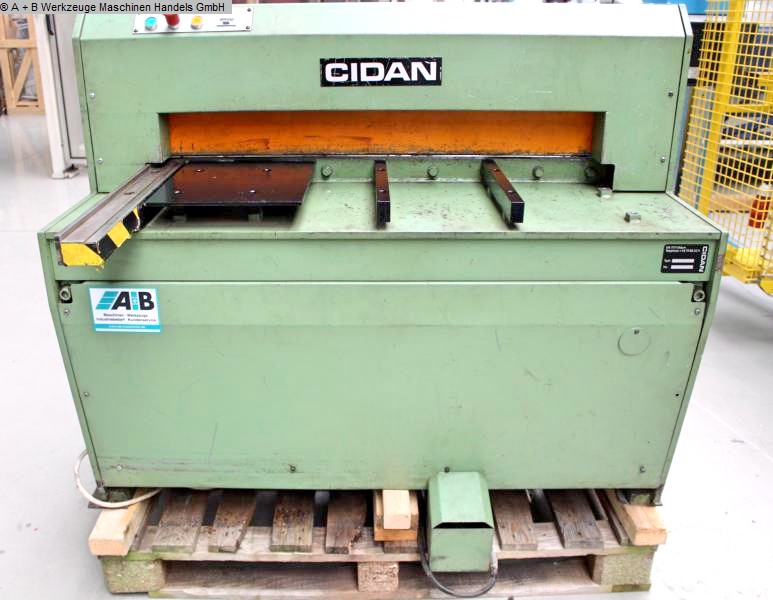

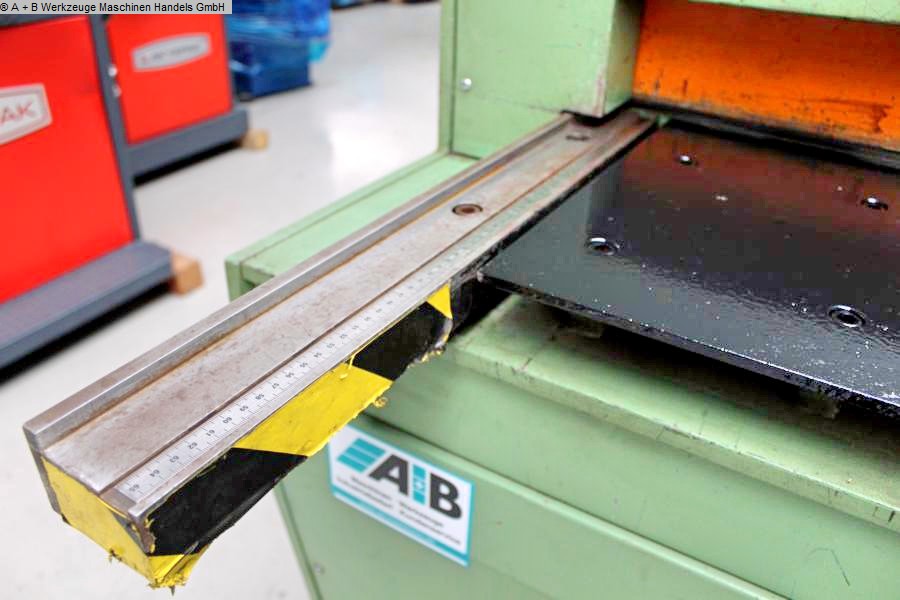

sheet width: 1350 mmplate thickness: 4.0 mmthickness at Niro-steel: 2.0 mmno. of strokes: max. 35 Hub/mincutting angle: 2.0 Gradtable height: 945 mmdistance between columns: 1361 mmControl: CIDAN / SIEMENS engine output: 5.5 kWweight of the machine ca.: 1400 kgrange L-W-H: 2200 x 2000 x 1550 mmFeatures:- robust / motorized swing cut guillotine shears- unbreakable and torsion-free welded steel construction- compact and clear machine construction- NC electro-motorized backgauge, with digital display Target / actual value stop value input stepless adjustment over the entire travel range- 1x hold-down bar- 1x material side stop- recessed grips in the front support table- Manual cutting gap adjustment from the front- Rear sheet holding device for thin sheets- 1x freely movable foot switch- Operating instructions (PDF)The data for this ad was created with ModulMWS - the software solution of Lo ...

sheet width: 2500 mmplate thickness: 3 mmdistance between columns: 2540 mmback stop - adjustable: 550 mmtotal power requirement: 5 kWweight of the machine ca.: 2,7 tdimensions of the machine ca.: 3,2 x 2,5x 1,9 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2530 mmplate thickness: 2.50 mmthickness at Niro-steel: 1.50 mmno. of strokes: 34 Hub/mincutting angle: 1.7 Gradtable height: 820 mmdistance between columns: 2620 mmControl: konv. engine output: 4.0 kWweight of the machine ca.: 1350 kg.range L-W-H: 3100 x 1980 x 1400 mmFeatures:- robust / motorized swing cut guillotine shears- unbreakable and torsion-free welded steel construction- compact and clear machine construction- manual backgauge, with analog display Adjustable from the rear stepless adjustment over the entire travel range- all-steel blade, double-edged- 1x hold-down bar- 1x long side stop- 2x front support arms- Support/working table with 10 mm spaced grooves- Selector switch for single and continuous stroke- 1x freely movable foot switch- Operating instructionsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1530 mmplate thickness: 4.0 mmthickness at Niro-steel: 2.0 mmno. of strokes: max. 34 Hub/mincutting angle: 2.70 Graddistance between columns: 1540 mmwork height max.: 920 mmvoltage: 400 VControl: konv. engine output: 3.2 kWweight of the machine ca.: 1115 kg.range L-W-H: 2275 x 2220 x 1400 mmFeatures:- Robust motorized swing-arm guillotine shear- Break-resistant, torsion-resistant welded steel construction- Compact and easy-to-use machine design- Manual backgauge, adjustable from the rear Stepless adjustment across the entire travel range- 1x hold-down bar- 1x freely movable foot switch- Front, extendable table extension- Rear safety device- Original operating instructions Optional accessories included:- Sheet metal holding device for thin sheet metal blanksThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 1360 mmplate thickness: 06,0 mmdistance between columns: mmtable width: 455 mmwork height max.: 880 mmcutting angle: 1°30 °rear stop: 750 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 3100 mmplate thickness: 2.00 mmthickness at Niro-steel: 1.25 mmno. of strokes: max. 36 Hub/mincutting angle: 0.9 Gradtable height: 800 mmtable width: 430 mmdistance between columns: 3200 mmback stop - adjustable: 5.0 - 750 mmControl: konv. engine output: 3.0 kWweight of the machine ca.: 1950 kgrange L-W-H: 3730 x 2070 x 1400 mm Original price approx. 45.000 euros () Special price on requestFeatures:- Robust / motorized swing-cut guillotine shears- Machine with manual material/backgauge Travel range 5.0 – 750 mm stop depth Analog position display Manual adjustment from the front - Break-proof, torsion-free steel welded construction- Compact and clear machine design- 1x hold-down beam Hold-down opens before the knife beam moves up No kinking of very sensitive sheets- Manual cutting gap adjustment- Integrated sheet metal holding system for thin sheet metal cuts- Sheet metal ...

sheet width: 4080 mmplate thickness: 2.0 mm STthickness at Niro-steel: 0.8 mmSheet thickness for ALU: 2.5 mmno. of strokes: 34 Hub/mincutting angle: 1.3 Graddistance between columns: 4310 mmback stop - adjustable: 15.0 - 750 mmtable height: 820 mmControl: ELGO engine output: 9.0 kWweight of the machine ca.: 3600 kg.range L-W-H: 5250 x 2200 x 1400 mm Good condition () Current new price approx. €70,000 Special price upon requestThe MHSU motor-driven guillotine shear is based on a torsion-free, rigid welded construction and a dynamic, quiet, and powerful gear motor. High static and dynamic rigidity is ensured by robustly dimensioned main components such as the cutter bar, support table, side supports,and the main drive unit. The motor-driven guillotine shear was developed forsheet metal and plastics processing. With these shears, you can effortlessly produce clean cuts in series.Features: ...

sheet width: 1320 mmplate thickness: 2.5 mm STthickness at Niro-steel: 1.2 mmblade length: 1350 mmno. of strokes: 34 Hub/minback stop - adjustable: max. 825 mmcutting angle: 1.5 °work height max.: 810 mmControl: konv. engine output: 3.0 kWweight: 1100 kgrange L-W-H: 1950 x 1450 (2000) x 1200 mm Exhibition machine - like new Never been used () Special price upon requestFeatures:- Robust electro-mechanical sheet metal shear- Heavy-duty / robust drive motor- Manual backgauge, including analog position indicator Adjustment range max. 825 mm- Manual cutting gap adjustment- 2x table side stops including mm scale- 1x front stop bar - manually adjustable- 2x front support arms- Grip recess in the front work table- 1x freely movable foot switch, including emergency stop button- Control cabinet/operating panel - front right- Rear safety device- Rear sheet chute- Connection cable + plugThe data fo ...

sheet width: 1050 mmplate thickness: 3.0 mmthickness at Niro-steel: 1.5 mmno. of strokes: 35 Hub/mincutting angle: 2°30 °engine output: 3.0 kWtable height: 810 mmweight of the machine ca.: 1150 kg.range L-W-H: 1300 x 1520 x 1170 mm from a maintenance workshop ()Furnishing:- robust electro-motorized metal sheet shears- manual backgauge- adjustable up to 610 mm, using the handwheel from the back- 1x side stop including mm scale- 2x table sheet metal support arms- Piece counter- freely movable foot switch- rear sheet metal slide- EMERGENCY stop button at the front Machine link:https://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php?machinen o=1008-9325126The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sheet width: 2540 mmplate thickness: 2.00 mmthickness at Niro-steel: 1.25 mmno. of strokes: max. 63 Hub/mincutting angle: 1.13 Gradtable height: 750 mmtable width: 320 mmdistance between columns: 2620 mmback stop - adjustable: 5.0 - 550 mmControl: konv. engine output: 3.0 kWweight of the machine ca.: 1600 kgrange L-W-H: 3100 x 1980 x 1400 mmEquipment:- robust / motorized swing cut guillotine shears- break-proof, torsion-free steel welded construction- compact and clear machine design- manual back stop, with analogue display adjustable from the front stepless adjustment over the entire travel range- recessed grips in the support table- 1x hold-down bar- 1x side stop- 3x support arms- 1x freely movable foot switch- operating instructions (PDF) Special accessories included:- sheet metal holding device for thin sheet metal cutsThe data for this ad was created with ModulMWS - the software sol ...

sheet width: 1040 mmplate thickness: 2.50 mmthickness at Niro-steel: 1.25 mmno. of strokes: max. 90 Hub/mincutting angle: 2.70 Graddistance between columns: 1060 mmwork height max.: 940 mmback stop - adjustable: max. 550 mmcolumn arm: 120 mmvoltage: 400 Vengine output: 4.0 kWweight of the machine ca.: 820 kg.range L-W-H: 1650 x 1200 x 1250 mmEquipment:- robust / motorized crank guillotine shears with motor drive- break-proof, torsion-free steel welded construction- compact and clear machine design- manual back stop, with analog position display adjustable from behind continuous adjustment over the entire travel range travel range max. 550 mm- 1x hold-down bar- 1x side stop- 1x front support arm- original operating instructionsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

cutting length: 2500 mmplate thickness: 3 mmdistance between columns: 2050 mmblade length: 2650 mmtotal power requirement: 3 kWweight of the machine ca.: 2,5 t- The scissors are equipped with an adjustable stop on the back. stop. Each side is equipped with a millimetre counter, so that the guarantee that the cuts are true to size.- Spring-loaded automatic hold-downs prevent the material from shifting during the cutting process. material during the cutting process.The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
