Máquinas para aplicação de cola em cantos BRANDT KDF 220 Highflex
máquinas para trabalhar madeira / espalhadores de cola / Máquinas para aplicação de cola em cantos
Edge banding machine Brandt Highflex KDF 220 with jointing, corner copying and two Scraper blades. Very well automated. A video of the running machine can be sent on request. Edge thickness roll approx. 0.4 - 3mm, solid edge up to 6mm Workpiece height approx. 10 - 60mm Feed speed approx. 10m/min ...
Fabricante: BRANDT
Modelo:KDF 220 Highflex
Tipo de máquina: Máquinas para aplicação de cola em cantos
Número do item: 170164228
Quantidade: 1
Data: 09.09.2026
Ano de fabricação: 2013
Localização:
Alemanha
40764 Langenfeld
Preço: 25,500 EUR
Máquina em estoque:Sim
Edge banding machine Brandt Highflex KDF 220 with jointing, corner
copying and two
Scraper blades. Very well automated.
A video of the running machine can be sent on request.
Edge thickness roll approx. 0.4 - 3mm, solid edge up to 6mm
Workpiece height approx. 10 - 60mm
Feed speed approx. 10m/min
Noise protection hood
Pull-out workpiece support
Suction connection 1x120mm, 1x100mm, 3x80mm

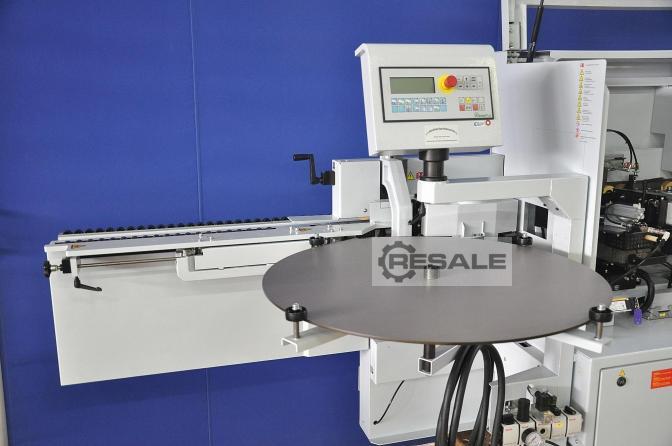

Easy-touch EC+ control for easy operation of the machine
4 programs can be saved.
Machine in high-flex design, highly automated, change of edge from thin edge to thick edge via programs
Aggregates:
Extended inlet zone
Chain conveyor central lubrication, pneumatic manual
Quick-change glue basin device, currently one glue basin available
Top pressure manual adjustment, PU rollers
Infeed ruler manual adjustment with SIKO counter on chip removal
Joint milling with slide milling, sharpened
Contact heating shoe for heating the plate
Gluing part with automatic edge retraction for roll goods up to 3mm, switchable for synchronisation and counter-rotation
Pressure zone with 3 rollers, pneumatic adjustment between thin and thick edge
Cross-cut saw with 2 motors, straight caps or chamfer caps (program adjustment)
Combined milling unit, pneumatically controllable for flush milling machines, chamfer and radius
Corner milling machine R2 with slide milling cutter with integrated touch ring
Radius scraper R2, pneumatically engageable with quick-change device
Glue joint scraper with large roller, pneumatically use-controlled
Hood lock
CE mark
All inserts of the milling units and the scraper blades have been renewed or turned,
Saws sharpened, slide cutters sharpened. So the machine is ready for use. Only the slide cutter of the shape milling machine has not been replaced, but is still sharp.
Original paint, only a few places dabbed.
Unfortunately, the machine does not have an operating hour counter, but it still looks very good.

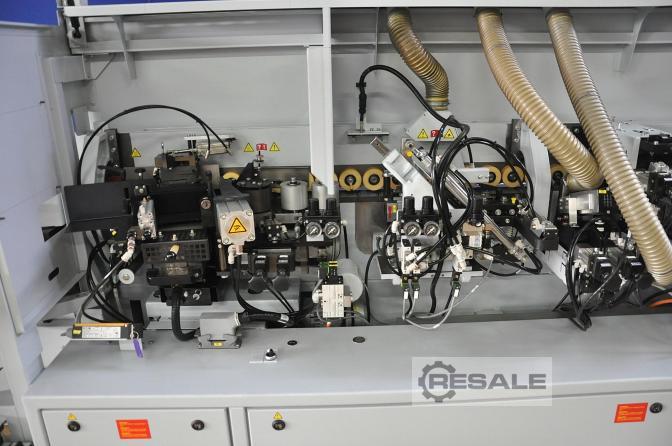

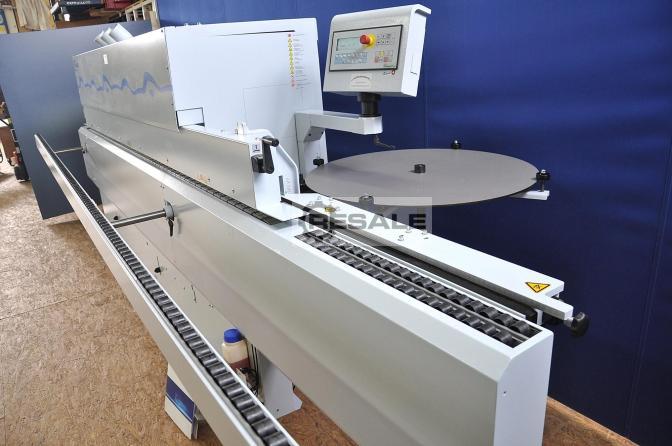

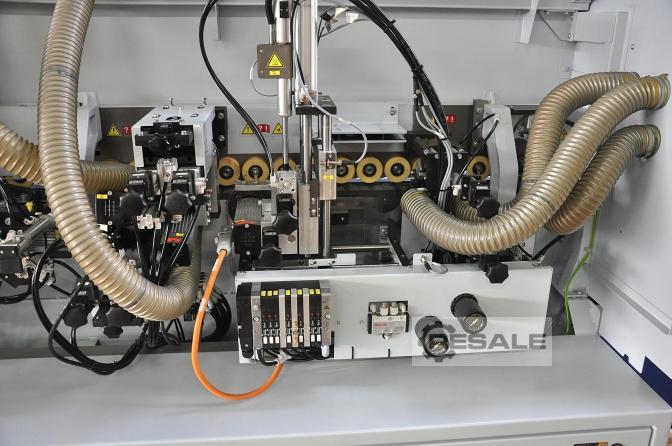

Very good condition, see original photos
Dimensions of the machine approx. 4550 x 1250 x 1550mm (LxWxH)
Weight approx. 1400kg.
The machine can be demonstrated on site by appointment. We offer
only machines that are ready for demonstration in our warehouse, see "other offers of this year".
provider".
Scraper blades. Very well automated.
A video of the running machine can be sent on request.
Edge thickness roll approx. 0.4 - 3mm, solid edge up to 6mm
Workpiece height approx. 10 - 60mm
Feed speed approx. 10m/min
Noise protection hood
Pull-out workpiece support
Suction connection 1x120mm, 1x100mm, 3x80mm
Easy-touch EC+ control for easy operation of the machine
4 programs can be saved.
Machine in high-flex design, highly automated, change of edge from thin edge to thick edge via programs
Aggregates:
Extended inlet zone
Chain conveyor central lubrication, pneumatic manual
Quick-change glue basin device, currently one glue basin available
Top pressure manual adjustment, PU rollers
Infeed ruler manual adjustment with SIKO counter on chip removal
Joint milling with slide milling, sharpened
Contact heating shoe for heating the plate
Gluing part with automatic edge retraction for roll goods up to 3mm, switchable for synchronisation and counter-rotation
Pressure zone with 3 rollers, pneumatic adjustment between thin and thick edge
Cross-cut saw with 2 motors, straight caps or chamfer caps (program adjustment)
Combined milling unit, pneumatically controllable for flush milling machines, chamfer and radius
Corner milling machine R2 with slide milling cutter with integrated touch ring
Radius scraper R2, pneumatically engageable with quick-change device
Glue joint scraper with large roller, pneumatically use-controlled
Hood lock
CE mark
All inserts of the milling units and the scraper blades have been renewed or turned,
Saws sharpened, slide cutters sharpened. So the machine is ready for use. Only the slide cutter of the shape milling machine has not been replaced, but is still sharp.
Original paint, only a few places dabbed.
Unfortunately, the machine does not have an operating hour counter, but it still looks very good.
Very good condition, see original photos
Dimensions of the machine approx. 4550 x 1250 x 1550mm (LxWxH)
Weight approx. 1400kg.
The machine can be demonstrated on site by appointment. We offer
only machines that are ready for demonstration in our warehouse, see "other offers of this year".
provider".
