Máquinas de encolagem de cantos CASADEI INDUSTRIA K 30/10 HF

Code: 0197
Brand: CASADEI INDUSTRIA
Model: K 30/10 HF - CE Standard

Automatic edge bander for straight panels, with glue tank for wood, veneer, pvc, melamine, abs and various - CE Standard

Technical data

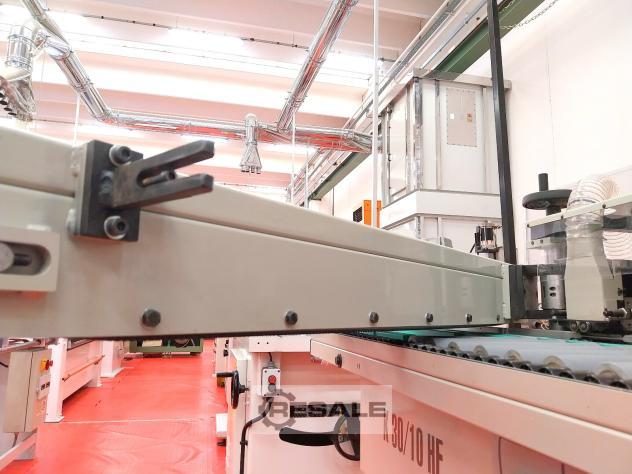

Automatic belt conveyor for panel feed - Speed 7 mt/min
Panel height mm 10/45
Edge thickness up to 3 mm

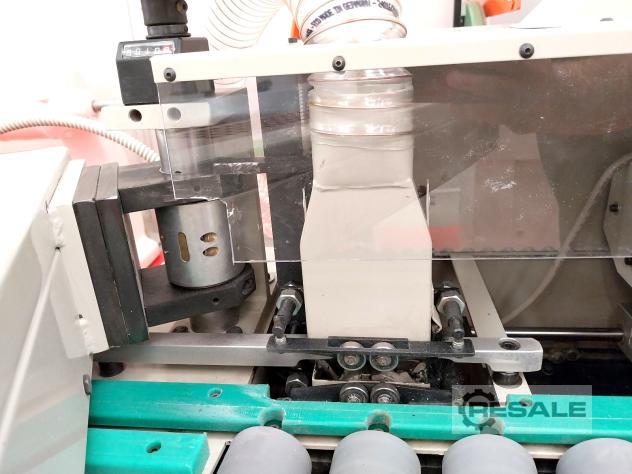

Gluing unit: Glue tank capacity kg 1,2 - Electronic temperature control

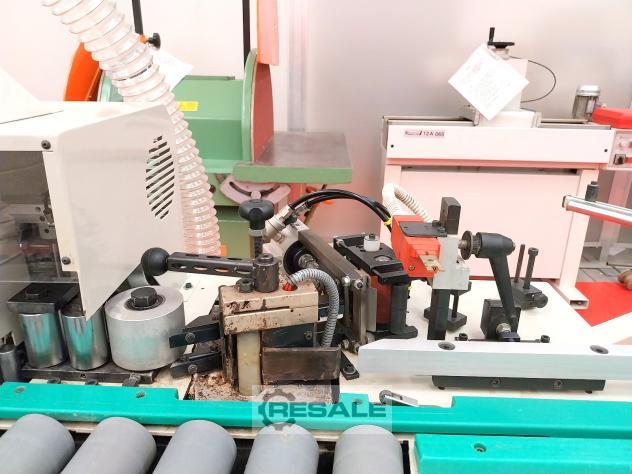

Front and rear pneumatic end cutting unit with circular Vidia blades - Micrometric cutting depth adjustment -End cutting speed 9000 rpm - End cutting blade diameter 80 mm

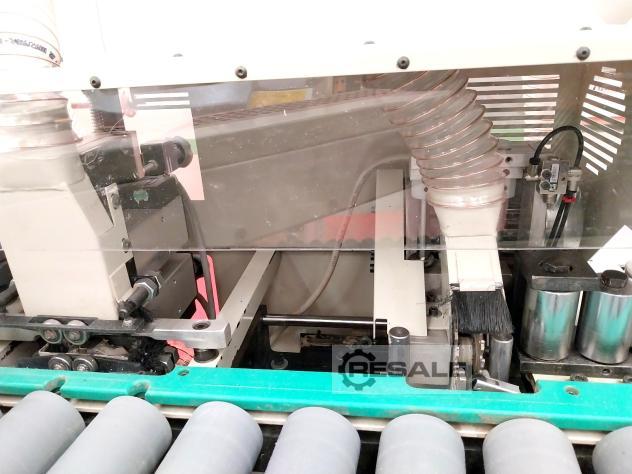

Upper and lower end trimming unit - Vidia cutters diameter 80 - Possibility of combined radius/chamfer cutters - End Trimming speed 9000 rpm
Total power Kw 2,2
N° 3 suction ports diameter 60 mm
Panel support roller conveyor
Overall dimensions mm 2150 x 800 x 1200 h
Weight kg 405



seller offer No. resale Code: 0197
