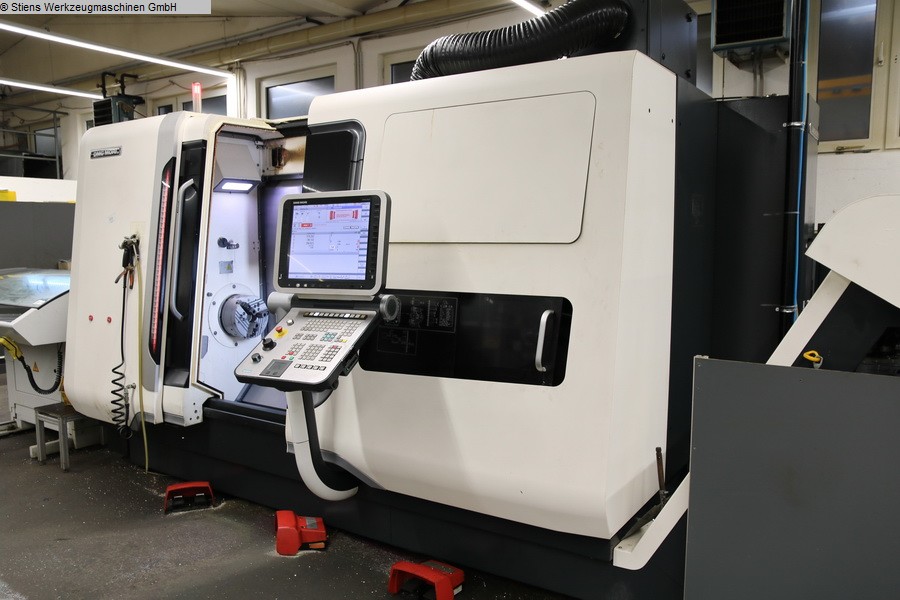

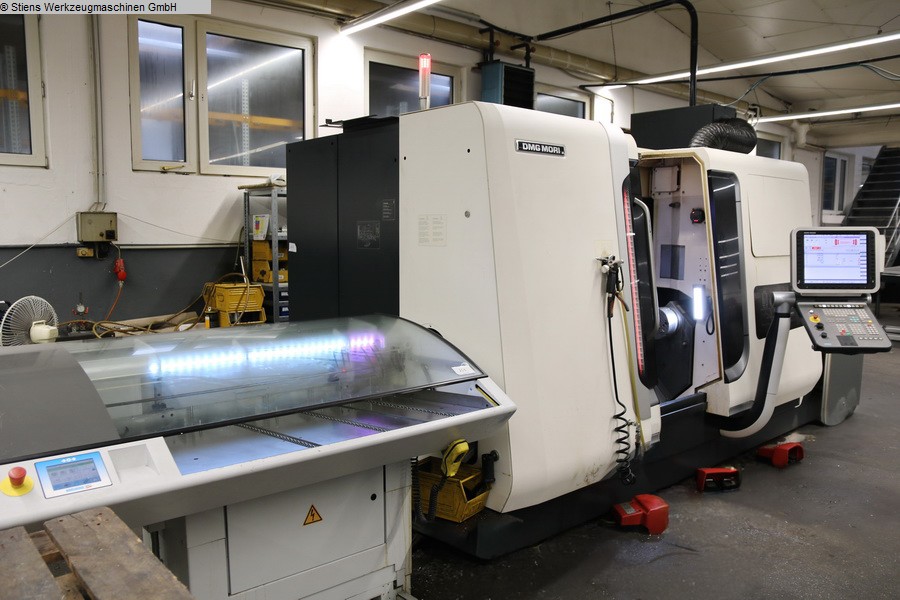

Máquinas rotativas CNC DMG MORI CTX beta 800 TC V6

turning diameter: max. 500 mm
turning length: 800 mm

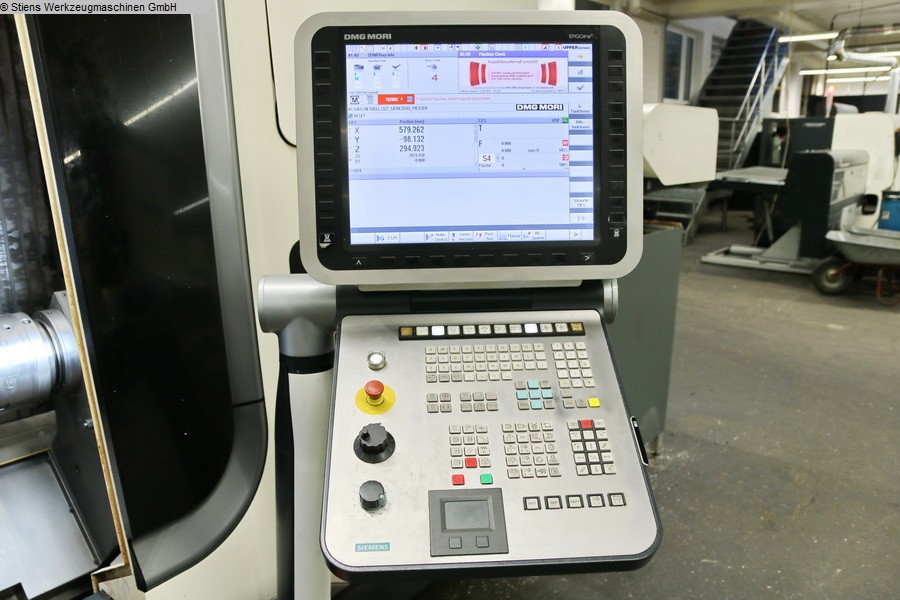

control: sl Operate 3G ShopTurn Siemens
swing diameter: 500 mm
distance between spindles: 1.020 mm
Main spindle::
turning speed range - main spindle: max. 5.000 min/-1
power capacity - main spindel: 25 / 34 kW
max. Torque: 280 / 380 Nm
spindle head: 170h5
spindle diameter in front bearing: 130 mm
spindle bore: 87 mm
C-Axis: 0,001 °
tool magazin::
tool taper: HSK 63 A
number of toolpositions: 80 pos.
max. tool diameter: 80 mm
max. tool-dia with free toolbox: 120 mm
max. tool weight: 12 kg
max. tool length: 300 mm
Milling Spindle::
Speed Milling Spindle: max. 12.000 min/-1
power capacity - milling spindle: 19 / 22 kW
Torque: 85 / 100 Nm
tool taper: HSK 63 A
B-Axis: +/- 110 °
axis stroke::
x-axis: -10 ... +490 mm
y-axis: +/- 100 mm
z-axis: 1: 845 mm
z-axis: 2: 600 mm
z-axis: 3: 800 mm
Subspindel::
Spindle speed range subspindle: max. 6.000 min/-1
power capacity - Sub spindle: 20 / 27 kW
bar material dia.: 51 mm
spindle bore diameter: 73 mm
spindle diameter in front bearing: 100 mm
C-Axis: 0,001 °
total power requirement: 85 kVA
weight of the machine ca.: 10,0 t
dimensions of the machine ca.: 7,0 x 2,9 x 2,6 m
Documents:
Chip conveyor:
Milling spindle:
Coolantsystem: 980 L
high pressure coolant: 8/20/80 bar
hydraulic system:
Automatic Tool Changer: 80 pos.
work light:
C-axis:
B-axis:
Y-axis:
Subspindle:
bar feeder: ILS MUK 7012-III
tool holder: div.
Oil Dust Skimmer: 600 m³/h
autom. Frontdoor:

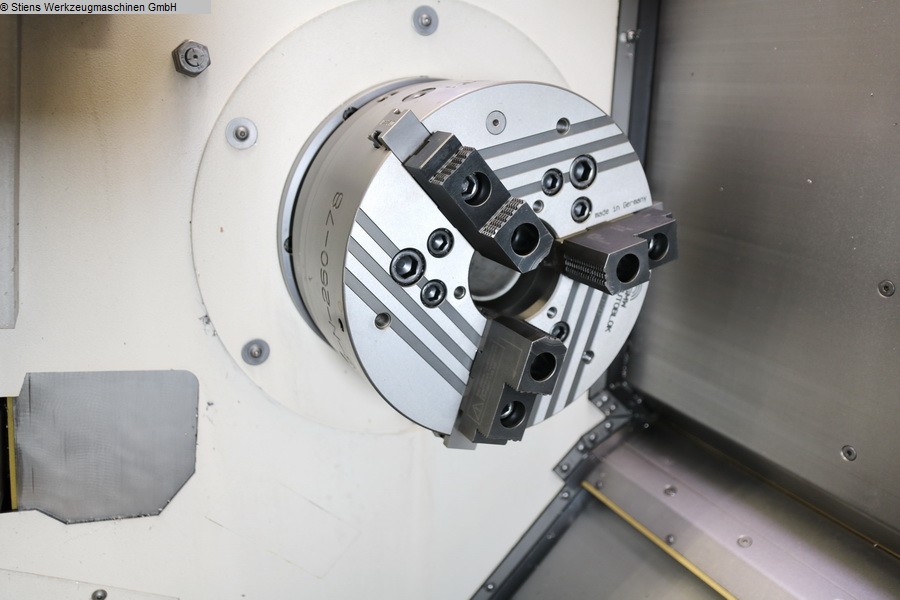

Three Jaw Chuck: SMW KNCS-N 260-78
Three Jaw Chuck: SMW KNCS-N 210-52
paper band filter:
Renishaw: RMI-Q
parts catcher:
hollow chuck unit: hydr.
Signal lamp - 4 colour:
Tailstock function counter spindle:
CNC - Turning- and Millingcenter
DMG MORI - CTX beta 800 TC V6

- 5-axis simultaneous machining
- Main and counter-spindle

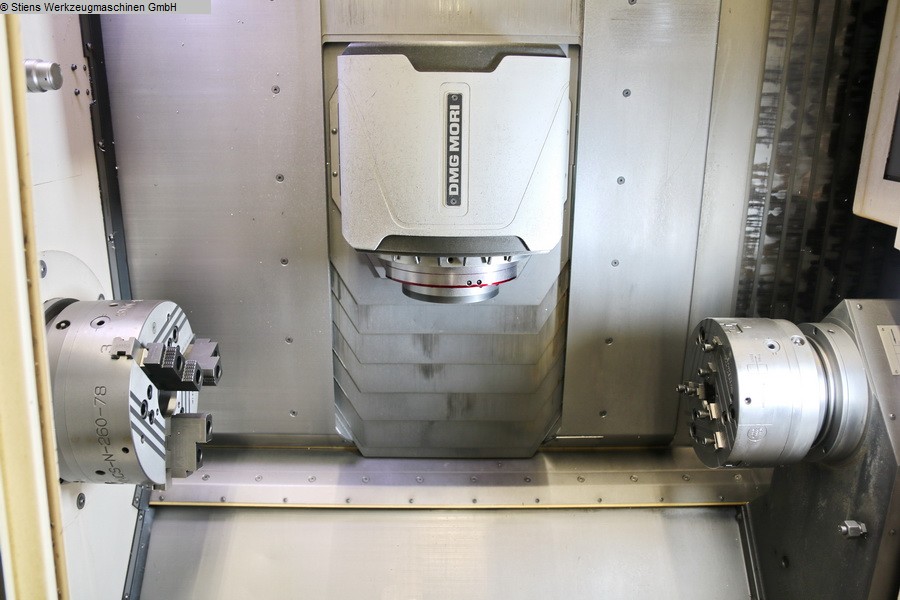

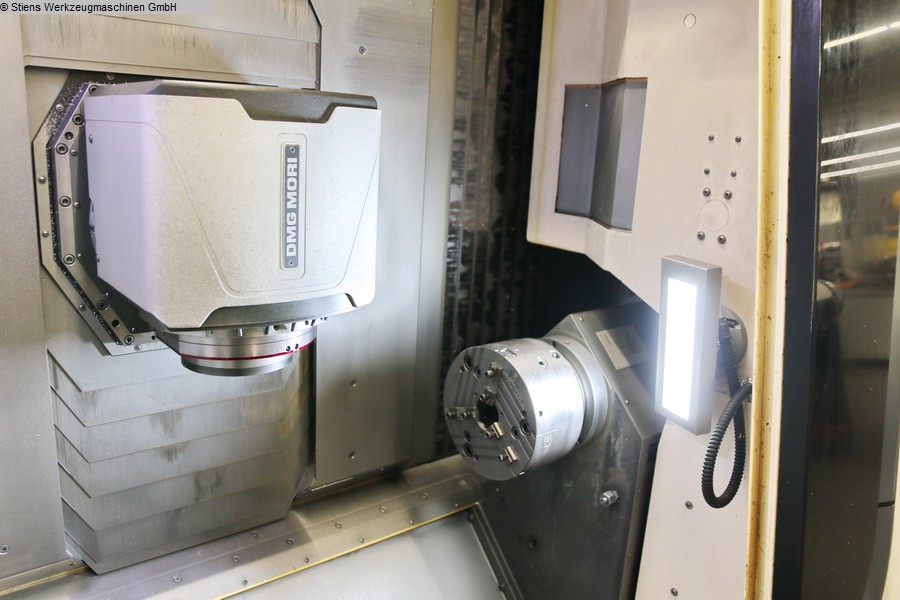

- Swivel-type milling spindle
- ShopTurn

- Off-center turning and milling
- Multi-thread cycle
- Program state control
- Tool sorting cycle
- Easy Tool Monitor for Siemens control system
- Chuck flushing system for main spindle
- Chuck flushing system for counter-spindle
- Differential pressure clamping
- Coolant supply through the counter-spindle

- Bar machining package for CTX beta (77 mm capacity)

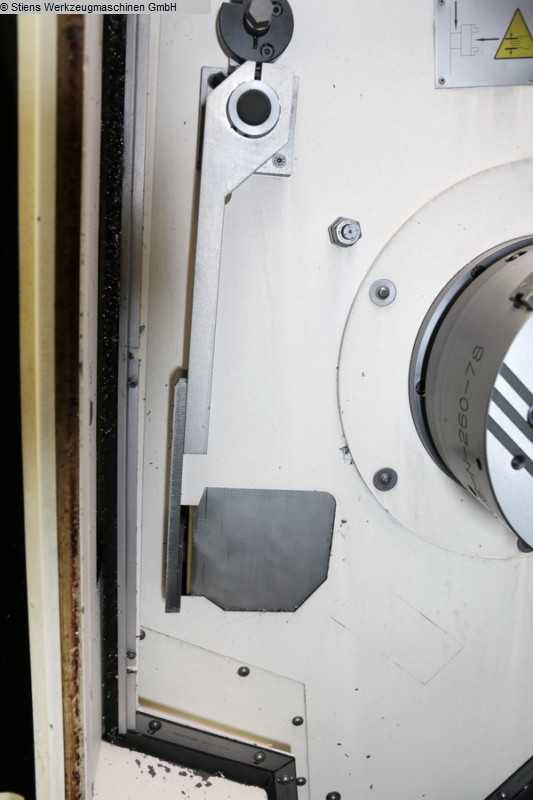

Workpiece the-take-off device (left side)
Hydraulic hollow clamping system
4-color signal tower
Interface for bar feeder or bar magazine

- In-process workpiece measuring system (Renishaw)
- Safety window cleaning system
- Coolant spray gun
