Máquinas rotativas CNC HEYLIGENSTAEDT HEYNUMAT 24U/1500 with C-axle
máquinas para trabalhar metal / tornos / Máquinas rotativas CNC
CNC Lathe HEYLIGENSTAEDT HEYNUMAT 24U/1500 with C-axis Year of manufacture 1991 Control SIEMENS 3T Speed – two gear stages 9 – 2,240 rpm. FORKHARDT 3NHF-400-120 Ø 400 FORKHARDT KS 500 Ø 500 Bezel SMW - SLK Turret TWS Shaft Size 60 mm / 12 Tool Positions Tailstock quill Ø 160 mm / stroke 160 ...
Fabricante: HEYLIGENSTAEDT
Modelo:HEYNUMAT 24U/1500 with C-axle
Tipo de máquina: Máquinas rotativas CNC
Número do item: 170289214
Quantidade: 1
Data: 07.10.2026
Ano de fabricação: 1991
Localização:
Alemanha
92729 Weiherhammer
Preço: 9,900 EUR
Máquina em estoque:Sim

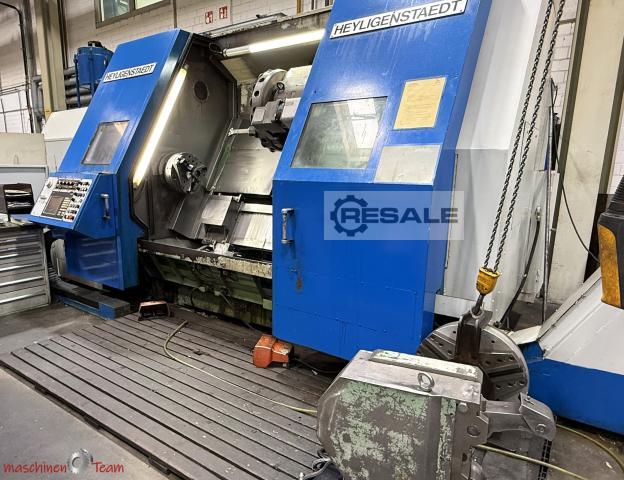

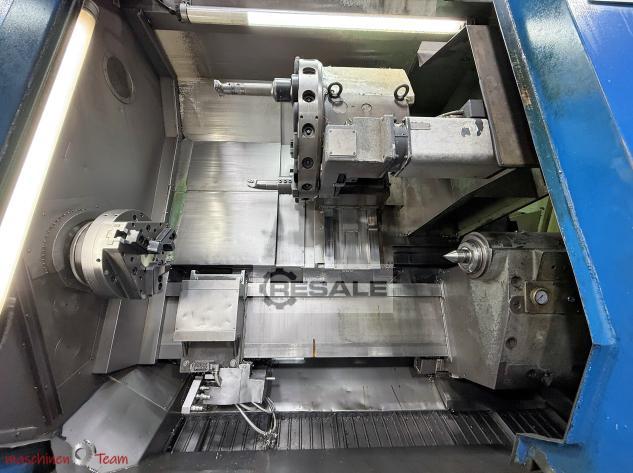

CNC Lathe
HEYLIGENSTAEDT HEYNUMAT 24U/1500
with C-axis
Year of manufacture 1991
Control SIEMENS 3T
Speed – two gear stages 9 – 2,240 rpm.

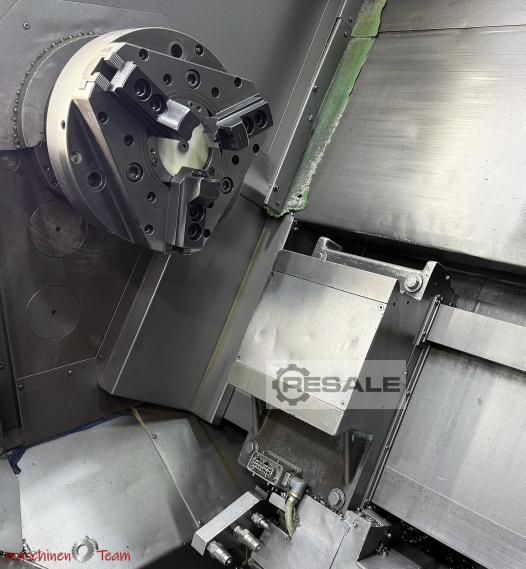

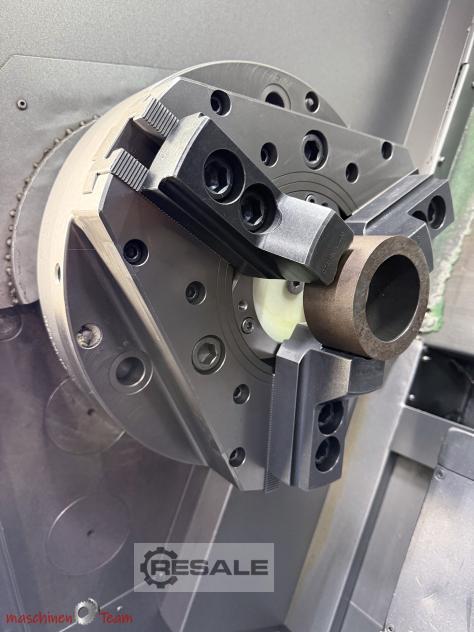

FORKHARDT 3NHF-400-120 Ø 400
FORKHARDT KS 500 Ø 500

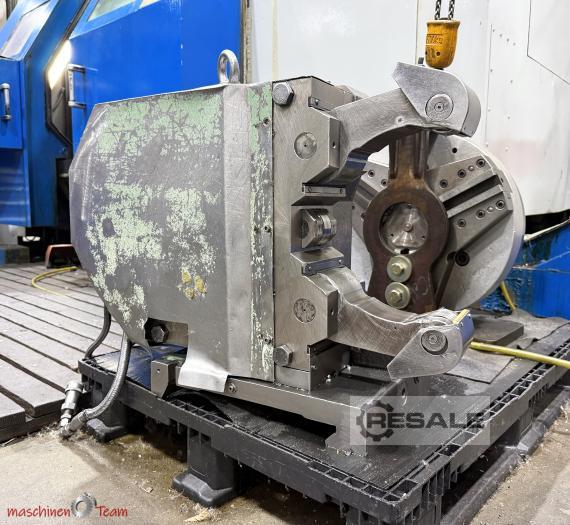

Bezel SMW - SLK

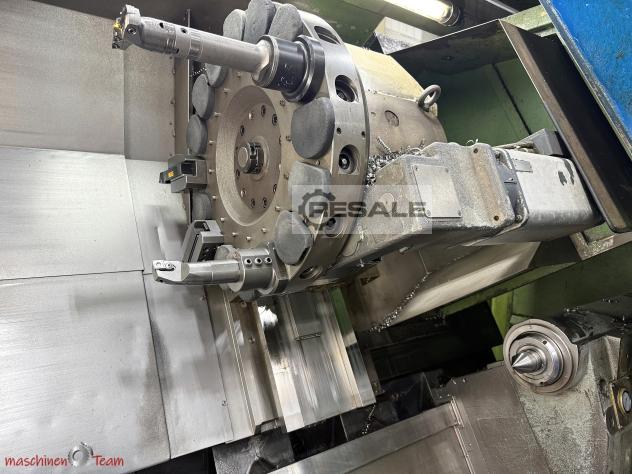

Turret TWS Shaft Size 60 mm / 12 Tool Positions
Tailstock quill Ø 160 mm / stroke 160 mm
Chip conveyor MAYFRAN
Circumferential diameter over bed 900 mm
Circumferential diameter over face slide 800/770 mm
Drive 55/75 kW
Weight approx. 12,000 kg
Machine chart with equipment & technical data – see PDF. All technical information, illustrations and content are non-binding and without guarantee. Subject to changes and errors.
All other accessories visible in the photos and video are not included in the scope of delivery, therefore not a component for this sale. The scope of delivery only includes the accessories that are expressly listed here, in the order confirmation and invoice.
EXW (Ex Works) D-92729 Weiherhammer
Exclusively dismantling, spreading and loading
Delivery time immediately
Subject to prior sale / payment immediately upon completion of purchase
HEYLIGENSTAEDT HEYNUMAT 24U/1500
with C-axis
Year of manufacture 1991
Control SIEMENS 3T
Speed – two gear stages 9 – 2,240 rpm.
FORKHARDT 3NHF-400-120 Ø 400
FORKHARDT KS 500 Ø 500
Bezel SMW - SLK
Turret TWS Shaft Size 60 mm / 12 Tool Positions
Tailstock quill Ø 160 mm / stroke 160 mm
Chip conveyor MAYFRAN
Circumferential diameter over bed 900 mm
Circumferential diameter over face slide 800/770 mm
Drive 55/75 kW
Weight approx. 12,000 kg
Machine chart with equipment & technical data – see PDF. All technical information, illustrations and content are non-binding and without guarantee. Subject to changes and errors.
All other accessories visible in the photos and video are not included in the scope of delivery, therefore not a component for this sale. The scope of delivery only includes the accessories that are expressly listed here, in the order confirmation and invoice.
EXW (Ex Works) D-92729 Weiherhammer
Exclusively dismantling, spreading and loading
Delivery time immediately
Subject to prior sale / payment immediately upon completion of purchase
