Plegadoras de chapa ZSCHOKKE HAP 063a - 4/6
máquinas para trabalhar metal / trabalho de chapa metálica / Plegadoras de chapa
Zschokke HAP 063a - 4/6 - Hydraulic press brake - Year of construction 1967 Technical data - Max. bending force: 630 t - Max. oil pressure: 400 atü - Column passage: 4100 mm - Max. bending length: 6000 mm - Projection: 375 mm - Stroke (adjustable): 0 - 500 mm - Distance of the tool holding ...
Fabricante: ZSCHOKKE
Modelo:HAP 063a - 4/6
Tipo de máquina: Plegadoras de chapa
Número do item: 169738318
Quantidade: 1
Data: 22.06.2026
Ano de fabricação: 1967
Localização:
Áustria
4664 Laakirchen
Preço: base para as negociações 29,000 EUR
Sua sugestão de preço:
Máquina em estoque:Sim
Seller-item-No.:200123
Zschokke HAP 063a - 4/6 - Hydraulic press brake
- Year of construction 1967
Technical data
- Max. bending force: 630 t
- Max. oil pressure: 400 atü
- Column passage: 4100 mm
- Max. bending length: 6000 mm
- Projection: 375 mm
- Stroke (adjustable): 0 - 500 mm
- Distance of the tool holding surface: 300 - 800 mm
Hydraulic pumps:
- Main pumps: 2x 22 kW
- Idle flow rate: 2x 153 l/min
- Full load flow rate: 2x 33 l/min
- Control pump: 0.75 kW

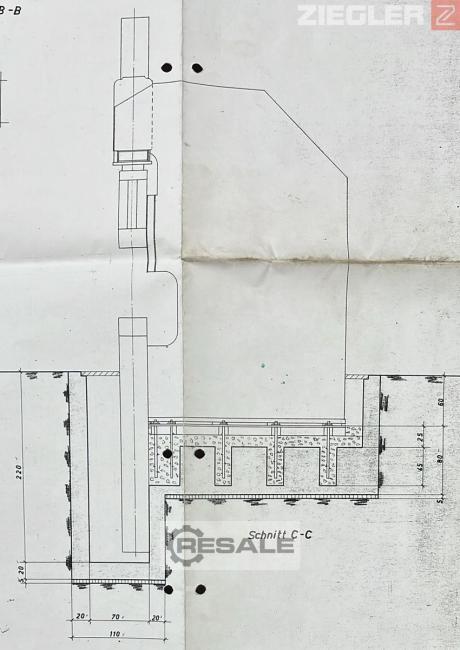

Installation:
- Footprint WxD: 6960 x 3250 mm
- Height above ground: 4100 mm
- Underfloor front: 2200 mm
- Underfloor rear: 600 mm
- Operating voltage: 3x 400 V / 50 Hz
- Machine weight: 51000 kg
- Year of construction 1967
Technical data
- Max. bending force: 630 t
- Max. oil pressure: 400 atü
- Column passage: 4100 mm
- Max. bending length: 6000 mm
- Projection: 375 mm
- Stroke (adjustable): 0 - 500 mm
- Distance of the tool holding surface: 300 - 800 mm
Hydraulic pumps:
- Main pumps: 2x 22 kW
- Idle flow rate: 2x 153 l/min
- Full load flow rate: 2x 33 l/min
- Control pump: 0.75 kW
Installation:
- Footprint WxD: 6960 x 3250 mm
- Height above ground: 4100 mm
- Underfloor front: 2200 mm
- Underfloor rear: 600 mm
- Operating voltage: 3x 400 V / 50 Hz
- Machine weight: 51000 kg
