30 AGIE máquina utilizada para venda

This AGIE Agiecut VERTEX 3 Erosion machine was manufactured in the year 2006 in Switzerland and has 37021 erosion hours. It is equipped with an Agievision 5 Software version 07.08.01 control unit.

This AGIE CHARMILLES CUT 20 Erosion machine was manufactured in the year 2008. It is equipped with a Charmilles CNC control unit.

movement of X-axis: 500 mm movement of Y-axis: 350 mm vert. movement Z-axis: 256 mm workpiece weight max.: 800 kg weight of the machine ca.: 4.5 t : +/- 70 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Working range: 1.050 x 650 x 250 mm max. workpiece weight: 400 (800) kg control: Agievision AGIE max. conicity: 30° / 100mm travel -x axis: 500 mm travel -y axis: 350 mm travel -z axis: 426 mm travel U x V-axis: +/-70 / +/-70 mm rapid traverse X-axis: 3 m/min rapid traverse Y-axis: 3 m/min rapid traverse U-axis: 0,6 m/min rapid traverse V-axis: 0,6 m/min rapid traverse Z-axis: 0,6 m/min wire dia.: 0,2...0,33 mm total power requirement: 12,1 kVA weight of the machine ca.: 3,9 t dimensions of the machine ca.: 2,8 x 2,4 x 2,3 m Documents: Wire Eroding Machine AGIE - Agiecut Progress 3 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

frequency: 50 Hz weight: 3000 kg voltage: 3 x 400 V output: 8,3 kw ampere: 12 Control: The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 600 mm table width: 580 mm 0: 650 x 580 x 250 mm weight: 400 kg c-axis: 0 Number of revolutions: 60 rpm type of pallet-changer: WEC tool changer made by:: WEC accessories:: Diverses weight of the machine ca.: 4 t dimensions of the machine ca.: 350 x 285 x 280 cm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: AGIE Model: Challenge 2 eCut Year of Manufacture: 2005 Type of Machine : Wire EDM machine Condition: Used, fully operational All annual maintenance documented Operating Hours - Re: 94,635 hours - Eros. Std.: 29,232 hours Electrical Data - Weight: 4,400 kg - Voltage: 3 x 400 V - Frequency: 50 Hz - Power: 9 kVA - Rated current: 15.2 A - Short-circuit current: 10 kA Travel Distances - X axis: 350 mm - Y axis: 250 mm - Z axis: 256 mm - U axis: +/- 70 mm - V axis: +/- 70 mm Technical Features - Wire diameter: variable from 0.1 to 0.3 mm (open guides) - SF module generator for fine finishing: Ra 0.12 - 0.2 um - 3D measuring probe for automatic part alignment on the machine - Variocut - Easyrun - Purecut - Dynamic Corner Control - R module - CAM link - Pieceinser Find more here - .ucymachines/ Contact us at - sales@ucymachines

Manufacturer: AGIE Model: Challenge 3 eCut Year of Manufacture: 2004 Type of Machine : Wire EDM Machine Condition: Used, fully operational All annual maintenance documented Operating Hours - Re: 109,008 hours - Eros. Std.: 27,172 hours Electrical Data - Weight: 4,400 kg - Voltage: 3 x 400 V - Frequency: 50 Hz - Power: 9 kVA - Rated current: 15.2 A - Short-circuit current: 10 kA Travel Distances - X axis: 500 mm - Y axis: 350 mm - Z axis: 256 mm - U axis: +/- 70 mm - V axis: +/- 70 mm Technical Features - Wire diameter: variable from 0.1 to 0.3 mm (open guides) - Konik-Plus for very precise conical cutting - Surface finish down to Ra 0.3 um - 3D measuring probe for automatic part alignment on the machine - 1 additional filter for very long runtimes - Variocut - Easyrun - Purecut - Dynamic Corner Control - R module - CAM link - Pieceinsert Find more here - .ucymachines/ Cont ...

Manufacturer:Agie Model: Agiecut Challenge 2 Year of Manufacture: 2001 Machine Type : Wire EDM Machine Find more here - .ucymachines/ Contact us at - sales@ucymachines

This 3-axis AGIE AGIETRON INTEGRAL 2 was manufactured in 2006. It features a travel of 350 mm in the X-axis, 250 mm in the Y-axis, and 350 mm in the Z-axis. The machine can accommodate workpieces up to 840 x 670 x 250 mm and has a maximum electrode weight of 100 kg. If you are looking to get high-quality die-sinking capabilities, consider the AGIE AGIETRON INTEGRAL 2 machine we have for sale. Contact us for further details.

CONTROLS   CNC controls TECHNICAL SPECIFICATION   Case size: 860 mm   .. x: 620 mm   Adjustment of  x-axis: 350 mm   Adjustment of  y-axis: 250 mm   Erosion stroke: 350 mm   Max. dist. table-electr.clamp.surf.: 520 mm ELECTRICAL SPECIFICATIONS   mains power supply: 8.3 kVA   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 2700 mm   space requirements -front/back-: 1900 mm   total height: 2600 mm   total weight approx.: 3000 kg Description - Work container can be lowered - C axis for rotation, indexing and erosion - AGIEVISION control incl. TECTRON, AGIESETUP 2D - USER SEQUENCE, SPACETRACK, AGIEPATH with GEOEDITOR - Electrode changer 28 times - Incl. EROWA pneumatic chuck

Número : 8066 Tipo: AGIECUT CLASSIC 2S Produtor: AGIE Criado: 2003 Parâmetros: Comprimento máximo do curso do eixo X: 350 mm Comprimento máximo do curso do eixo Y: 250 mm Comprimento máximo do curso do eixo Z: 256 mm Comprimento máximo da peça: 750 mm Altura máxima da peça: 250 mm Altura máxima da peça: 550 mm Carga máxima da mesa: 450 kg Altura da máquina: 2305 mm Comprimento da máquina: 1670 mm Largura da máquina: 2040 mm Peso da máquina: 2580 kg

This 5-axis AGIE Progress 3 wire EDM machine was manufactured in 2006. It features travel paths of 500 x 350 x 430 mm and a maximum workpiece weight of 800 kg. The machine is equipped with the AGIE Vision control unit and includes various near-new clamping systems and a wire alignment device. If you are looking to get high-quality erosion capabilities, consider the AGIE Progress 3 wire EDM machine we have for sale. Contact us for further details.

This 5-axis AGIE Agiecut Challenge 2 wire EDM machine was manufactured in 2002. It has a weight of 3600 kg and operates at a power of 9 kVA. The machine includes additional equipment such as an ICS Cool Energy i-Chiller external cooling unit and a standalone operator console terminal with screen, keyboard, and mouse. If you are looking to get high-quality wire EDM capabilities, consider the AGIE Agiecut Challenge 2 machine we have for sale. Contact us for further details.

Travel X/Y/Z: 500mm/3590mm/250mm, wire diameter range: 0.15mm-0.3mm, max. workpiece dimensions X/Y/Z: 1050mm/650mm/250mm, max. workpiece weight: 400kg/800kg, max. taper: 30°/100mm, wire speed: 300mm/s, max. surface quality: Ra 0.1µm. Machine dimensions X/Y/Z: approx. 2800mm/2400mm/2250mm, weight: approx. 4500kg, control: Agie, operating hours: approx. 151182h. Documentation available. An on-site inspection is possible. The image is an example.

Travel X/Y/Z: 350mm/250mm/256mm, travel U/V: +/-70mm, max. taper angle: 30°, max. height: 100mm, rapid traverse: 900mm/min, max. workpiece dimensions X/Y/Z: 750mm/550mm/150mm, max. workpiece weight: 200kg, max. threading height: 250mm, wire tension: 25N. Machine dimensions X/Y/Z: approx. 1650mm/2050mm/2250mm, weight: approx. 2600kg, control: Agievision. Documentation available. An on-site inspection is possible.

Generator: Agiepuls 60 HSF, travel X/Y/Z: 350mm/250mm/350mm, table dimensions X/Y: 600mm/450mm, max. workpiece weight: 400kg, max. workpiece dimensions X/Y/Z: 840mm/600mm/250mm, max. electrode weight: 100kg, machine dimensions X/Y/Z: approx. 2450mm/1750mm/3000mm, weight: approx. 4000kg. The machine has PCB damage. Documentation available. An on-site inspection is possible.

AGIE AGIECUT PROGRESS 2 Wire EDM machine Workpiece height: approx. 250 mm Workpiece weight: approx. 400–500 kg Table size: approx. 600 x 400 mm Supply voltage 3 × 400 V, frequency 50 Hz, power 12.1 kVA, rated current 17.5 A, short-circuit current 10 kA. Wire EDM technology, automatic wire feed, hydraulic systems, robust construction. Control panel, emergency stop, sensor monitoring.

This 3-axis AGIE Challenge 2 eCut wire EDM machine was manufactured in 2006. It offers precision electrical discharge machining capabilities, ideal for detailed and intricate metal work. Consider the opportunity to buy this AGIE Challenge 2 eCut wire EDM machine. Contact us for more information about this machine.

Travel X/Y/Z: 450mm/350mm/400mm, travel U/V: approx. +/-70mm, rapid traverse: 900mm/min, max. workpiece dimensions X/Y/Z: 1050mm/650mm/250mm, max. workpiece weight without/with tank: 800kg/400kg, wire diameter range: 0.2mm-0.33mm, tank volume: approx. 750l. Machine dimensions X/Y/Z: approx. 2000mm/2300mm/2500mm, weight: approx. 4000kg, control: Agievision. Documentation available. An on site inspection is possible.

X-axis: 400mm, Y-axis: 250mm, Z-axis: 256mm, max. workpiece weight: 400kg, max. workpiece dimensions: 580/860/250mm, support surface: 680/500mm, min. start hole diameter: 2mm, cutting rate: 185mm²/min, generator: Agiplus-MMD, control: Agimatic CF20. With dielectric processing unit DA-15/C. The display power supply is defective. The machine has already been dismantled, an on-site inspection is possible.

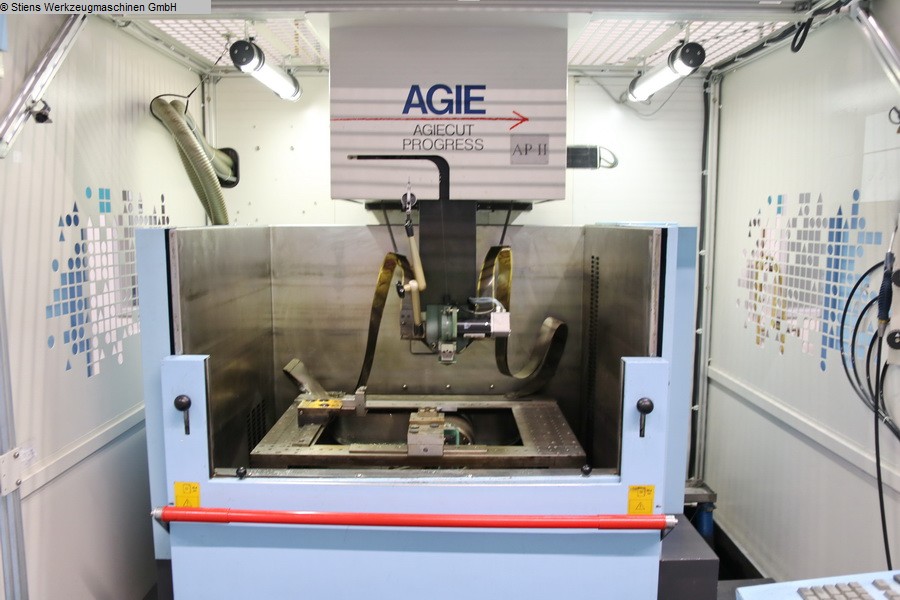

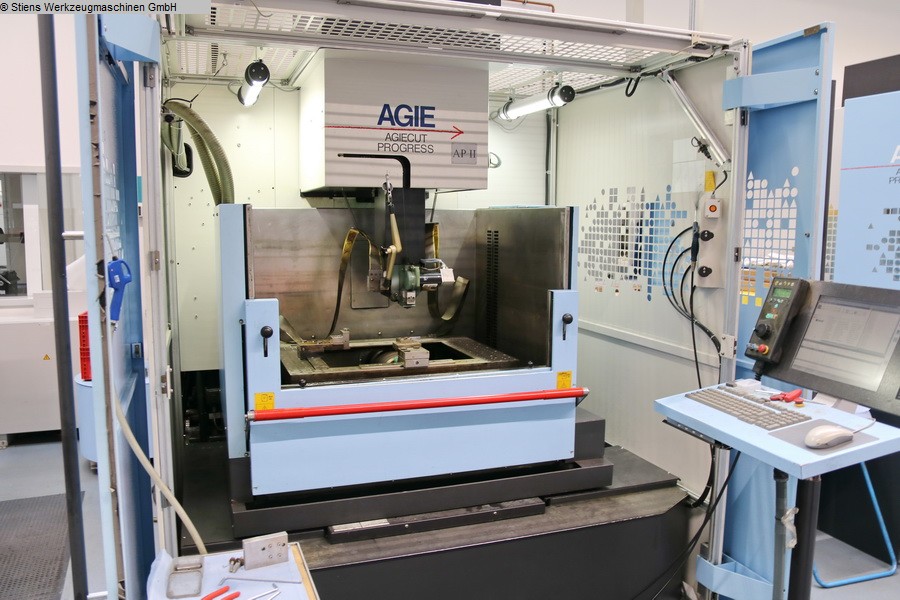

table length: 500 mm table width: 350 mm ampere: 65 A Control: AGIEVISION 5 CNC total power requirement: 20 kW weight of the machine ca.: 4000 kg dimensions of the machine ca.: m A G I E (Switzerland) CNC - Controlled Wire Cutting EDM Machine Model AGIECUT PROGRESS V 3, Year 2007 Working range, X Y Z (=height) 500 x 350 x 426 mm Wire head, U-V axis (helical/taper cuts) + / - 30 °/ +/- 70 mm Resolution of axes 0.0001 mm Speed for positioning the axes up to 3 m/Min. Tolerances (If machine is new) 4 µ Workpiece dimensions, L x W x H max. 1.050 x 650 x 420 mm Max.weight of workpiece with/w.o. Dieelektricum 400/800 kg Clamping System Universal Beams with fixing holes Cutting wire Ø 0.2 – 0.33 mm Size of wire roll up to 25 kg Cutting speed of wire  ...

This 3-axis AGIE Hyperspark 2 Exact with Erowa was manufactured in 2005. It features an X-axis travel of 350 mm, Y-axis travel of 250 mm, and Z-axis travel of 250 mm. The machine is equipped with AGIE VISION 4 Software and includes an EROWA ROBOT MULTI with 60 ITS 148 places and 240 ITS 50 magazine places. If you are looking to get high-quality die-sinking EDM capabilities, consider the AGIE Hyperspark 2 Exact machine we have for sale. Contact us for further details.

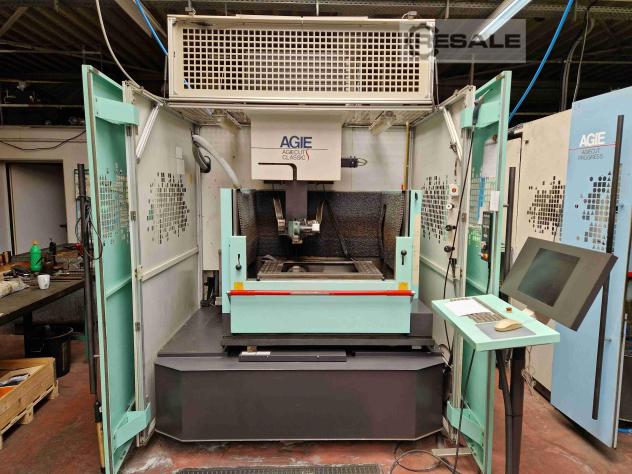

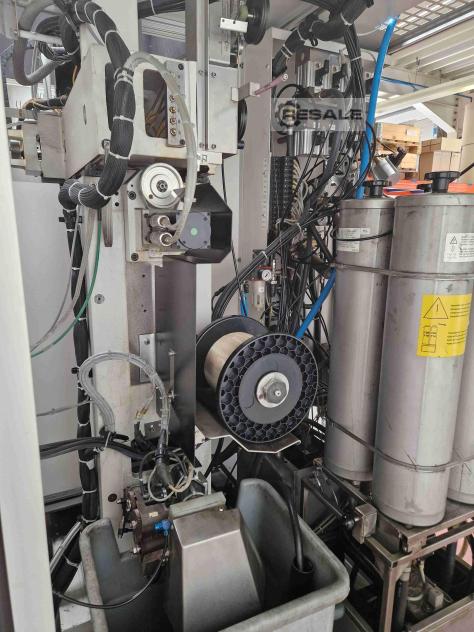

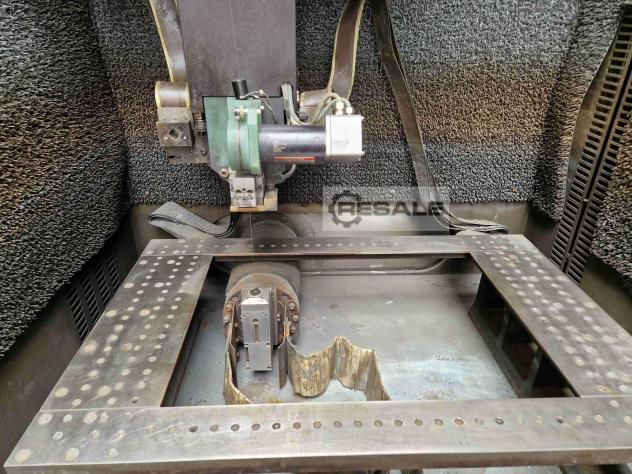

This 5-axis AGIE Classic 3s wire EDM machine was manufactured in 2002. It features an X-axis travel of 500 mm, Y-axis travel of 350 mm, and Z-axis travel of 426 mm. The machine is equipped with a submerged head and includes a chiller, resin filters, and a wire feed/recovery system. If you are looking to get high-quality wire EDM capabilities, consider the AGIE Classic 3s machine we have for sale. Contact us for further details.

This 3-axis AGIE AGIECUT CLASSIC S erosion machine was manufactured in 2000. It has impressive axis movements with x=350mm, y=250mm, and z=256mm, providing ample flexibility for handling erosion tasks. The machine accommodates a maximum piece size of 750mm in length, 550mm in width, and 250mm in height, and it can manage weights up to 200kg. The dimensions and capabilities make it suitable for a wide range of erosion processes, ensuring detailed and precise outcomes. The AGIE AGIECUT CLASSIC S machine we have for sale is designed for robust performance and precision. Contact us for more information about this erosion machine.

This 3-axis AGIE AGIETRON Innovation 2 die-sinking EDM machine was manufactured in 2002. It features a robust AGIEVISION control system, a 28-position electrode changer, and a C-axis for rotation, indexing, and erosion. The machine can handle workpieces up to 650 x 580 x 250 mm and 400 kg. It boasts a high-performance AGIE IPG generator with a removal rate of 450 mm³/min for copper/steel. Consider the opportunity to buy this AGIE AGIETRON Innovation 2. Contact us for more information.

This 5-axis AGIE CUT 400 Sp wire EDM machine was manufactured in 2013. It features a high-speed CC generator, automatic threading, and rethreading for wires from 0.30 to 0.20 mm. The machine includes a PC-based control system with a touchscreen and offers advanced NC functions like 3D graphic simulation and integrated documentation. If you are looking to get high-quality EDM capabilities, consider the AGIE CUT 400 Sp machine we have for sale. Contact us for more information.

This 5-axis AGIE CUT 300 wire EDM machine was manufactured in 2013. It features a maximum taper angle of 30/100° mm, can handle workpieces up to 1050 x 650 x 250 mm, and supports a maximum weight of 400 kg. If you are looking to get high-quality EDM capabilities, consider the AGIE CUT 300 machine we have for sale. Contact us for more information about this machine.

AGIE AGIETRON HYPERSPARK 2 HS máquina EDM de fundição de matrizes foi construída em 2008 na Suíça pela AGIE SA. A máquina foi concebida para a produção de matrizes de precisão, matrizes de punção, punções e outros elementos com geometria complexa utilizando erosão elétrica. Esta tecnologia permite a maquinação de peças feitas de materiais difíceis de usinar e endurecidos, e também reduz ou elimina completamente a necessidade de operações de acabamento adicionais, como o polimento. A maquinação por descarga elétrica é realizada num tanque cheio de fluido dielétrico, o que afeta a qualidade da superfície e a precisão dimensional das peças usinadas. Todos os parâmetros do processo são inseridos num controlador CNC intuitivo, que facilita a operação diária da máquina. A AGIE AGIETRON HYPERSPARK 2 HS sinker EDM é oferecida com ferramentas. O peso total da ...

A máquina AGIE AGIECUT CLASSIC 2S wire EDM construída em 2004 na Suíça é usada para a produção, entre outros, de matrizes de precisão, ferramentas e punções. As peças com um peso máximo de 450 kg são maquinadas utilizando erosão elétrica, que pode alcançar formas complexas mesmo nos materiais mais duros. Este processo é realizado em um tanque de trabalho dielétrico usando um fio com um diâmetro máximo de 0,33 mm, que é rosqueado através de um sistema AGIEJET especial. As peças maquinadas desta forma não requerem quaisquer outros processos secundários, como o polimento, para serem realizadas. A máquina EDM com fio AGIECUT CLASSIC V2 também possui um controle CNC intuitivo com muitas funções úteis. É possível comprar o cooler dedicado mostrado nas fotos a um custo adicional – preço negociável. A máquina AGIE EDM pesa 2580 kg. Especificações téc ...
