8 ANGER máquina utilizada para venda

Key data: 300 mm, 1130 mm, 300 mm

4 Fresadoras de Trens de Alta Velocidade com Fuso, ANGER, HCP 10/5, 2005 Controlo: NUM, muito poucas horas de funcionamento. Métodos: X-300, Y-1130, Z-300, - 4 eixos +/- 180 graus 4 fusos de alta frequência: Precisão 60000 / 160000 / 18000 / 16000 rpm , rpm Suporte de ferramenta: Colas, dependendo do fuso Transportador de cavacos, ATC, unidade de rearrefecimento e sistema de medição externo Renishaw Consumo de energia 41 kW

Key data: 300 mm, 1130 mm, 300 mm

4 Fresadoras de Trens de Alta Velocidade com Fuso, ANGER, HCP 10/5, 2005 Controlo: NUM, muito poucas horas de funcionamento. Métodos: X-300, Y-1130, Z-300, - 4 eixos +/- 180 graus 4 fusos de alta frequência: Precisão 60000 / 160000 / 18000 / 16000 rpm , rpm Suporte de ferramenta: Colas, dependendo do fuso Transportador de cavacos, ATC, unidade de rearrefecimento e sistema de medição externo Renishaw Consumo de energia 41 kW

A complete automation system for handling machining center products is available. 1) Full protection cabin with safety door. 2) 6-axis robot Kuka KR 120 R 3200 PA with gripper adapter. 3) 6-axis robot Kuka KR 120 R 3500 with gripper adapter. 4) 2x 6-axis robots Kuka KR 10 R 1420 with gripper. 5) Handling unit with 2 robots. 6) Reference chamber. 7) Marking station with extraction, cleaning station, and assembly unit for 2 lanes. 8) 2x adhesive application stations. 9) 2x screwing stations. 10) Drawer system with part inserts. 11) Pallet storage area. The transfer stations and removal/handling grippers are designed for specific parts. Documentation available. An on-site inspection is possible.

RAIVA PCH 203 Produção GERAL N.º do Projeto: 905739 Quantidade: 2 pcs. Fabricante: ANGER Tipo: HCP 203 Controle: Siemens 840 D Ano de fabrico: 2005/2013 Estado: Máquina usada Camadas Máquina Aprox. (Hrs): 2 Camadas DESCRIÇÃO Existem 2 linhas de produção disponíveis. Cada linha de produção consiste em três centros de usinagem multifusos ANGER, cada um dos quais está conectado a um robô KUKA. A carga e descarga da correia transportadora EWAB está localizada na parte traseira das máquinas. ANGER (1) - 5 eixos: 4 fusos verticais de fresagem e perfuração na parte inferior, 4 fusos verticais de fresagem e perfuração na parte superior, sonda de toque na parte superior, 4 fusos de fresagem horizontal e furação à esquerda. Porta-peças com três eixos lineares e dois eixos de rotação. ANGER (2) - 5 eixos: 4 fusos verticais de fresagem e perfura ...

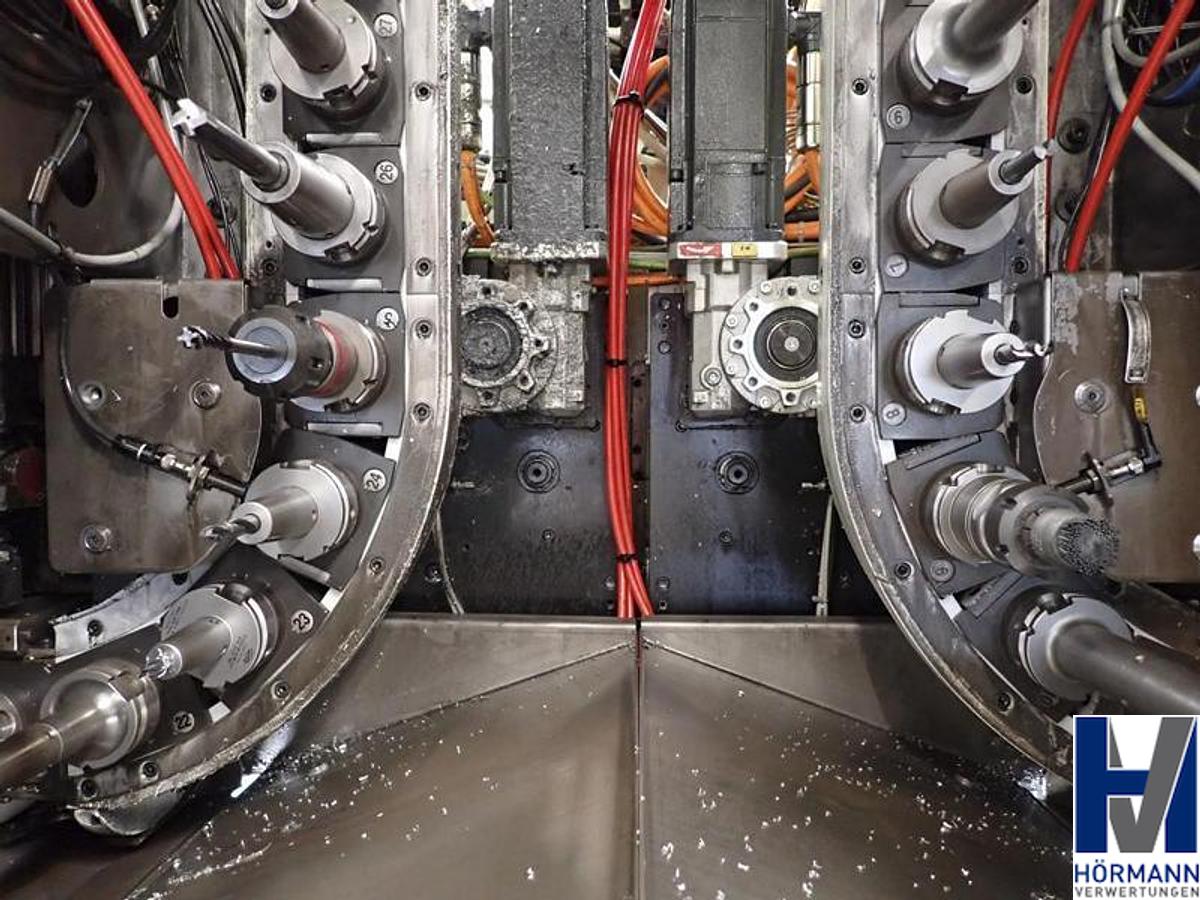

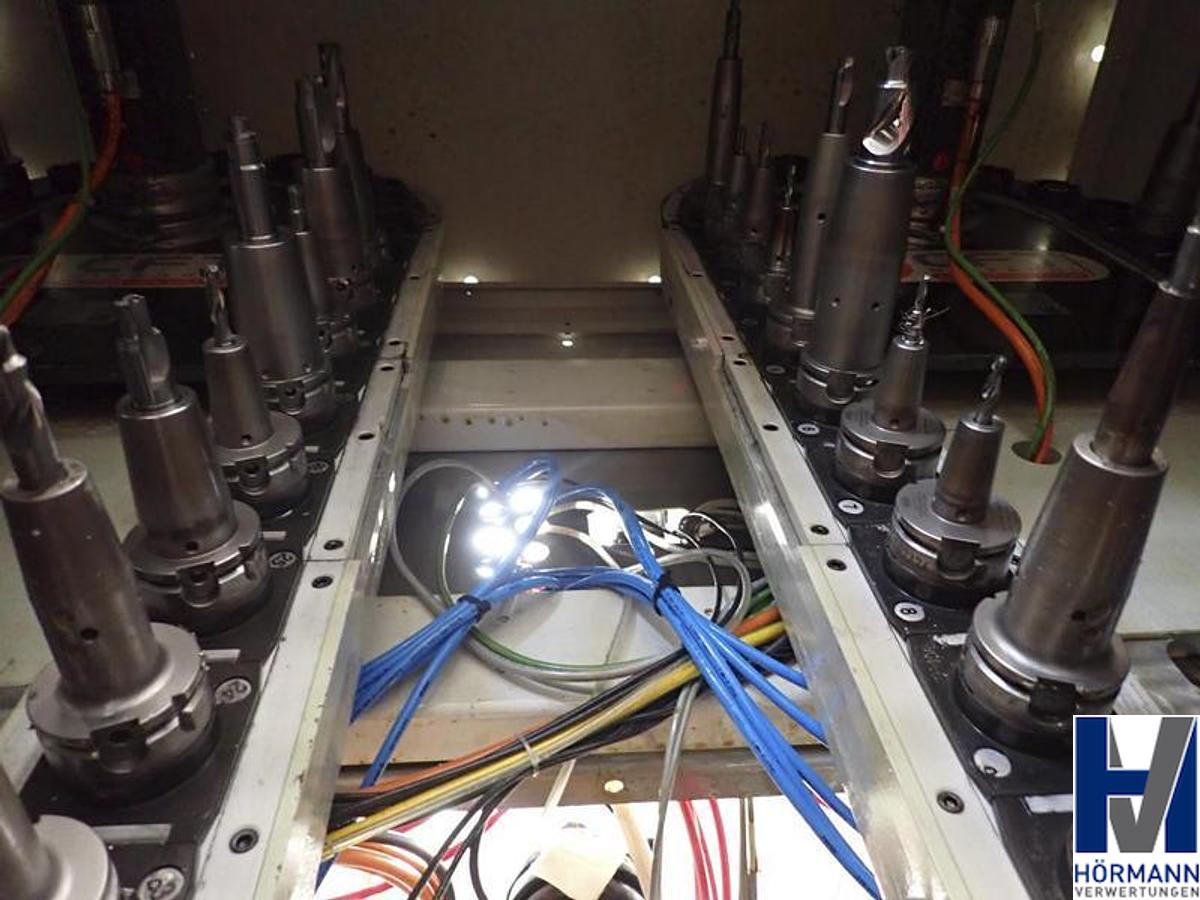

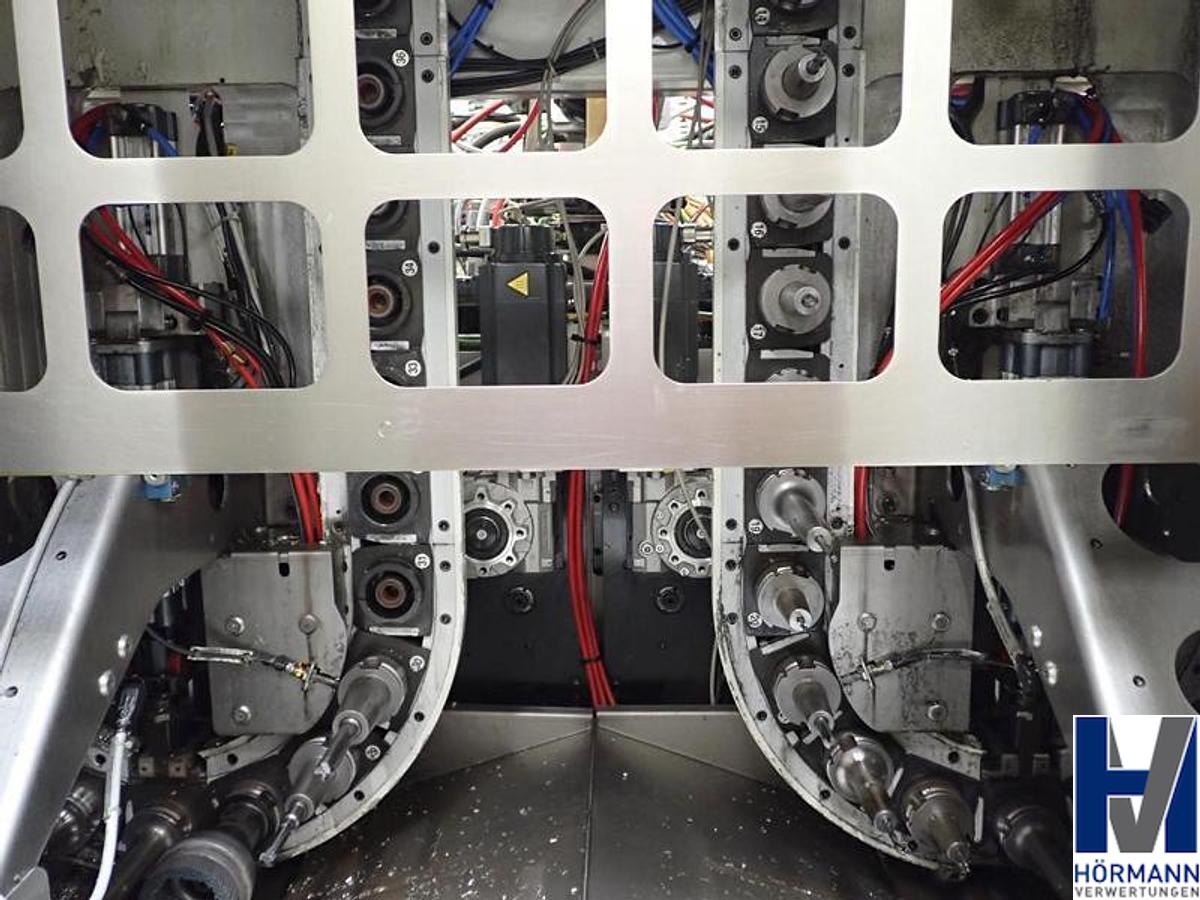

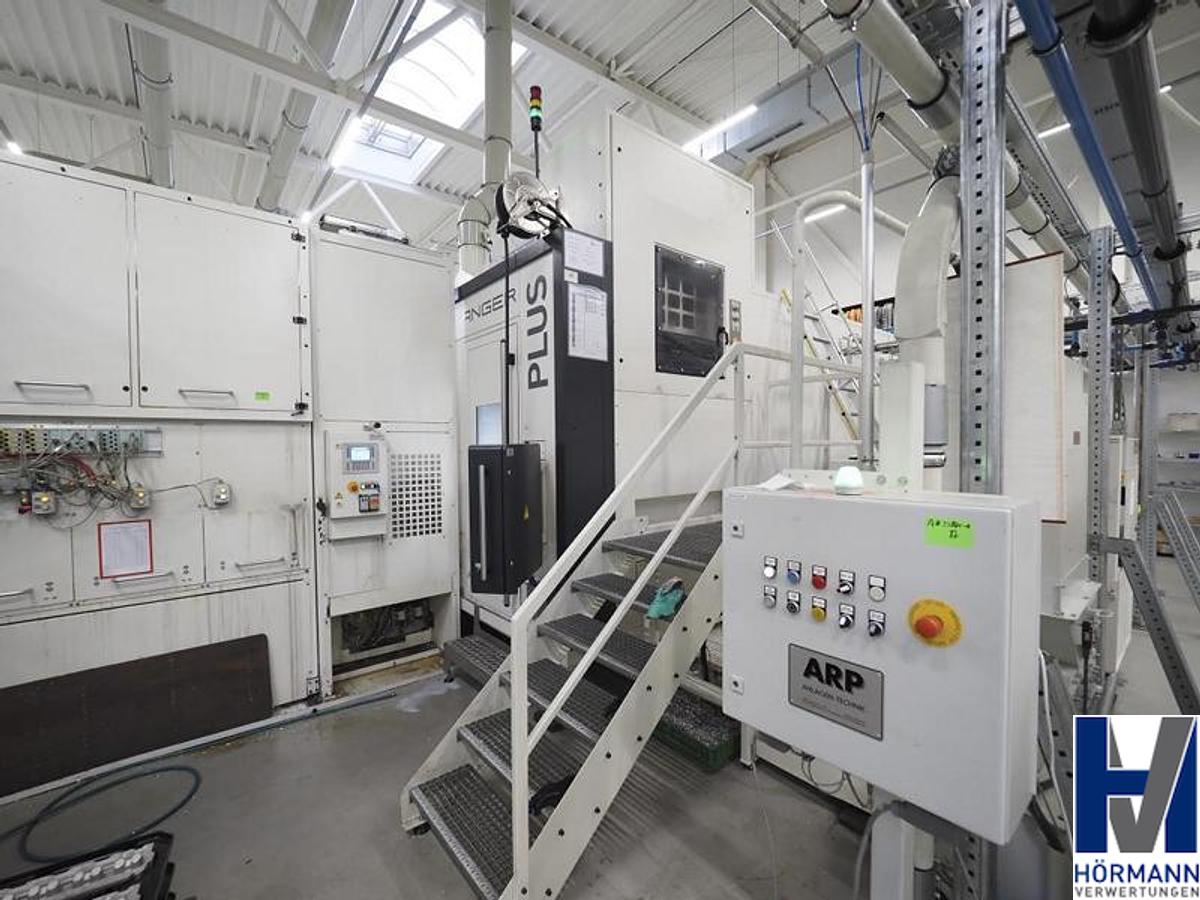

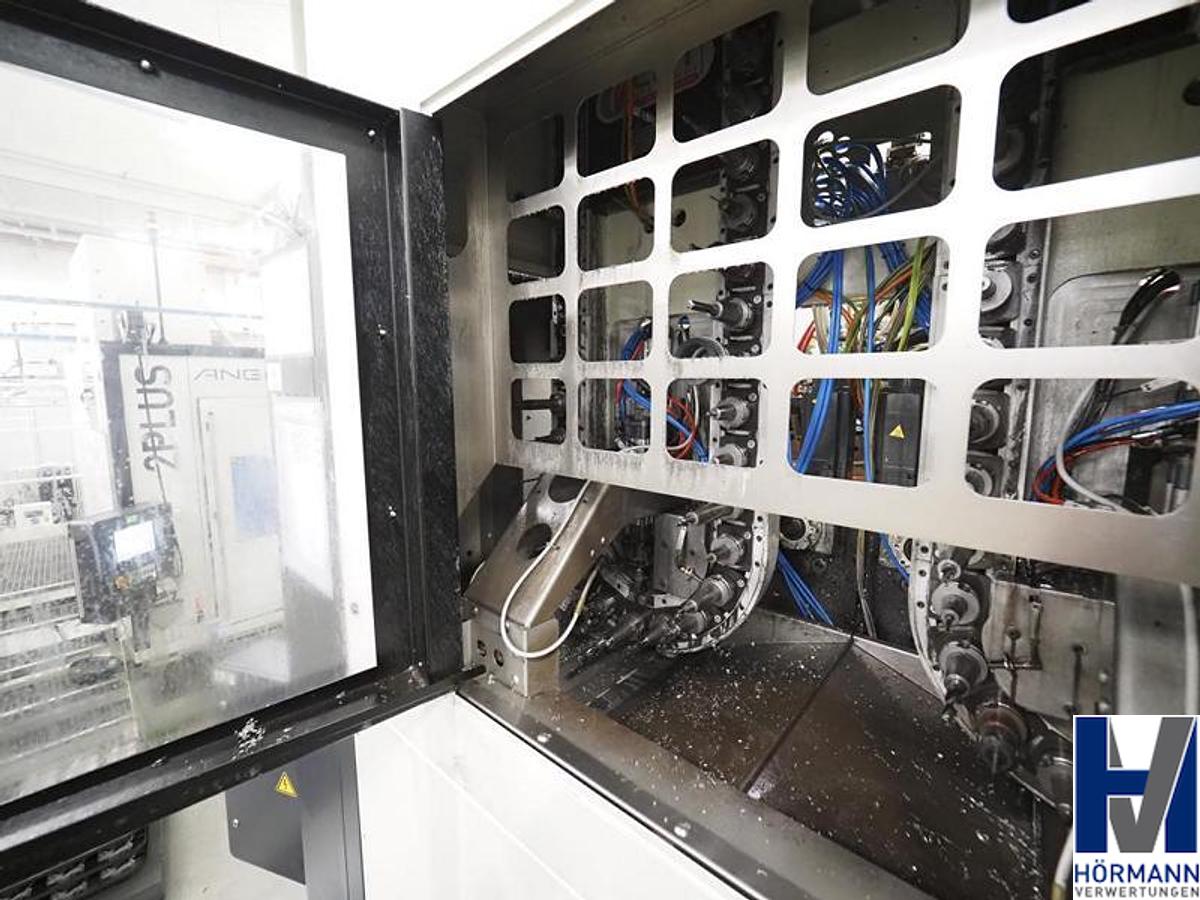

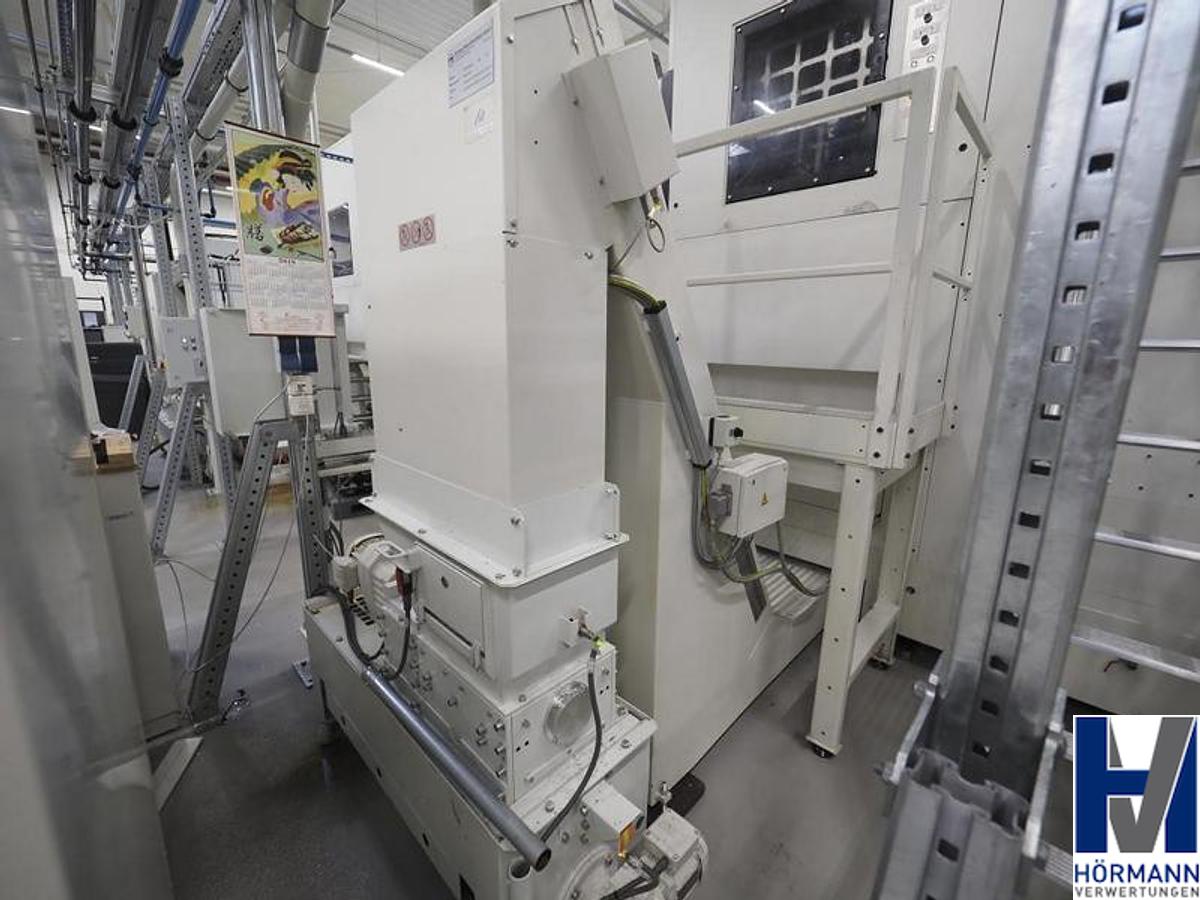

Control system Siemens Sinumerik 840D SL 4 axes and 4 spindles Spindle distance 500 mm Spindle speed max. 15,000 rpm incl. - 4x 40-way tool changer from CFT | Tool holder HSK-63 - Cooling unit from Deltatherm | Type WT Group | Year of manufacture 2016 - Coolant system from BMF | Output 80 bar - Paper belt filter from BMF Type WT-15 | Year of manufacture 2016 - Scraper belt conveyor from BMF | Year of manufacture 2016 The workpiece fixtures in the systems are not part of the advertisement Own weight 28,000 kg, Machine designation: Double spindle machining center, Machine number: AA100164-12, Travel x/y/z: 550x2,000x550mm

Siemens Sinumerik 840D SL control system 4 axes and 4 spindles Spindle spacing 500 mm Max. spindle speed 15,000 rpm Including - 4x 40-station tool changers from CFT | HSK-63 tool holder - Cooling unit from Deltatherm | Type WT-Gruppe | Year of manufacture 2016 | Serial no. 14-32042 - Coolant system from BMF | Output 80 bar - Paper belt filter from BMF Type WT-15 | Year of manufacture 2016 | Serial no. 050280-40.1 - Scraper belt conveyor from bmf | Year of manufacture 2016 | Serial no. 050280-50.1 The workpiece fixtures in the systems are not included in the listing. Term weight 28,000 kg, Machine designation: Double spindle machining center, Machine number: AA100163-11, operating hours: 11.000 h, Travel x/y/z: 550x2,000x550mm, Workpiece counter as of November 4, 2020: 275,776 pieces, Workpiece counter as of 04.11.2020: 275,776 pieces

Siemens Sinumerik 840D SL control system 4 axes and 4 spindles Spindle spacing 500 mm Max. spindle speed 15,000 rpm Including - 4x 40-station tool changers from CFT | HSK-63 tool holder - Cooling unit from Deltatherm | Type WT Group | Year of manufacture 2016 | Serial no. 14-32038 - Coolant system from BMF | Output 80 bar - Paper belt filter from BMF Type WT-15 | Year of manufacture 2016 | Serial no. 050280-40.2 - Scraper belt conveyor from BMF | Year of manufacture 2016 | Serial no. 050280-60.1 The workpiece fixtures in the systems are not included in the listing. Term weight 28,000 kg, Machine designation: Double spindle machining center, Machine number: AA100163-12, operating hours: 10,000 hours, Travel x/y/z: 550x2,000x550mm, Workpiece counter as of November 4, 2020: 236,332 pieces, Workpiece counter as of 04.11.2020: 236,332 pieces

Machining center and extruded profile plant for car sill production, consisting of:, Processing machines:, - Anger machine SP2-X2000 (machine number AA100264-11), - Anger machine SP2-X2000 (machine number AA100264-12), - 2x coolant treatment, Assembly of components (robot cell for sills):, - Robot 1 KUKA KR120 R3200 PA, - Gripper for robot 1, - Labeling station, - Robot 2 KUKA KR120 R3500, - Gripper for robot 2, - Robot/machining center interface, - Cleaning unit for components, - Assembly machine 2 lanes, - Robots 3 and 4 for handling, - Drawer system with parts inserts, - Screwing station, - Adhesive application station, - Platform, - Robot 5, - Gripper for robot 5, - Pallet parking space, - Safety enclosure, - Electrical control and integration, Further information on request.
