15 ARKU máquina utilizada para venda

material width:600 mm material thickness: - 4,0 mm no. of straightening rolls:21 straightening roll diameter:30 mm material cross-cut:1800 mm² speed:6 - 36 m/min Power capacity:4,5 kW Weight:2,0 t Dimensions (WxDxH):1,5 x 2,0 x 1,9 m

material width:250 mm material thickness:0,4 - 3,5 mm no. of straightening rolls:9 straightening roll diameter:30 mm speed:3 - 15 m/min material thickness at 250 mm material width:3,0 mm material thickness at 200 mm material width:3,5 mm power capacity:1,8 kW weight:0,9 t Dimensions (WxDxH):1,45 x 1,4 x 1,55 m

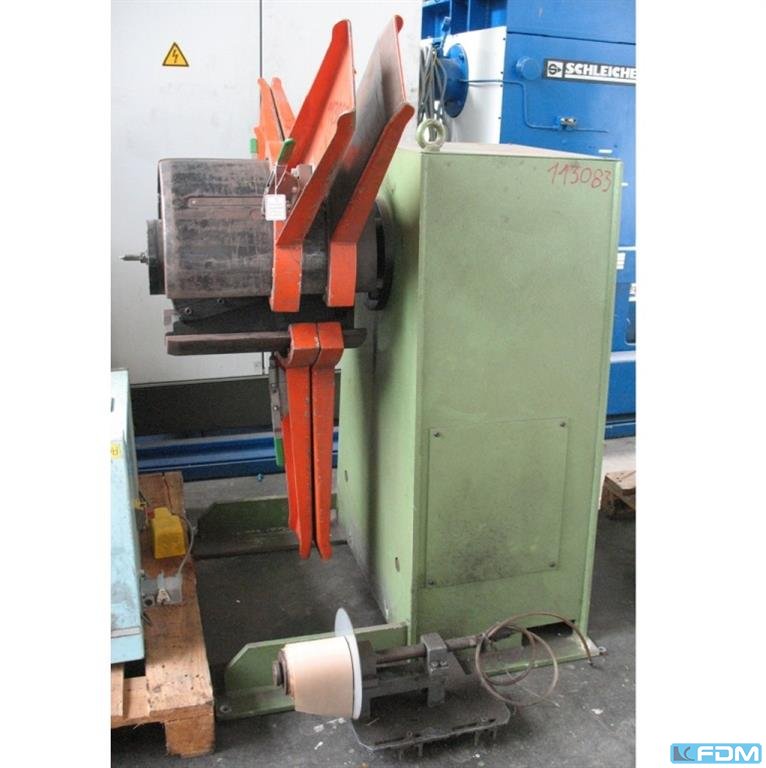

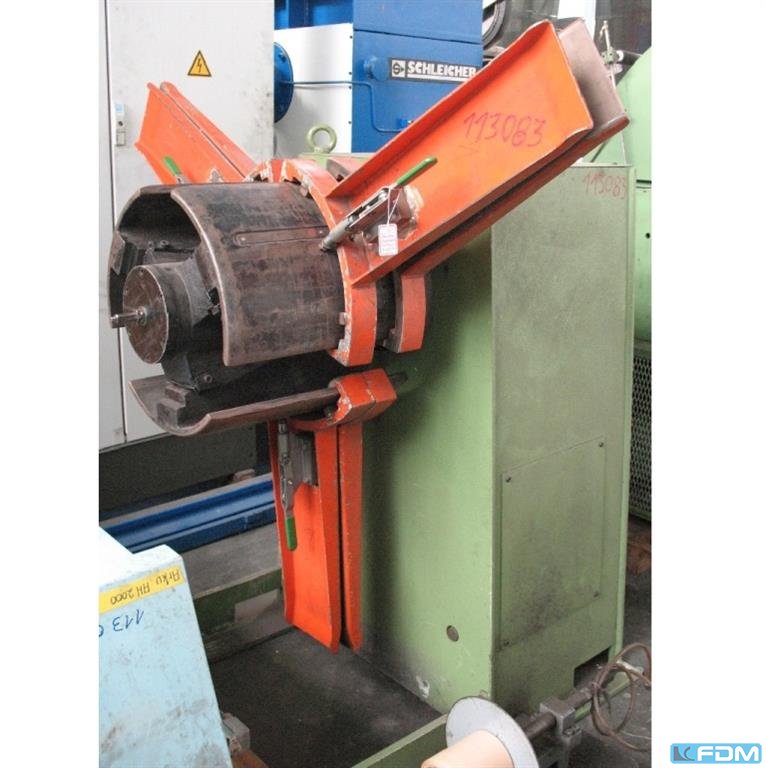

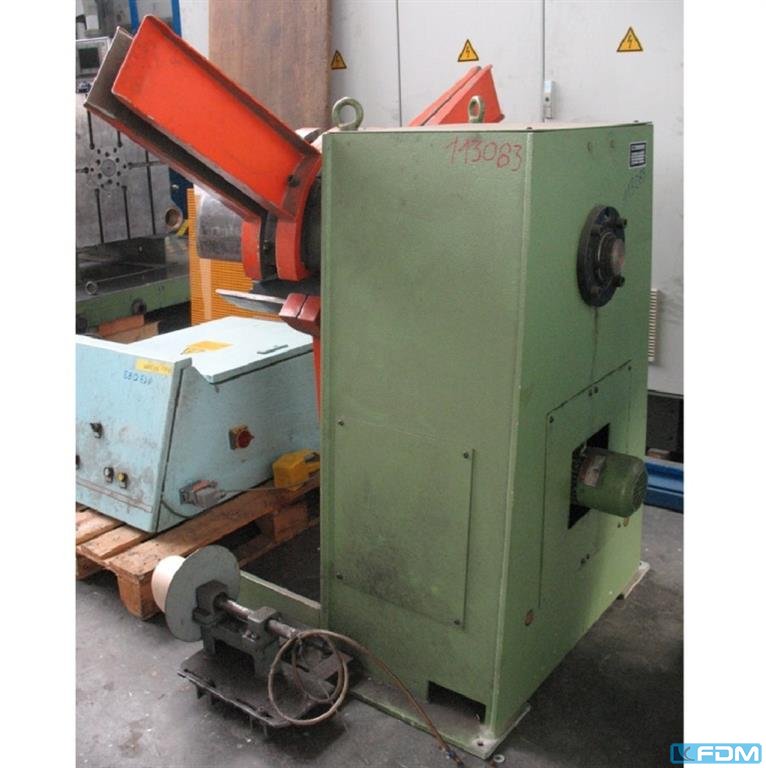

material width:350 mm coil weight:2,0 t coil internal diameter:470 - 530 mm coil external diameter:1500 mm power requirement:1,0 kW weight:1,5 t dimensions (WxDxH):1,3 x 1,6 x 1,9 m

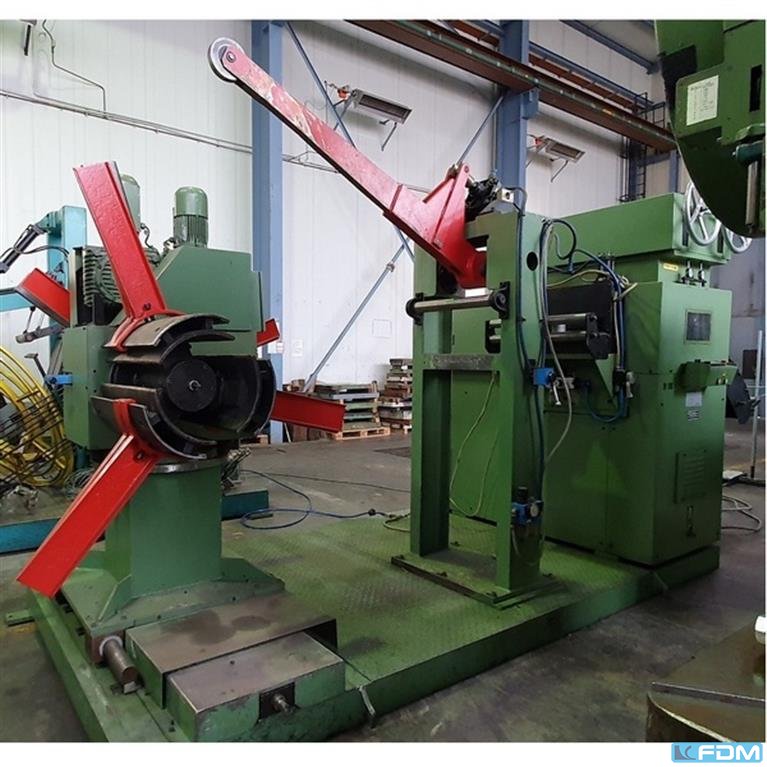

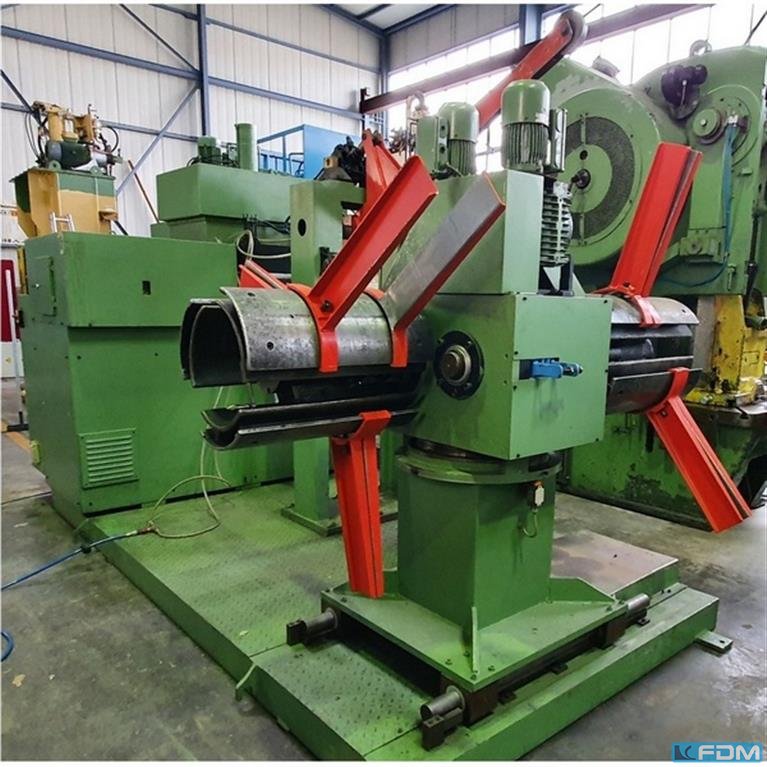

material width:500 mm coil weight:2 x 2,0 t material thickness:1,0 - 6,0 mm coil internal diameter:350 - 420 mm coil external diameter:1600 mm no. of straightening rolls:9 straightening roll diameter:50 mm number of draw-in rolls:2 speed:0 - 40 m/min material thickness at 500 mm material width:3,5 mm power requirement:17,5 kW Dimensions (WxDxH):2,3 x 4,2 x 2,4 m straightening machine:RM 5050.4/9 double decoiler:AH 2000/2/M snubber roll:pneumatic interchangeable jaws:130 mm expansion of the inner diameter

OVERALL SPECIFICATIONS (COIL LINES)   sheet width max.: 500 mm   sheet thickness max.: 16 mm   coil weight max.: 8 to   feedstock transport direction: left to right COIL CHAIR   coil weight max.: 8 to DECOILER   max. diameter of coil: 1800 mm   mandrel expansion range from: 470 mm   mandrel expansion range up to: 530 mm CROP SHEAR   cutting force: 800 kN LEVELLER UNIT   sheet width max.: 800 mm   sheet width (min): 80 mm   sheet thickness max.: 16 mm   sheet thickness min.: 1.5 mm   material cross section max. (450 N/mm2): 3510 mm²   number of leveller rolls: 17

CONTROLS   PLC OVERALL SPECIFICATIONS (COIL LINES)   sheet width max.: 500 mm   sheet thickness max.: 4 mm   coil weight max.: 10.5 to   feedstock transport direction: right to left COIL CHAIR   coil weight max.: 10.5 to   stroke: 750 mm DECOILER   design: single reel   sheet width max.: 500 mm   sheet width (min): 150 mm   coil weight max.: 10.5 to   max. diameter of coil: 2020 mm   mandrel expansion range from: 470 mm   mandrel expansion range up to: 530 mm   feed velocity max.: 20 m/min CROP SHEAR   sheet thickness max.: 4 mm   working width max.: 530 mm   stroke rate (max.): 20 /min LEVELLER UNIT   sheet width max.: 500 mm   sheet width (min): 150 mm   sheet thickness max.: 4 ...

CONTROLS   PLC SIEMENS S7 300 OVERALL SPECIFICATIONS (COIL LINES)   sheet width max.: 500 mm   sheet thickness max.: 4 mm   coil weight max.: 10.5 to   feedstock transport direction: right to left COIL CHAIR   coil weight max.: 10.5 to   stroke: 750 mm DECOILER   design: single reel   sheet width max.: 500 mm   sheet width (min): 150 mm   coil weight max.: 10.5 to   max. diameter of coil: 2020 mm   mandrel expansion range from: 470 mm   mandrel expansion range up to: 530 mm   feed velocity max.: 20 m/min LEVELLER UNIT   sheet width max.: 500 mm   sheet width (min): 150 mm   sheet thickness max.: 4 mm   sheet thickness min.: 2 mm   number of leveller rolls: 9   diameter of levell ...

Referência: 850162 no. de item: 40219 F. Nr: 193 Conexão: 380 V /50 Hz

Decoiler Decoiler with arm: 1,5 ton Material width: 350 mm Coil exterior diameter: 1.200 mm Expansion range: 370 - 430 mm Speed: 0 - 20 m / min Leveller / Straightener Material width : 250 mm Number of levelling rolls: 9 pcs. Diameter of the levelling rolls: 30 mm Material thickness: 0,5 - 6 mm Cross section: 1.200 mm Feeding speed: 20 m / min Required power: 18 kW

material width: 0200 mm material thickness: 3,00 mm no. of straightening rolls: 21 sheet thickness - min.: 0,50 mm diam. of the rolls ca.: 30 mm speed: 56 m/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Hydraulic drive All rollers driven Side belt guide with handwheel PSS300 control The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CONTROLS   PLC SIEMENS S5 115 U OVERALL SPECIFICATIONS (COIL LINES)   sheet width max.: 350 mm   sheet thickness max.: 8 mm   coil weight max.: 4 to   feed velocity max.: 10 m/min   feedstock transport direction: left to right DECOILER   design: single reel   sheet width max.: 350 mm   coil weight max.: 4 to   max. diameter of coil: 1500 mm   mandrel expansion range from: 370 mm   mandrel expansion range up to: 530 mm   feed velocity max.: 10 m/min LEVELLER UNIT   sheet width max.: 350 mm   sheet thickness max.: 8 mm   number of leveller rolls: 21   diameter of leveller rolls: 50 mm   number of infeed-/outfeed rolls: 2   diameter of feed rolls: 120 mm   feed velocity max.: 10 m/min ELECT ...

Desbobinador Peso da bobina: 5 tonelada Largura do material: 80 - 500 mm Diâmetro exterior da bobina: 1800 mm Faixa de expansão: 508 mm Velocidade: 50 m / Nivelador / Endireitador Largura do material: 50 - 500 mm Número de rolos de nivelamento: 9 pcs. Diâmetro dos rolos de nivelamento: 65 mm Número de rolos de arrancamento: 2 pcs. Diâmetro dos rolos de arrancamento: 150 mm Espessura do material: 1 - 8 mm Velocidade de alimentação: 50 m / min Comprimento de alimentação: 0,1 - 9999,9 mm

largura máxima da folha - máx.: 0350 mm peso da bobina: 2,00 t diâmetro interno da bobina: 470 - 530 mm bobina exterior - diâmetro ca.: 1500 mm potência total necessária: 1,0 kW peso da máquina ca.: 1,50 t dimensões da máquina ca.: 1,30 x 1,6 x 1,90 m motorizado, com espalhamento central manual

sheet width: 0250 mm coil outside dia.: 1800 mm weight max. in kg: 2 x 3000 kg : 3,80 mm : 470 - 530 mm : 21 : 30 mm : 4 : 18,0 kW speed: 20 m/min power capacity: 18 kW total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Decoiler AH 3000/2/250/ST with continuously variable drive, hydraulic central spread, Automatic post-spreading system, hydraulic pressure device, hydraulic swivel, Straightening machine RM 3025.4/21 with continuously variable drive, driven straightening rollers, manual Roller mill adjustment, quick-change device for the straightening rollers Belt loop control via ultrasound Material thickness / with material width 3.80 / 250 mm Material thickness / with material width 6.00 / 100 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

- Decoiler - Max. width 350 mm - Clamping area coil internal  mm - Coil diameter 1500 mm - Work load 1000 Kg   - Straigtner - Width 250 mm - Roll diameter 30 mm - Number off rolls 21 units - Working speed 40 M/Min   - Max. thickness 6 mm at 240 N/mm2 - Max. Thickness 5 mm at 400 N/mm2
