15 AWEA máquina utilizada para venda

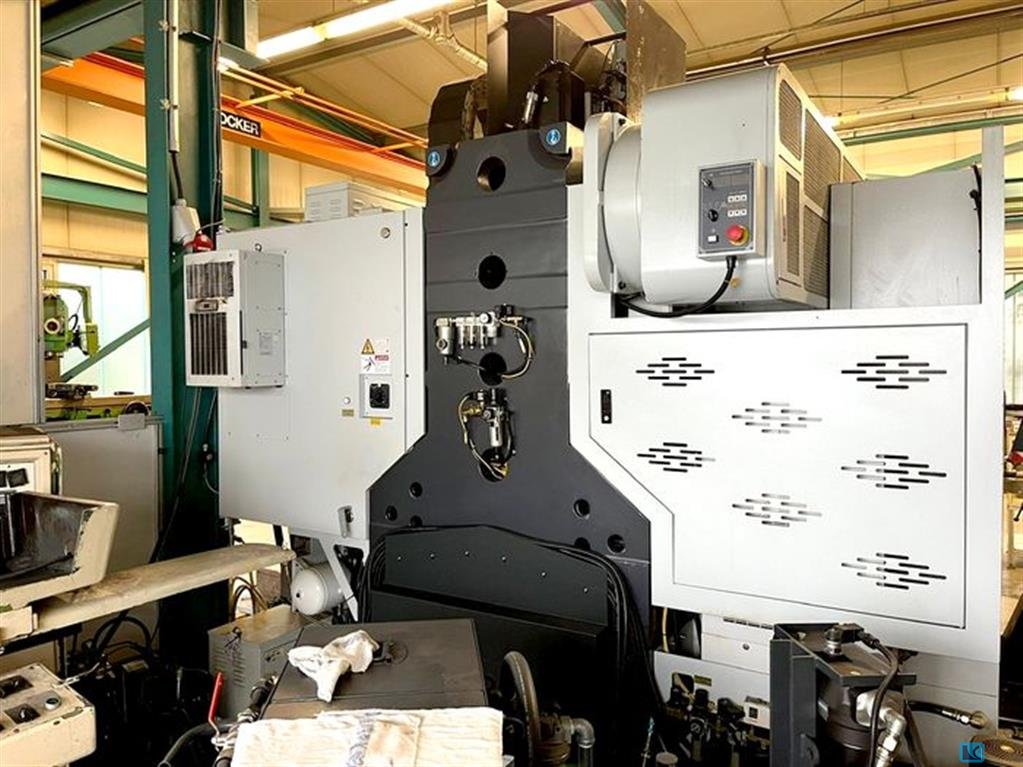

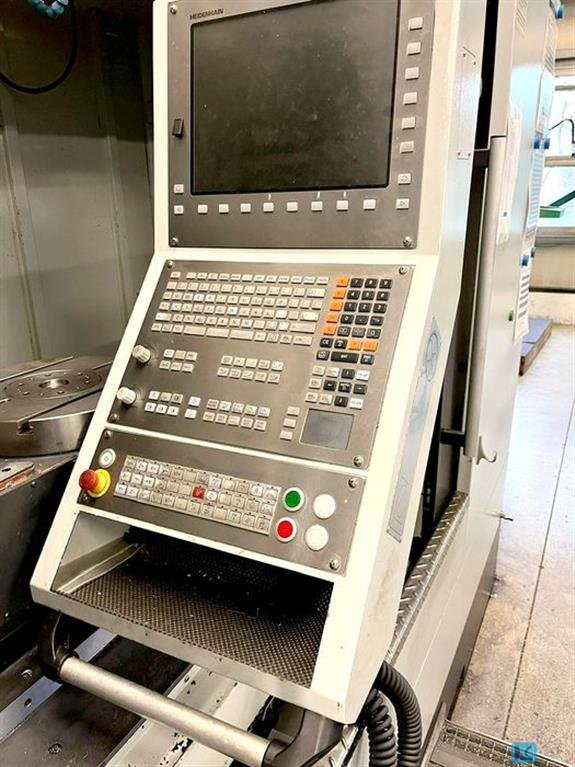

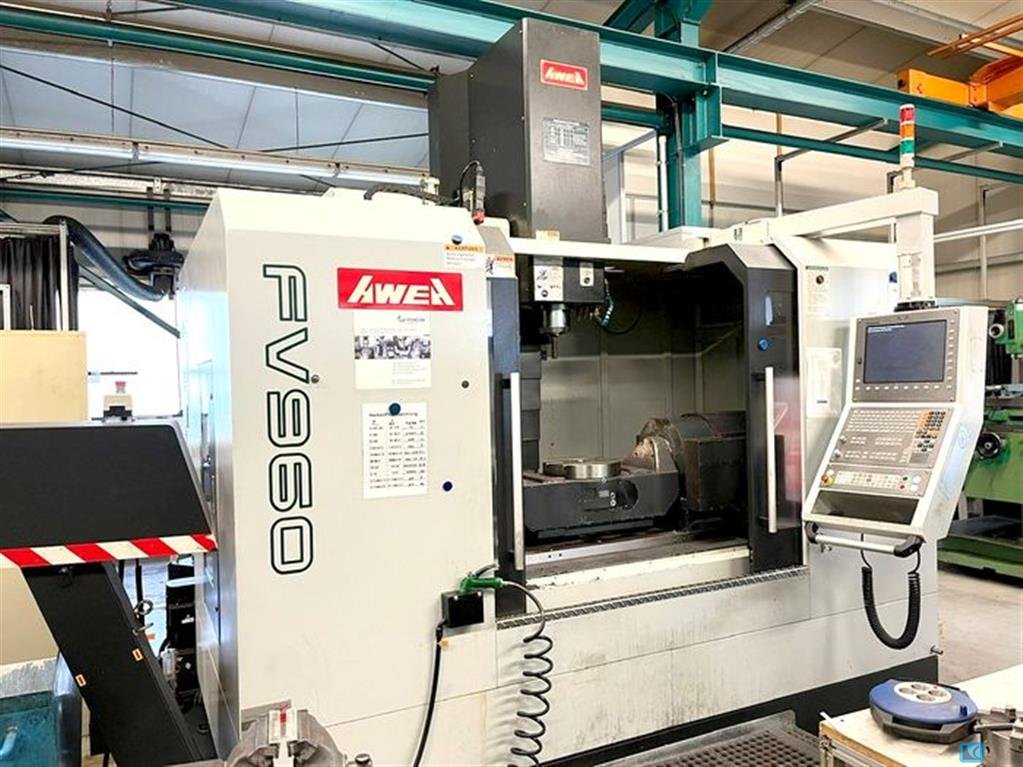

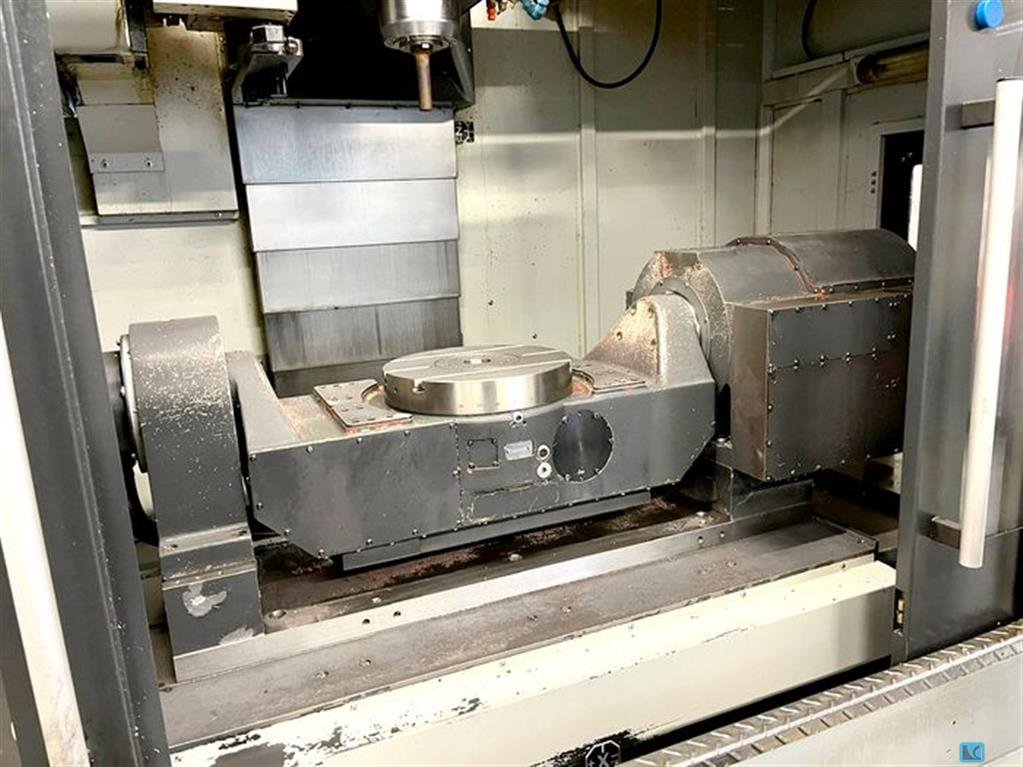

x-travel:960 mm y-travel:600 mm z-travel:480 mm rotary table::D 350 mm table load:200 kg spindle turning speed range:12.000 1/min drive capacity - spindle motor:14/10 kW control:HEIDENHAIN iTNC 530 rapid traverse:32 / 32 / 24 m/min Tool changer:30- fach spindle taper ISO:BT 40 weight of the machine ca.:7,4 t total power requirement:45 kVA dimensions of the machine ca.:3,1 x 2,3 x 3,1 m 5-axis simultaneously universal-machining center, NC-rotary-swivelling table dia. 350mm, A-axis (120/-42°), C-axis 360°, Internal coolant supply, el. handwheel, chipconveyor, direct measuring system, Hour meter: approx. 9.000 h "machine on", approx. 3.500 h "spindle on"

x-axis: 5000 mm y-axis: 4000 mm z-axis: 1400 mm distance between columns: 3500 mm spindle motor: 22/26 kW spindle turning speed range: 6000 U/min rapid traverse: 15 m/min table-size: 5020 x 3000 mm workpiece weight: 16 t Control: FANUC 0i-iMF distance table - lower edge spindle: 200 - 1600 mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m 5 Sided Machining Center equipped with: - CNC Control FANUC 0i-MF (10.4 LCD) - ATC 60-fold (BT 50) - Coolant through Spindle - X/Y/Z axis linear guide way - X/Y linear Scales Heads: -- 90 degree head (auto 5 degree indexing) -- 200mm extension 90 degree head (mounted on table) -- 350mm extension head (mounted on table) - Air conditioner - Oil skimmer - Chip conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-axis: 4000 mm y-axis: 3200 mm z-axis: 1200 mm distance between columns: 2700 mm spindle motor: 50 / 65 kW spindle turning speed range: 15000 U/min distance spindle nose and table: 200 - 1400 mm rapid traverse: m/min table-size: 4020 x 2400 mm workpiece weight: 15 t Control: Heidenhain TNC 640 total power requirement: - kW weight of the machine ca.: 44 t dimensions of the machine ca.: - m Machine equipped with: X, Y, Z, B, C five axes simultaneous movement control - CNC control Heidenhain TNC 640 - 40-position tool changer (HSK-A100) - 2-axis milling head TCH-19F -- B- & C-Axis - X,Y,Z-axis linear scales - IKZ 20bar - Tool off-set - Oil skimmer - Chip conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Controlador CNC: Heidenhain iTCN530 Eixos Viagem no eixo X mm: 1,250 Viagem no eixo Y mm: 620 Curso no eixo Z mm: 620 Graus do eixo C: 360º (0,001º) Graus do eixo B: ±115 (0,001º) Mesa de trabalho Dimensões da mesa mm: 1,350 x 620 Peso máximo da peça de trabalho kg: 1.000 Fuso Velocidade do fuso por minuto: 15.000 Potência do eixo de acionamento: 22 / 17 Torque do fuso Nm: 387 / 466 Sistema de ferramentas Suporte para ferramentas: SK 40 Slots para carregadores de ferramentas: 60 no máximo. Diâmetro da Ferramenta: 150 Comprimento máximo da ferramenta mm: 220 Peso máximo da ferramenta kg: 7 Tempos de ferramenta a ferramenta: 3 Equipamento Roda Eletrónica Candeeiro de sinalização Sonda de quebra de ferramenta Filtro de banda de papel Transportador de cavacos com raspador incorporado RENISHAW OMP 40-2 Lehmann do 4.º e 5.º eixo (ø400 x 40mm x 40kg ...

CNC controller: Heidenhain iTCN530 Axes X-axis travel mm: 1.250 Y-axis travel mm: 620 Z-axis travel mm: 620 C-axis degrees: 360º (0,001º) B-axis degrees: ±115 (0,001º) Worktable Table dimensions mm: 1.350 x 620 Max. workpiece weight kg: 1.000 Spindle Spindle speed rpm: 15.000 Spindle drive power kW: 22 / 17 Spindle torque Nm: 387 / 466 Tool system Tool holder: SK 40 Tool magazine slots: 60 Max. Tool Diameter: 150 Max. Tool Length mm: 220 Max tool weight kg: 7 Tool-to-tool time s: 3 Equipment Electronic Handwheel Signal lamp Tool breakage probe Paper band filter Chip conveyor with built-in scraper RENISHAW OMP 40-2 4th and 5th axis Lehmann (ø400 x 40mm x 40kg) Cabin 54 pallet Storage Gressel (ø340 x 348mm x 89kg ) Cooling Tank capacity: 340 L High-pressure bar: 20 Machine running times Under power: 75.294 Operatin ...

Centro de usinagem CNC marca AWEA 1460 BM Ano de Marca: 2014 Horas de alimentação: 16656 Horas do eixo: 7073 Operação de turno único/KD mantido X=1460mm Y= 600mm Z=620mm 40x Trocador aleatório Potência do eixo de 30 KW Controle: Heidenhain 530 Volante: Heidenhain Réguas de medição Heidenhain Ar de vedação em réguas de medição IKZ= 30 bar Arrefecimento exterior Descarga na cabina Eixo: 10.000U/pm Grande tanque de refrigerante e filtro Grandes portas laterais A máquina pode ser visualizada no local por acordo em Chip!

x-travel: 1200 mm y-travel: 600 mm z-travel: 600 mm Control: Heidenhain iTNC 530 spindle speed:: 6000 1/min. spindle taper: 50 SK spindle drive: (S1) 10 kW table surface area: 1300 x 600 mm table load: 1200 kg feed speeds: 1-10000 mm/min rapid travel x/y/z: 20/20/15 m/min distance table - lower edge spindle: 125-725 mm total power requirement: 25 kVA weight of the machine ca.: 7,5 t dimensions of machine: 3600 x 2300 x 3000 mm Equipped with: CNC control Heidenhain iTNC 530 Electr. portable handwheel Spindle oil cooler Tool changer 24-pos., double arm changer - Max. tool diameter 80/150 mm - Max. tool length 250 mm - Max. tool weight 8 kg Preparation for hydraulic machine vice Preparation for 3-D measuring probes Chip conveyor Coolant system, coolant through spindle 20 bar Machine documentation Working hours (date 1st. November 2024): - Control on: 60.818 h - Machine on: 59.598 h ...

curso x: 4.000 mm y-curso: 2.100 mm z-curso: cone de 1.000 mm ISO: ISO 50 Número de rotações: 5.000 rpm tamanho da mesa: 4.020x2.010 mm peso da mesa: 12.000 kg controle: Heidenhein iTNC530 Lugar das ferramentas: 32 fach taverse rápido: 15.000 mm/min necessidade de potência total: kW peso da máquina ca.: 39 t dimensões da máquina ca.: 10680x5600x5100 m

x-travel: 960 mm y-travel: 600 mm z-travel: 480 mm : 120 / - 42 ° : 360 ° table load: 200 kg Table dimensions: 560x365 mm Spindle Speed: 12000 U/min. conus taper: BBT 40 mm distance spindle /table: 100-580 mm tool length - max.: 300 mm weight of tools max.: 7 kg control: HEIDENHAIN weight of the machine ca.: 7000 kg dimensions of the machine ca.: 3100x2200x3070 mm 5-axis universal machining center Model CNC Heidenhain ITNC 530 Coolant through spindle CTS. Renishaw tool probe. Oil cooler. Equipment/accessories: - IKZ - electr. handwheel - chip conveyor - direct measuring system Operating hours: approx. 9,000 switch-on hours approx. 3,500 spindle hours The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

This 3-axis AWEA AF-650 vertical machining center was manufactured in 2017. It features a table size of 750 x 510 mm, can handle a maximum load of 500 kg, and offers axis travels of X = 650 mm, Y = 510 mm, Z = 510 mm. Equipped with a high-speed spindle at 20,000 rpm and a Fanuc 0i-MF CNC control, its ideal for precise machining tasks. Contact us for more information about this machine.

This 4-axis AWEA AF 1460 vertical machining center was manufactured in 2018. It features a FANUC 0i-MF control unit, rapid feeds up to 48 m/min, and a tool magazine with 30 positions. The machine includes a 4th axis rotary table, chip conveyor, and coolant through the spindle at 15 bar. Ideal for complex machining tasks, the AWEA AF 1460 machine we have for sale is robust and versatile. Contact us for further details regarding this vertical machining center.

Dimensões da mesa (x-y/mm) 1120 x 600 Curso (X/mm) 1020 Curso (Y/mm) 600 Curso (Z/mm) 600 Tipo de controlo Selca S4040DH Número de fusos por minuto 40 - 8000 Número de inserções no carregador da ferramenta: 24 Peso (tonelada) 7 Ligação do mandril ISO 40 Peso máximo de carga (tonelada) 1 Número de eixos 3

This 4-axis AWEA AF-1000 vertical machining center was manufactured in 2017. It features a 1020 mm X-axis travel, 550 mm Y-axis travel, and 635 mm Z-axis travel. Equipped with a high-speed 12,000 rpm spindle, ISO 40 taper, and a 24-tool arm changer. Includes a 4-axis continuous table and chip conveyor. Ideal for complex machining tasks. Contact us for more information about this machine.

Centro de maquinação vertical Awea BM-850 Especificações técnicas Modelo CNC Selca Versão CNC S4040DH Suporte de ferramentas ISO 40 Potência do fuso 11 Kw Velocidade do fuso 12000 Número de ferramentas: 24 Deslocamento no eixo X 850 mm Curso do eixo Y 600 mm Deslocamento do eixo Z 600 mm Velocidades rápidas eixos lineares X Y Z 24 m/min Dimensões da mesa 1050x600 mm Capacidade da mesa 850 Kg Pressão alta do refrigerante, sim Valor de pressão 18 bar Transportador de cavacos de parafuso Informação Básica Código 33883A Máquina de Níveis Standard Nome da marca: Awea Modelo BM-850 Ano de construção: 2010 Tamanho e Peso Comprimento: 2.500 mm Largura 2.200 mm Altura 2.600 mm Peso: 6500 kg

This 4-axis AWEA AF-1600 vertical machining centre was manufactured in 2012. It features a large table size of 1700 mm x 800 mm with a load capacity of 2000 kg, and a spindle speed of 1000 rpm. Equipped with a Fanuc Series 0iMD control and a 16-position tool magazine, the AWEA AF-1600 machine we have for sale is ideal for complex machining tasks. Contact us for further details regarding this vertical machining centre.
