79 CHIRON máquina utilizada para venda

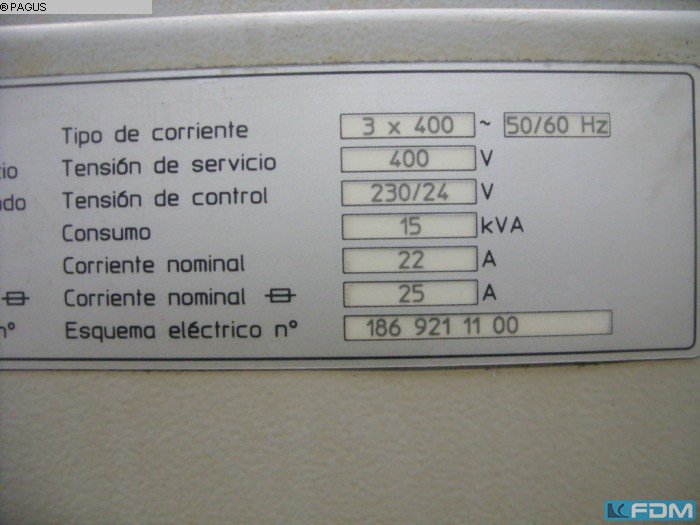

x-travel:550 mm y-travel:300 mm z-travel:425 mm CNC-control:Sinumerik table-size:950 x 350 mm max. table load:500 kg spindle taper ISO:30 spindle turning speed range:20 - 10500 U/min spindle drive motor:5,5 kW tool change unit:12 Pos. coolant:inkl. voltage:380 V tool adaptor:Steilkegel 40 groove width:32/28 mm no. of flutes:3 rapid speed:40.000 mm/min total power requirement:15 kVA weight of the machine ca.:3,3 t chip conveyor:inkl. dimensions of the machine ca.:2000x 3000 x2500 mm Documents:vorhanden - Serial Number: 186 - 78 - Control: FANUC O-M - with various tool holders - coolant equipment

x-travel: mm y-travel: mm z-travel: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: Chiron Model: FZ 08K S Magnum SK Year of Manufacture : 2007 Type of Machine : Vertical Machining Center Factory overhaul: 2017 (Chiron CMS) Operating hours: approximately 22,500 h CNC control: Siemens 840D (PCU 20 / NCU 572.4) Spindle: water-cooled motor spindle, 15,000 rpm Spindle last replaced: September 2025 Last major service: October 2025 (Chiron, 4,000 h interval) NC swivel head swivel range: -20 degrees / +115 degrees Travel X / Y / Z: 450 mm / 270 mm / 310 mm Rapid traverse X / Y / Z: 75 m/min Acceleration X / Y / Z: 1g / 1.5g / 2g Tool positions: 40 x HSK-A 40 Chip-to-chip time: 2.6 seconds vertical (DIN) --------------------------------------------------------------- Equipment and Accessories Included Rotary table package AWU 160 with D105 mm (positioning axis) Hainbuch Spanntop collet chuck D100 6th side machining attachment Part removal hand ...

x-travel: 550 mm y-travel: 400 mm z-travel: 360 mm b-axis: +/- 110 ° c-axis: 360 ° 0 Control: HEIDENHAIN iTNC 530 spindle taper: HSK63 spindle turning speed - stepless: 20000 U/min tools in tool magazin: 48 weight of the machine ca.: 10 t dimensions of the machine ca.: 3 x 5 x 3 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

5-axis two-spindle center with pseudo-palletization Type: DZ 24 Magnum Manufacturer: Chiron Year: 2015 Hours: 57000 Control: Siemens Sinumerik 840 D Table clamping surface 2X D 500 mm X: 830 mm Y: 630 mm Z: 630 mm A: rotating drum C: rotary tables Spindle speed: 0 - 20000 rpm Number of controlled axes: 5 No central cooling Spindle clamping cone: HSK-A63 Tool magazine: 2 x 30 positions Machine weight: 18500 kg Dimensions: 7000 x 3200 x 3500 mm BLUM aiming laser probe Chip conveyor Find more here - / Contact us at -

Manufacturer: Chiron Model: MILL 6000 high speed with NC swivel head Year of Manufacture: 2004 Major overhaul: 2013 Operating hours: 77,374 h Weight: 19,500 kg Power Supply: 3/N/PE ~ 50/60 Hz Working Voltage: 400 V Control Voltage: 220/24 V Power Consumption: 52 kVA Rated Current: 75 A Fuse: 80 A Last spindle replacement: March 2021 (approx. 7,300 spindle hours since) Technical Data: - Control: Siemens 840D (PCU50, NCU572.4) - NC swivel head - Travel paths: X 6,000 mm / Y 630 mm - Rapid feed: X / Y / Z = 60 m/min - Motor spindle: 12,000 rpm, 140 Nm - Tool change time (chip-to-chip): 3.0 sec (vertical), 4.7 sec (horizontal) - Tool magazine: 92 tool positions, HSK-A63 Find more here - / Contact us at -

Manufacturer: Chiron Model: FZ15 S High Speed Year of Manufacture: 2007 Operating Hours: 48,000 h Find more here - / Contact us at -

Vertical CNC Machining Center Chiron FZ 08K S Magnum SK with NC swivel head, rotary table package, bar loader, and removal device. - Operating Hours: 30,682 h - Last Spindle Replacement: 10/2021 Technical Data: - Control System: Siemens 840D (PCU 20 / NCU 572.4) - NC Swivel Head: Swivel Range -20° / +115° - Motor Spindle: Water-cooled, 15,000 RPM - Travel Paths: X 450mm / Y 270mm / Z 310mm - Rapid Traverse (X/Y/Z): 75 m/min. / Acceleration X 1g / Y 1.5g / Z 2g - Tool Slots: 40, HSK-A 40, Span-to-Span Time 2.6 sec. vertical Additional Equipment: - Preparation for Bar Processing - Rotary Table Package: AWU 160 with D105mm (Positioning Axis) - Collet Chuck: Hainbuch Spanntop D100 - Additional Device: 6th Side - Handling and Removal Device for Finished Parts - Bar Loader: IRCO SiMag 100.1-3000 (Round and Profile Material) - Flushing Gun - Machine Preparation for IKZ - High Pressure: 7 ...

2012 Chiron DZ 12 KWM HS 328-03 Profile CNC machining centre Chiron milling machine - double-spindle - with pallet changer - HSK-A63 Accessories and tools are not included. We still have a few holders (shrink fit chucks) that we can provide. A chip conveyor from Knoll is included, as well as a cooling tower from DeltaTherm. Technical data Year of construction 2012 Axis travel: X 550 / Y 400 / Z 360 mm Spindle distance in X-axis: 250mm Weight: 7700kg Tool magazine: 16 places per spindle Tool holder HSK-A63 Fanuc 31i-A5 - 5-axis contouring control Fanuc tool life monitoring Integrated workpiece changing device IWW 0/180° Spindle speed 15000 rpm, max. 45Nm Speed acceleration / deceleration from 0 to 12000 rpm in 0.6 seconds Chip conveyor with scraper belt Coolant system KF 150/FKA500 Chiron maintenance instructions on screen Operating hours and parts counter Oil-fre ...

CONTROLS   CNC controls SIEMENS 840 D SL WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 4   X-axis travel: 210 mm   Y-axis travel: 270 mm   Z-axis travel: 360 mm SPINDLE / HEAD   spindle revolutions (max): 40000 /min   tool fixture: HSK A40 TOOL MAGAZINE   number of positions: 64 AUTOMATIC WORKLOAD EQUIPMENT   workpiece manipulator: articulated robot   number of store positions: 32 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 9000 kg ATTACHMENTS   chip conveyor: yes   coolant unit: yes   band filtration unit: yes   closed cabin: yes Operating hours: Spindle 1: 4050 h, Spindle 2: 11,114 h Internal cooling 70 bar Fanuc Automation Robot M-10IA Integrated workpiece changing device Knoll coolant tank Knol KF 400/900

CONTROLS   CNC controls SIEMENS 840D SL 4.8 WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 4   X-axis travel: 210 mm   Y-axis travel: 270 mm   Z-axis travel: 360 mm SPINDLE / HEAD   spindle revolutions (max): 40000 /min   tool fixture: HSK A40 TOOL MAGAZINE   number of positions: 72 AUTOMATIC WORKLOAD EQUIPMENT   workpiece manipulator: articulated robot   number of store positions: 36 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 8500 mm   space requirements -front/back-: 2500 mm   total weight approx.: 6000 kg ATTACHMENTS   central lubrication system: yes   chip conveyor: yes   coolant unit: yes   through spindle coolant attachment: yes   European CE standards: yes -Siemens tool management with retooling-Fanuc Automation Robot M-10IA- ...

CONTROLS   CNC controls SIEMENS 840 D WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 4   X-axis travel: 550 mm   Y-axis travel: 320 mm   Z-axis travel: 360 mm TABLE   table surface (left-right): 820 mm   workpiece load (max): 500 kg SPINDLE / HEAD   spindle revolutions (max): 24000 /min   tool fixture: HSK A50 AXIS DRIVES   rapid traverse: 75000 mm/min TOOL MAGAZINE   number of positions: 24 AUTOMATIC WORKLOAD EQUIPMENT   workpiece manipulator: articulated robot   store type: table changer   number of store positions: 2 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 7700 kg ATTACHMENTS   guideway covers: yes   central lubrication system: yes   chip conveyor: yes   coolant unit: yes   closed cabin: yes   European CE standards: yes - Shuttle t ...

x-travel: 550 mm y-travel: 320 mm z-travel: 420 mm b-axis: -45 / +180 ° c-axis: 360 ° 0 Control: SIEMENS 840D SL spindle taper: A-50 spindle turning speed - stepless: 12000 U/min tools in tool magazin: 64 total power requirement: 36 kW weight of the machine ca.: 10 t dimensions of the machine ca.: 3 x 5 x 3 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

N.º : 7911 Tipo: FZ 12 WM Produtor: Chiron Criado: 2011 Parâmetros: Sistema de controlo: Fanuc Series 21iM Horas de ligação: 94645 h Horário: 45953 h Comprimento da mesa de trabalho: 850 mm Largura da mesa de trabalho: 350 mm Curso do eixo X: 550 mm Curso do eixo Y: 300 mm Curso do eixo Z: 425 mm Altura da máquina: 2600 mm Comprimento da máquina: 2800 mm Largura da máquina: 1800 mm Equipamento: Punhos

Key data: 1200 mm, 400 mm, 425 mm

N.º : 4455 Tipo: FZ 16L Produtor: CHIRON Criado: 1987 Parâmetros: Sistema de controle: Siemens Sinumerik System 3 Comprimento da mesa de trabalho: 1880 mm Largura da mesa de trabalho: 475 mm Eixo X do comprimento de alimentação mecânica: 1200 mm Eixo de comprimento de alimentação mecânica Y: 400 mm Eixo de comprimento de alimentação mecânica Z: 425 mm Altura da máquina: 4000 mm Comprimento da máquina: 2400 mm Largura da máquina: 2800 mm Peso da máquina: 3500 kg

Year of manufacture: 2004 - major overhaul by manufacturer CHIRON in 2013 | The machine underwent a complete factory overhaul by CHIRON in 2013. | Operating hours: approx. 80,374 h | Spindle replacement: March 2021 - spindle hours: approx. 8,000 h | Last maintenance performed: January 2024 | Technical Specifications: | Control: Siemens 840D (PCU50, NCU572.4) | NC swivel head | High-speed package: Motor spindle up to 12,000 rpm, 140 Nm | Travels: X 6,000 mm / Y 630 mm / Z 550 mm | Rapid traverse in X / Y / Z: 60 m/min | Chip-to-chip time: 3.0 sec (3.3 sec DIN) vertical / 4.7 sec (5.0 sec DIN) horizontal | Production package: | Scraper belt conveyor, discharge height 1,050 mm | Preparation for internal coolant supply (IKZ) | Vacuum rotary filter KNOLL VRF250 (for steel, cast iron, aluminum, plastic, brass) | High pressure 70 bar with HP pump and variable valve | Automatic loading doors | C ...

This 3-axis CHIRON FZ 08 W was manufactured in 2001. It features a maximum spindle speed of 18,000 rpm and a robust tool interface with HSK-A40. The machine includes integrated pallet changer for efficient workpiece handling. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 08 W vertical machining centre we have for sale. Contact us for further details regarding this machine.

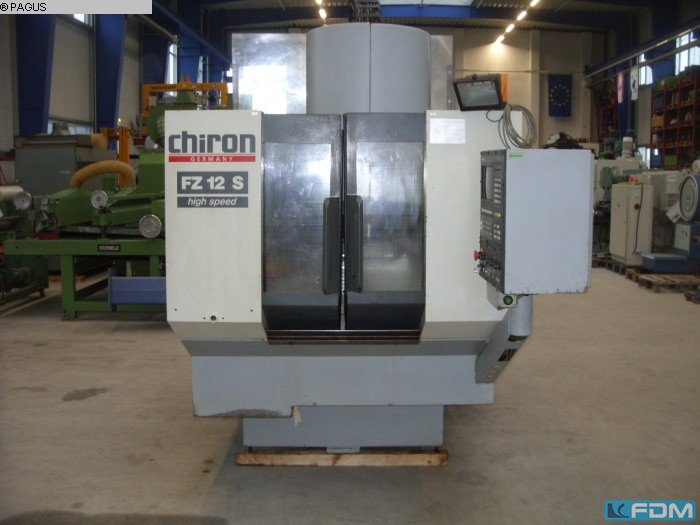

This 3-axis CHIRON FZ 12 S High speed was manufactured in 1996. It features an X-axis travel of 550 mm, Y-axis travel of 330 mm, and Z-axis travel of 425 mm. The machine has a spindle speed of 12,000 rpm and a tool capacity of 12 tools. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 12 S High speed vertical machining centre we have for sale. Contact us for further details.

Travel X/Y/Z: 1600mm/400mm/425mm, table dimensions X/Y: 2000mm/400mm, max. table load: 350kg, tool positions: 12, tool holder: SK30, speed: 6300rpm, feed rate: 10m/min, rapid traverse: 20m/min, machine dimensions X/Y/Z: approx. 4000mm/2300mm/2800mm, weight: approx. 5000kg, control: Siemens Sinumerik. The hoses, the Y-axis cover, and the battery (data loss) are in need of repair. An on-site inspection is possible.

A CNC machining center Chiron factory-overhauled by the manufacturer in 2017 is available. Travel path X/Y/Z: 450mm/270mm/310mm, NC head swivel: -20°/115°, tool positions: 40, tool holder: HSK-A40, speed: 15000rpm, control: Siemens 840D, operating hours: approx. 22500h. Including rotary table package AWU 160 with D105, collet chuck, handling, bar feeder Irco SiMag 100.1-3000, through-coolant preparation, scraper belt conveyor (1050mm), duplex filter Mahle, vacuum rotary filter Knoll VRF 400, approx. 500 tool holders HSK-A40 and various spare parts. Documentation vorhanden. An inspection on site is possible.

This 5-axis CHIRON FZ 08K S Magnum SK was manufactured in 2007. It features a Siemens 840D control unit, with impressive travels of 450 mm in the X-axis, 270 mm in the Y-axis, and 310 mm in the Z-axis. The machine includes a 40-position tool changer and a high-pressure coolant system. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 08K S Magnum SK vertical machining centre we have for sale. Contact us for further details.

This 4-axis CHIRON DZ15KWM HS was manufactured in 2011. Ideal for precision vertical machining, this model offers robust construction and reliable performance. If you are looking to get high-quality milling capabilities, consider the CHIRON DZ15KWM HS machine we have for sale. Contact us for more information.

This 4-axis CHIRON FZ 18 W was manufactured in 1993. It features dual 4th axes and is equipped with a SIEMENS SINUMERIK control system, enhancing its precision and efficiency. The addition of a chip conveyor aids in maintaining a clean work environment. Consider the opportunity to buy this CHIRON FZ 18 W vertical machining center. Contact us for more information about this machine.

This 3-axis CHIRON FZ 12 KW vertical machining center was manufactured in 2012. It features a high-speed spindle with a maximum speed of 12,000 rpm and a rapid traverse speed of up to 60 m/min on the Z-axis. The machine includes a 24-slot automatic tool changer and can handle a table load of up to 500 kg. Ideal for precision machining tasks. Contact us for more information about this machine.

This 3-axis CHIRON Mill 6000 SK was manufactured in 2004, featuring a high-speed motor spindle at 12,000 rpm and a travel range of X 6,000 mm, Y 630 mm, Z 550 mm. It includes a 5-axis milling package, 92 tool positions, and a Marposs collision monitoring system. Ideal for long part machining up to 6,000 mm and pendulum machining. If you are looking to get high-quality milling capabilities consider the CHIRON Mill 6000 SK machine we have for sale. Contact us for more information.

This 4-axis CHIRON FZ 15 W Magnum HS vertical machining center was manufactured in 2014. Ideal for precision machining, it offers robust construction and reliability. Consider the opportunity to buy this CHIRON FZ 15 W Magnum HS vertical machining center. Contact us for more information.
