5 CHURCHILL máquina utilizada para venda

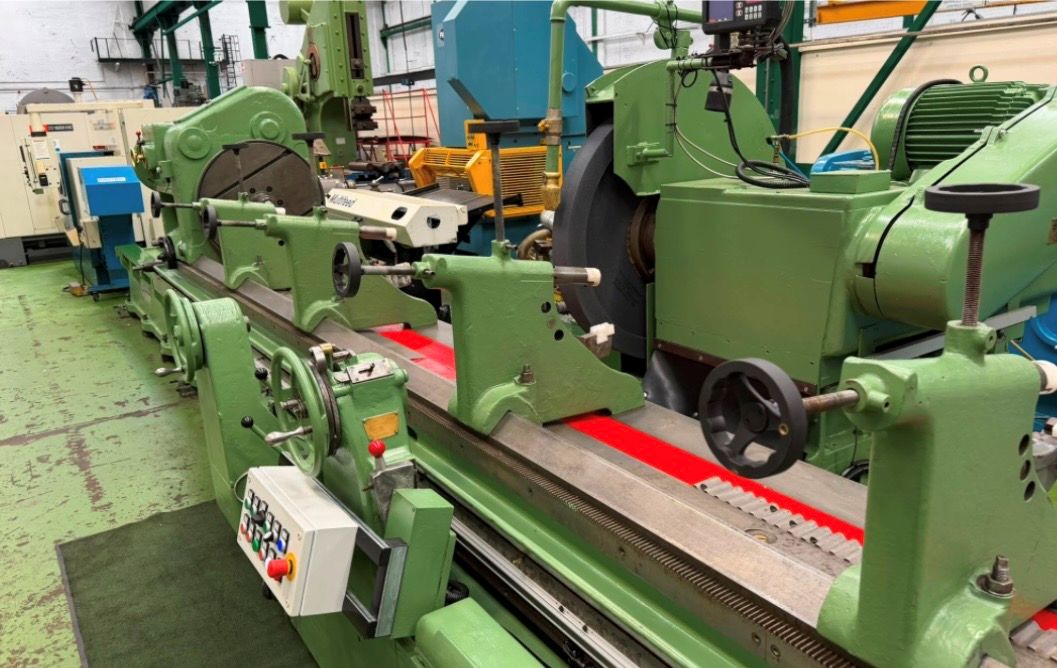

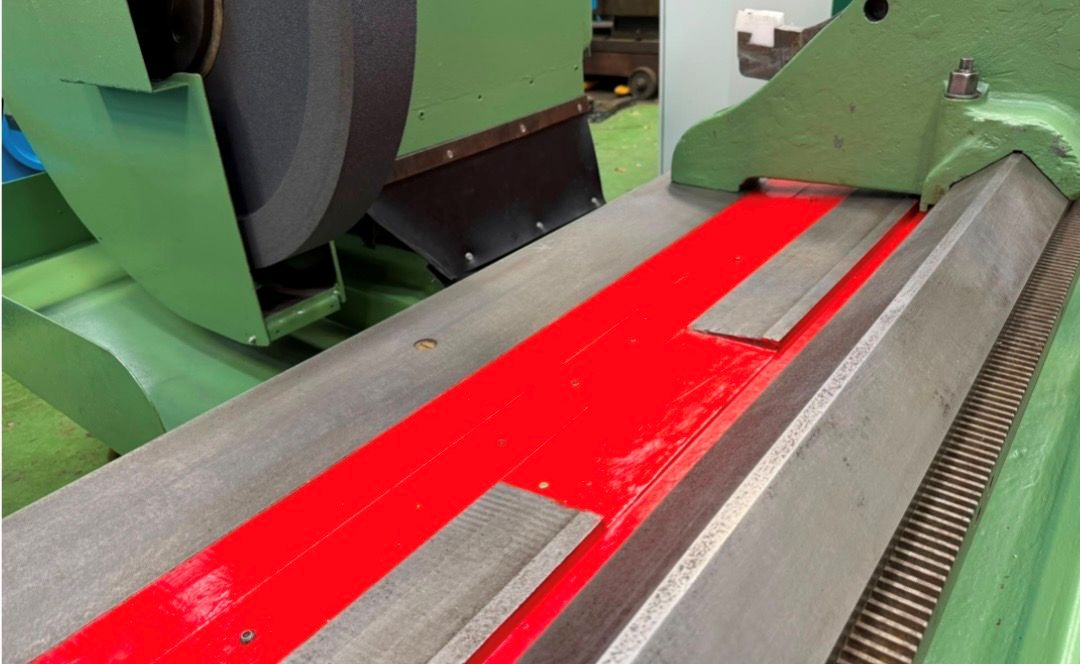

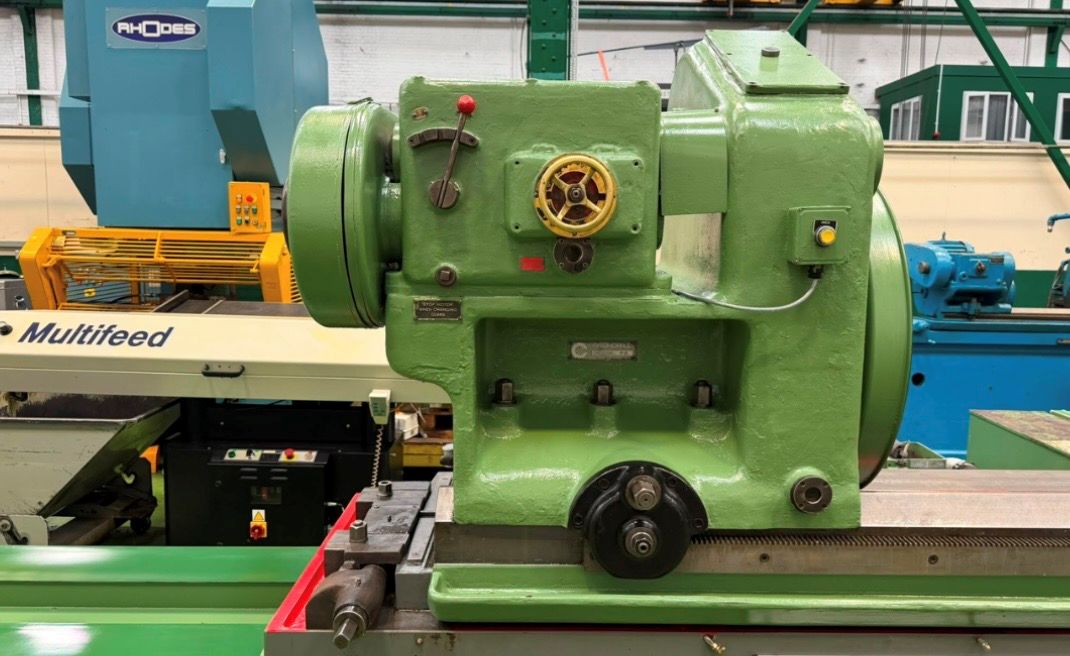

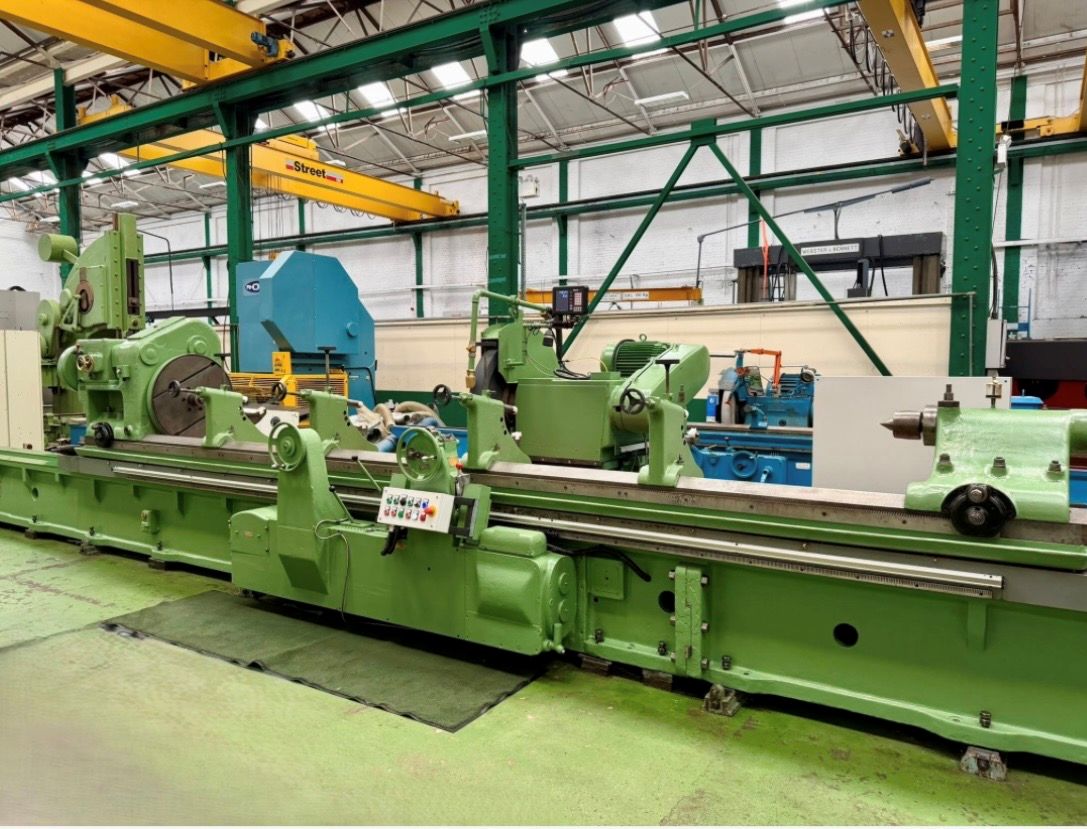

grinding diameter: 750 mm grinding length: 5400 mm centre height: 375 mm max. workpiece diameter: 750 mm workpiece weight: 10000 kg table - swivable +/-: - ° grinding wheel size: 750/650 x 75 x 305 mm grinding wheel turining speeds: 750 U/min turning speed range - workpiece: 14,5 - 86 U/min main drive motor: 15 kW workpiece drive: 7,5 kW feeds - fine adjustment: 0,00635 - 0,0508 mm/min total power requirement: - kW weight of the machine ca.: 27 t dimensions of the machine ca.: 13,5 x 3,4 m Refurbished 2023 and equipped with: - DRO - Table swivable - 9 x steadies - Coolant/Filtration Tank Machine has had over 85000,-€ of retrofit work in 2023 including: -- replacement of air bearing liners -- 7 x steadies fully overhauled -- Overhaul of top table & centre heights of workhead & tailstock -- New electrical wiring & cabinet The data for this ad was created with ModulMWS - the software s ...

grinding diameter: 1520 mm grinding length: 6000 mm grinding wheel size: 660 mm steady: 800 mm steady: 800 mm total power requirement: 15/25 HP weight of the machine ca.: . t dimensions of the machine ca.: . m 2 Steadies Coolant System The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter: 1670 mm grinding length: 8990 mm swing diameter: 1670 mm grinding diameter - min.: mm workpiece weight: 65 t grinding spindle speed: U/min roll drive: U/min feed speeds: m/min grinding wheel motor: kW control: Siemens 840D total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m overhauled in 2012 - CNC Control Siemens 840D - Lismar Measuring System - 5 open steadies - tailstock - chuck dia 1200mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter: 762 mm grinding length: 5500 mm centre height: mm workpiece weight: 10000 kg grinding wheel size: 762 x 76 x 304,8 mm grinding wheel turining speeds: 1 -750 U/min turning speed range - workpiece: 14,5 - 86 U/min main drive motor: 14,8 kW workpiece drive: 5,5 - 7,35 kW grinding head infeeding speed: 0,00635 - 0,0508 mm/min table speeds: 101 - 2021 mm/min total power requirement: ca 25 kW weight of the machine ca.: 27 t dimensions of the machine ca.: 13,5 x 3,35 m Machine complete with: - 9 x steadies. - Coolant/Filtration Tank. Machine has had over 80.000€ of engineering maintenance work/overhauling in 2023 including replacement of air bearing liners. 7 x steadies fully overhauled. Overhaul of top table & centre heights of workhead & tailstock. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CHURCHILL PH3615 máquina de fresagem de engrenagens Diâmetro máximo da peça 914 mm Max diametral/pitch- 8 Módulo, 3 D.P. Distância horizontal do centro: -63,5- 559 mm Curso horizontal máximo 469 mm Altura do centro do fogão à mesa de trabalho: 127- 508 mm Curso máximo de alimentação vertical 381 mm Mesa de trabalho de altura máxima para o centro da bagageira768 mm Diâmetro da mesa 762 mm Furo de mesa (diâmetro x profundidade) 89 x 381 mm Fogão diâmetro x comprimento 178 x 203 mm Curso máximo da corrediça da placa 127 mm Diâmetro da placa arbor 32 mm Velocidades do eixo da placa, infinitamente variáveis 50 – 200 rpm Alimentação vertical 0,38 – 5 mm Motor de acionamento principal 10 HP tamanho aproximado 3960 x 2130 x 2300 mm Peso 11.500 kg Conjunto alargado de mudanças de velocidade Documentação completa Variadores de velocidade operaciona ...
