14 CIMEC máquina utilizada para venda

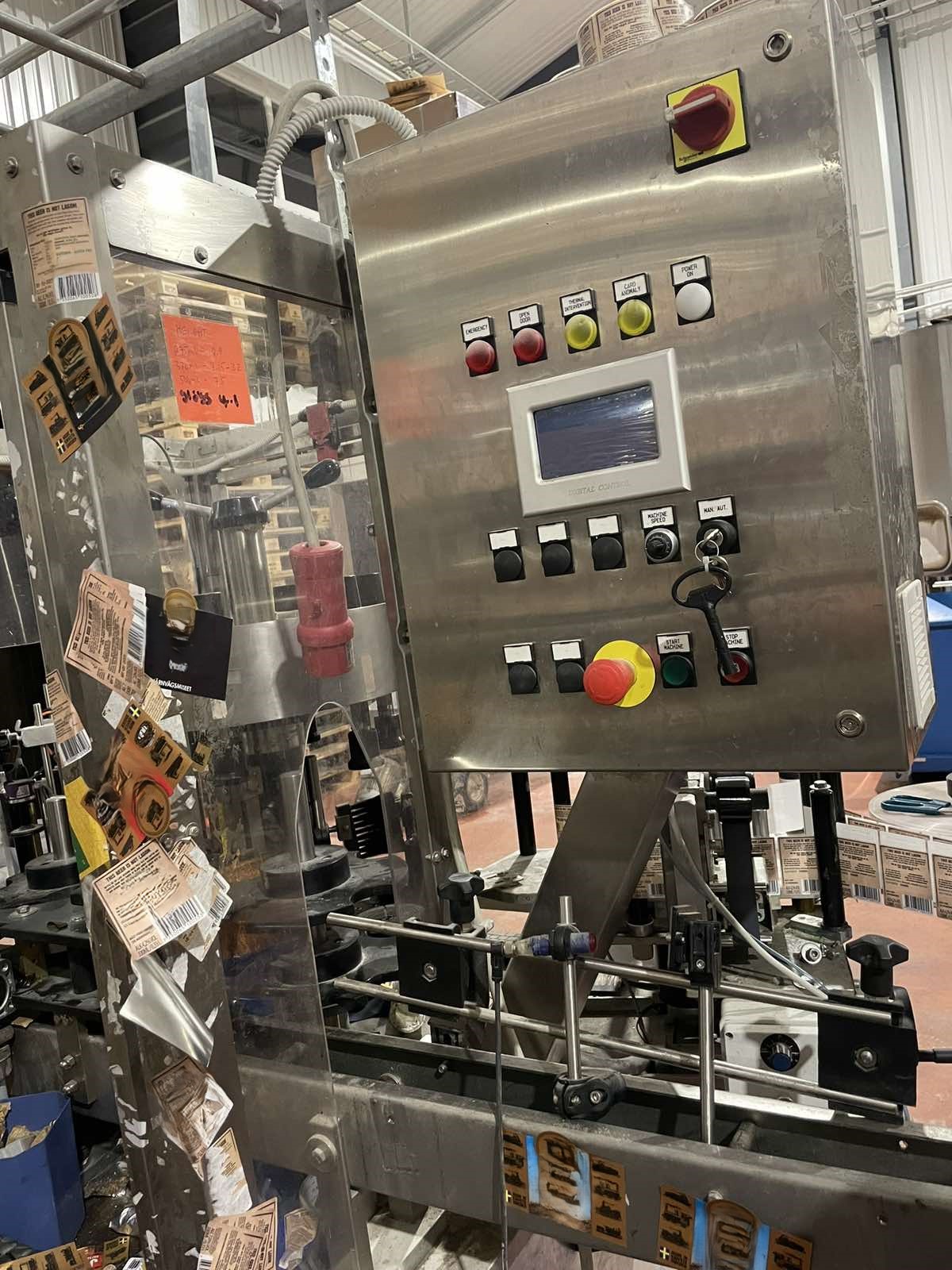

Used Labeling Machine Cimec Cold Glue Up to 4000 BPH Year 2020 In the industrial bottling sector, choosing the right labeling machine is crucial for ensuring efficiency and quality. The machine stands out for its precision and reliability. Technical Features of the Labeling Machine Cimec Produced in 2020, this second-hand Cimec labeling machine, model ETC. COLLA. LN, is designed for speeds up to 4000 bottles per hour (BPH). This reflects the unit’s high productivity. The formats that this labeler has worked are 0,33l, 0,25l and 0,70l. Furthermore, its linear rotation direction, combined with the cold glue labeling method, ensures precise and uniform label application. Indeed, this is essential for maintaining high visual quality of the finished product. Adjustments and Safety Despite the absence of automatic head adjustment, the machine allows manual label adjustment. Therefore, it  ...

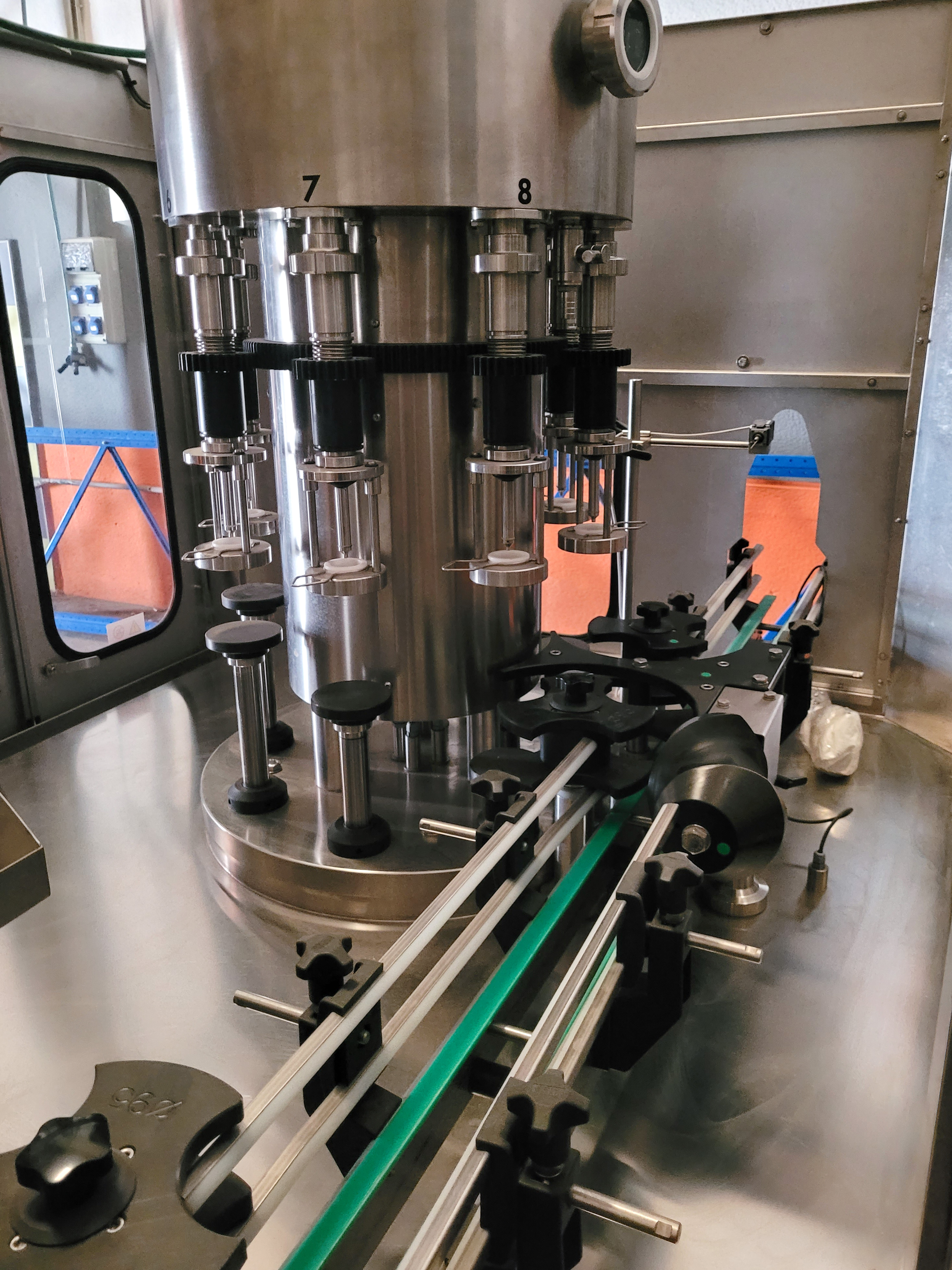

Used Filling Monoblock Cimec America The Used Filling Monoblock Cimec America model DPS 6/6/1C is an advanced isobaric bottling solution designed for the precise rinsing, filling, and capping of carbonated beverages. Engineered with industrial-grade stainless steel and based on a robust mechanical architecture, this monoblock is tailored for small to medium-sized beverage operations seeking reliability, hygiene, and consistent process control. This CIMEC monoblock integrates three essential stations into a compact, fully automatic system. The configuration includes a bottle rinsing unit, an isobaric filling carousel, and a crown capping station, all enclosed within stainless steel safety guards with transparent access doors for operational monitoring and safety compliance. Isobaric Filling Technology and Construction At the heart of the Used Filling Monoblock Cimec America is its isobari ...

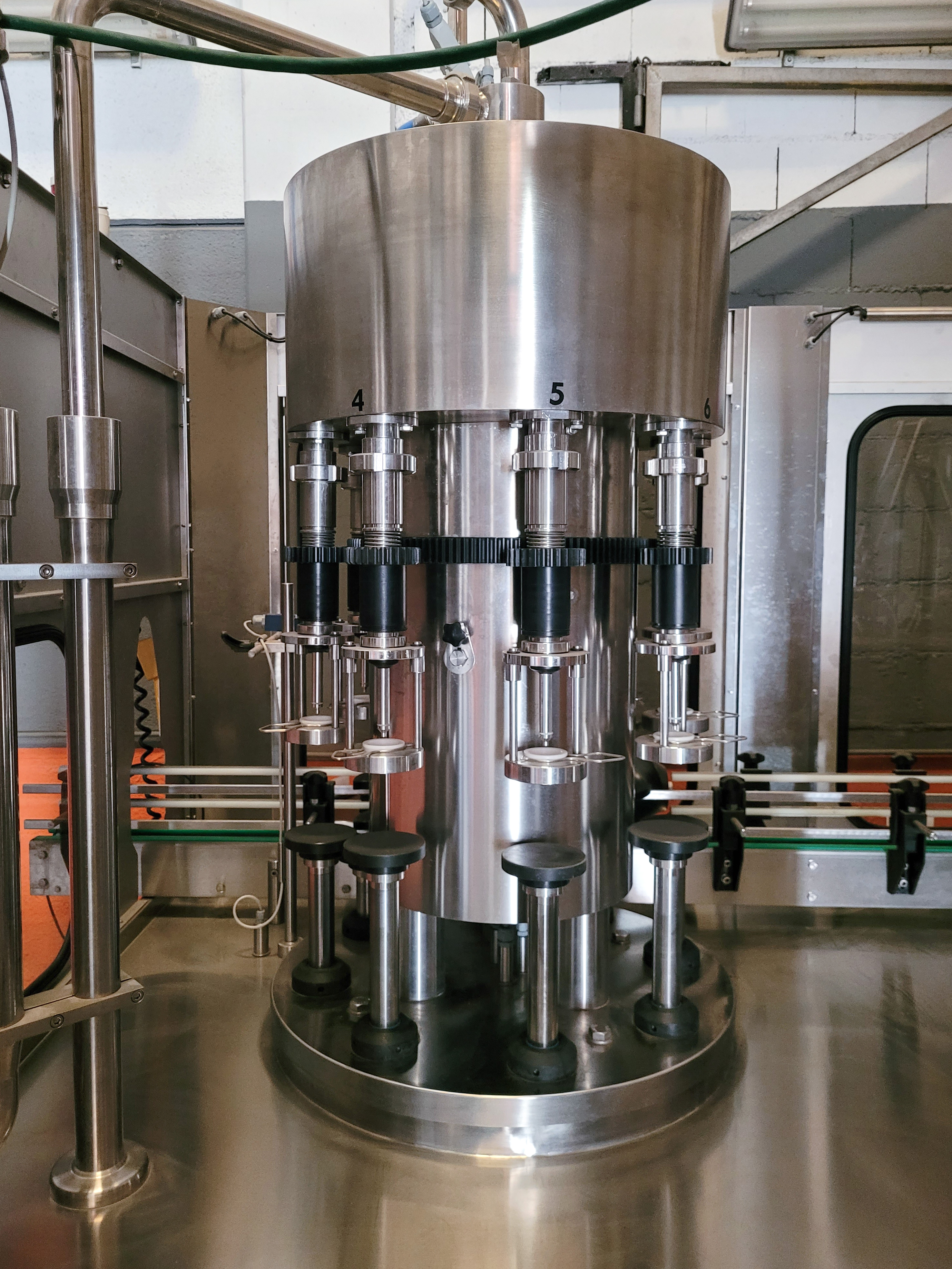

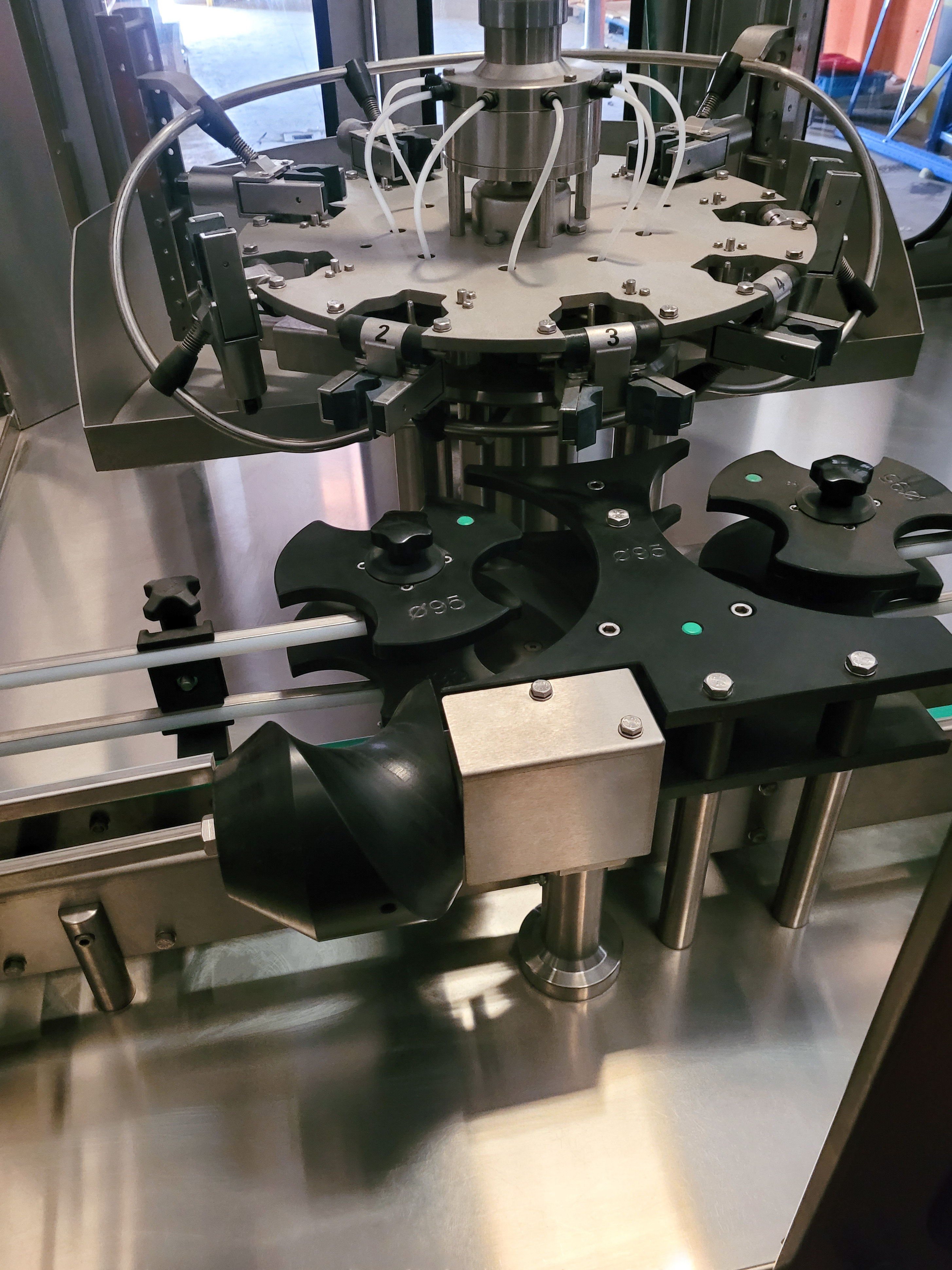

Overview  This filling monoblock was manufactured in 2017 by CIMEC. The machine is designed for filling applications in the liquor and spirits industry. The machine is currently still installed and can be visited on request. Technical data  Capacity: approx. 3,000 bottles per hour Application: Filling (liquor / spirits) Configuration: Model MONDIAL MONOBLOCK LD 9/8 Filling System: Gravity filling Number of Filling Valves: 8 Number of Rinsing Nozzles: 9 Number of Labelling Heads: 1 Sealing: It applies heat shrink capsules on the neck Water Pressure (Rinsing): 2 – 3 bar CIP Cleaning Temperature: up to 80°C (water) / 100°C (steam at low pressure) Electrical Supply: 400V, 50Hz, 3-phase Components & Features: Rinsing & Filling Section: 9-head bottle rinser with No Bottle / No Spray” system 8-valve gravity filler with adjustable filling level Electrical regulation of filling height and ...

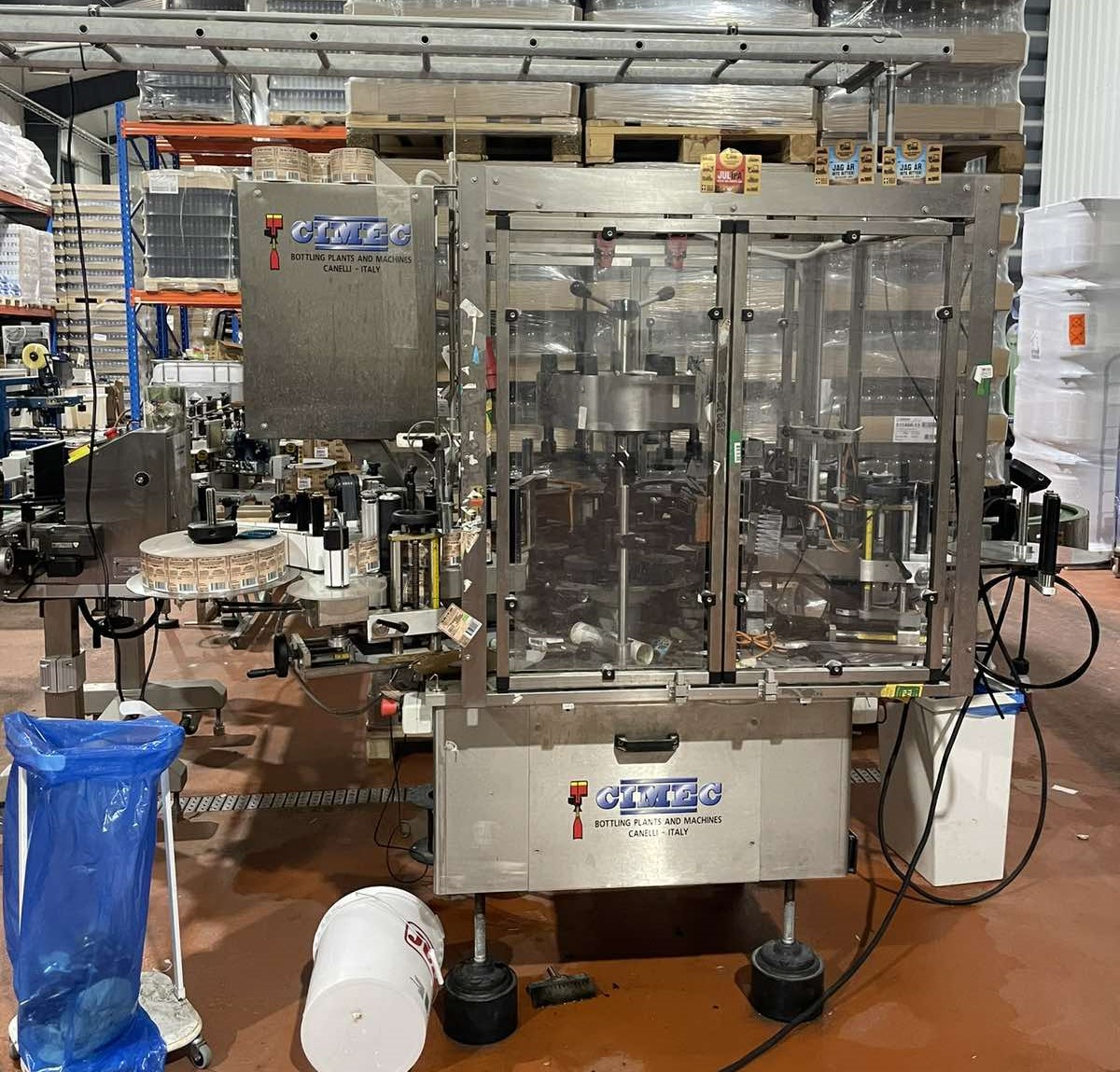

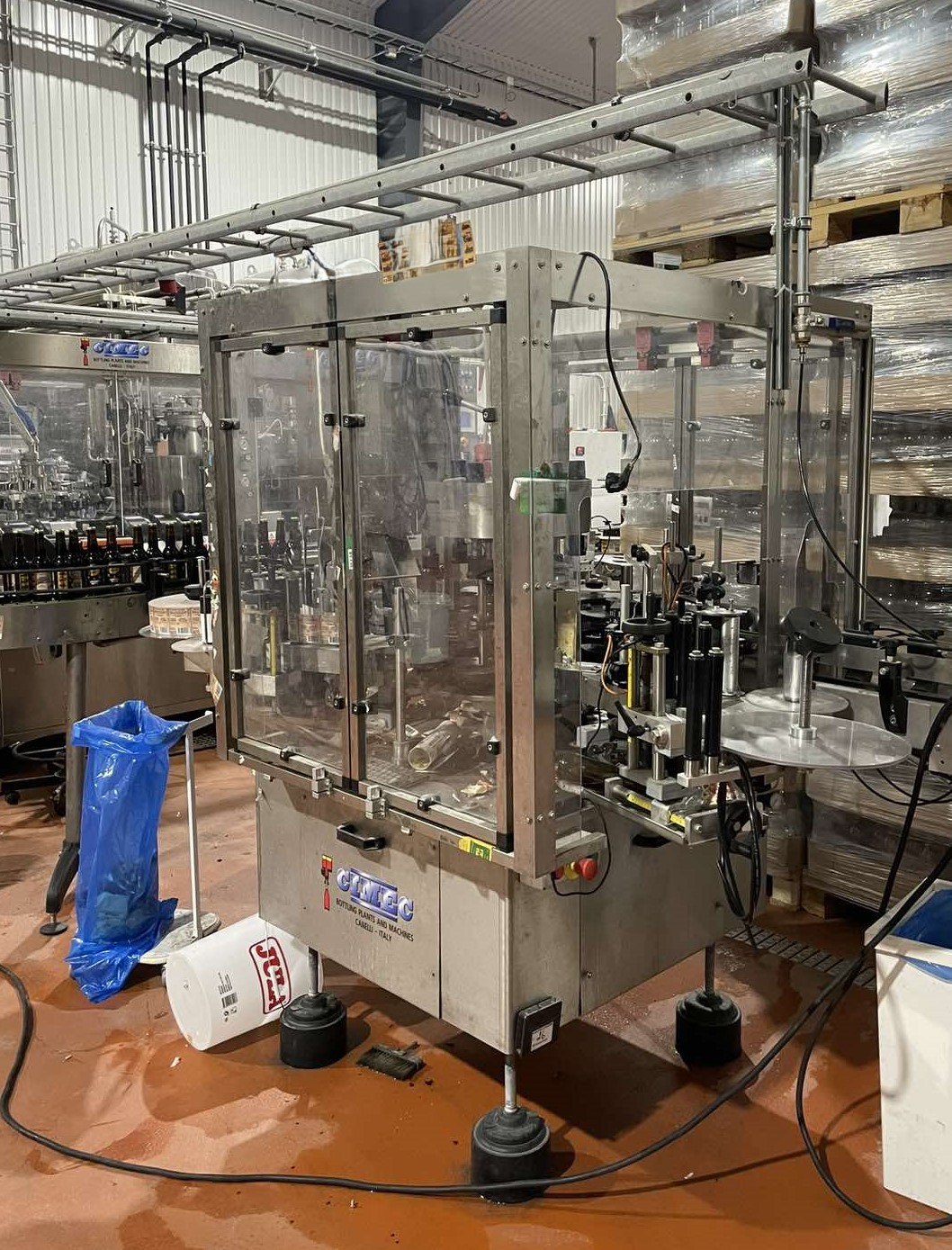

Overview (H2) This CIMEC S1/2 ADH labeling machine was manufactured in 2012 and is designed for labeling long-neck bottles in the formats 33cl, 50cl and 27.5cl. The machine achieves an output of up to 2,500 bottles per hour and is already disassembled and available at short notice. Technical details (H3) Output: 2,500 bottles/hour Bottle formats: 33cl longneck 50cl longneck 27.5cl longneck Machine rotation: clockwise Bottle holders: 6 plates Labeling stations: 2 self-adhesive label dispensers Power supply: 380V / 3-phase / 50 Hz Power consumption: 2 kW Machine weight: approx. 1,200 kg Bottle sizes: Height: 200-380 mm Diameter: 50-120 mm Label sizes: Front label: width 50-240 mm, height max. 140 mm Back label: width 50-140 mm, height max. 140 mm Max. Paper feed height: 150 mm (optional 195 mm) Max. Label width at maximum speed: 150 mm

Manufacturer: CIMEC Model: Labeling Machine Year of Manufacturing : 2013 Power: 1.5 kW Voltage: 400V Phase: 3 Phase + Neutral + PE (Protective Earth) Frequency: 50 Hz CE Marked: Yes Additional Information: The machine comes with parts compatible with the following bottle formats: - 33cl Long Neck - 50cl Long Neck - 27.5cl Long Neck Find more here - / Contact us at -

Technical Specifications & Performance DataThis Pentablock Filling Monoblock combines rinsing, filling, corking, and wire-hooding in a single compact rotary frame for glass bottle handling. Manufactured by Mondial, the LD 16-16-3E/PK-1RF-1V configuration delivers robust mechanical design with precise bottle control across the rinsing, filling, capping, and wire-hooding turrets. It is suitable for second hand installations and integration into a used bottling line focused on beverage production and industrial packaging.Model: LD 16-16-3E/PK-1RF-1VBottle materials: GlassBottle formats: Compatible with 0.33L and 0.75L bottle formatsRinser turret: 16 grippers (rotary)Filler turret: 16 valves, gravity/light depression technologyClosures supported: Crown cap, champagne-style mushroom corkWire hooding: Integrated wire-hood applicator for champagne-style closuresHMI: Siemens OP73 MicroTypical ap ...

Overview This filler was manufactured in 2016 by CIMEC and comes with an Arol crown capper. The filler has an output of 1,800 bottles per hour, processes bottle sizes from 0.33 l to 0.75 l and is in very good condition. The machine can be viewed in person at any time. Technical details  Filler | CIMEC | AM DPS 9-8-1C | 2016 Output: 1,800 bottles/hour Number of rinsing nozzles: 9 Number of filling valves: 8 Bottle sizes included: 0.33 l - 0.75 l (with other set also 0.5 l) Electrical power: 6 kW, 400V, 50Hz Dimensions Width: 1,400 mm Length: 3,200 mm Complete length with labeler: 8,800 mm Operating hours: 1,370 hours Complete documentation available Capper | Arol | TSI-Eagle C | 2016 Pitch diameter: 410 mm Number of heads: 1 Type of closure: Standard crown cork Complete documentation available

Tribloco Cimec América 9/8/1 KK Enxaguador, Enchimento e Capper Cimec America 9/8/1 com 9 estações de rister, 8 válvulas de enchimento e cortiça coroa de 1 dígito Capacidade: aprox. 1.300 gph Tamanhos das garrafas: 0,33 e 0,5 ltr. Garrafas Fecho: cortiça coroa de 28 mm com dupla pré-evacuação com tulipas CIP com Siemens S7 PLC Comprimento: 3.300 mm com gabinete de controle Largura: 1.600 mm Altura: 2.600 mm

Constituído por: Rinser GAI com 24 estações de enxaguamento Filler Cimec America com 24 válvulas de enchimento,com dupla pré-evacuação Crowner Arol Esse com 4 cabeças de fecho atualmente fixado para 12 oz e 22 oz potência: 220 V / 3 fases / 60 Hz

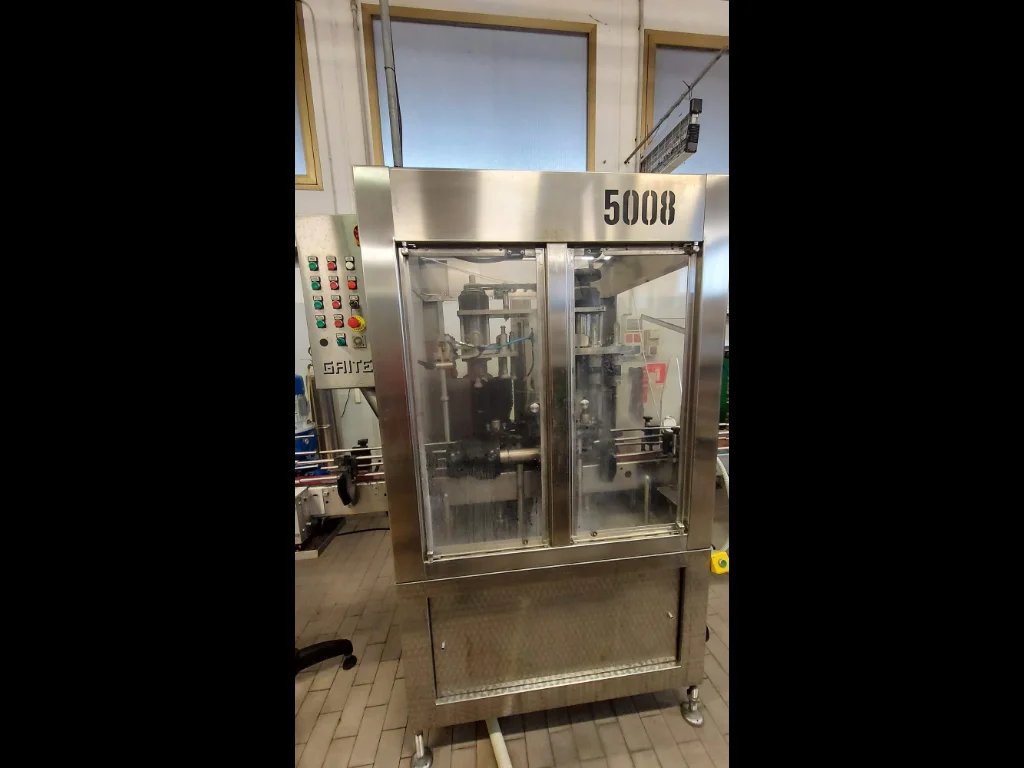

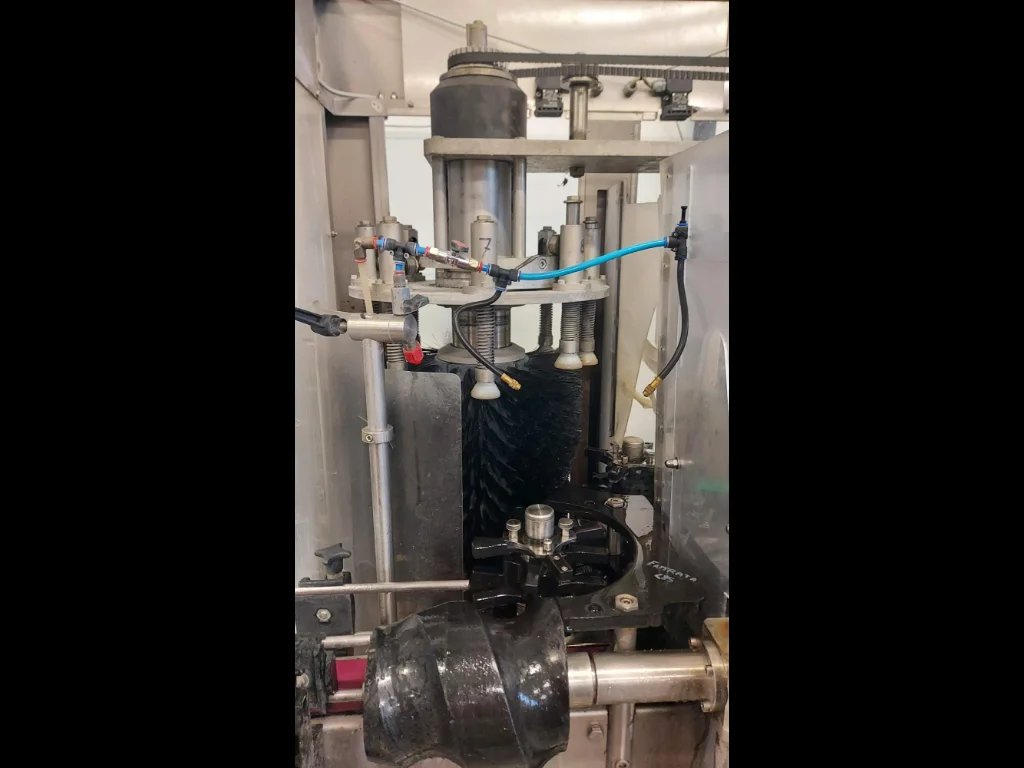

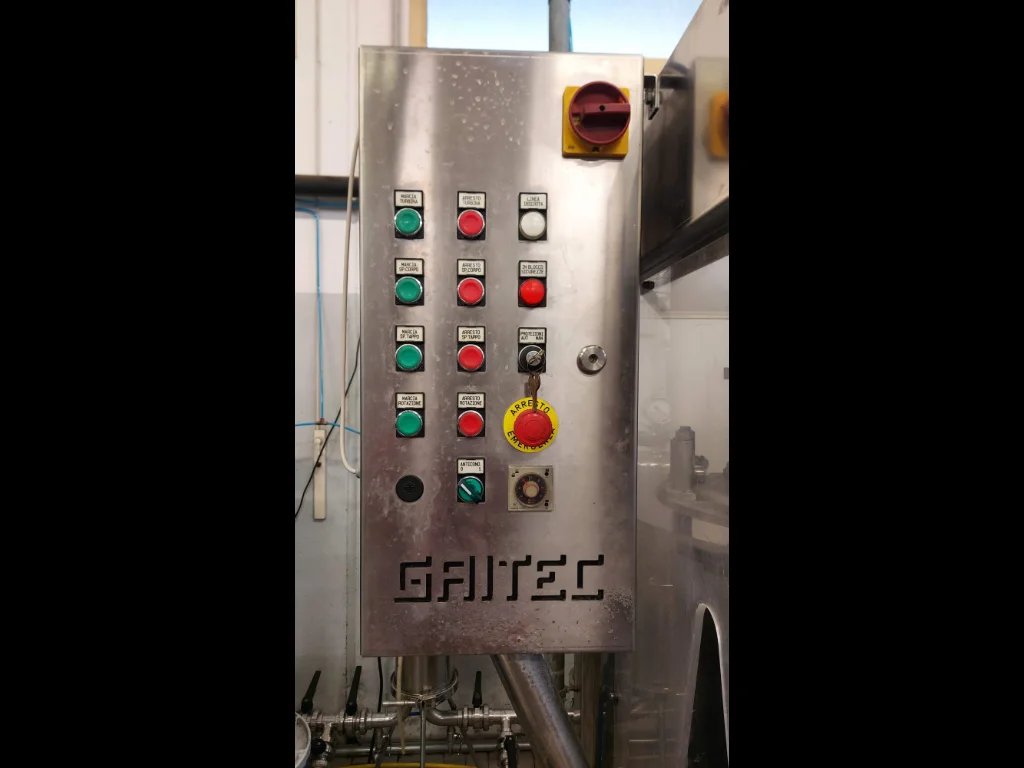

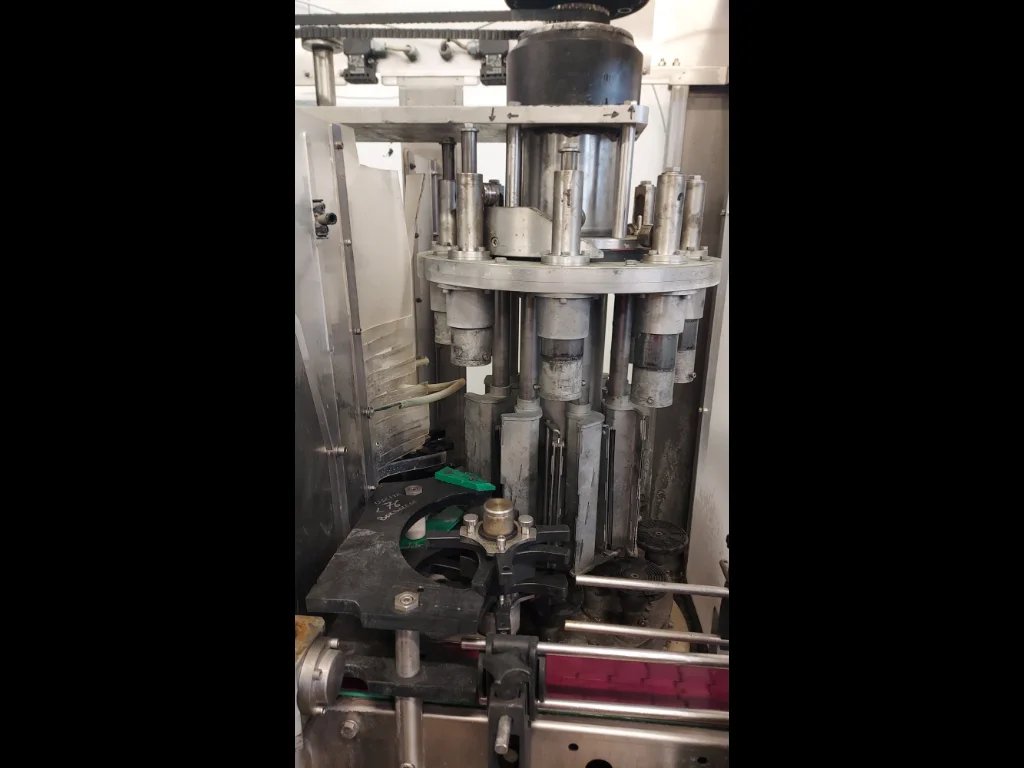

Used bottel washer dryer GAI - 3500 BPHTechnical Specifications & Performance DataThe Bottle Washer Dryer 5008 is a rotary carousel drying unit engineered for reliable bottle handling within a used bottling line or standalone drying station. Manufactured by Cimec, this second hand machine delivers consistent performance for beverage production and industrial packaging applications where efficient moisture removal is required before downstream labeling, capsule application, or case packing.Model: 5008Year of manufacture: 2002Production speed: up to 3,500 bottles per hourBottle formats (volumetric): Compatible with 0.5L and 0.75L bottle formatsBottle geometry: Cylindrical containersBottle diameter range: 60 mm to 115 mmDrying technology: Rotary carousel (hot air) with anti-condensation featuresPLC installed: NoDocumentation: Paper manuals and electrical schematics availableAdvanced Automat ...

Used Used filling monoblock Cimec 16.1 euro f: Year: 1997 Condition: Good Used Filling Monoblock CIMEC Year: 1997 Speed: 3.000 Bph Model: 16/1 EURO F. Direction: Clockwise Filler 16 Filling Valves Filling System: Gravity Filling Single head Corker Type of cap: Natural straight cork Safety protections Code: QT 615 More details: https://bottlingscout.com

Used Used filling monoblock Cimec 9.8.1 R: Year: 2008 Condition: Good Used filling monoblock Cimec Year: 2008 Speed: 1.200 bph Model: MO LD 9/8/1 R Direction: Clockwise Rinser Number of clamps: 9 Fixed nozzle Single treatment Single head for gas injection Filler | low vacum Number of valves: 8 Capper | Single head Type of cap: Natural Straight cork Level before capping. Vacuum before capping. Safety protections Code: QT 666 More details: https://bottlingscout.com

Used Used Filling Monoblock Cimec am dpsl 12.12.1c isobaric: Year: 2003 Condition: Good Used Filling Monoblock Cimec am dpsl 12.12.1c isobaric: Model: AM DPSL 12/12/1C Year: 2003 Speed: 2500 BPH with 0.33 l bottles Directions: Clockwise Suitable for glass bottles RINSER Number of clamps: 12 Carousel with height adjustment: electric Fixed nozzle Single treatment Type of treatment: water FILLER 12 valves Manual tank height adjustment Filling type: isobaric Valve type: mechanical Valve functions: degassing; auto level; double pre-evacuation CAPPING MACHINE Single-head Suitable for crown corks 26 mm Manual head height adjustment GENERAL DATA Bottle sizes supported: ? Minimum ? 50 mm ? Maximum ? 110 mm ? Minimum bottle height 180 mm ? Maximum bottle height 350 mm Machine dimensions-dimensions: 3430 mm x 1520 mm x 2540 mm Safety protections Code: QT 717 More details: https://bottlingscout.com

Used Used Filling Monoblock Cimec isobaric: Year: 2016 Condition: Good Used Filling Monoblock Cimec isobaric: Model: AMERICA DPS 8-1 C Year: 2016 Speed: 1.500 bph Direction of rotation: clockwise Type of bottle: glass bottle Filler ? Number of valves: 8 ? Type of filling: isobaric ? Height adjustment carousel manual ? Valve: mechanical One Capper with one head for crown caps ? Size of caps: 26mm ? Height adjustment of the head manual ? Caps distribution system: drop-feed ? Vacuum system before capping Safety protections Code: QT 742 More details: https://bottlingscout.com
