20 CORREA máquina utilizada para venda

x-travel:14000 mm y-travel:3100 mm z-travel:1.200 mm (220 - 1.420) mm distance between columns:4.417 mm table-size:14.000 x 2.500 mm workpiece weight:15.000 kg/m drive capacity - spindle motor:25 kW spindle cone:63 HSK spindle turning speed range:18000 rpm milling feeds:30000 mm/min dimensions of the machine ca.:15.000 x 8.418 x 6.033 mm weight of the machine ca.:135 t CNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach

x-travel:2000 mm y-travel:800 mm z-travel:800 mm table-size:2.000 x 700 mm workpiece weight:3500 kg drive capacity - spindle motor:17 kW spindle cone:50 ISO spindle turning speed range:3000 U/min dimensions of the machine ca.:5265 x 3250 x 2730 m weight of the machine ca.:9 t CNC controller:HEIDENHAIN TNC-426 :manuell used universal bed type milling machine with chip conveyor, automatic 2 position (vertical/horizontal) head 3000Rpm The retrofitting jobs done in this machine, are the same than those done to all of our machines. - Completely repair of the head, replacing bearings, shafts and engaging gears. - Completely replacement of all the bearings of the machine. - Replacing the joining screws of the bodies. - Completely repair of spindles. - Adjustment and repair of axis. - Grinding and adjusting all guides, because of deterioration. - Grinding and adjusting of the guide ways of the ...

x-travel: 3500 mm y-travel: 2500 mm z-travel: 1000 mm Control: HEIDENHAIN iTNC-530 table-size: 4.500 x 1.500 mm distance between columns: 2300 mm rapid travel x/y/z: 15/12.000 mm/min feeds: 5.000 mm/min tool taper: ISO 50 number of spindle speeds: 5000 U/min/rpm Spindle power: 30 kW table weight: 10 t handwheel: HR- 410 weight of the machine ca.: 31 t dimensions of the machine ca.: 11 x 3,44 x 4,9 m - CNC control Heidenhain iTNC 530 - Tool changer 30-fold (ISO 50) - Milling head CH -45 - Coolant through spindle - Chip conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 3.500 mm y-travel: 2.600 mm z-travel: 1.000 mm Control: HEIDENHAIN iTNC-530 table-size: 4.500 x 1.500 mm table weight: 15.000 Kg distance between columns: 2.300 mm rapid travel x/y/z: 15/12.000 mm/min feed: 5 m/min milling head: Automatic Orthogonal UAGA milling head swivable ca.: 2,5 x 2,5 ° spindle turning speed range: 3.000 U/min spindle drive: 22 kW transmission ratio: 2 tool taper: ISO 50 Tools changer: 30 fach/tools handwheel: HEIDENHAIN HR 410 total power requirement: kW weight of the machine ca.: 28 t dimensions of the machine ca.: m - Direct-Drive Spindle Head - Direct-Drive Spindle Speed 5,000 rpm - Automatic Retractable Support on the Right Side for Orthogonal UAGA Head - Automatic Retractable Support on the Left Side for Direct-Drive Spindle Head - Cover - Automatic Head Clamping The data for this ad was created with ModulMWS - the software solution of LogoTec ...

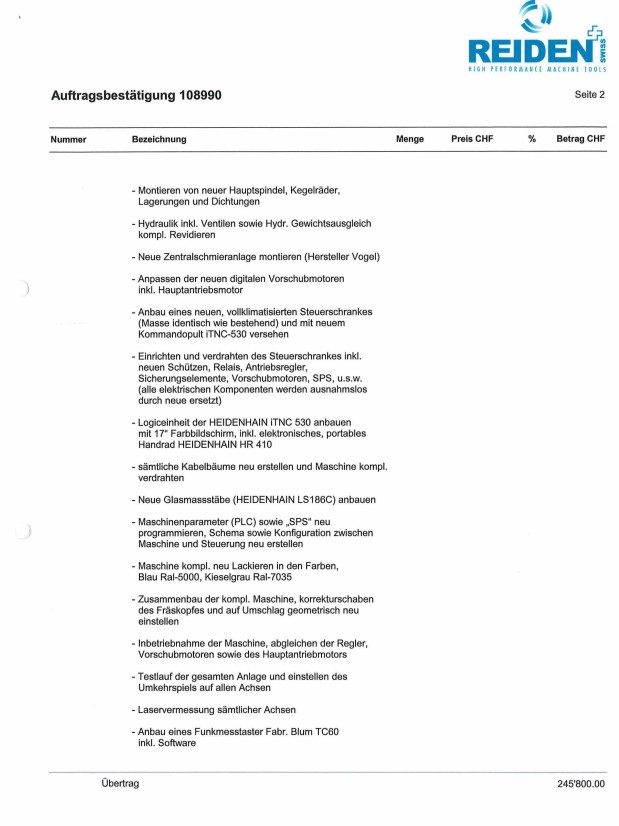

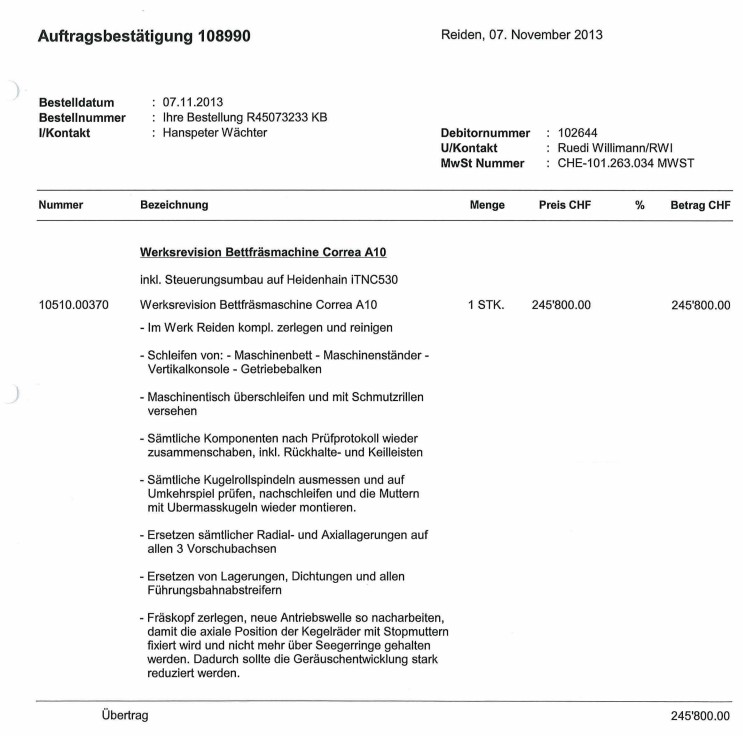

- 2013 Overhauled by REIDEN SWISS - New regrinded - New iTNC530 - New Hr410 Handwheel - New CE-Safety  - New Milling head gears and bearing - New LS186C Glas scales - New Blum TC60 3D taster - Geomtrical DIN 8615 ! - Overhauling cost CHF 250k

x-travel: 1300 mm y-travel: 700 mm z-travel: 700 mm Control: Heidenhain table surface area: 1700x630 mm Table load: 3000 kg turning speeds: 80-3150 U/min spindle taper ISO: 50 total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software s ...

x-travel: 6500 mm y-travel: 1500 mm z-travel: 2000 mm control: HEIDENHAIN iTNC 530 HSCI total power requirement: kW weight of the machine ca.: 58 t dimensions of the machine ca.: 14,5x7 m The ANAYAK HVM-65 traveling column milling machine stands for high rigidity, precision and machining performance. Equipped with a Heidenhain iTNC530 HSCI control, this CNC milling machine is ideally suited for demanding heavy-duty machining applications. The proven traveling column design with a fixed distance between column and spindle axis ensures consistent accuracy across the entire working range. The cross movement is performed by the column, eliminating the need for a contoured foundation. The orthogonal milling head with 28/42 kW power output reaches speeds of up to 6,000 rpm and features a precise 0.02° x 0.02° indexing resolution. The rigid auxiliary table offers a large clamping surface of 7 ...

Key data: 1800 mm, 800 mm, 800 mm

Fresadora de cama Fabricante: Correa Tipo: A16 Ano de Fabricação: 1988 Controlo: HEIDENHAIN TNC415 Distâncias de percurso X/Y/Z: 1.800 x 800 x 800 mm Área de fixação: 2.000 x 630 mm Peso da peça: 3.000kg Horas: 12.103 Potência: 19 kW Tipo de Fuso: ISO 50 Dimensões L/P/H: 4.886 × 2.720 × 2.500 mm Peso da máquina: 7.500 kg

Key data: 1300 mm, 630 mm, 630 mm

Fresadora de cama Fabricante: Correa Tipo: A10 Ano de Fabricação: 1988 Controlo: HEIDENHAIN TNC 355 Curso X/Y/Z: 1.300 x 630 x 630 mm Área de fixação: 1.700 x 630 mm Peso da peça: 3.000 kg Horas: 25.845 Potência: 19 kW Tipo de Fuso: ISO 40 Dimensões L/W/H: 3.870 × 2.630 × 2.200 mm Peso da máquina: 6.800 kg

Superfície de fixação da mesa: 440 x 1200 mm Movimento da mesa x: 950 mm Movimento da mesa y: 250 mm Movimento da mesa z: 475 mm Suporte do eixo: ISA 40 Velocidades do eixo: 40 - 1800 rpm Alimentação longitudinal e transversal: 16 - 6630 mm/min Alimentação vertical: 5,6 - 224 mm/min eletrizante. Conexão: 380 V, 7,5 kVA Requisito de espaço: 2100 x 2000 x 2150 mm Peso: 2400 kg

Área de aperto de mesa: 440 x 1200 mm Movimento da mesa x: 950 mm Movimento da mesa y: 250 mm Movimento da mesa z: 475 mm Suporte do fuso: ISA 40 Velocidades do fuso: 40 - 1800 rpm Alimenta longitudinamente e transversalmente: 16 - 630 mm/min Alimenta-se vertical: 5.6 - 224 mm/min electr. Ligação: 380 V, 7.5 kVA kW Requisito de espaço: 2150 x 2000 x 2100 mm Peso: 2400 kg

FRESADORA DE MESA FIXA polegadasCORREPolegadas CARACTERÍSTICAS: Dimensões • Dimensões da mesa: 2.000 x 630 mm • Número de slots T: 6 • Dimensões da ranhura em T: 18 mm Viagens no Eixo • Curso longitudinal X: 1.800 mm • Curso transversal Y: 800 mm • Curso vertical Z: 800 mm Cabeça • Modelo de cabeça: Manual universal • Fixação de ferramentas: hidráulica • Afunilamento: ISO 50 • Gama de velocidades: 25 – 3.250 rpm • Potência do mandril: 16 Kw Avanços de máquinas • Progresso operacional: 5 - 5.000 mm/min • Alimentação rápida: 8.000 mm/min Pesos e dimensões • Peso máximo na mesa: 3.000 kg • Peso aproximado da máquina: 10.000 kg • Dimensões da máquina: 4.920 x 2.714 x 2.417 mm

Correa F3UE máquina de moagem universal. Tabela: 1400mmx340mm. Viagem longitudinal: 1100mm. Viagem cruzada: 320mm. Viagem vertical: 500mm. ISO50. Cabeça de hure. Velocidades: 18. (28-1400)

Máquina de fresar universal. Tamanho da mesa: 1200mmx320mm. Viagem longitudinal: 950mm. Viagem cruzada: 300mm. Viagem vertical: 500mm. O ISO40. Cabeça de viva. DRO Fagor.

Máquina de fresar universal. Cabeça de viva. Tamanho da mesa: 2000x480mm. Viagem longitudinal: 1700mm. Viagem cruzada: 400mm. Viagem vertical: 575mm. O ISO50. Potência motora: 20cv. Peso: 5500Kgs. Dimensões: 2550x2380x2680.

Fresadora CNC de Cama Fixa CORREA tipo CF 17 D Ano da construção: 2001 Curso X: 2000 mm Curso Y: 800 mm Curso Z: 800 mm Comando Numérico: HEIDENHAIN 426 Fuso: ISO 50 Velocidade do fuso: de 20 a 3000 RPM Tamanho da mesa: 2000 x 700 mm Peso máximo na mesa: 3500 kg Motor do fuso: 17 kW Dimensões (L x L x H): 5300 x 2900 x 2800 mm Peso: 9 T

Key data: 2500 mm, 1200 mm, 1000 mm

Fresadora de leito fixo CORREA A25/25 Curso X: 2500 mm Curso Y: 1200 mm Curso Z: 1000 mm CNC HEIDENHAIN TNC 355 | Eixo: SA 50 Motor do eixo: 30 CV Velocidade do eixo: de 2 a 3000 RPM Tamanho da mesa: 3000 x 1000 mm Ano construção: 1990 Carga máxima elegível no tabl: e7 T Cabeça giratória manual Tensão: 380 V Dimensões (L x W x H): 5000 x 3000 x 3000 mm Peso: aprox. 15 T

- Universal head (U-25) - Coolant system - Hydraulic tool clamping

x-travel: 5000 mm y-travel: 3100 mm z-travel: 1200 mm Control: total power requirement: 20/27 kW weight of the machine ca.: 65 t dimensions of the machine ca.: 15x6,2x6 m Stock number 1110051 Machine type CNC Portal milling machine Make CORREA Rapid type 50 Year of manufacture 2004 Control type HEIDENHAIN Table size (mm) 5000 x 2000 mm X out (mm) 5000 mm Y-off (mm) 3100 mm Z-off (mm) 1200 mm Table load Max 15 ton Speed (RPM) Max 18,000 Tool holder HSK 63 Gesamtleistung(kW) 20/27 Length (mm) 15000 Width (mm) 6200 Height (mm) 6000 Weight 65 ton Additional information Tool changer for 24 tools 5-axis gesteuerd The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
