248 DECKEL máquina utilizada para venda

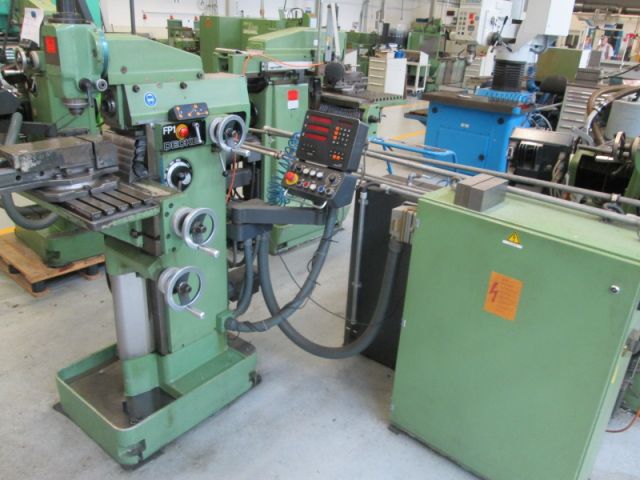

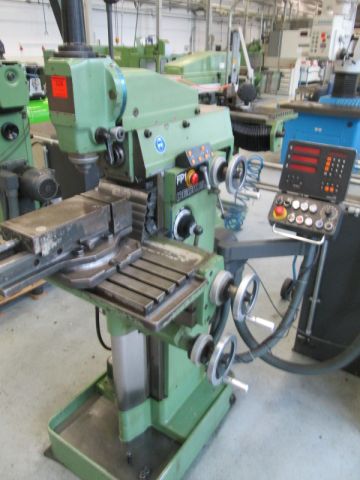

x-travel: 300 mm y-travel: 160 mm z-travel: 340 mm total power requirement: 2 kW weight of the machine ca.: 1,2 t dimensions of the machine ca.: 1,5 x 2 x 2 m No. 3934 Universal tool milling machine DECKEL FP 1 Working area: 300 x 160 x 340 Control: Active digital display Drive: 1.5 Tool holder SK 40 Speed range 2000 rpm Rigid table Documentation On request / optionally available: -Universal table / fixed table - Hydraulic machine vice - Tool cabinet - Rotary table Ø 380 mm -Cutting attachment -Collets and arbors The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 710 mm y-travel: 600 mm z-travel: 455 mm Control: Dialog 11 total power requirement: 7,5 kW weight of the machine ca.: 5 t dimensions of the machine ca.: 4 x 3,5 x 2,5 m No. 4430 Universal tool milling machine Working area: 710 x 600 x 455 mm Drive: 7.5 Control: Dialog-11 control Spindle holder SK 40 Speed range up to 6,300 Fixed table Cabin Coolant container Space requirement see data sheet Weight approx. 5 tons The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 400 mm z-travel: 500 mm Control: LINUX CNC total power requirement: 9 kW weight of the machine ca.: 3 t dimensions of the machine ca.: 3 x 3 x 2,7 m 2025 RETROFIT mit LINUX CNC - PC Steuerung Fixed table Full protection cabin Electronic handwheel Documentation Spindle holder SK 40 / DIN 2080 Speed range up to 6300 min-1 Rapid traverse 10 m/min The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 300 mm y-travel: 300 mm z-travel: 400 mm Control: Contour 3 / Dialog 4 total power requirement: 5 kW weight of the machine ca.: 1,5 t dimensions of the machine ca.: 2,5 x 2,5 x 2,5 m No. 5268: Universal tool milling machine Make DECKEL, Mod. FP 2 A / 2819 with Contour 3 control unit Working area: 300 x 300 x 400 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table diameter: 800 600 mm table load: 0,25 t table height: - mm total power requirement: 3 kW weight of the machine ca.: 0,3 t dimensions of the machine ca.: 1,1 x 0,8 x 0,8 m No. 4926 NC rotary table for inclined bed machines DECKEL 2238 002600 / passend zu FP 41 / FP 42 Working area: Table Ø 800 x 600 Control: Axis card for Dialogue 4 Table load approx. 250 kg Clamping grooves 16H7 Dead weight approx. 280kg Space requirement / transport dimensions approx. 1100 x 750 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 300 mm y-travel: 220 mm z-travel: 400 mm Control: Dialog 2 total power requirement: 1,6 / 2 kW weight of the machine ca.: 1,5 t dimensions of the machine ca.: 2,5 x 2,5 x 2,2 m No. 5290 Universal tool milling machine DECKEL FP 2 NC / 2801 Working area: 300 x 220 x 400 Drive: 1.6/2 kW Control: Dialog 2 contouring control Fixed table with chip tray Spindle SK 40 Speed range up to 3150 min-1 Quill stroke 65 + 60 mm Space requirement c.3 x 3.5 m Transport dimensions approx. 2 loading meters Weight approx. 1300 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 500 mm y-travel: 300 mm z-travel: 400 mm total power requirement: 3 kW weight of the machine ca.: 1,5 t dimensions of the machine ca.: 222 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 300 mm y-travel: 300 mm z-travel: 400 mm Control: Contour - 3 / Dialog 4 total power requirement: 5 kW weight of the machine ca.: 1,5 t dimensions of the machine ca.: 2,5 x 2,5 x 2,5 m No. 5267: Universal tool milling machines Make DECKEL, Mod. FP 2 A / 2819 with Contour 3 control unit Working area: 300 x 300 x 400 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mm y-travel: 300 mm z-travel: 400 mm total power requirement: 3 kW weight of the machine ca.: 2,5 t dimensions of the machine ca.: 2,52,52 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

control: Dialog 4 type of control: CNC Fräsen The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1200 mm y-travel: 400 mm z-travel: 400 mm total power requirement: 5 kW weight of the machine ca.: 2,5 t dimensions of the machine ca.: 3 x 2 x 2 m No. 4427 Universal tool milling machine DECKEL FP 4 L / 2707 Working area: 1200 x 400 Fixed angle table Control: 3-axis digital display Weight approx. 3.5 tons Space requirement 3 x 2 x 2 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 600 mm y-travel: 500 mm z-travel: 500 mm total power requirement: 7,5 kW weight of the machine ca.: 5,5 t Working range: Longitudinal stroke X axis 600 mm Vertical stroke Y axis 500 mm Cross stroke Z axis 500 mm Clamping size of angle table 530 x 900 mm Max. weight of workpiece on table 450 kg Distance from table to vertical spindle, min./max. 120 / 620 mm Distance from table to horizontal spindle, min./max. 156 / 656 mm Tool taper SK 40 Spindle speeds 0 - 6,300 rpm Feeds X, Y and Z Axes, max. 2 - 10,000 mm/min Quick feed X, Y and Z Axes 10,000 mm/min Spindle drive 8 kW Total electrical load, approx. 15 kW - 400 V - 50 Hz Weight, approx. 5,500 kg Accessories / Special Features DIALOG 11 CNC Control in 4 axes with all the usual options, cycles, and subprograms. Graphic display and electronic hand wheel. Vertical milling head can be pushed up manually so that the  ...

x-travel: 700 mm y-travel: 560 mm z-travel: 450 mm total power requirement: 4 kW weight of the machine ca.: 2,5 t dimensions of the machine ca.: 3 x 3 x 2,2 m No. 0104 Universal copy milling machine DECKEL KF 3 S built in 1979 with divided coordinate table Working area: 700 x 560 x 450 mm Drive power: 3 kW Accessories: Divided coordinate table Finishing spindle Locking arm Control handle with cable Stylus holder Collets Space requirement 3 m x 3m Weight approx. 2,380 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

surface area: 260 x 600 mm no. of flutes: 5 groove width: 12 mm total power requirement: 0 kW weight of the machine ca.: 0,06 t dimensions of the machine ca.: - m Swiveling angle table Workspace: clamping surface 260x 600 Control: permissible load 200 kg / own weight 60 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel:1000 mm y-travel:320 mm z-travel:400 mm Table dimensions:1000 x 400 mm

x-travel:560 mm y-travel:500 mm z-travel:450 mm

x-travel:560 mm y-travel:500 mm z-travel:450 mm

x-travel:600 mm y-travel:450 mm z-travel:400 mm Table area:700 x 480 mm spindle turning speed range:10 - 3150 U/min spindle taper ISO:40 quill stroke:80 mm dimensions of the machine ca.:1,8 x 2,1 x 1,9 m total power requirement:8 kW weight of the machine ca.:3,5 t Machine with universal turn, sviwel and tilting table - CNC control DIALOG II - splash guards - misc. parts

x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t

x-travel:560 mm y-travel:500 mm z-travel:450 mm total power requirement:16,5 kVA weight of the machine ca.:2700 kg dimensions of the machine ca.:2,30 x 3,0 x 1,90 m control:Grundig quill stroke:80 mm tool taper:SK 40 spindle speeds::40..4000 1/min feed:2 .3600 mm/min rapid traverse:4000 mm/min Documents:vorhanden

x-travel: 290/300 mm y-travel: 330/340 mm z-travel: 150/160 mm total power requirement: kW weight of the machine ca.: 675 kg dimensions of the machine ca.: 2700 x 2500 mm The machine was overhauled by the company Harich in 2017. Machine number: 57330/08 Technical data: Table longitudinal movement (motorized/manual): 290/300 mm Spindle head transverse movement (motorized/manual): 150/160 mm Support vertical movement (motorized/manual): 330/340 mm Angle table clamping surface: 600 x 210 mm Spindle speeds: 40 – 2000 rpm Tool holder: Standard taper 40 Motor power: 1.5/1.9 kW Feed rate range (infinitely variable): 5 – 500 mm/min Rapid traverse: 1200 mm Equipment: 3-axis digital readout (Heidenhain) Vertical milling spindle with quill adjustment Additional horizontal spindle REPAR 2 safety device (www.repar2.com) Operating manual The machine will be loaded onto a Euro-pallet, total height: ...

Table dimensions: 1000-550 mm Control: Grundig x-travel: 1000 mm : ja milling-head swivable +/-: ja control: Grundig serial number: 0209 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 300 mm y-travel: 160 mm z-travel: 340 mm tool taper: SK40 Speed: 40-2000 U/min. control: Aktiv HEIDENHAIN table-size: 600 x 210 mm total power requirement: 2 kW weight of the machine ca.: 0,73 t dimensions of the machine ca.: TBH 1,20x1,10x1,60 m Comes from a vocational school - Powered feed in X, Y, and Z axes - Coolant system - Machine vice - Work light The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 500 mm y-travel: 300 mm z-travel: 380 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Machine number: 2120 Technical data: Longitudinal travel: 500 mm Cross travel: 300 mm Vertical travel: 380 mm Angle table with a clamping surface of 800 x 420 mm Spindle speed range: 40 – 2000 rpm Equipment: 3-axis digital readout (Heidenhain) Vertical milling spindle with quill adjustment Additional horizontal spindle REPAR 2 safety device (www.repar2.com) Machine light Anti-vibration mounts No operating manual included The machine is sold without a vise or tooling. Transport dimensions: The machine is loaded onto a heavy-duty pallet, Dimensions: 1800 x 1100 x 2100 mm (length x width x height) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 300 mm y-travel: 160 mm z-travel: 290 mm table surface area: 210 x 600 mm tool taper: SK 40 spindle turning speed range: (16) 40 - 2000 U/min feeds -stepless-: 5 - 500 mm/min rapid traverse: 1,2 m/min spindle motor: 1,5 / 1,9 kW total power requirement: 9,5 kVA weight of the machine ca.: 730 kg dimensions of the machine ca.: 2000 x 2200 x 1655 mm The machine comes from a vocational training center. Equipment: 3-axis active digital readout made by Heidenhain Fixed angle table Coolant equipment The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 300 mm y-travel: 160 mm z-travel: 330 mm table surface area: 600 x 200 mm table load capacity: 200 kg Spindle Speed: 40-2.000 U/min. tool taper: SK40 dimensions: 1200 x 1160 x 1800 mm machine weight ab.: 800 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 630 mm y-travel: 500 mm z-travel: 500 mm control: Heidenhain TNC 430 spindle speed:: 10000 U/min power capacity - milling spindle: 13/9 kW feed: 30 m/min rapid traverse: 30 m/min no. of workpieces in the magazine: 24 Stück tool taper: SK 40 table surface area: 800 x 500 mm table load: 0,5 t Overall size: 1,9 x 3,3 x 2,6 mm weight of the machine ca.: 4500 kg Used vertical machining centre in good condition. - external eletronic hand wheel - coolant system - servo tool magazin The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
