6 ELHA máquina utilizada para venda

bore capacity in steel (diameter): 32 mm throat: 350 mm bore stroke: 170 mm spindle turning speed range: 200 - 1200 U/min feeds: 0,15 -1 mm/min tool taper: MK 4 thread - module: 30 mm table surface area: 600 x 550 mm distance ground floor - spindle: 1250 mm total power requirement: 1,5 / 2,2 kW weight of the machine ca.: 0,8 t dimensions of the machine ca.: 1,1 x o,7 x 2,2 m partly overhauled in 2014 used in Repair Shop only The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

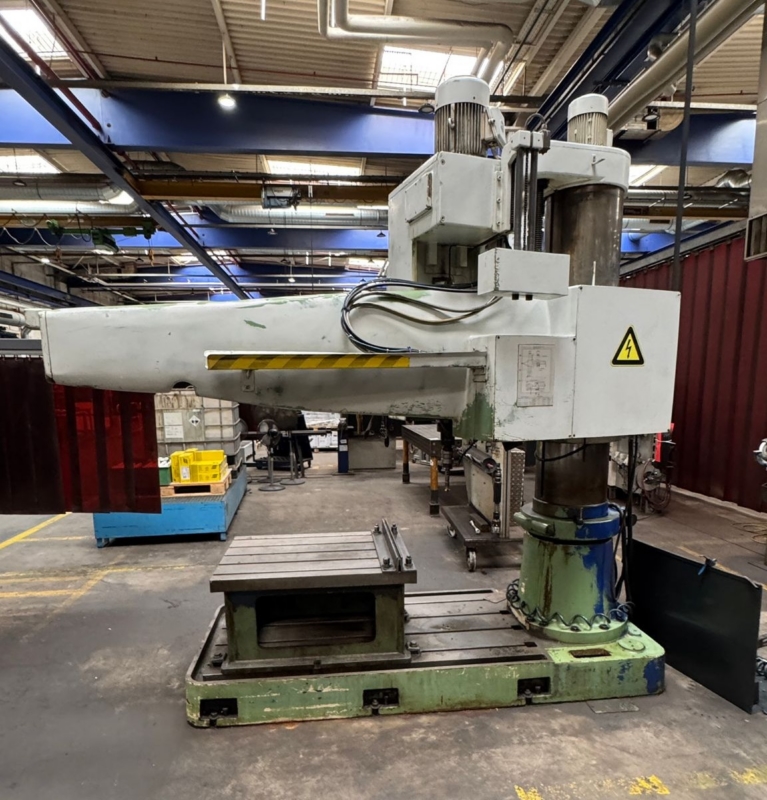

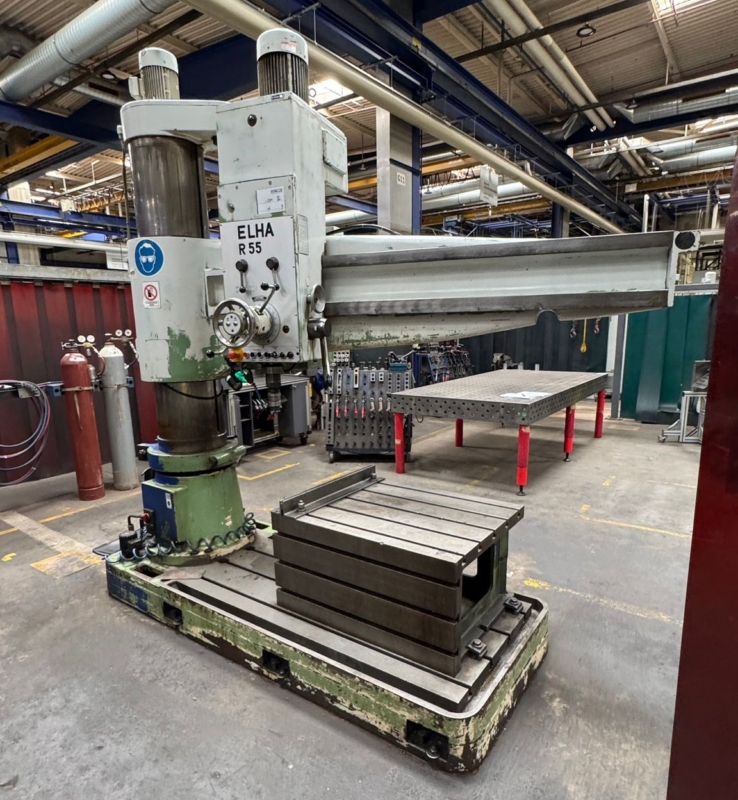

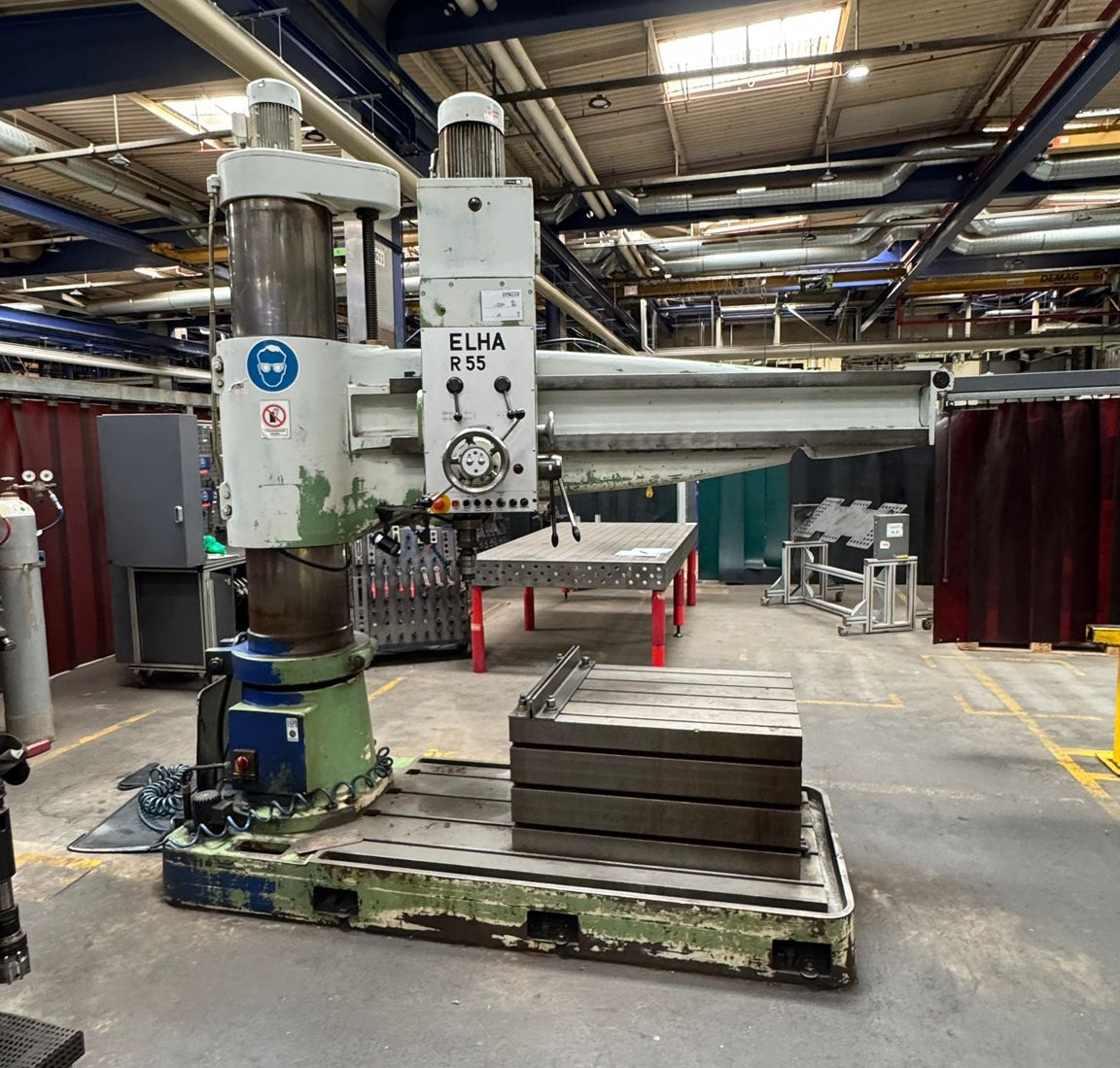

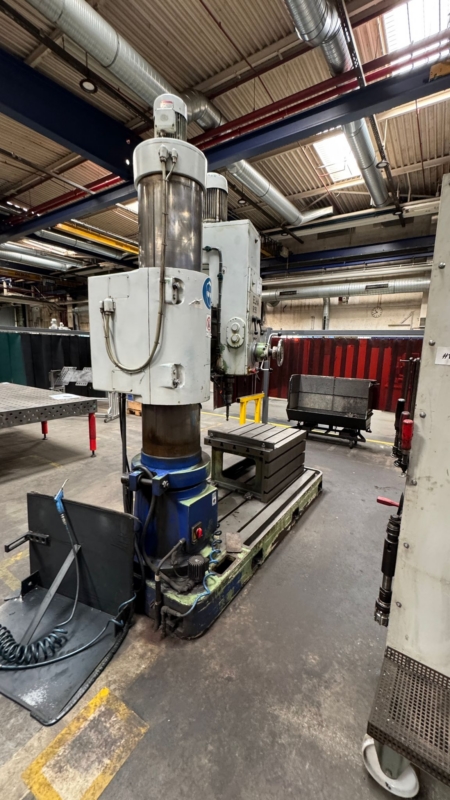

bore capacity in steel (diameter): 80 mm arm length: 2000 mm workpiece height max.: ca. 1300 mm borehole diameter: in Stahl 80 mm borehole diameter: in Guss 100 mm threading in St 60: M 68 mm spindle turning speed range: 16 - 1250 U/min Spindle Speed: 32 Stück spindle bore diameter / taper: 110 mm / MK 5 spindle stroke: 550 mm number of feeds: 18 feed: 0,06 - 3,0 mm/U distance spindle/base plate: 480 bis 1800 mm column diameter: 500 mm spindle drive: 11 kW stroke drive: 4 kW total power requirement: 15 kW weight of the machine ca.: 8500 kg base area: 3190 x 1250 x 3600 mm with work table 1200 x 1200 x 720 mm, weight approx. 800 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

ELHA machining center - The operating hours amount to 30,350 hours. Regarding the operating hours, it must be mentioned that due to the discontinuation of the last article run on the centre, it has not been used for production since the beginning of 2021. Due to a transport system that is currently still connected to the machining centre in terms of control technology, the machining centre could not be disconnected from the power supply, so it had to remain switched on and the operating hours increased despite the fact that production was no longer taking place. The effective operating hours of the machining centre during which production took place on the centre are therefore just under 11,500 to 12,000 hours. Find more here - / Contact us at -

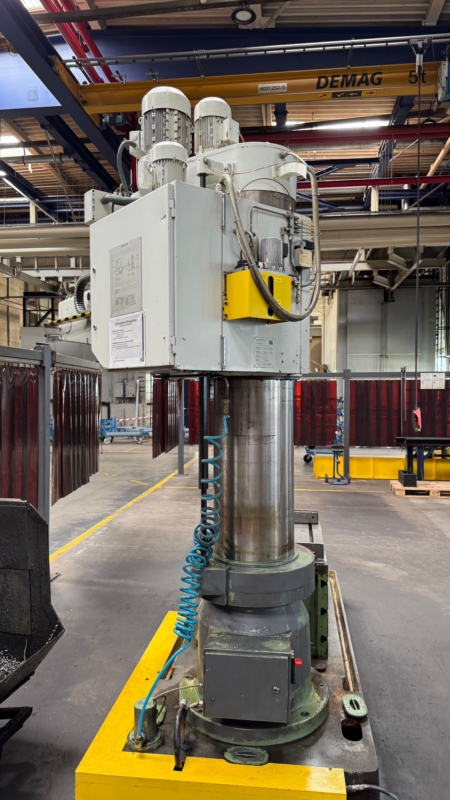

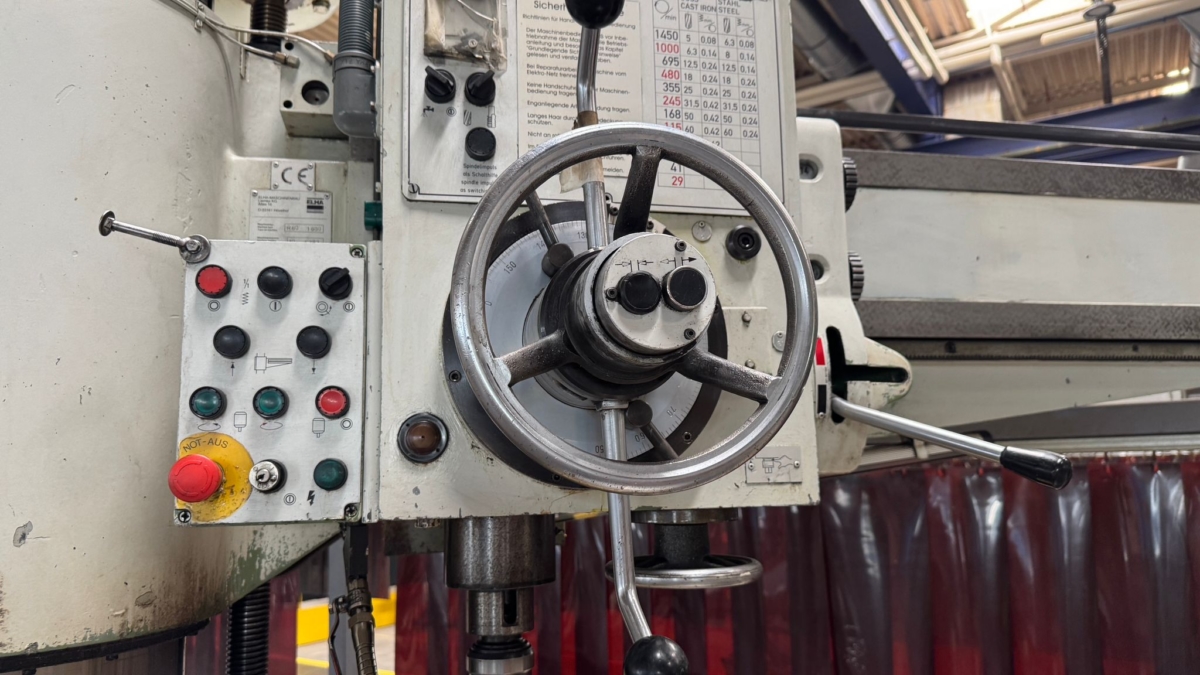

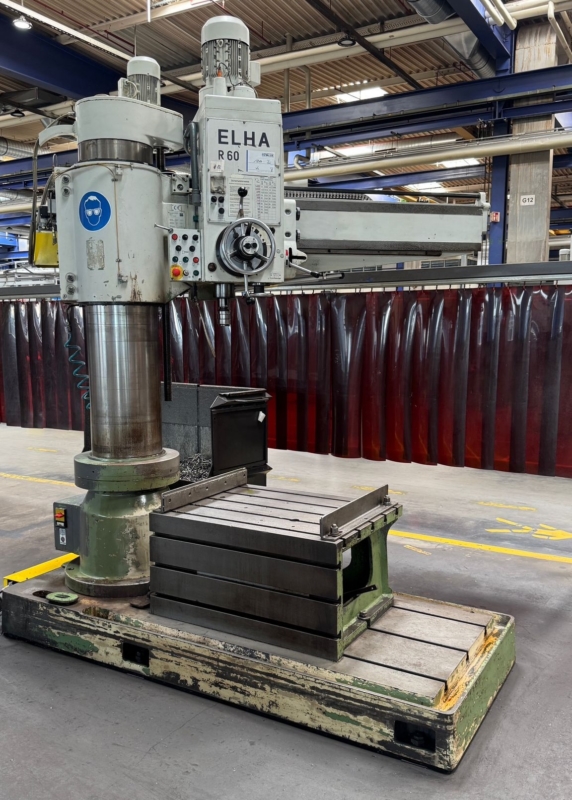

bore capacity in steel (diameter): 60 mm arm length: 1600 mm workpiece height max.: ca. 1300 mm borehole diameter: in Stahl 80 mm borehole diameter: in Guss 100 mm threading in St 60: M55 mm spindle turning speed range: 29-1.450 U/min Spindle Speed: 12 Stück boring spindle: 100 mm morse taper: MK5 spindle stroke: 350 mm total power requirement: 7,5 kW weight of the machine ca.: 4.600 kg dimensions of the machine ca.: 2600x1100x3200 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 50 mm bore capacity in cast iron GG 20: 70 mm arm length: 2000 mm morse taper: MK 5 Spindle Speed: 28-1.250 U/min. spindle stroke: 330 mm total power requirement: 8 kW weight of the machine ca.: 5.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Pos. 1.0 Mesa Rotativa de Precisão Make EIMELDINGEN com rolamento axial aerostático Especificações Diâmetro da mesa 3.400 mm Altura total aprox. 1.230 mm Furo centralizador 250H7X 25 mm Carga de transporte admissível 20.000 kg Torque de retenção da fixação da mesa 2.400 daNm Velocidade da mesa 0.002 – 2 min Peso líquido aprox. 22.000 kg Tensão de funcionamento 380 V, 50 Hz. 3 fases Tensão de controle 24V Precisão de posicionamento (sem erro de controle) ± 1inch Precisão do plano 0,02 mm Precisão de funcionamento axial 0,01 mm Desvio de concentricidade do furo de centralização 0,01 mm Resolução dos sistemas de medição de deslocamento 0,0001 Pos. 2.0 Moinho de perfuração de leito cruzado de 3 eixos Especificações Traçado da coluna transversal "X" 500 mm Curso da carruagem horizontal "Z" 650 mm Caixa de eixo ver ...
