13 ERNST máquina utilizada para venda

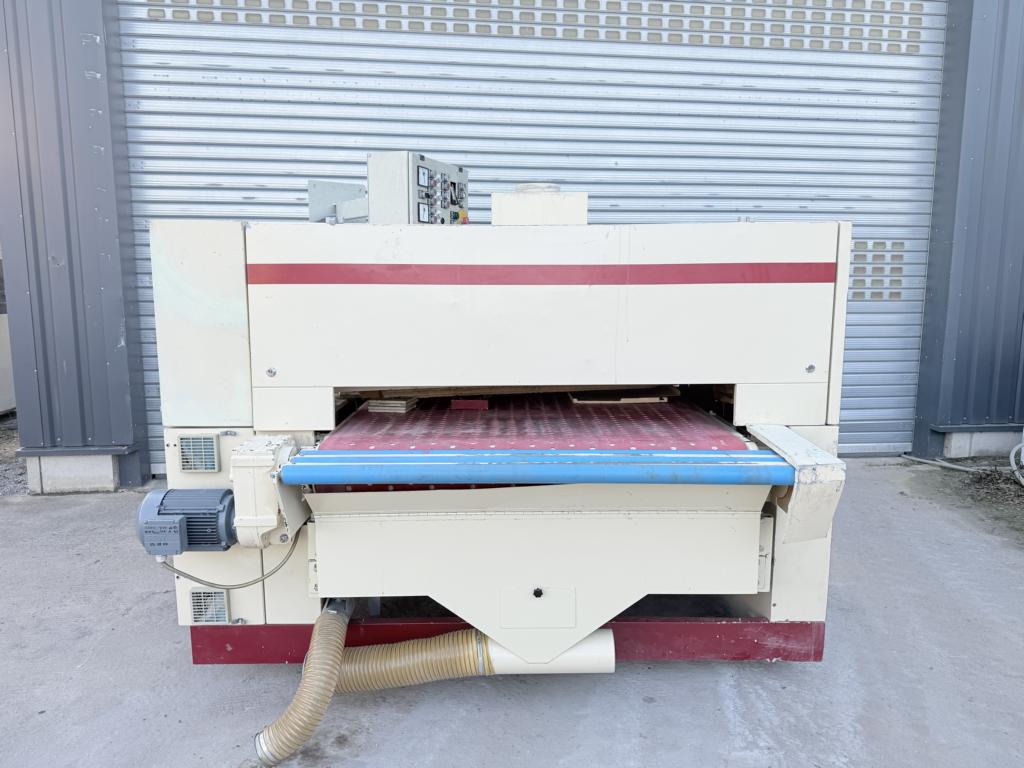

This ERNST 820-2 belt sander was manufactured in 2002. It features a new conveyor belt and a vacuum hold system for secure positioning. The main sander utilizes a two-shoe system, enhancing its sanding capabilities. It has a working width of 1350mm and a height of 120mm. Contact us for more information about this machine.

working width:1400 mm Workpiece thickness max.: 80 mm work height max.:1000 mm Feed speed:4m/min I Stufe, 8 II Stuf m/min. Required air-pressure:max. 5 bar voltage:50 Hz, 380 V workpiece length:320 mm workpiece thickness min.:1 mm weight of the machine ca.:3500 kg Documents:vorhanden

working width:880 mm workpiece height:1- 70 mm work height max.:1000 mm Feed speed:4- 8 m/min. voltage:50 Hz, 400 V weight of the machine ca.:2.800 kg dimensions of the machine ca.:2500 x 1715 x1675 mm width:min. 350 mm Sanding cylinder diameter:420 mm electr. connected load:20 KW Required air-pressure:1 x R3/ 8 " pressure:5 bar tank:des Bandfilter ca.200 l automatic magnetic filter unit:vorhanden grinding tools:1540 x 900 mm accessories::9 Bänder Documents:vorhanden

Manufacturer: Ernst, Type: 830-2, Monting of the machine: längs / längs / längs, Sanding width mm: 1.350, Sanding hight mm: 3 - 120, Number of sanding belts: 3, Sanding belt dimensions: 1.400 x 3.150, Band 1 Leistung kW : 11, Belt 1 shoe unit: yes, Band 1 Schleifbandgeschwindigkeit m/s : 2 - 10, Belt 2 shoe unit: yes, Band 2 Leistung kW : 11, Band 2 Schleifbandgeschwindigkeit m/s : 2 - 10, Band 3 Leistung kW : 18, Band 3 Schleifbandgeschwindigkeit m/s : 1 - 7, Frequency control of belts: 3, Continous adjustable feeding speed m/min: 8 - 30, Vacuum table: yes, Brushing unit: 3 kW, Diameter/ brush bristles: 200,

Manufacturer: Ernst Funierschleifautomat, Type: 840-2, Year: 2003, Monting of the machine: Quer/lang/lang/lang/Bürste, Sanding width mm: 1305, Sanding hight mm: 3-120, Number of sanding belts: 4, Sanding belt dimensions: 2620 X 1350/5400 X 150, Table hight adjustment by engine: yes, Rollers: no, Band 1Querschleifaggregat: yes, Band 1 Leistung kW : 18,5, Band 2 Schuhaggregat: Simplex Schuh, Band 2 Kombiaggregat Walze/Schuh: no, Band 2 Leistung kW : 30, Band 3 Kombiaggregat Walze/Schuh: Simplex Schuh, Band 3 Leistung kW : 30, Band 4 Kombiaggregat Walze/Schuh: Duplex Schuh, Band 4 Leistung kW : 37, Elektronische Tastung mm: yes, Table hight adjustment by engine: yes, Continous adjustable feeding speed m/min: 13,5-60, Feeding engine kw: ca.4, Constant table hight: 880, Vacuum table: yes, Segment sanding shoe: yes, wast cleaning: yes, Ionising: yes, Weight in kg: 10200, Year :2003

a deburring machine Ernst Neptun EKB year of manufacture 2013 the machine has first deburring roller, then comes the wide belt to make a grinding and finally comes two fleece rollers that run against each other to round the edges. Length 3100 mm, width 2700 mm, height 2100 mm. Working width of the belt is 1400 mm.

N.º : 7803 Tipo: EM 5 N II/L 2F Produtor: ERNST Criado: 2006 Parâmetros: Comprimento mínimo da peça: 350 mm Espessura máxima da peça: 70 mm Largura de moagem: 1380 mm Peso: 5100 kg

working width: 1380 mm workpiece height: 70 mm : total power requirement: 45 kW weight of the machine ca.: 5.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Fabricante: Ernst , Tipo: AB 1 1300, Ano: 1982, Controlo: não, Limpeza de ar comprimido: sim, Número de unidades: 2, Unidades montadas na vertical: sim, Transporte de rolos: sim, Velocidade de alimentação contínua ajustável: gekoppelt an Schleifmaschine, jatos de rotor: Kanal, TEXTO LIVRE: Arbeitsbreite 1400/Arbeitshöhe 80/inkl. Turbina, Ano :1982

Fabricante: Ernst, Tipo: 830 J-2, Montagem da máquina: quer / längs / längs, Largura de lixa mm: 1380, Areia alta mm: 3 - 120, Número de correias de lixa: 3, Dimensões da correia de lixa: 5.400 x 150 + 3.150 x 1.400, Unidades de lixamento transversais: 1, Längsschleifaggregate: 2, Banda 1 Leistung kW : 15, Banda 2 Leistung kW : 30, Banda 3 Leistung kW : 37, Velocidade de alimentação ajustável contínua m/min: 12 - 36, Lixamento intermédio de verniz: não, Altura constante da mesa: ca 880, Mesa de vácuo: 7,5, Unidade de escovagem: 1,1, Peso em kg: 7.400,

Fabricante: Ernst, Tipo: Vakuumventilator, Ano: 1993, Diâmetro de admissão mm: ca 120 mm, Potência do motor kW: 2,5, Caudal aprox. m3/h: 1500, Motor de acionamento por correia em V: sim, Lado da saída mm: ca.100, Ano:1993

Lixadora de correia larga para madeira, folheado e verniz Ernst LBK 1300 Largura de moagem: 1300mm Unidade de moagem transversal Unidade de moagem longitudinal
