15 FIMER máquina utilizada para venda

Manufacturer: FIMER, type T/6-V.A. Year of constr. 2000 6 capping heads. for 28 MCA amount of capping heads: 6 working direction: right-left (CCW)

Used Filling Monoblock FIMER 16-1 up to 3500 BPH Introduction to the Filling Monoblock FIMER 16-1 The Used Filling Monoblock FIMER 16-1 excels in the bottling industry with its impressive production capacity of up to 3500 bottles per hour (BPH). Originally designed in 1995, this machinery combines robust construction with advanced technology, thereby establishing itself as a top choice for companies that prioritize efficiency without compromise. Technical Specifications Equipped with 16 valves, this monoblock operates using a gravity or light depression filling system. Ideally, it minimizes foam formation and ensures even filling. This type of monoblock works perfectly for fillining spitrits and still wines. Moreover, the system adapts seamlessly to bottle sizes of 0.70 L and 1.0 L, significantly enhancing production line versatility. Components and Operation Furthermore, the capping sys ...

Used Used Fimer bottling line 9.1: Year: 2004 Condition: As Is ? Year: 1999/2004 ? Speed: 1.000 bph ? Direction: Clockwise ? Fimer 9.1 o Filler 9 valves o Single-head leveler o Corker - Natural straight cork ? Labeller OMB o Monohead capsuling machine - polylaminate. o Adhesive labeller. o Safety protections. Code: NP 456 More details: https://bottlingscout.com

Used Used Filling Monoblock Fimer 9.9.1: Year: 1998 Condition: As Is Model: SRT 9-9-1-s-bi Year: 1998 Speed: 1800 BPH Directions: Clockwise Suitable for glass bottles RINSER 9 clamps Carousel height adjustment: electric Fixed nozzle Single treatment VACUUM SYSTEM AND GAS INJECTION BEFORE FILLING FILLER 9 valves Tank height adjustment: manual Filling type: light depression Valve type: mechanical CAPPER Single-head Vacuum system and gas injection before corking Suitable for natural straight cork Cork size: ? 24 mm; x 45 mm (h) Head height adjustment: manual GENERAL DATA Bottle diameter measurements supported: ? 60 mm; ? 75 mm; ? 80mm; ? 90mm Machine dimensions: 3800 mm x 1500 mm x 2300 mm (h) Accident prevention protections Code: QT 721 More details: https://bottlingscout.com

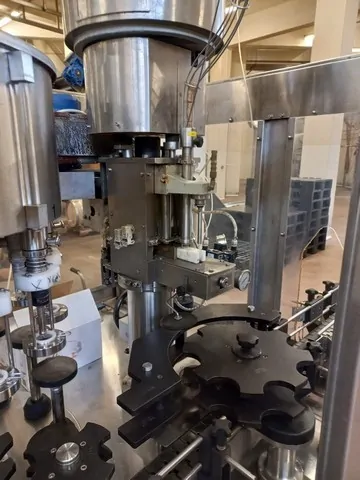

Used Used filling monoblock Fimer 12.12.1 S.VA.DEA: Year: 2003 Condition: As Is Used filling monoblock Fimer Year: 2003 Speed: 2.500 Bph Model: SRT 12-12-1-S-VA-DEA Direction: Clockwise Rinser 12 clamps Fixed nozzle Filler | Low depression Number of valves: 12 Rotating single head capper Type of cap: Natural straight cork and screw cap Screw cap: 30?60 Empty system on capping Gas injection Format: ? 76 mm Safety protections Code: QT 686 More details: https://bottlingscout.com

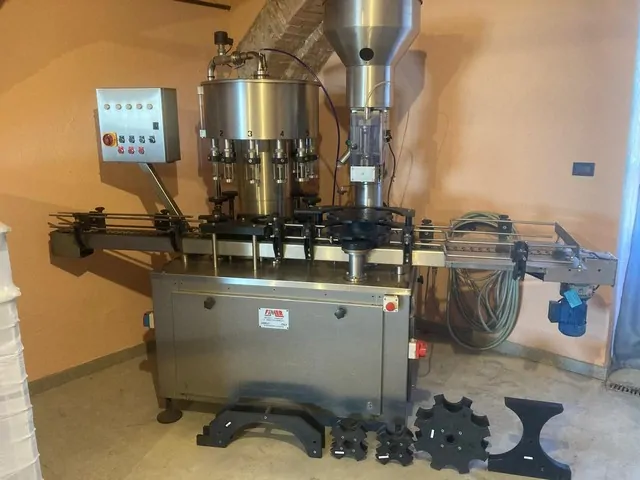

Used Used filling monoblock Fimer: Year: 1985 Condition: As Is Used filling monoblock Fimer Year: 1985 Speed: 2.000 Bph Direction: Clockwise Filler 12 valves Filler gravity Single head | natural straight cork capper Code: QT 691 More details: https://bottlingscout.com

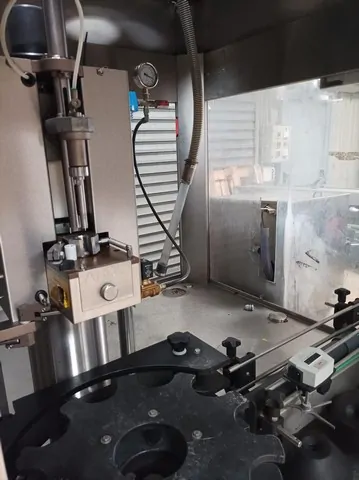

Used Used filling monobock Fimer 12.16.1.1s/va: Year: 2008 Condition: As Is Used filling monoblock FIMER 12.16.1.1S/VA ? 2008 Year: 2008 Speed: 3.000 bph Direction: Clockwise Rinser 12 clamps Single treatment Fixed nozzle Filler 16 valves Single head corker for natural straight cork Predisposition for a second capping turret Safety protections Code: QT 510 More details: https://bottlingscout.com

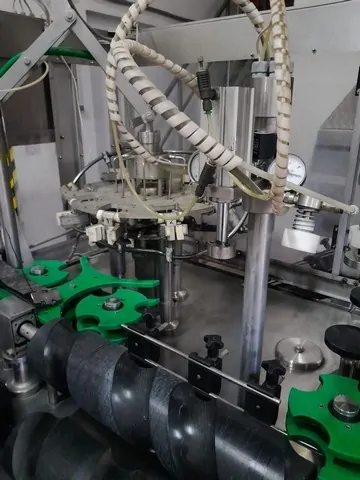

Used Used filling monoblock Fimer 9.9.1: Year: 2001 Condition: As Is Used Filling Monoblock Fimer Year: 2001 Speed: 1.000 bph Direction: Clockwise Model: SRT 9.9.1 S DEAR-B-I Rinser 9 clamps Single treatment Fixed nozzle Station for nitrogen injection before filling Filler 9 Filling Valves Corker single head Cork: Natural Straight cork Safety protections Code: QT 562 More details: https://bottlingscout.com

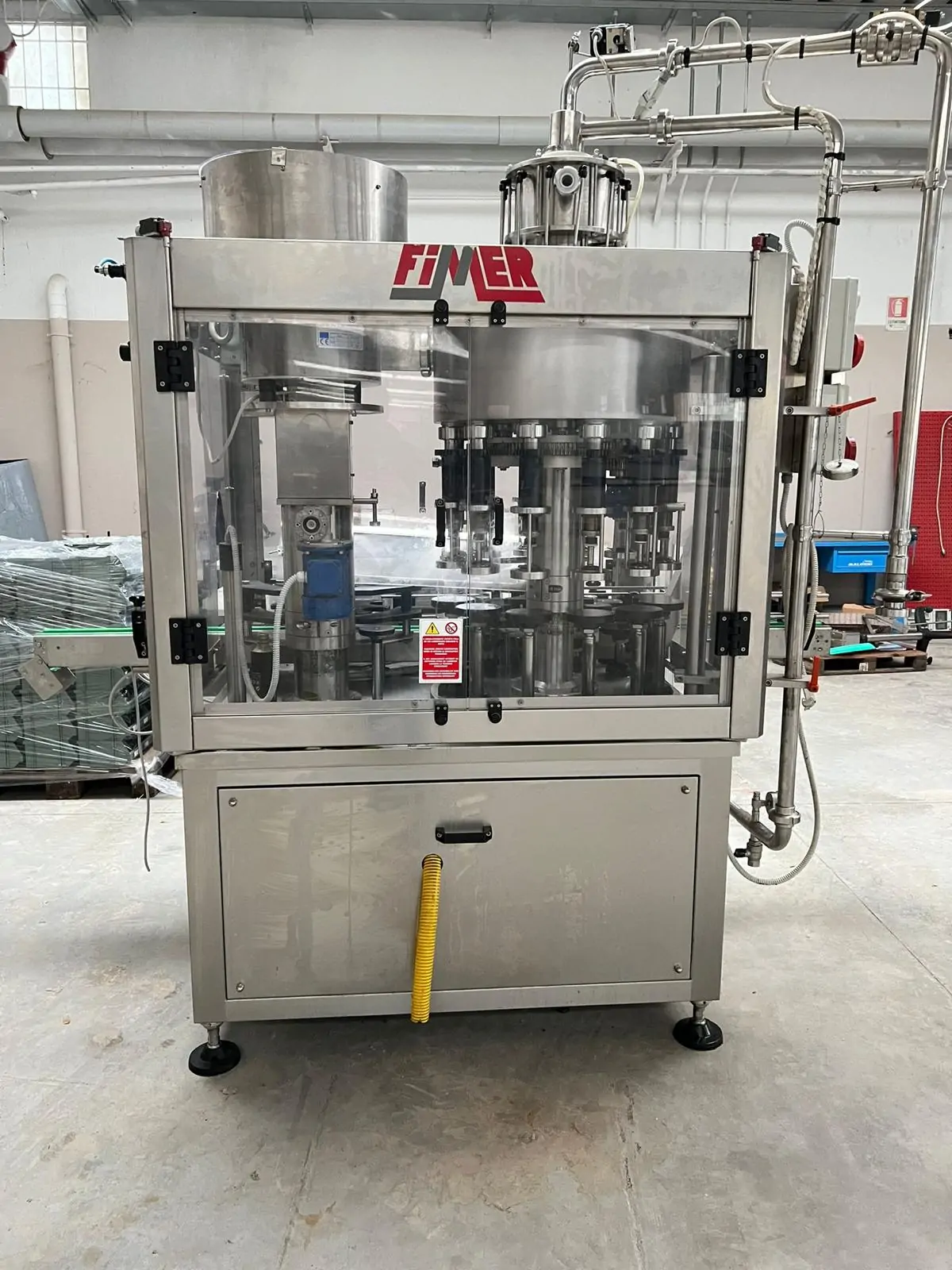

Used Used filling monoblock Fimer 12.1: Year: 2008 Condition: As Is Used filling monoblock Fimer 12.1 Year: 2008 Speed: 2.000 bph Direction: Clockwise Filler 12 valves High vacuum (work thick liquids) Not wine Single head capper ? screw cap 31.5 x 24 Safety protections Code: QT 326 More details: https://bottlingscout.com

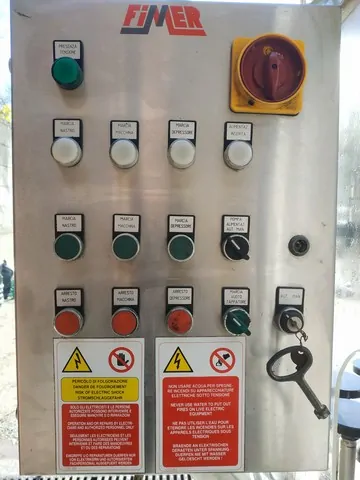

Used Used filling monoblock Fimer 9.1: Year: 1995 Condition: As Is Used filling monoblock FIMER | 9V Year: 1995 Speed: 1.200 bph Direction: Clockwise 9 Filling valves Single capping head Natural straight cork Vacuum system before capping No gas injection Safety protections Code: QT 513 More details: https://bottlingscout.com

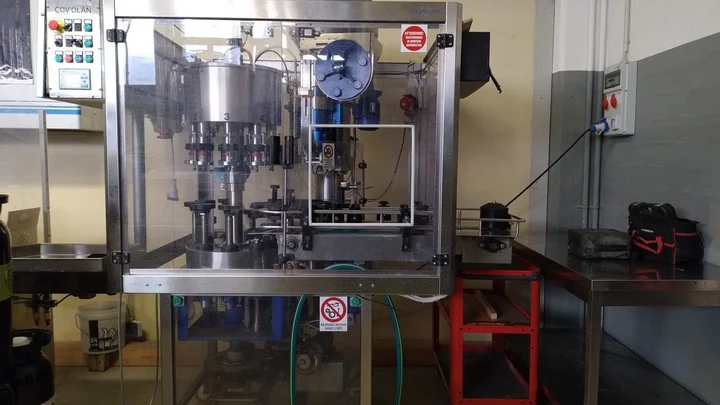

Used Used Fimer monoblock: Year: 2016 Condition: As Is Model: 9/1R-1C Riconditioned 2016 Covolan Speed: 1000 bph Direction: american Type: glass bottle 9 mechanical valve gravity filling Covolan single head capper for straight cork and for crown cap Caps measure: ? 29mm Distribution system: pick on the fly CO2 injection system before capping Safety protection Code: QT 763 More details: https://bottlingscout.com

Used Filling Monoblock FIMER 20/20/3/3 up to 4500 bph This Monoblock efficiently processes still liquids, such as water and wine. Notably, FIMER manufactured this machine in 1999, ensuring an operational capacity of up to 4500 bottles per hour (BPH) for bottling 0.75-liter glass containers. Additionally, this unit currently remains in storage, ready for immediate use. Monoblock Structure and Rotation This machine operates with a clockwise rotation, which allows it to move containers smoothly and continuously through each treatment station. Consequently, this rotational design synchronizes the rinsing, filling, and capping cycles precisely, which helps to maximize productivity and minimize bottling interruptions. As a result, the machine maintains efficient workflow throughout the process. Technical Data and Electrical Specifications This unit connects to a 380 V power supply and operates ...

Used filling triblock for vinegar Fimer 1998 - 5000 BPHTechnical Specifications & Performance DataThis second hand triblock Rinsing-Filling-Capping Monoblock delivers reliable performance for glass bottling applications. Manufactured by Fimer with proven engineering quality, the SRT 24-24-6 configuration integrates a 24-clamp rinser, a 24-valve filler, and a 6-head capper into a compact, efficient platform suitable for industrial packaging and beverage production. It is a strong option for upgrading an existing used bottling line or expanding a production cell with robust, easy-to-service equipment.Manufacturer: FimerModel: SRT 24-24-6Year: 1998Configuration: 24-24-6 triblock (rinser-filler-capper)Production speed: up to 5,000 bphContainers: Glass bottlesRinser: 24 grippers with mobile nozzleFiller: 24 valves, gravity/light depression technologyCapper: 6 heads for aluminum screw capsCap  ...

Technical Specifications & Performance Data The Fimer RT 8/1 VA is a second hand rotary filling machine designed for precise, repeatable filling in beverage production environments. Suited for still wine in glass bottles, it offers reliable performance within compact dimensions suitable for integration into a used bottling line or a new industrial packaging layout. Manufacturer: Fimer Model: RT 8/1 VA Year: 1999 Category: Filling Machine Production speed: up to 400 bottles/hour No. of valves: 8 filling valves Product types: Wine (still) Container types: Glass Bottle formats: 0.15 L, 0.28 L Dimensions (W x L x H): 3500 x 2050 x 2300 mm Electrical: 380 V, 48 Hz Condition: In storage Included: Safety features, user manuals Advanced Automation & Control Systems This rotary filler features a practical, operator-friendly control concept suited to consistent small-format glass bottle filling. T ...

Technical Specifications & Performance Data This Rinsing-Filling-Capping Triblock by FIMER is a robust rotary monoblock engineered for glass bottle handling and precision filling. Built on the model SRT 24-24-6, it integrates a 24-clamp rinser with mobile nozzle, a 24-valve gravity/light depression filler, and a 6-head aluminum screw capper. Designed for reliable operation in beverage production and industrial packaging, it is suitable for second hand and used bottling line upgrades where consistent performance and compact footprint are priorities. Manufacturer: FIMER Model: SRT 24-24-6 Year: 1998 Rinser: 24 grippers, mobile nozzle Filler: 24 valves, gravity/light depression (slight vacuum) Capper: 6 heads, aluminum screw caps 31,5 x 18 Cap handling: Complete with cap elevator Electrical power: 6.5 kW Power supply: 380 V, 50 Hz Compressed air: Max 6 bar Construction: Rotary triblock for  ...
