169 GILDEMEISTER máquina utilizada para venda

This Gildemeister Sprint 20-8 was manufactured in 2010. It features a cooling system with a 600l capacity and 50µm filter, alongside a high-pressure pump option of 8 or 20 bar. The machine includes a Bristol B270/E oil mist separator and an IEMCA Boss 332E bar loader for 3m bars. With a chip discharge height of 1,250mm, its designed for efficient operation. Contact us for more information about this machine.

Key data: 440 mm, 350 mm

Gildemeister CTX-200 - Torno CNC - Controlo CNC Gildemeister/DMG - Mandril de torno de 3 mandíbulas 140 mm - Torre de ferramentas de 12 cavidades com ferramentas acionadas - Iluminação na área de trabalho -Transportadora - 10810 Horas - Ano de construção: 1995 Especificações Espaço de Trabalho: - Circulação sobre a cobertura da via da leite: 440 mm - Recirculação sobre a tampa do guia em planta: 210 mm - Curso de planeamento: 160 mm - Curso longitudinal: 350 mm Eixo de fulcro: - Cabeça do fuso: 120 mm h5 - Cabeça do eixo no rolamento dianteiro: 85 mm - Diâmetro do eixo: 56 mm - Mandrin: 140 mm Propulsão Principal: - Potência de tração 100/50% ED: 7,5 / 11 kW - Binário máximo: 58 / 84 Nm - Gama de velocidades: 25 - 5000 rpm Impulso de alimentação: - Força de alimentação X: 200 daN - Força de alimentação Z: 300 daN - Travessia X ...

CONTROLS   CNC controls FANUC 160 I BASIC FUNCTIONS   number of spindles: 2   number of c-axes: 2 WORKING RANGE TURNING   swing diameter (max): 42 mm   turning diameter (max): 42 mm   bar diameter (max): 42 mm MAIN SPINDLE   spindle revolutions (max): 6500 /min COUNTER SPINDLE   spindle revolutions (max): 6500 /min X/Z SLIDE   X-axis travel: 65 mm   Y-axis travel: 350 mm   rapid traverse Z: 30000 mm/min   rapid traverse X: 30000 mm/min   rapid traverse Y: 30000 mm/min X/Z SLIDE   Z-axis travel: 320 mm   X-axis travel: 265 mm   Y-axis travel: 326 mm   rapid traverse Y: 30000 mm/min ELECTRICAL SPECIFICATIONS   mains power supply: 54 kVA   mains voltage: 400 V   mains frequency: 50 Hz DIMENS ...

CONTROLS   conventional BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   turning diameter (max): 20 mm   bar diameter (max): 20 mm   worpiece length max.: 100 mm MAIN SPINDLE   spindle revolutions (min): 214 /min   spindle revolutions (max): 5168 /min   number of gears: 81   drive power: 11 kW DIMENSIONS / WEIGHTS   space requirements -left/right-: 6000 mm   space requirements -front/back-: 2000 mm   total weight approx.: 5600 kg Technical Data - Max. diameter of hexagonal rods: 17 mm - Max. diameter of square rods: 14 mm - Max. stroke of sidecars: 42 mm - Forward and backward movement of sidecars: +/- 8 mm - Max. stroke of axial carriages: 50 mm - Forward and backward offset of axial ca

CONTROLS   conventional BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   swing diameter (max): 20 mm   turning diameter (max): 20 mm   bar diameter (max): 20 mm MAIN SPINDLE   spindle revolutions (max): 5168 /min ELECTRICAL SPECIFICATIONS   total power consumption: 11 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 5680 mm   space requirements -front/back-: 1400 mm   total weight approx.: 5000 kg tech. details: - max diameter hexagonal bars 17 mm - max diameter square bars 14 mm - max advancement bars 100 mm - max stroke axial carriages 50 mm - Offset of axial carriages forwards and backwards +/- 8 mm - Max stroke tool holder spindles 86 mm - Offset of tool spindles forward and backward +/- 11  ...

CONTROLS   PLC SIEMENS BASIC FUNCTIONS   number of spindles: 6

CONTROLS   electronic controls SIEMENS BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   swing diameter (max): 48 mm   turning diameter (max): 48 mm   bar diameter (max): 48 mm   worpiece length max.: 125 mm MAIN SPINDLE   spindle revolutions (min): 180 /min   spindle revolutions (max): 2120 /min ELECTRICAL SPECIFICATIONS   total power consumption: 17.5 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 6130 mm   space requirements -front/back-: 1400 mm   total weight approx.: 10200 kg ATTACHMENTS (TURNING)   - bar diameter (max): 48 mm - max diameter hexagonal bars 42 mm - max diameter square bars 34 mm - max advancement bars 225 mm - Trigger thread head up to approx. ...

CONTROLS   conventional BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   turning diameter (max): 20 mm   bar diameter (max): 20 mm   worpiece length max.: 100 mm MAIN SPINDLE   spindle revolutions (min): 214 /min   spindle revolutions (max): 5168 /min   number of gears: 81   drive power: 11 kW X/Z SLIDE   number of tool positions (total): 12 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 6000 mm   space requirements -front/back-: 2000 mm   total weight approx.: 5600 kg Technical Data - Max. diameter of hexagonal rods: 17 mm - Max. diameter of square rods: 14 mm - Max. stroke of sidecars: 42 mm - Forward and backward movement of sidecars: + ...

CONTROLS   electronic controls SIEMENS BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   swing diameter (max): 48 mm   turning diameter (max): 48 mm   bar diameter (max): 48 mm   worpiece length max.: 125 mm MAIN SPINDLE   spindle revolutions (min): 180 /min   spindle revolutions (max): 2120 /min   number of gears: 2   continuous speed variation: no ELECTRICAL SPECIFICATIONS   total power consumption: 17.5 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 6130 mm   space requirements -front/back-: 1400 mm   total weight approx.: 10200 kg Technical Data - Maximum diameter of hexagonal bars: 42 mm - Maximum diameter of square bars: 34 mm - Maximum feed rate: ...

CONTROLS   electronic controls SIEMENS BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   swing diameter (max): 48 mm   turning diameter (max): 48 mm   bar diameter (max): 48 mm MAIN SPINDLE   spindle revolutions (min): 180 /min   spindle revolutions (max): 2120 /min ELECTRICAL SPECIFICATIONS   total power consumption: 17.5 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 6130 mm   space requirements -front/back-: 1400 mm   total weight approx.: 10200 kg tech. Details - max diameter hexagonal bars 42 mm - max diameter square bars 34 mm - max advancement bars 225 mm - max length shooting 125 mm - max stroke longitudinal carriages 150 mm - Trigger thread head up to approx. M27 - Number of  ...

CONTROLS   electronic controls SIEMENS BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   turning diameter (max): 32 mm   bar diameter (max): 32 mm   worpiece length max.: 125 mm MAIN SPINDLE   spindle revolutions (min): 260 /min   spindle revolutions (max): 3080 /min   number of gears: 2 ELECTRICAL SPECIFICATIONS   total power consumption: 14 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 5750 mm   space requirements -front/back-: 1300 mm   total weight approx.: 8200 kg Machine completely overhauled and NEW (still in packaging) Technical Data - Max. hexagonal bar diameter: 28 mm - Max. square bar diameter: 22 mm - Max. longitudinal slide stroke: 125 mm - Extraction thread u ...

CONTROLS   electronic controls SIEMENS BASIC FUNCTIONS   number of spindles: 6 WORKING RANGE TURNING   swing diameter (max): 32 mm   turning diameter (max): 32 mm   bar diameter (max): 32 mm   worpiece length max.: 125 mm MAIN SPINDLE   spindle revolutions (min): 260 /min   spindle revolutions (max): 3080 /min ELECTRICAL SPECIFICATIONS   total power consumption: 14 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 5750 mm   space requirements -front/back-: 1300 mm   total weight approx.: 8200 kg tech. details: - max. diameter hexagonal bars 28 mm - max. diameter square bars 22 mm - max advancement bars 175 mm - max length shooting 100 mm - max stroke longitudinal carriages 125 mm - Trigger t ...

diâmetro de giro: 200 mm comprimento de giro: 635 mm controle: SIEMENS 840D Powerline grandes passar em volta sobre a cama: 250 mm eixo faixa de velocidade de giro: 20-7000 U/min cabeça da torre: 2x 12 peso da máquina ca.: 10 t Eixos Y- & B- Acessórios diversos Mais detalhes sobre

diâmetro de giro: 212 mm comprimento de giro: 750 mm controle: HEIDENHAIN Manual Plus velocidade de giro do eixo - stepless: 10-4000 U/min cabeça da torre: 8 Peso estacionário da máquina ca.: 2 t dimensões da máquina ca.: 2,85 x 1,65 x 1,80 m

N.º : 8637 Tipo: MF SPRINT 65 Produtor: Gildemeister Criado: 1999 Parâmetros: Sistema de controle: Siemens Diâmetro máximo de giro: 200 mm

Controlo Fanuc Diâmetro de giro ... 380 milímetros Eixo X ... 151 milímetros Eixo Z ... 339 milímetros Diâmetro circunferencial via suporte ... 290 milímetros Velocidade do eixo ... 20-6000 rpm. Peso da máquina ... 4200kg Potência do motor principal ... 7,5 kW L x W x H ... 2885/3865x1720x1670milímetro A máquina está em boas condições, é possível testar sob potência.

N.º : 8232 Tipo: Twin 42 Produtor: Gildemeister Criado: 2002 Parâmetros: Sistema de controle: Siemens Sinumerik Horas de ligação: 80654 h Horário: 33758 h Comprimento máximo de giro: 650 mm Diâmetro máximo de giro sobre a cama: 250 mm Diâmetro máximo de giro sobre o suporte: 120 mm Comprimento máximo do curso no eixo X: 300 mm Comprimento máximo do curso do eixo Z: 650 mm Velocidade máxima do eixo: 7000 1/min Comprimento: 4770 mm Largura: 2220 mm Altura: 1950 mm Peso: 5500 kg Equipamento: Ferramentas motorizadas Alimentador de barras

Controle Siemens ... Sinumerik 840 D Diâmetro de giro ... 365 milímetros Comprimento de rotação ... 450 milímetros Cama inclinada Furo de fuso ... 52 milímetros Torreta de ferramentas ... 12/6 Velocidade do eixo ... 0-6000/min. Potência do motor principal ... 12/16kW Eixo C ... 360° Diâmetro máximo da haste ... 60 milímetros L x W x H ... 4000 x 1640 x 1730 milímetros Peso da máquina ... 3500kg A máquina está em boas condições, possível de testar sob eletricidade.

Gildemeister Twin 65 Y - RG2Year of manuf. : 2007 Control : Siemens 840 D Turning diam. : 250 mmTurning length : 650 mm____________Description:In General:Year of construction:2007Control:Siemens 840 DBar capacity:65 mmTurning diameter:350 mmTurning length:650 mmMain spindle:Technology:Motor spindleSpeed:5,000 rpmPower max.:35 kWTorque max.:370 NmC-axis:0.001Bar capacity:65 mmChuck:Hainbuch Spanntop size 65Clamping cylinder:Hollow clamping cylinderSub spindle:Technology:Motor spindleSpeed:5,000 rpmPower:26 kWTorque:290 NmC-axis:0.001Chuck:Hainbuch Spanntop size 65Clamping cylinder:Partial hollow clamping cylinderZ-axis:670 mmX-axis:175 mmTool carrier i (X/Y/Z):Technology:Tool turret, 12 stationsTool holder:VDI 30Tool drive:4,000 rpm, 11 kW, 28 NmX-axis:300Y-axis:80 mm ( +/- 40 mm)Z-axis:650 mmTool carrier II (X/Z):Technology:Tool turret, 12 stationsTool holder:VDI 30Tool drive:4,000 ...

Gildemeister Twin 32 YYear of manuf. : 2007 Control : Siemens 840 D Turning diam. : 100 mmTurning length : 580 mm____________Description:In General:Year of manufacture:2007Control system:Siemens 840 DTurning diameter:100 mmTurning length:approx. 580 mmBar capacity:32 mmMain spindle:Technology:Motorised spindleSpeed:8,000 rpmTorque max.:100 NmPower max.:26 kWC-axis:0.001°Bar capacity:32 mmClamping cylinder:Hollow clamping cylinderChuck:Hainbuch SpanntopSub spindle:Technology:Motorised spindleSpeed:8,000 rpmMax. torque:100 Nm.Max. power:26 kWC-axis:0.001°X-axis:145 mmZ-axis:380 mmClamping cylinder:Partial hollow clamping cylinderChuck:Hainbuch SpanntopTool carrier I (X/Y/Z):Technology:Tool turretNumber of stations:12 unitsTool holder:VDI 25Tool drive:6,000 rpmX-axis:220 mmY-axis:60 (+/- 30) mmZ-axis:320 mmTool carrier II (X/Z):Technology:Tool turret:Number of stations. 12 units ...

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...

turning diameter:570 mm turning length:635 mm travel -x axis:220 mm travel -z axis:635 mm Torque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fach main spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mm weight of the machine ca.:5.300 t

turning diameter:500 mm turning diameter over bed:500 mm turning dia. over base-slide:290 mm centre distance:1000 mm centre height:250 mm z-travel:1350 mm speeds:10 - 3000 U/min

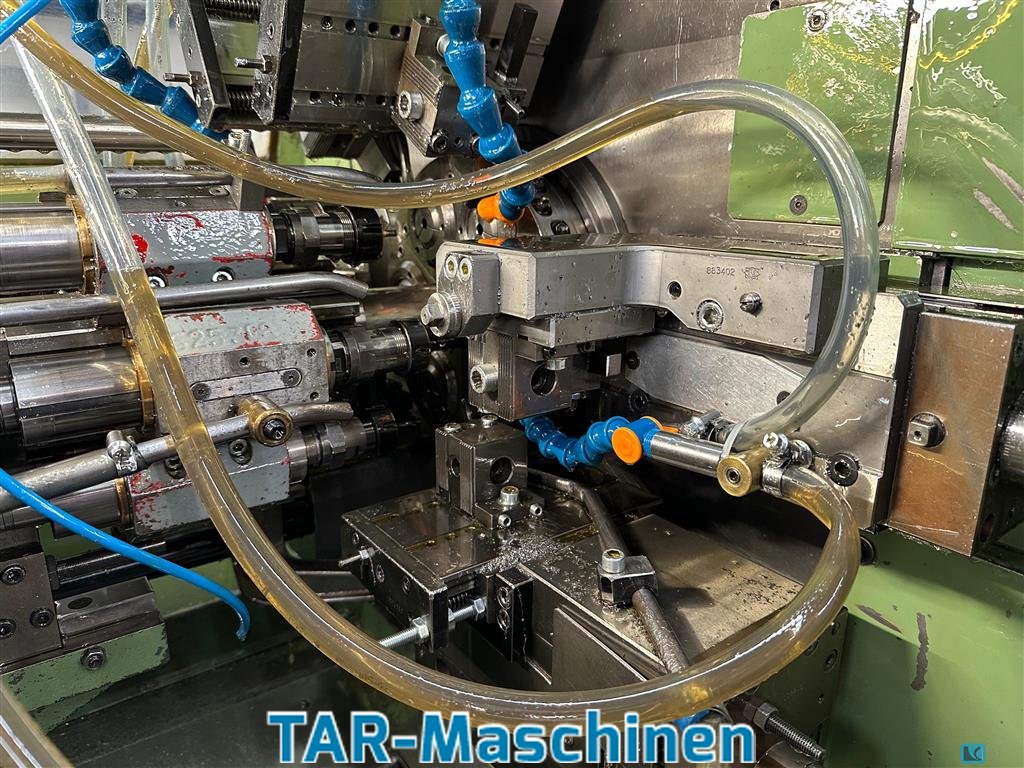

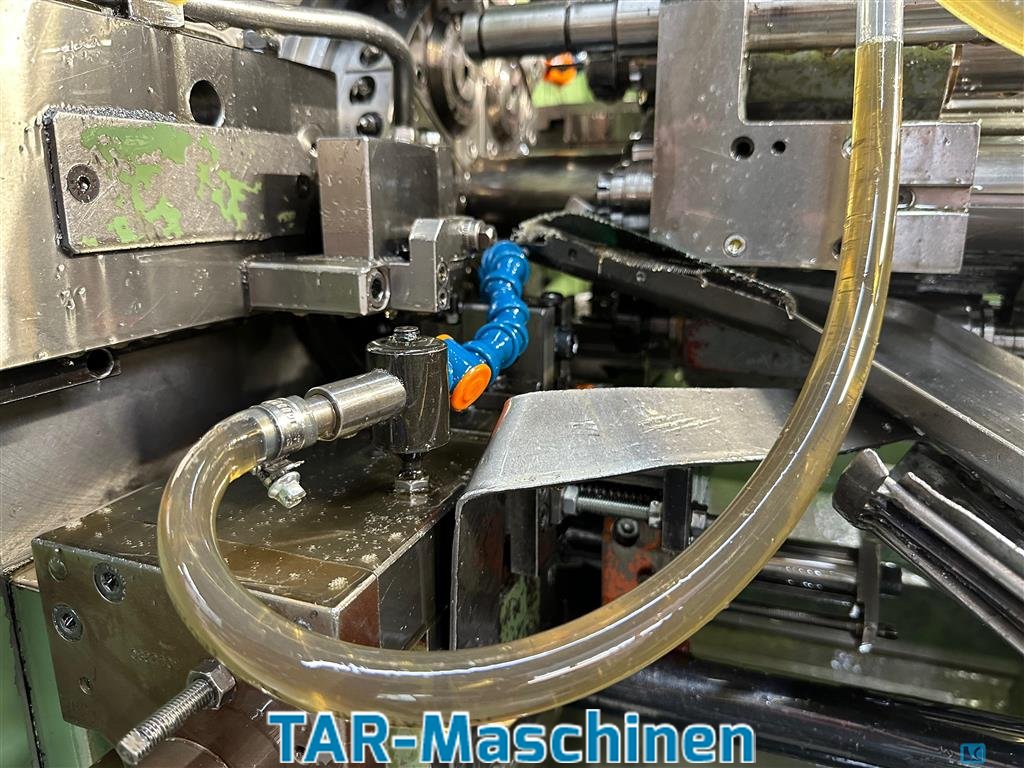

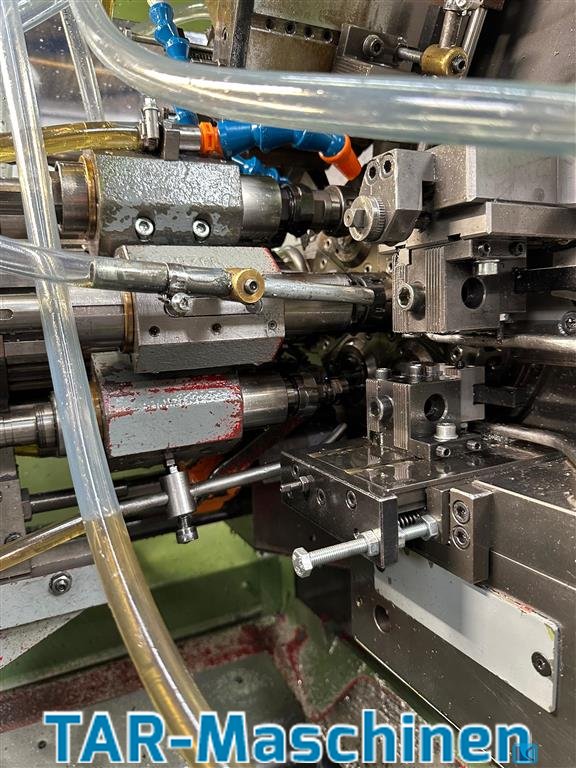

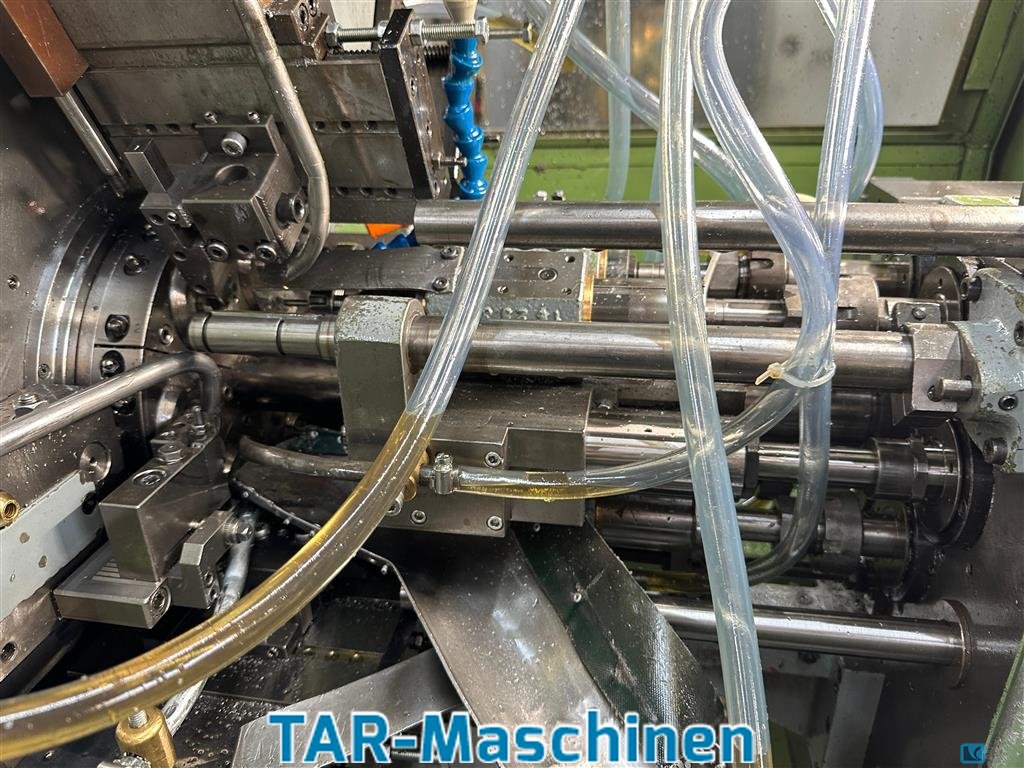

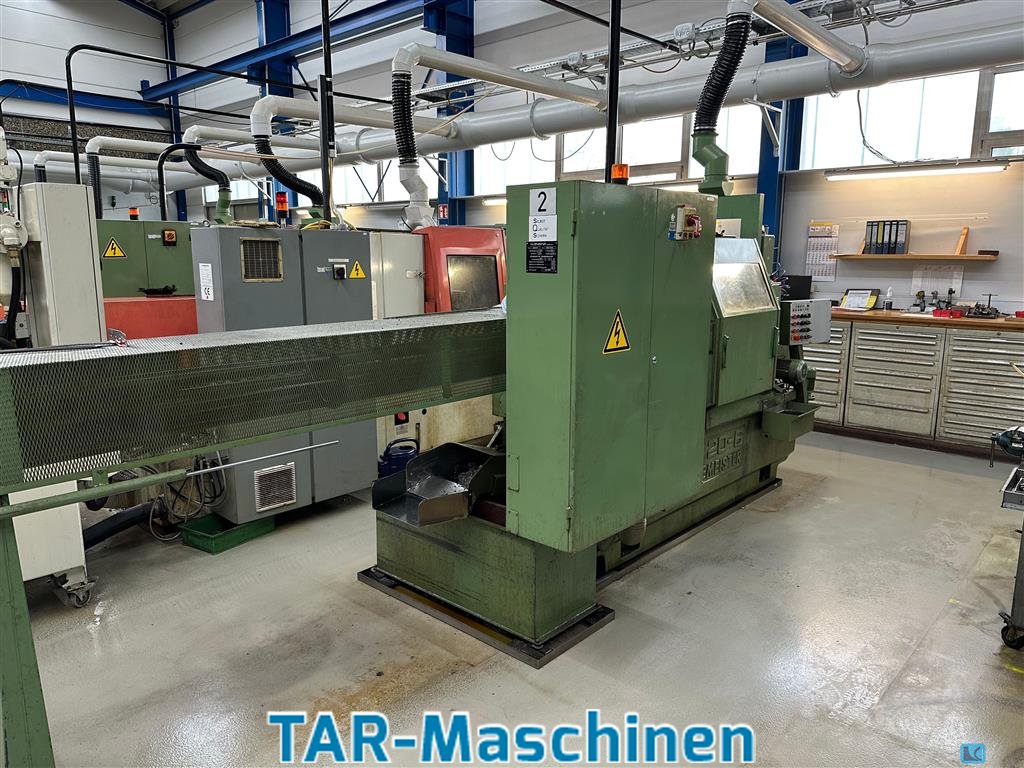

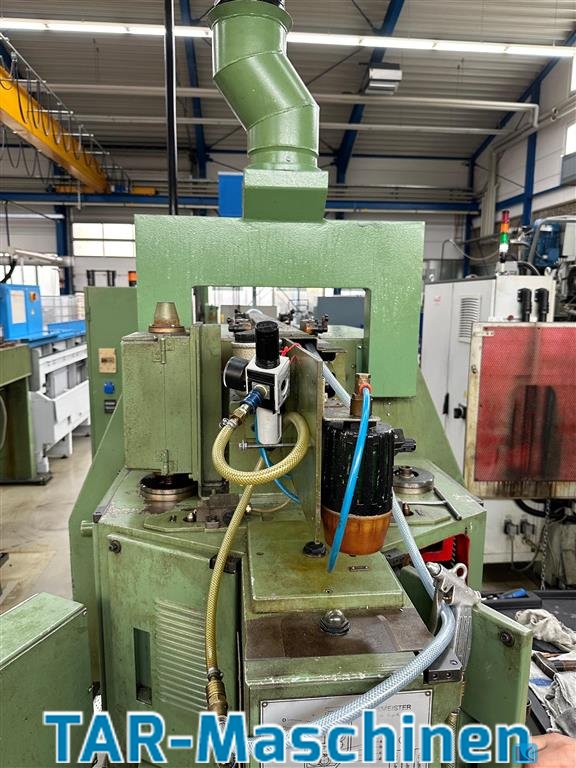

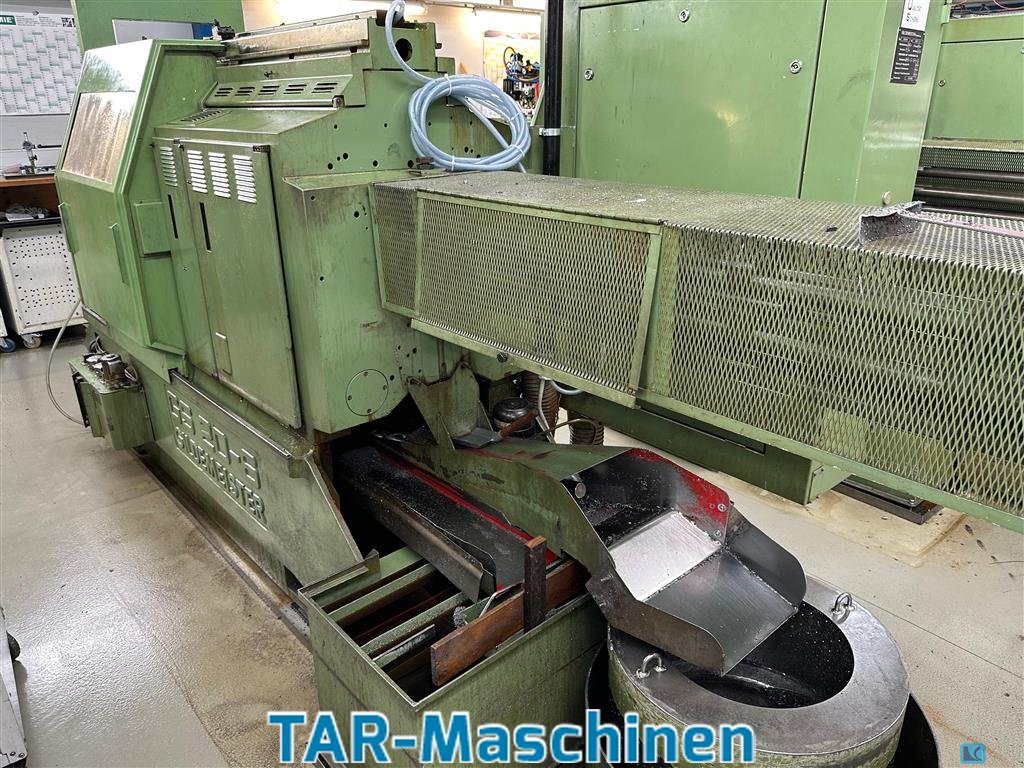

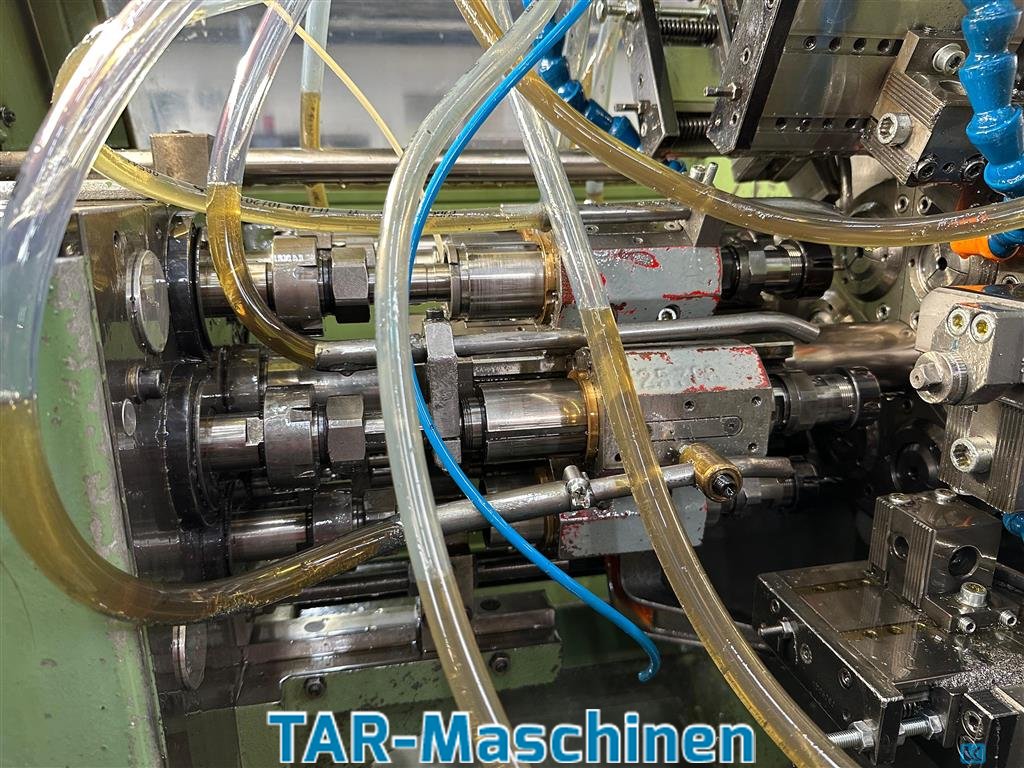

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Gildemeister Type: GS20-6 Yob: 1989 six-spindle automatic lathe 8 main spindles for bars up to D=20mm All cross units are equipped with a tool holder (from Gildemeister or IMG Attachments) All longitudinal units are equipped, either fixed or rotating (without collets) An independent feed is installed at position 1 A gear set for one speed is installed A gear set for one cycle time is installed The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Gildemeister Type: GS20-6 Yob: 1989 six-spindle automatic lathe 8 main spindles for bars up to D=20mm All cross units are equipped with a tool holder (from Gildemeister or IMG Attachments) All longitudinal units are equipped, either fixed or rotating (without collets) A gear set for one speed is installed A gear set for one cycle time is installed The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
