93 HERMLE máquina utilizada para venda

This 3-axis Hermle C 800 V vertical machining center was manufactured in 1996. It offers robust construction and precision for complex machining tasks. If you are looking to get high-quality milling capabilities, consider the Hermle C 800 V machine we have for sale. Contact us for more information about this machine.

This 3-axis HERMLE C 1200 V vertical machining centre was manufactured in 2003. It features a robust clamping table measuring 1400 x 900 mm and a high-performance milling spindle with a maximum power of 10 kW, torque up to 87 Nm, and speeds up to 16,000 RPM. Ideal for complex machining tasks, the HERMLE C 1200 V machine we have for sale offers precision and durability. Contact us for more information.

x-travel: 500 mm y-travel: 360 mm z-travel: 400 mm Control: Siemens 810 tool taper: SK 40 table surface area: 800x390 mm T-slot - width: 14H7 mm number of T-slots: 6 T-slot - distance: 63 mm turning speeds: 20-4000 U/min transmission ratio: 4 Feed: 1-2000 mm/min rapid traverse: 5 m/min total power requirement: 9 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 2,5x2,9x1,9 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appoint ...

Manufacturer: Hermle Model: C 800 U Year of Manufacture: 1997 Configuration: 5-axis with rotary table, C-axis and A-axis Control System: Heidenhain 426 Find more here - / Contact us at -

x-travel: 850 mm y-travel: 630 mm z-travel: 550 mm table surface area: 1200 x 550 mm spindle taper: SK 40 spindle turning speed range: 20 - 4200 U/min spindle drive: 11,5 kW quill stroke: 95 mm feeds longditudinal/cross/vertical: 1 - 10.000 mm/min rapid traverse longitudinal and cross: 10 m/min rapid traverse vertical: 10 m/min control: HEIDENHAIN, TNC 426 total power requirement: 21 kW weight of the machine ca.: 6 t Accessories: NC-dividing unit (= 4th axis) with tailstock, make HOFMANN, model RWNC-160, vertical head with hydr. tool clamping and quill retraction, solid table, electron. handwheel, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 600 mm y-travel: 450 mm z-travel: 400 mm table-size: 850 x 440 mm spindle taper: SK 40 control: HEIDENHAIN TNC 355 ATC: 32 Pos spindle turning speed range: 20 - 4000 U/min spindle drive: 5,9 kW quill stroke: 80 mm feeds longditudinal/cross/vertical: 1 - 2000 mm/min power feed x/y/z: 7200 N rapid traverse longitudinal and cross: 10 m/min rapid traverse vertical: 10 m/min total power requirement: 12 kW weight of the machine ca.: 3 t Acc.: NC-dividing unit (=4th axis) make WALTER with 3-jaw chuck 160 mmø, vertical head with hydr. tool clamping and quill retraction, solid table, various tool fixtures, electron. hand wheel, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

travel -x axis: - mm travel -y axis: - mm travel -z axis: - mm control: HEIDENHAIN - iTNC 530 number of spindle speeds: 18.000 U/min tool taper: HSK-A63 5-axis simultaneous machining center | HERMLE - C 30 U equipped with ITC & pallet changer. The machine is in a well-maintained condition, works in Switzerland. The machine and can be inspected at any time under power. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: C30U | C-30U | C-30 U The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

travel -x axis: - mm travel -y axis: - mm travel -z axis: - mm control: HEIDENHAIN - iTNC 530 number of spindle speeds: 18.000 U/min tool taper: HSK-A63 5-axis simultaneous machining center | HERMLE - C 20 U equipped with ITC & pallet changer. The machine is in a well-maintained condition, works in Switzerland. The machine and can be inspected at any time under power. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: C 22 | C22 | C-22 | C22U The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1300 mm y-travel: 720 mm z-travel: 630 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC control Heidenhain iTNC530 NC-rotary table NC-swivel head 28-fold automatic tool changer electronical hand wheel chip conveyor coolant through spindle Technische Daten / technical details: Verfahrweg X / X-Travel 1300 mm Verfahrweg Y / Y-Travel 720 mm Verfahrweg Z / Z-Travel 630 mm Tischgröße / table size 1000x800 mm Werkzeugschaft / spindle taper HSK63 Drehzahl / spindle speed 12000 UpM /rpm Anzahl der Werkzeugplätze / tool places in ATC 28 Gewicht der Maschine ca. / weight ca. 8500 Kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding. The data for this ad was created with ModulMWS - the software solution of LogoTech ...

x-travel: 850 mm y-travel: 700 mm z-travel: 500 mm Control: Siemens 840 D rotary table: 800 mm c-axis: 0.001º ( ±360º) 0 B-axis (table): +25 / -110 º mm number of spindle speeds: 18.000 U/min/rpm tool taper: HSK 63 Tools changer: 38 fach/tools Internal cooling system: 80 bar handwheel: total power requirement: 43 kVA weight of the machine ca.: 10,6 t dimensions of the machine ca.: m Equipment- Paper belt filter – 200 l tank- Active control cabinet cooling- Infrared probe M&H (Heidenhain)- Laser tool measuring system Blum- Chip conveyor- Cleaning pistol with pump 2 bar / 40 l min- 3D Quick Set- Electronic handwheel The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC vertical machining center Type: U 630 T Manufacturer: Hermle Year: 2001 Control: Heidenhain TNC 426 X: 630 mm Y: 500 mm Z: 500 mm Max spindle speed: 7000 rpm Spindle motor: 7,5 kW Spindle taper: ISO 40 Table: 900 x 528 mm Max table load: 400 kg Machine weight: 4800 kg Tool probe: Heidenhain TS 220 Documentation Machine in good condition, fully functional, under power. Find more here - / Contact us at -

travel -x axis: 1.200 mm travel -y axis: 900 mm travel -z axis: 500 mm control: HEIDENHAIN tool taper: SK 40 milling spindle dia. in forward position: 70 mm table surface area: 1.400 x 900 mm Milling machining centers - vertical | HERMLE - C 1200 V equipped with tool changer. The machine is in a well-maintained condition. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: C1200 V | C-1200 V | C 1200-V | C1200V The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mm y-travel: 600 mm z-travel: 500 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 650 mm y-travel: 600 mm z-travel: 500 mm control: Sinumerik 840 D pl Siemens Main spindle:: turning speed range - main spindle: 20 - 28.000 min/-1 power capacity - main spindel: 23 / 18 kW max. Torque: 79 Nm tool taper: HSK-A63 NC-Tilting round table:: table surface area: Ø 630 mm Swivel range: A: +30° / -115 ° rotatable: C: 360 ° max. table load: 500 kg max. workpiece sizes: Ø 630 x 313 mm table speed: A:25 / C:65 min/-1 Tool-Presetter:: number of toolpositions: 117 pos. max. tool diameter: 90 (125) mm max. tool length: 300 mm feeds:: rapid traverse ( X / Y / Z ): 60 m/min Accelaration: 10 m/s² feed power: 8,5 kN total power requirement: 43 kVA weight of the machine ca.: 10,5 t dimensions of the machine ca.: 8,5 x 5,5 x 3,0 m Documents: high pressure coolant: Coolantsystem: through spindle coolant: 80 bar / 1.300l elektr. hand wheel: Automatic Tool Changer: 117 p ...

x-travel: 410 mm y-travel: 310 mm z-travel: 400 mm table-size: 700 x 280 mm control: Heidenhain TNC 145 tool adaptor: SK40 turning speed range: 40- 2.000 U/min rapid speed: 1,5 m/min feed speeds: 1500 mm/min power requirement: 2.2 kW quill stroke: 63 mm weight: 1,3 t total power requirement: 2,2 kW weight of the machine ca.: 1,5 t dimensions: 1,4 x 2,1 x 2,0 m Features: - New TFT screen - Coolant system - Hydraulic tool clamping - Milling head with spindle sleeve - Documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x/y/z = 500/360/400 mm, máx. 4000 rpm, 4 canto de aperto, 1 botão, vários tiros, gabinete Lista

quill dia 110 mm quill stroke 100 mm ISO 40 (DIN 2079) 360° swiveling of the spindle head previously used on Hermle UWF 1000

Control: HEIDENHAIN TNC-430 x-travel: 800 mm y-travel: 600 mm z-travel: 500 mm B-axis (table): 280 mm table swivelabel +/-: 220 (+/-110) ° -C-axis table rotating: 360 ° tool magazin:: 30 spindle taper: HSK63 spindle turning speed - stepless: -15000 U/min rapid traverse feeds rotary table: 36 U/min rapid travel x/y/z: 36 m/min Overall size: 3800X3600X3000 mm weight of the machine ca.: 8.5 t Coolant through spindle: pressure: 40 Bar 3D measuring tracer: RENISHAW Chip conveyor: Coolant installation: SIEMENS 840D www.marcels-maschinen.ch The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 450 mm, 600 mm, 330 mm

Nº de catálogo. : 8975 Tipo: C 22 U Produtor: Hermle Produzido em: 2018 Característica: Sistema de controlo: Heidenhain TNC 640 Horas totais: 23.000 h Número de posições de pilha: 192 Número de eixos: 5 peças Viagens do eixo X: 450 mm Viagens no eixo Y: 600 mm Viagens do eixo Z: 330 mm Velocidade do bloco: 18000 1/min Afunilamento: HSK-A63 Arrefecimento interno: 80 bar Mesa rotativa Ø 320 mm A ±135° / C 360° Sistema de manuseamento Hermle IH30/60 (ativo) Sistema de medição de ferramentas BLUM (LC50) Sonda da peça de trabalho BLUM (TC52) Precisão Dinâmica

Key data: 850 mm, 700 mm, 500 mm

Inv. Num. : 8976 Tipo: C 400 U Produtor: Hermle Criado: 2015 Parâmetros: Sistema de controlo: Heidenhain iTNC 530 Número de posições de empilhamento: 38 Número de eixos: 5 peças Curso do eixo X: 850 mm Curso do eixo Y: 700 mm Eixo Z de percurso: 500 mm Cone: SK40 Velocidade elétrica do fuso: 18000 1/min Arrefecimento do fuso: 40 bar Mesa rotativa Ø 650 mm A 91° / -139° C 360° Sistema de Medição de Ferramentas BLUM Sondas para peças de trabalho BLUM Acionamentos diretos de binário em eixos rotativos Transportador de cavacos Extração por névoa oleosa Roda eletrónica

Key data: 650 mm, 600 mm, 500 mm

Controla Heidenhain ... TNC 530 Superfície da mesa de fixação ... 630mm Eixo X ... 650mm Eixo Y ... 600mm Eixo Z ... 500mm Velocidade do fuso... 0-18000 rpm machados controlados ... 5 IKZ ... 80 bar Suporte do fuso... HSK-A63. Espaços de revista ... 32 Eixo A ... +30/-115° Eixo C ... 0,001° Peso da máquina ... 9500kg A máquina está em bom estado, sendo possível testar sob energia.

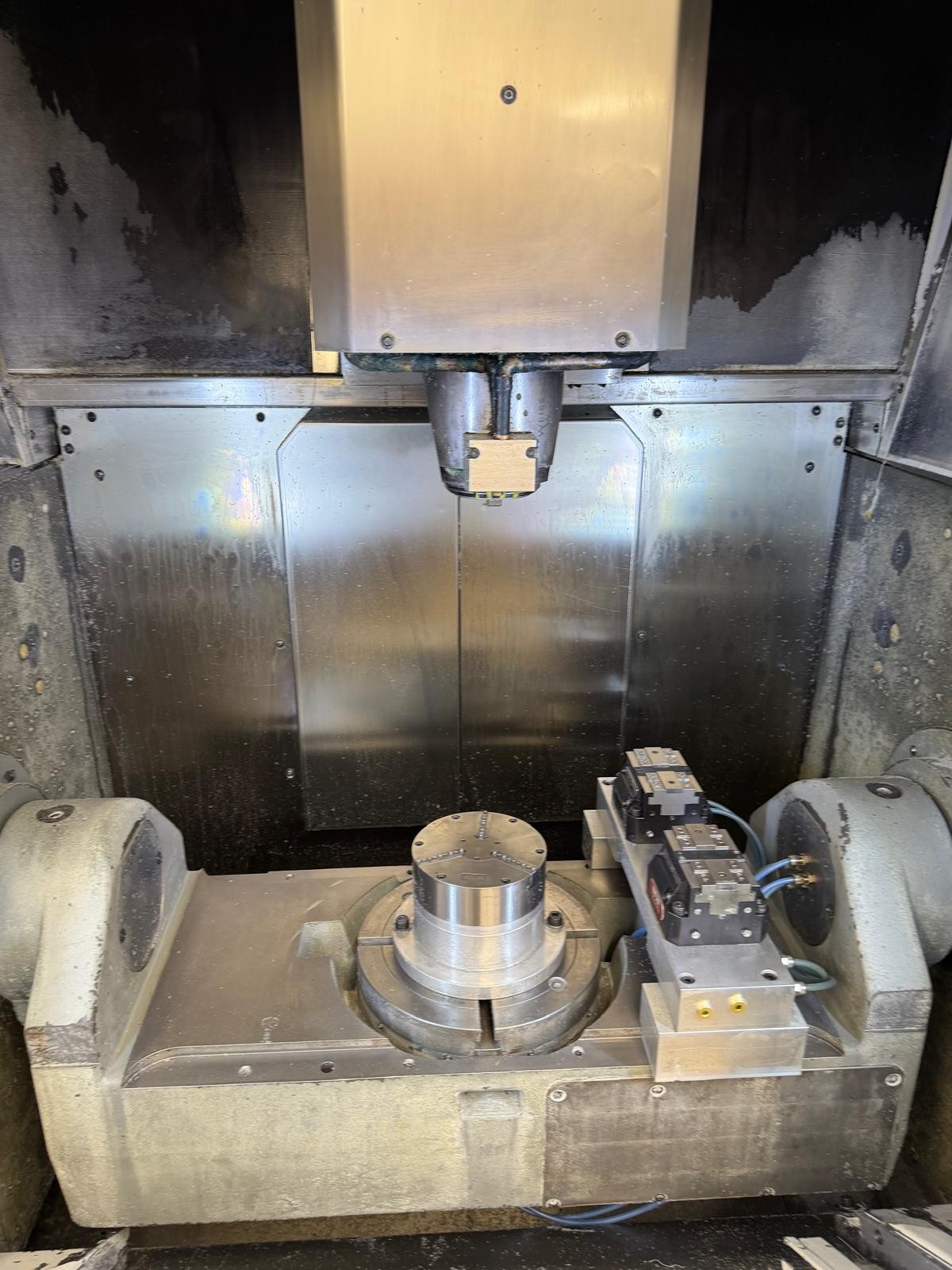

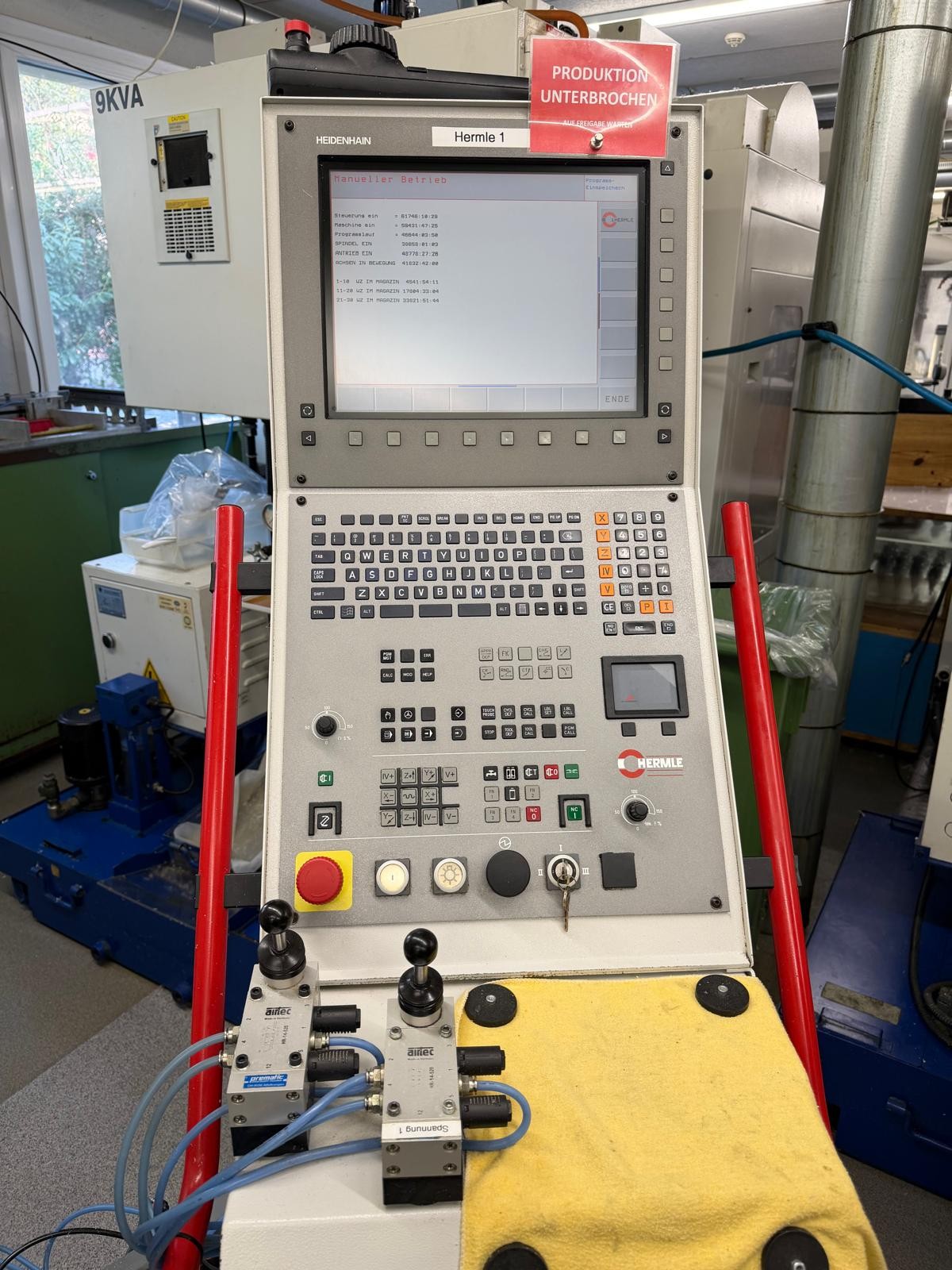

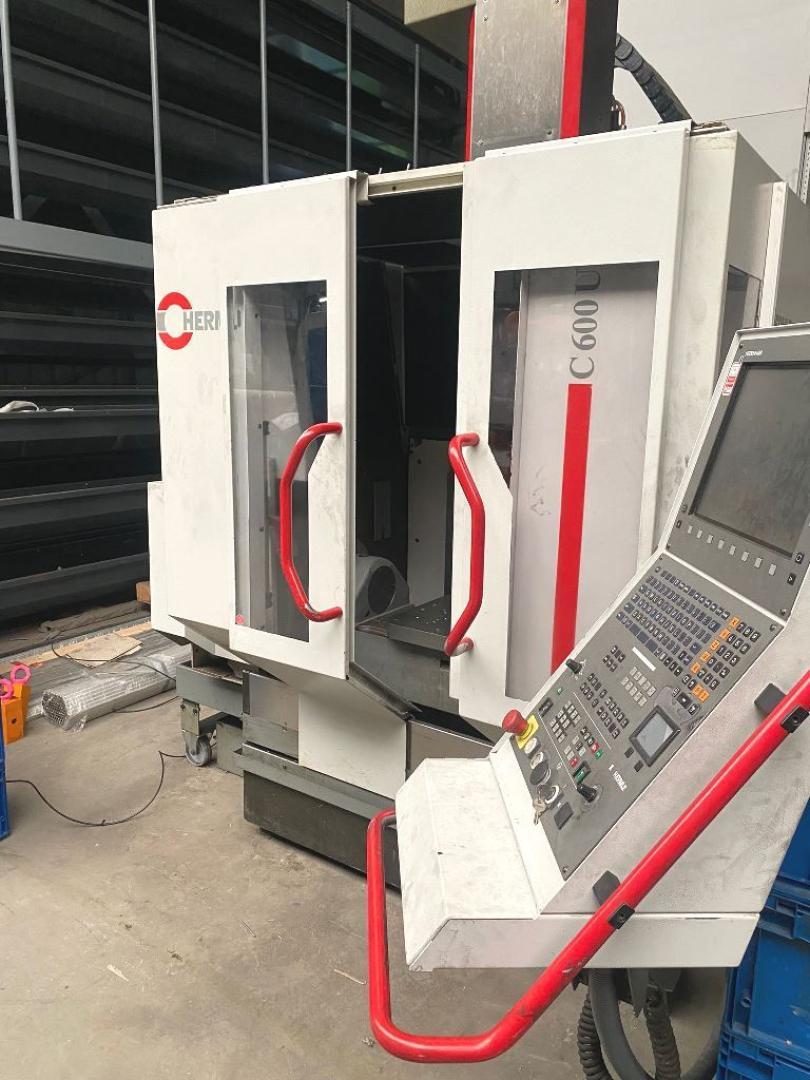

This 5-axis HERMLE C 600 U was manufactured in 2000. It features an X-axis travel of 450 mm, Y-axis travel of 300 mm, and Z-axis travel of 400 mm, providing versatile machining capabilities. The machine is equipped with a HSK 63 tool holder and a Heidenhain iTNC 426 CNC control for precision operations. If you are looking to get high-quality machining capabilities, consider the HERMLE C 600 U universal machining centre we have for sale. Contact us for further details.

Key data: 800 mm, 600 mm, 500 mm

Controlo CNC HEIDENHAIN, viagens: eixo X 800 m x eixo Y 600 mm x eixo Z 500 mm, gama de giro eixo A +20/-90, eixo C 360 graus, velocidade máxima 18000 rpm, aut. Trocador de ferramentas com 30 posições de ferramenta, percurso rápido 35 m/min., peso da máquina 7.000 kg, transportador de cavacos

Year of manufacture: 2003 | Control: Heidenhain iTNC 530 | Travel distances: | X-axis: 850 mm | Y-axis: 700 mm | Z-axis: 500 mm | NC swivel rotary table: | Diameter: Ø 800 mm | Swivel range A-axis: +25° / -110° | Rotation range C-axis: 360° | Machine weight approx. 10.5 t | Accessories: | Complete documentation | Coolant system | Hydraulic unit | NC swivel rotary table | Electric handwheel | Renishaw measuring probe | The machine can be viewed by appointment. | Subject to changes and errors in the technical data and specifications, as well as prior sale!

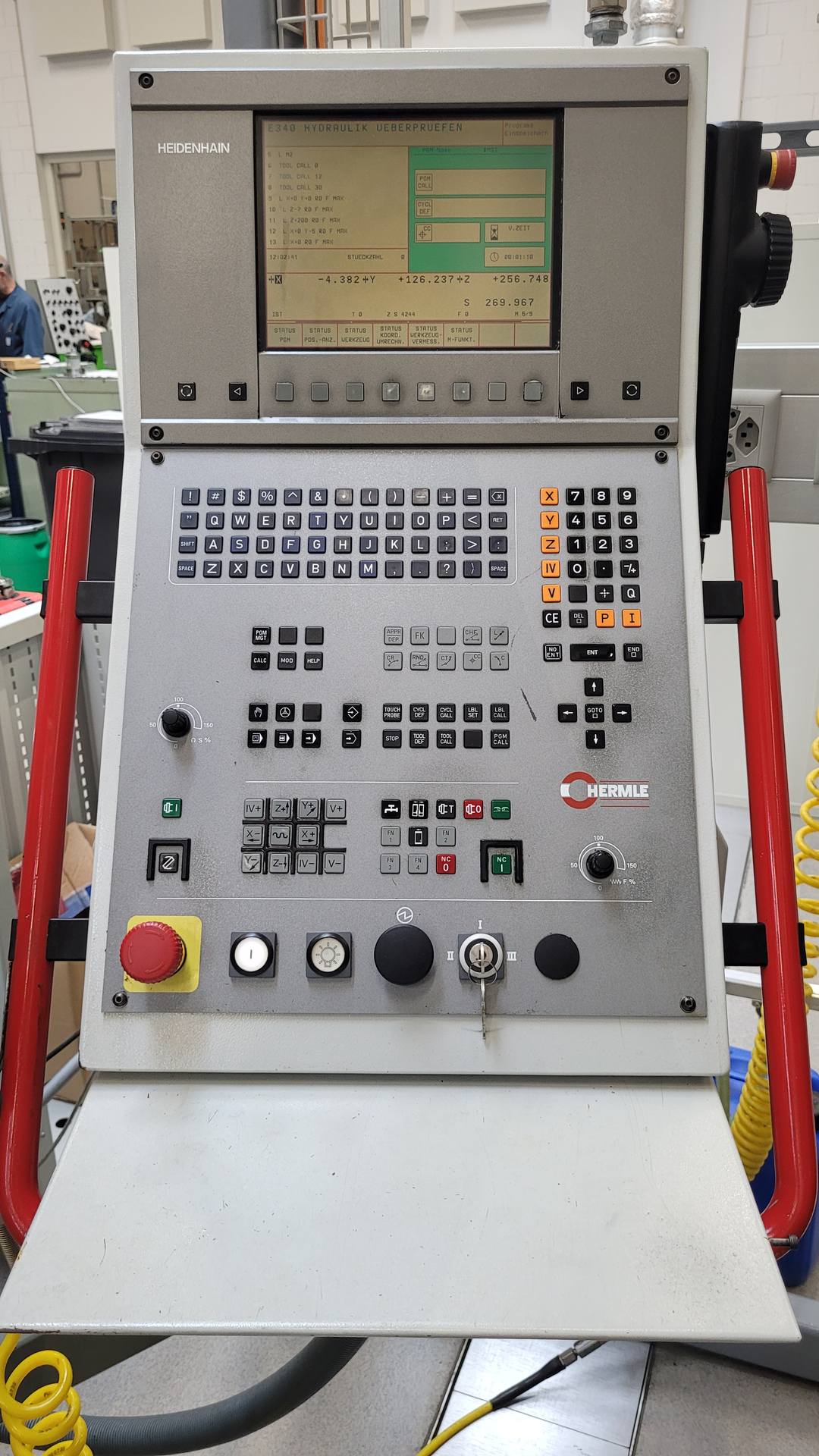

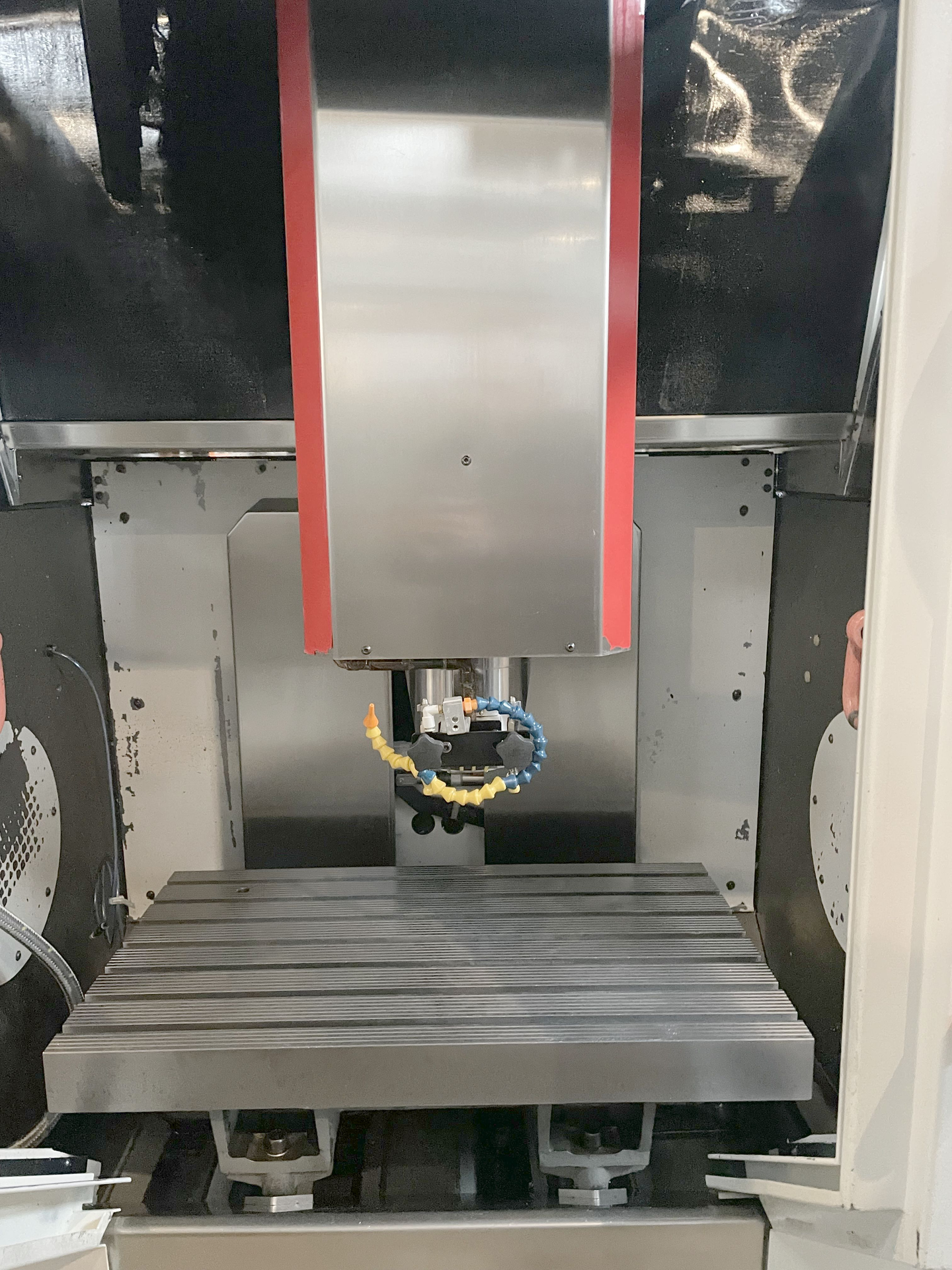

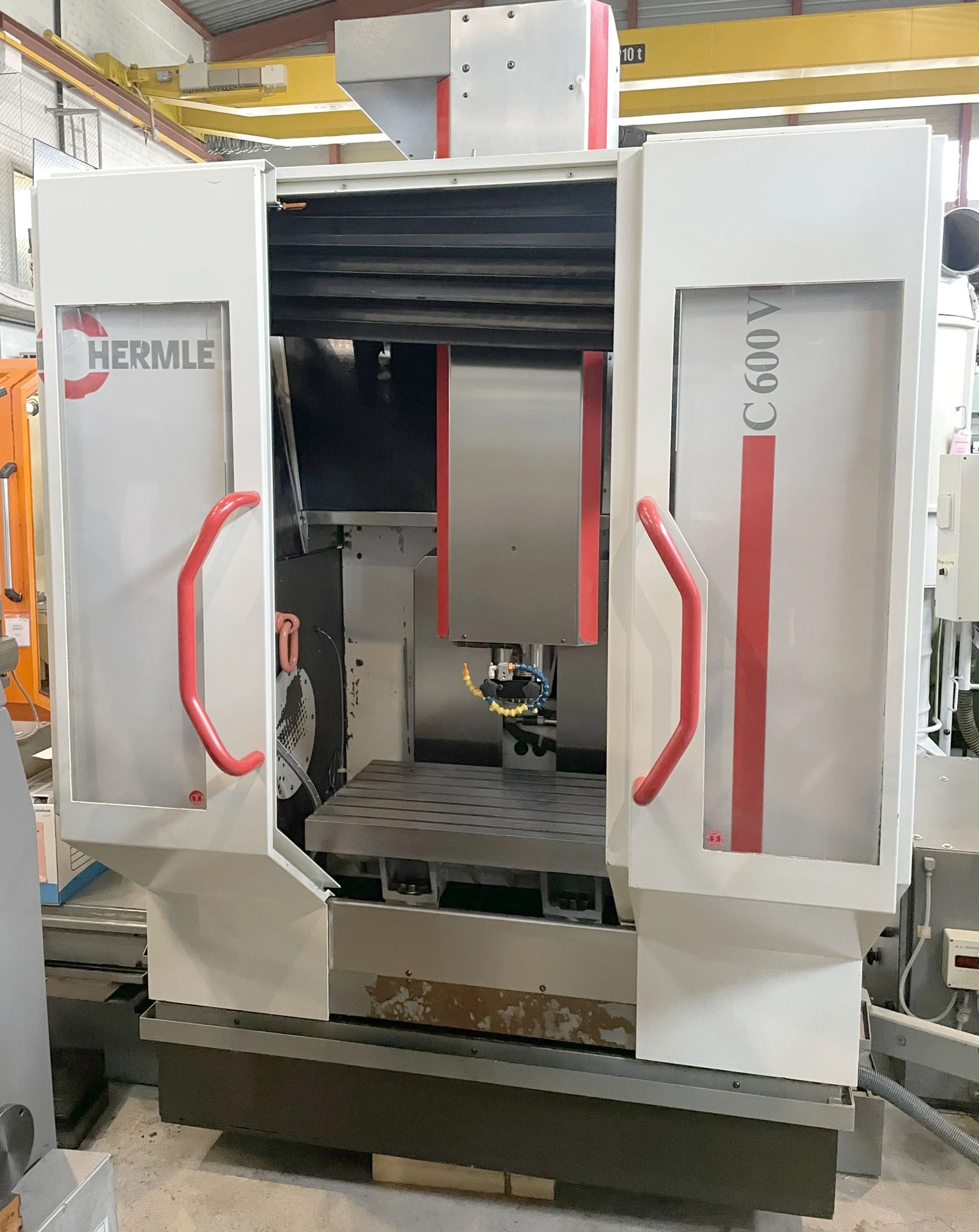

This 3-axis HERMLE C 600 V was manufactured in 1998. It features an X-axis travel of 600 mm, Y-axis travel of 450 mm, and Z-axis travel of 450 mm. The machine is equipped with a tool magazine that holds 30 slots and an internal coolant supply of 10 bar. If you are looking to get high-quality machining capabilities, consider the HERMLE C 600 V vertical machining centre we have for sale. Contact us for further details.

Fresadora universal HERMLE UWF 802 M com controlo de rota HS 401 -HS 401- Controlo da via -Viagem X / Y / Z 500x430x400mm -Mesa de ângulo rígido -Gama de velocidades 18-3550 rpm - Alimentação continuamente variável nos três eixos 0-1600 mm/min - Travessias rápidas 0-1,6 m/min em todos os três eixos - Vertical - Dispositivo de fresagem horizontal -Suporte de ferramentas ISO 40 -Fixação de ferramentas hidráulicas -Lubrificação central -Tabuleiro de batatas fritas -Potência de transmissão 6 KW -Luz de trabalho -Proteção do fuso -Documentação Dimensões LxWxH 1,9x1,8x1,9 metros / Peso: 1800Kg

This 3-axis HERMLE U 630 T was manufactured in 2001. It features an X-axis travel of 630 mm, Y-axis travel of 500 mm, and Z-axis travel of 500 mm. The machine includes a table size of 900 x 528 mm and a maximum table load of 400 kg. If you are looking to get high-quality machining capabilities, consider the HERMLE U 630 T vertical machining centre we have for sale. Contact us for further details.
