21 HWACHEON máquina utilizada para venda

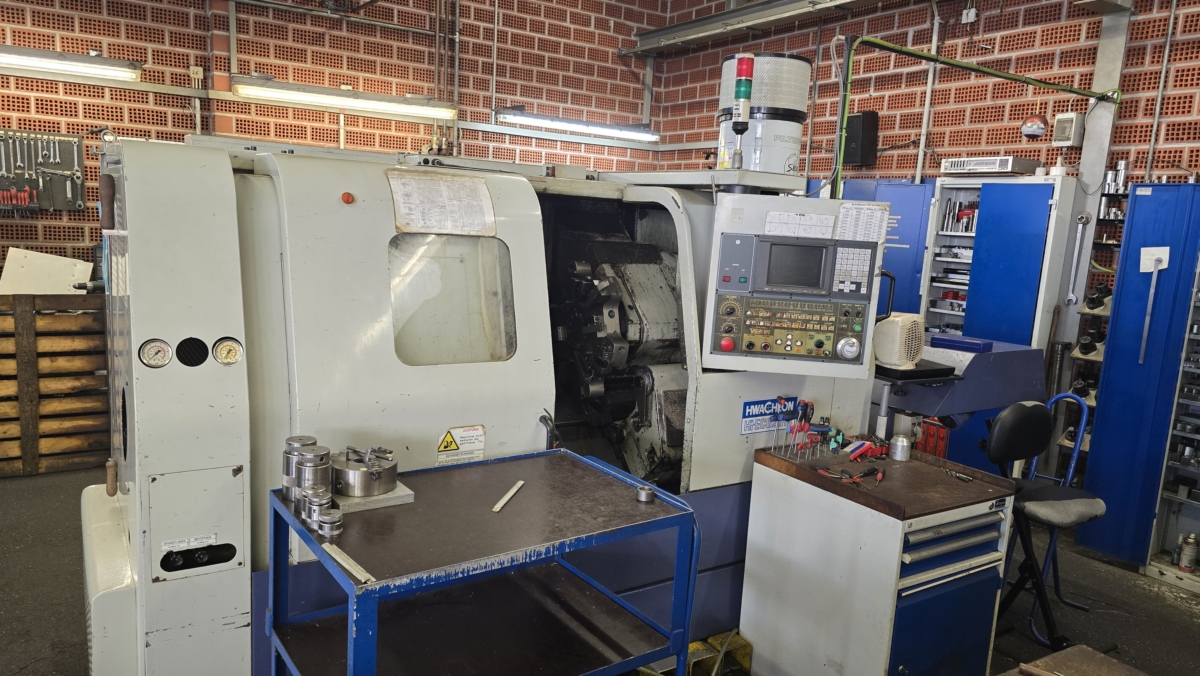

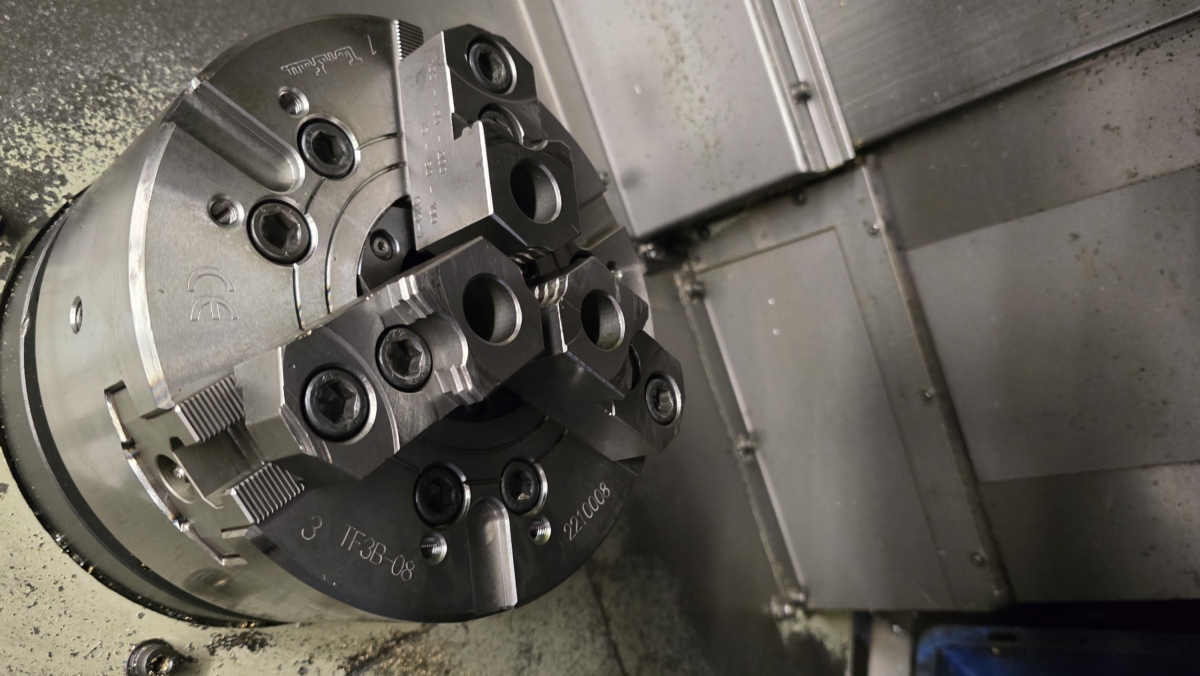

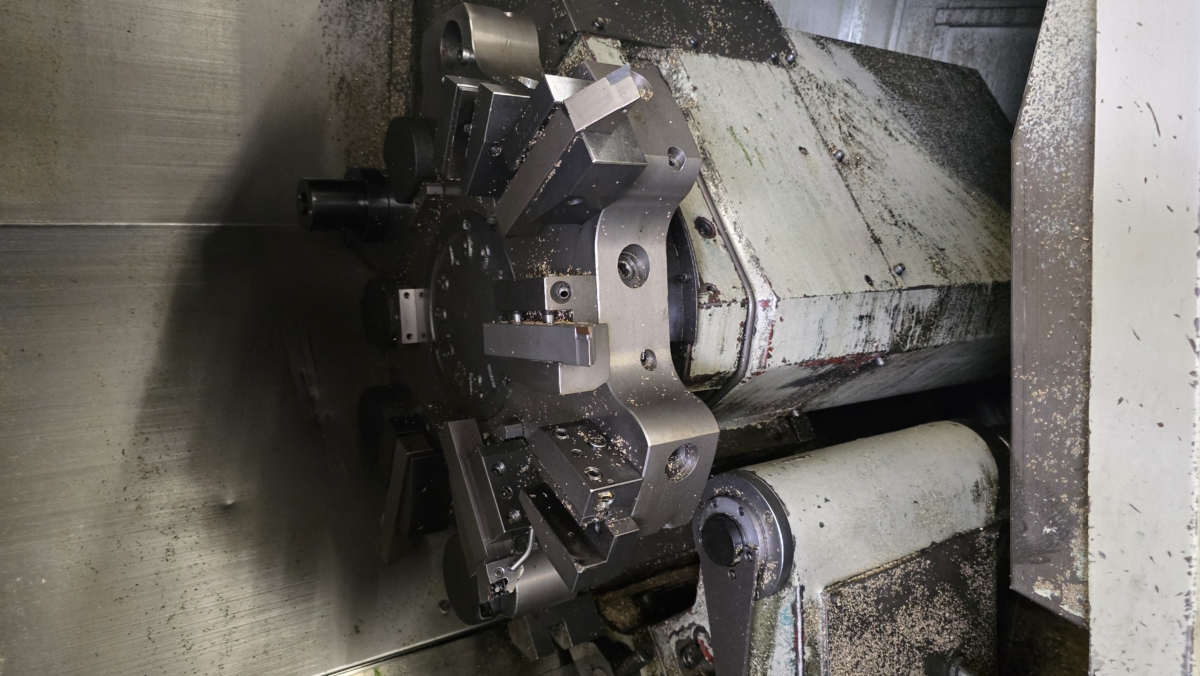

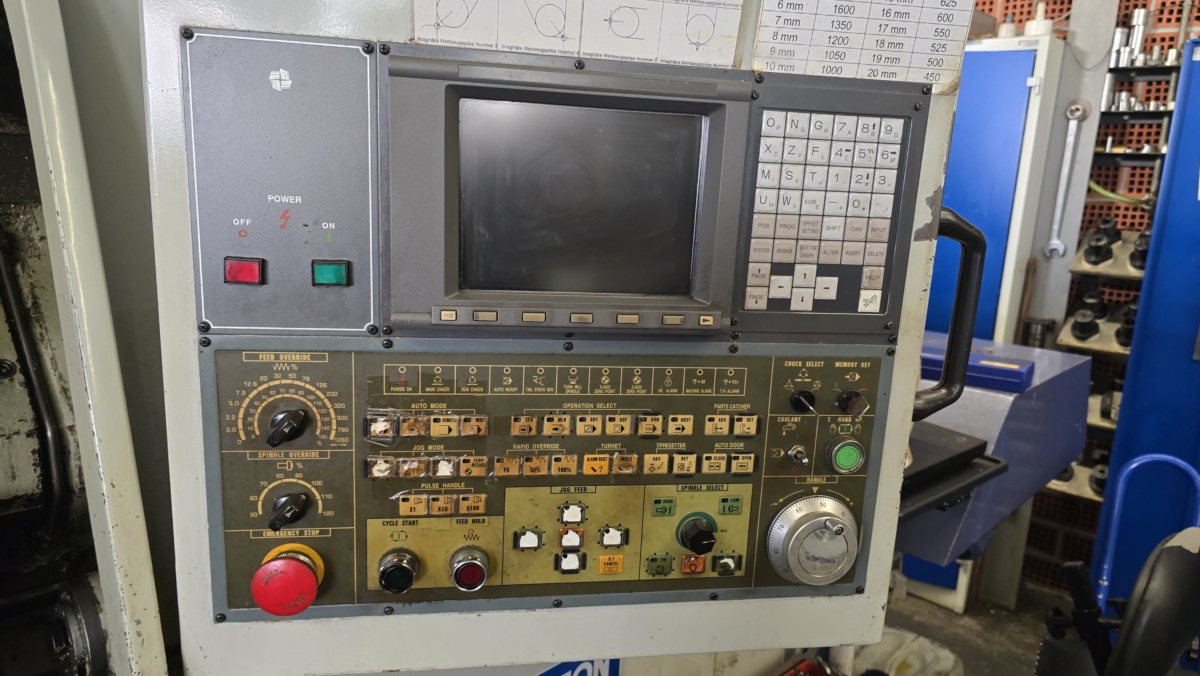

turning diameter: 280 mm turning length: 400 mm control: Fanuc 18 T spindle bore diameter: 51 mm number of controlled axis: 2 turning speed range: 0 - 4000 U/min rapid speed: 30 m/min number of tapers in turret head: 12 VDI 40 tail stock: Ja dimensions: 3,9 x 1,6 x 2,1 m weight of the machine ca.: 3,9 t power requirement: 15 kW Used CNC- Lahte with box way, 2 axis - 3 jaw chuck Ø 200 mm - chip conveyor - oil dust collector The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 210 / 350 mm turning length: 400 mm control: Fanuc 0i-TC swing diameter: 500 mm travel -x axis: 195 mm travel -z axis: 430 mm spindle speed:: 3500 1/min spindle bore: 75 mm bar diameter: 51 mm C-Axis: 0,001 ° turret head: 12 Pos. taper in tailstock-quill: MK 4 tailstock travel: 100 mm diameter of quill: 80 mm rapid traverse X-axis: 30 m/min rapid traverse Z-axis: 30 m/min drive capacity - spindle motor: 11 / 15 kW voltage: 400 V total power requirement: 30 kVA weight of the machine ca.: 4,2 t dimensions of the machine ca.: 2,70 x 1,90 x 2,10 m chip conveyor: 2,80 x 0,60 x 1,30 m Transformer: 0,60 x 0,45 x 0,55 m - Serial-No.: M015356K2F - Machine ON: 14.494 h - control: FANUC Oi-TC - Machine with C-axis and turret for life tools (1x radial + 1x axial in the accessories) - Tool meeasuring arm - Parts collecting tray - Collet chuck - 3-jaw chuck Samchully Ø 250 mm - O ...

x-travel: 1000 mm y-travel: 550 mm z-travel: 500 mm CNC-control: Fanuc Oi-MD table-size: 1.100 x 500 mm max. table load: 700 kg spindle taper ISO: BT-40 spindle turning speed range: 10.000 U/min feed stepless: 24.000 mm/min rapid traverse: 36/36/30 m/min drive capacity - spindle motor: 15/11 kW tool change unit: 24 coolant: IKZ 20 bar voltage: 400 V total power requirement: 30 kVA weight of the machine ca.: 6,5 t dimensions of the machine ca.: 3,35 x 2,20 x 2,67 m chip conveyor: 2,40 x 1,50 x 1,40 m filter unit: 0,90 x 1,40 x 1,30 m Transformer: 0,60 x 0,55 x 0,55 m - Serial No..:M281361B5N D - Machine ON: 21,011 h - NC-Indexing Device Manufacturer KITAGAWA, (Call by M-Command) - control: FANUC Oi-MD - Internal coolant supply through spindle 20 bar - Chip conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 590 mm turning length: 1100 mm control: Fanuc turning diameter over bed: 800 mm total power requirement: --- kW weight of the machine ca.: 9,5 t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 400 mm turning length: 230 mm control: Fanuc total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Fanuc control at each spindle is a 3-jaw chuck mounted 2x 12-fold revolver chip conveyor coolant device Technische Daten: / technical details Schwingdurchmesser / rotary diameter 500 mm max. Drehdurchmesser / max. turning diameter 400 mm max. Drehlänge / max. turning length 230 mm X-Weg / X-travel 220 mm Z-Weg / Z-travel 230 mm max. Drehzahl der Spindeln / max. spindle speed of the spindles 2000 UpM /rpm Anzahl der Revolverplätze / number of tool places 2x 12 Eilgang x, z / rapid feed x, z 30, 30 m/min Antriebsleistung Spindeln / drive capacity spindles 18,5/15 kW Gewicht ca. / weight ca. 9400 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and descriptio ...

turning diameter: 950 / 650 mm turning length: 2000 / 2500 mm control: HEIDENHAIN Manual Plus 3-jaw-chuck diameter: 800 mm turning speed range: 40 - 1000 U/min total power requirement: 35 kW weight of the machine ca.: 12 t dimensions of the machine ca.: 8 x 3 x 3,5 m 12 x station Turret Tailstock 2 x Chip Conveyors Price EXW 17036 Neubrandenburg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control: Manufacture: FANUC 0i-MD x-travel: 1000 mm y-travel: 550 mm z-travel: 500 mm table surface area: 1100 x 500 mm spindle turning speed - stepless: 10000 U/min dimensions of the machine ca.: 3500 x 2200 x 2700 mmxmmxmm weight of the machine ca.: 6.5 t tool piece magazine with: 24 Plätzen The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Núm. : 9102 Tipo: Hi-TECH 230 BL YMC Produtor: Hwacheon Criado: 2019 Parâmetros: Sistema de controlo: FANUC Horas: 6623 h Comprimento máximo de viragem: 584 mm Diâmetro máximo de rotação: 400 mm Diâmetro máximo de rotação sobre a cama: 750 mm Velocidade máxima do fuso: 3500 1/min Peso: 6650 kg

Inv. Num. : 8902 Tipo: Vesta 1000 12K Produtor: Hwacheon Criado: 2016 Parâmetros: Sistema de Controlo: Série FANUC Oi-MF Horas: 15976 h Comprimento da mesa de trabalho: 1100 mm Largura da mesa de trabalho: 502 mm Potência de acionamento do fuso: 11 kW Velocidade máxima do fuso: 12000 1/min Curso do eixo X: 1000 mm Curso do eixo Y: 550 mm Eixo Z de percurso: 500 mm Cone: BT40 Comprimento máximo da ferramenta: 300 mm Peso máximo da ferramenta: 8 kg Diâmetro máximo da ferramenta: 80/150 mm Travessia rápida X/Y/Z: 36/36/30 m/min Altura da máquina: 2670 mm Comprimento da máquina: 3335 mm Largura da máquina: 2200 mm Peso da máquina: 6500 kg Equipamento: Sonda de ferramenta Sonda da Peça de Trabalho 4.º eixo TSUDAKOMA

A máquina está em boas condições técnicas, sendo possível realizar testes após acordo prévio. incluindo um novo removedor de chips

Número : 8549 Tipo: Cutex-160B MC Produtor: Hwacheon Criado: 2017 Parâmetros: Sistema de controlo: FANUC 0i-SERIES (TF) Diâmetro máximo de giro: 260 mm Diâmetro máximo de giro sobre a cama: 550 mm Velocidade máxima do eixo: 4500 1/min Diâmetro do mandril do torno: 200 mm peso: 3280 kg

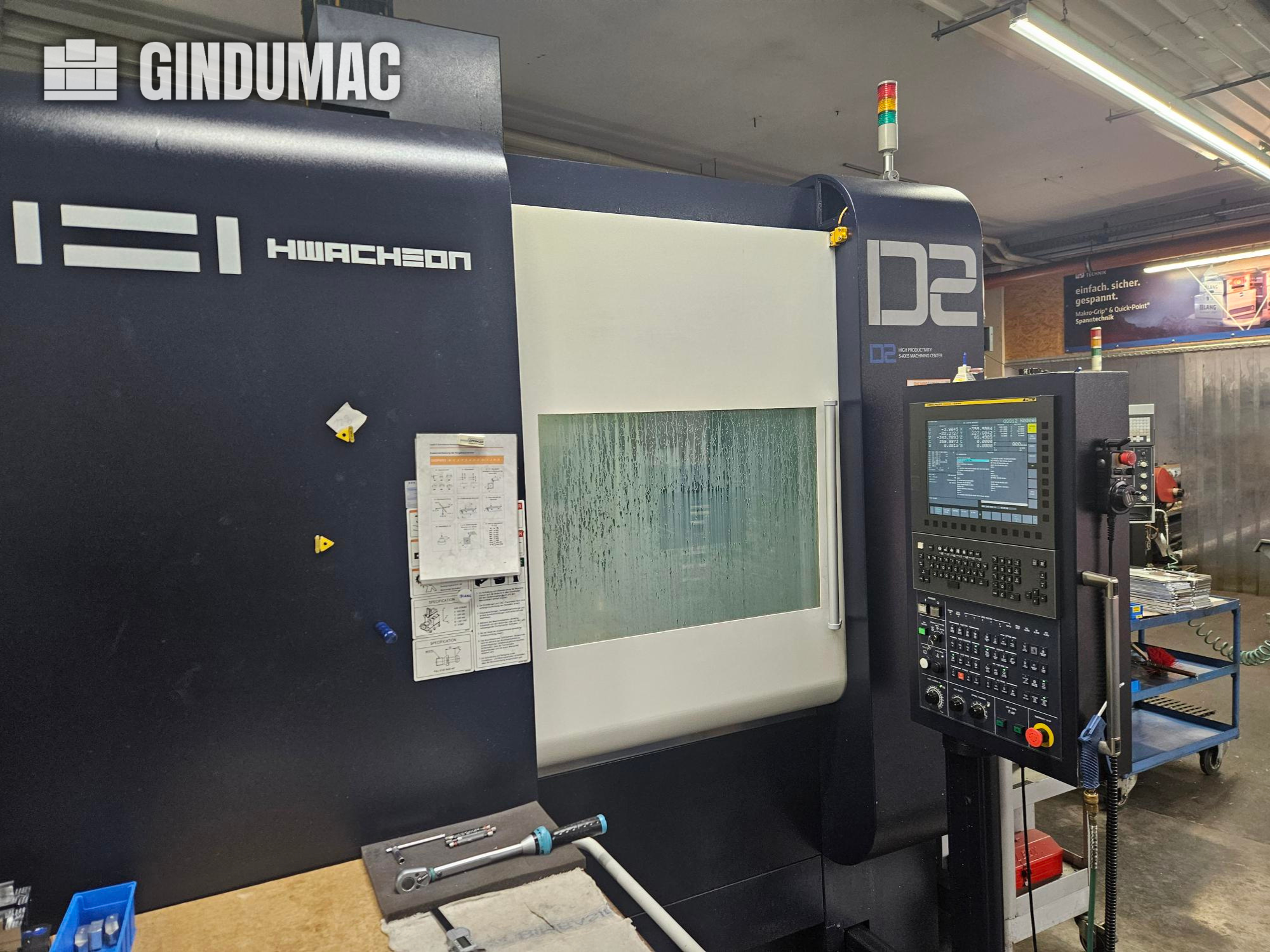

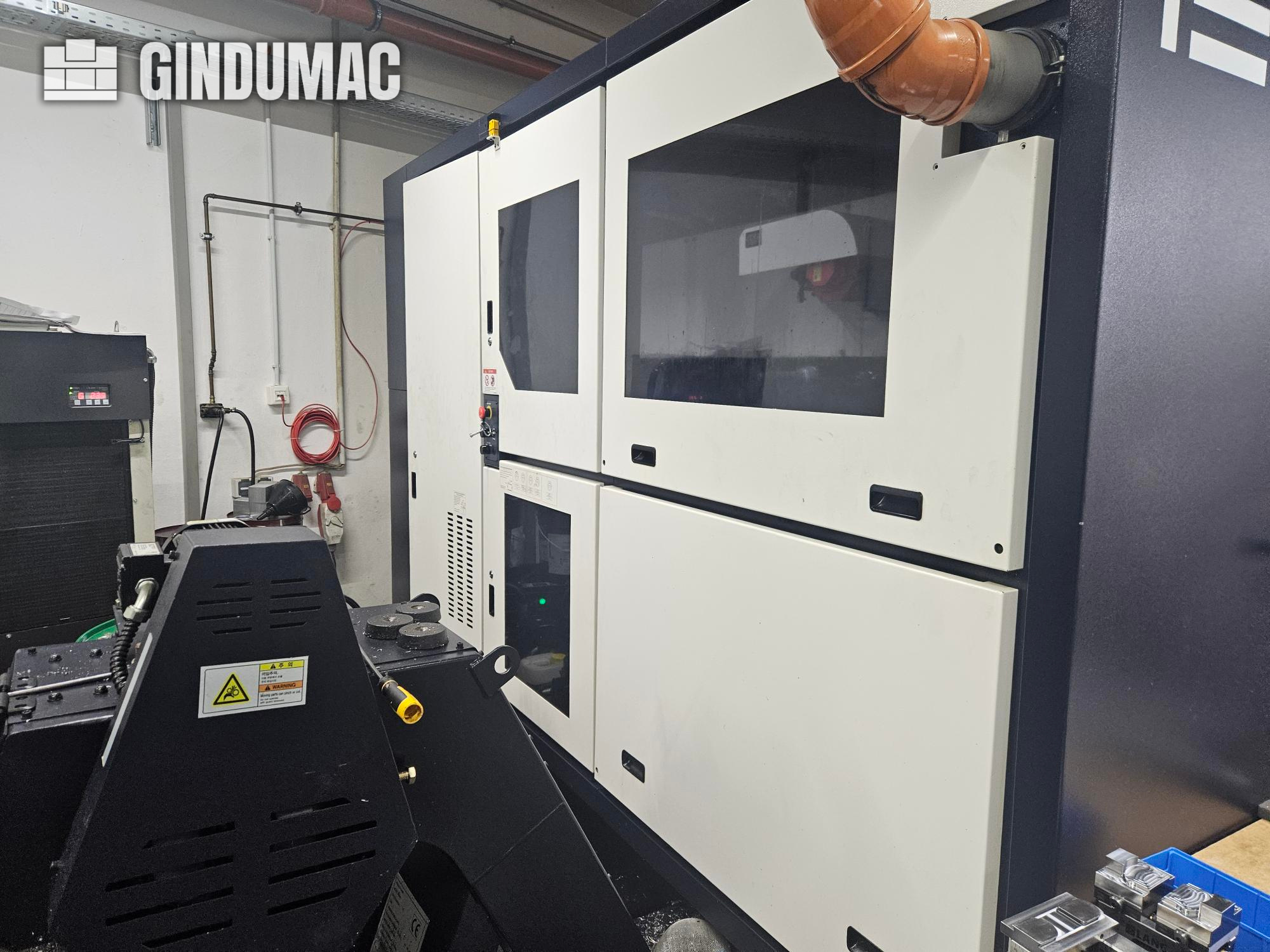

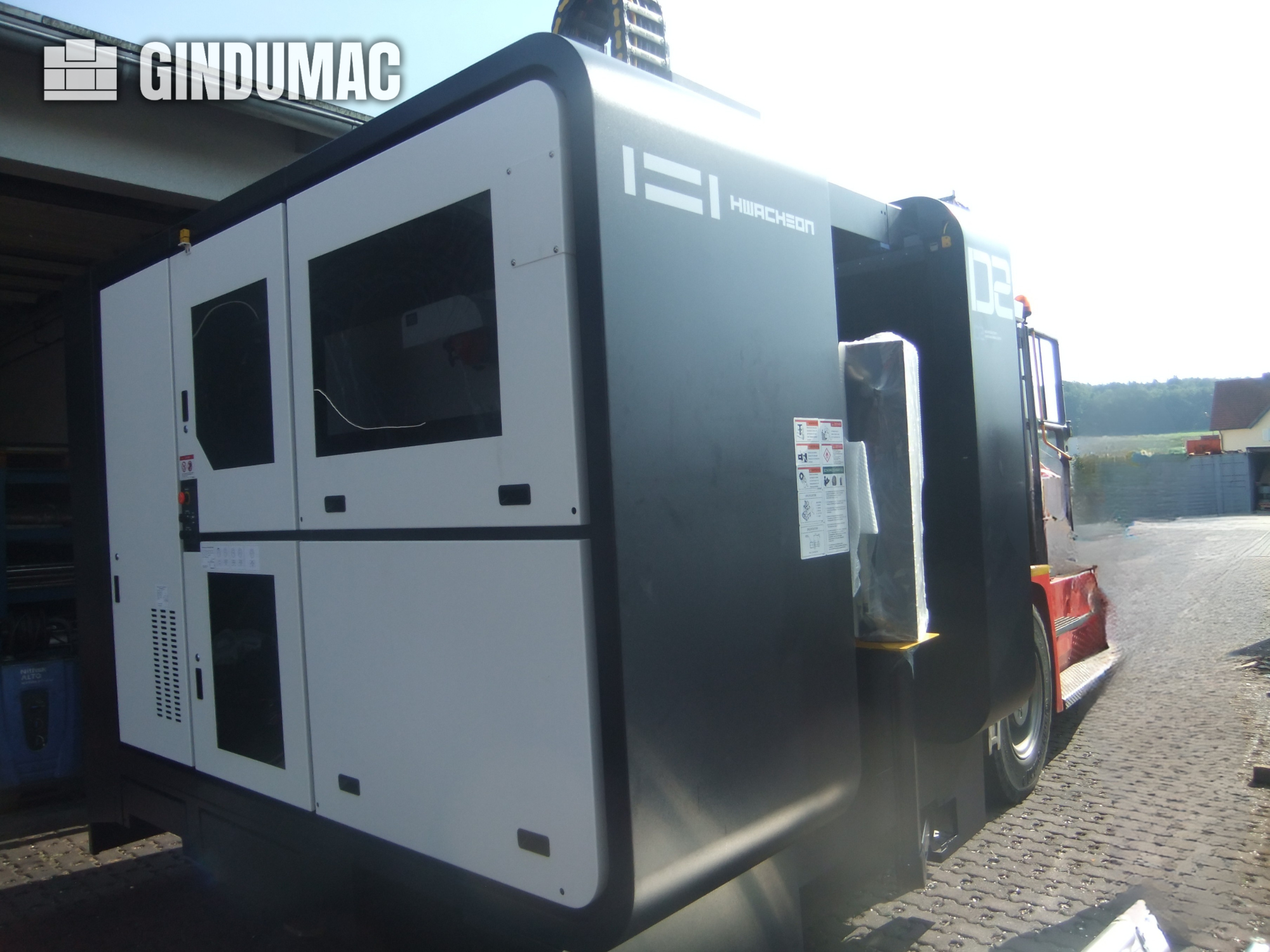

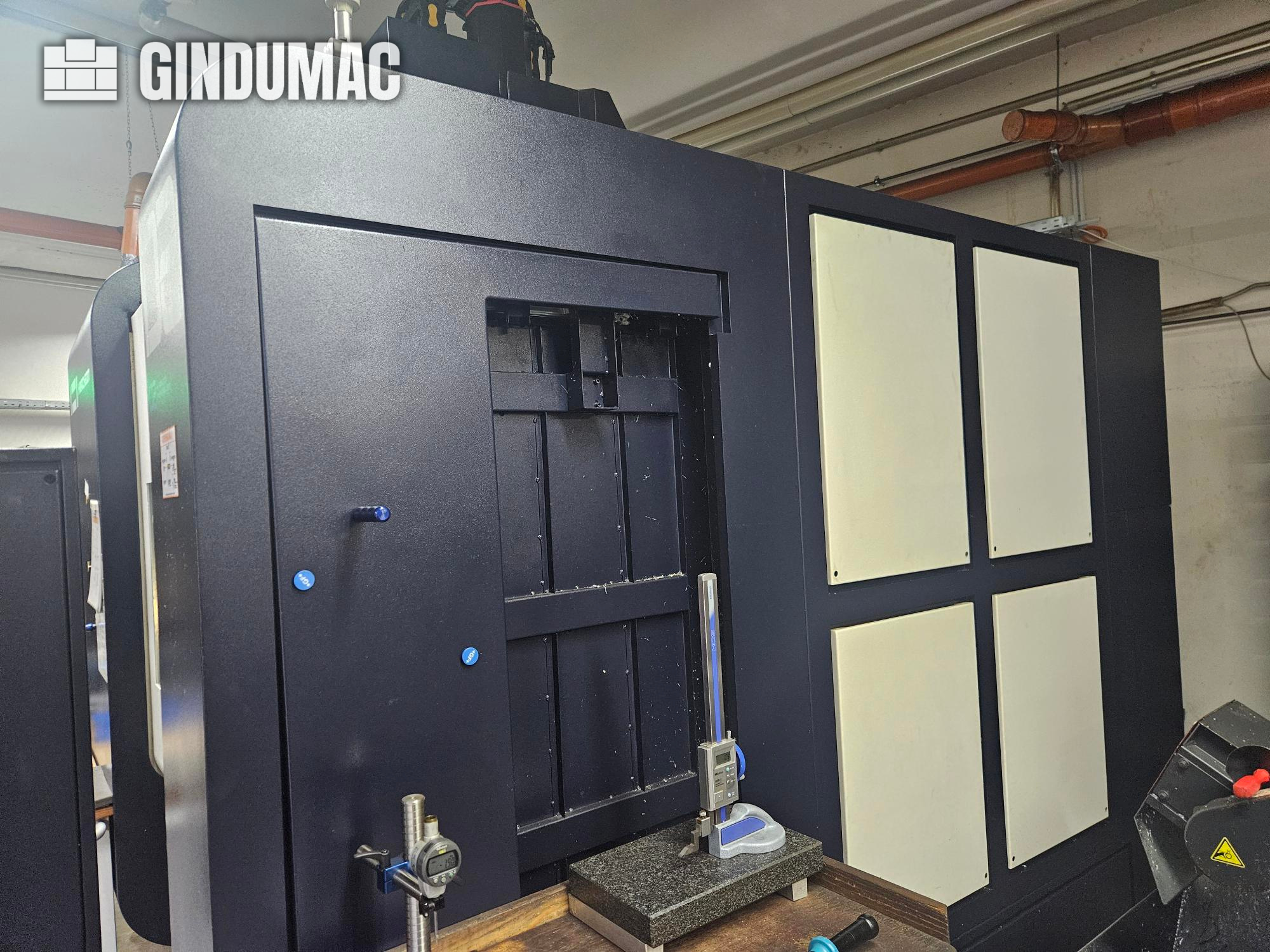

This 5-axis HWACHEON D2-5AX 12k was manufactured in 2021. It features an X-axis travel of 600 mm, Y-axis travel of 550 mm, and Z-axis travel of 500 mm. The machine is equipped with a spindle speed of up to 12,000 rpm and a tool magazine capacity of 30 places. If you are looking to get high-quality machining capabilities, consider the HWACHEON D2-5AX 12k vertical machining centre we have for sale. Contact us for further details.

Travel X/Y/Z: 560mm/410mm/460mm, Tool positions: 30, Tool interface: CAT40/BT40, Spindle speed: 8000rpm, Spindle power: 10HP, Spindle diameter: 70mm, Rapid traverse: 30m/min, Table dimensions X/Y: 605mm/380mm, Max. table load: 250kg, Number of pallets: 2. Machine dimensions X/Y: approx. 3050mm/2900mm, Weight: approx. 5000kg, Control: Fanuc. Documentation available. An on-site inspection is possible.

A Hwacheon CNC lathe is offered. Max. turning diameter: 680mm, swing over bed: 900mm, max. turning length: 1986mm, chuck diameter: 380mm, max. bar capacity: 116mm, max. spindle speed: 1800rpm, spindle power: 37kW/30kW, max. spindle torque: approx. 3071Nm/2493Nm, tool turret: 12 stations, tool interface: BMT-75, X/Z-axis travel: 360mm/2050mm, X/Z-axis rapid traverse: 18m/min, coolant tank capacity: 300l, control: Fanuc 0i-TF. Equipment: C-axis, driven tools, automatic in-process tool measurement, programmable tailstock and programmable quill, C-axis spindle clamp, chucking pressure monitoring, centralized lubrication and hinge-belt chip conveyor with chip container. Control ON: approx. 15961h, machining time: approx. 4258h, total part count: 34601. Weight: approx. 15000kg. Documentation available. Inspection possible by appointment.

Centro de Usinagem Vertical HWACHEON Vesta-1000 10K Controle: Heidenhain iTNC 620 Ano de Marca: 2014 Seguir-se-ão imagens originais. Viagens: Eixo X: 1.000 mm Eixo Y: 550 mm Eixo Z: 500 mm Tamanho da mesa: 1.100 x 502 mm Carga da mesa: aprox. 700 kg Gravação: BT 40 Carregador de ferramentas: 30 compartimentos Velocidade do eixo: 12.000 rpm Poder da unidade: 18,5 kW Equipamentos -Transportador - Volante eletrónico - 4º eixo

turning diameter: 300 mm turning length: 300 mm control: Sinumerik 810D total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC control Sinumerik 810D 12-fold revolver bar loading device Breuning Irco Simag 42.1R (max. bar diameter 42mm) chip conveyor tail stock Technische Daten / technical details: Umlaufdurchmesser über Bett / rotary diameter over bed 550 mm max. Drehdurchmesser / max. turning diameter 300 mm max. Drehlänge / max. turning lenght 300 mm X-Weg / X-travel 170 mm Z-Weg / Z-travel 335 mm max. Stangendurchlass / max. bar diameter 45 mm Drehzahl / spindle speed 6000 UpM /rpm Werkzeugrevolver / turret head 12 fach /holes Eilgang X / rapid feed X 36 m/min Eilgang Z / rapid feed Z 36 m/min. Antriebsleistung / drive capacity 20 kW Gewicht der Maschine ca. / weight ca. 3500 kg Technische Daten, Zubehör und Beschreibu ...

- Servidor de dados - AICC2 (200 blocos de somente leitura) - S pindle cooling (radiador de óleo) - 30 ATCs - Transportador de cavacos - Curso (X x Y x Z): 1.000 x 550 x 500 mm - Número de estações de ferramentas: 30 - Área de trabalho (X x Y x Z): 1.100 x 500 mm - Velocidade máxima do eixo:

This HWACHEON VT550R was manufactured in 2008. It features a hydraulic chuck diameter of 500 mm, a maximum turning diameter of 650 mm, and a spindle speed up to 1,500 RPM. The machine includes a 12-position turret and a chip conveyor, ensuring efficient operation. Consider the opportunity to buy this HWACHEON VT550R turn-mill centre. Contact us for more information about this machine.

Hwacheon, mod Sirius III - 1250, Table 1400 700, X 1100 mm, Y 700, Z 650, Cambio utensili / Toolchanger 30 pos, ISO 50, 8000 RPM max 30kW, CNC Fanuc 18iMB, Still under power on the shop floor

NOVO CENTRO DE EMPREGO! 480 HORAS PARA LIGAR! CURSO EIXO X MM 1.000 CURSO ASSE Y MM 550 CURSO ASSE Z MM 500 DIMENSÕES TAVOLA MM 1.100x502 Plano TAVOLA: 130-630 MM CARGA MÁXIMA PERMITIDA: 700 KG ATAQUE: BT40 VELOCIDADE GIRI/MIN VELOCIDADE 12.000 ARMAZÉM DE FERRAMENTAS: 24 FANUC CONTROL 0i-MF COMPLETO DA TAVOLA 4/5th ASSE LEHMANN SOO EDITION 3
