51 JUNG máquina utilizada para venda

grinding length: 600 mm grinding width: 400 mm workpiece height: 375 mm digital readout: 2 Achsen HEIDENHAIN table-size: 650 x 350 mm max. table load: 400 kg magnetic clamping plate: 600 x 350 mm dist. center of grinding spindle - table: 525 mm table travel longitudinal: 650 mm table travel cross: 350 mm table feed: 2 - 28 m/min grinding wheel size: 300 x 30 x 76,2 mm dressing device: Kopfabrichter voltage: 400 V total power requirement: 11,0 kW weight of the machine ca.: 2,1 t dimensions of the machine ca.: 2,20 x 1,70 x 2,25 m band filter unit: 1,00 x 0,75 x 0,80 m electric cabinet: 0,90 x 0,40 x 2,25 m - Serial-No.: 18090201 - Automatic vertical feed - Electric handwheel - HEIDENHAIN digital display, 2 axes - Head dresser - Coolant device - Belt filter system The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

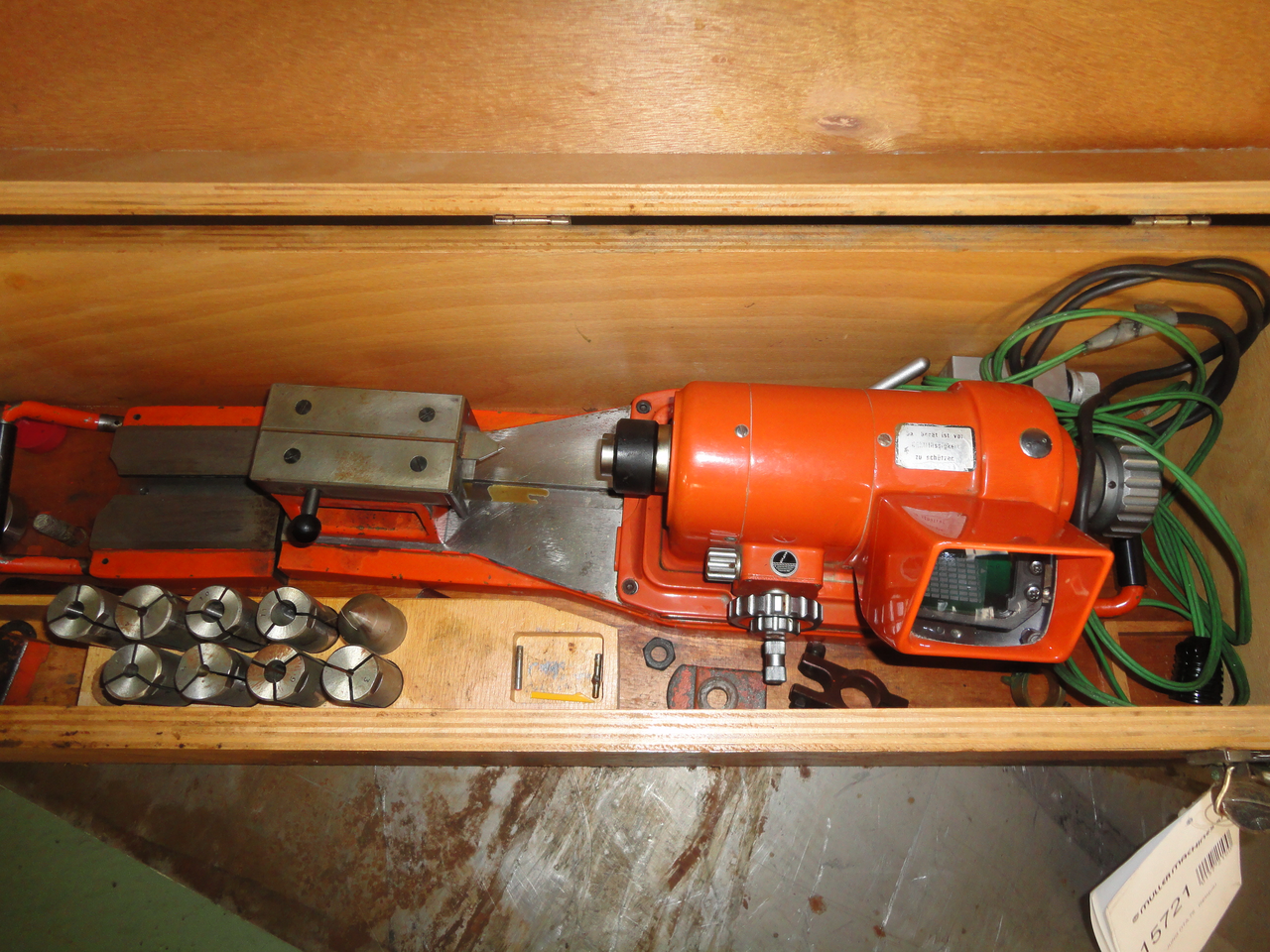

centre height: 76 mm centre distance: 190 mm spindle bore: 21 mm taper MK: 3 weight of the machine ca.: 40 kg dimensions of the machine ca.: 720 x 210 x 215 mm collets: tailstock: dead centres: Barely used Jung optical dividing head with tailstock in a wooden box with 9 collets: 3, 4, 5, 6, 7, 8, 9, 10, 11 mm. Reduced special price. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding wheel dia. x width: ca. 200 x 25 mm magnetic clamping plate: ca. 450 x 170 mm cross feed of the table: 200 mm revolutions of grinding spindle: 3000 U/min grinding wheel hole diameter: 51 mm weight: ca. 1300 kg : 0,001 - 0,013 mm grinding length: 600 mm Surface grinding machine Includes extractor 1 additional grinding wheel holder Machine was in occasional use until recently The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

workpiece diameter: 300 mm workpiece weight: 999 kg workpiece height: 999 mm grinding length: mm grinding width: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Ausstattung: -Digitalanzeige senkrecht Achse -Automatische Zustellung -Automatische Endabschaltung programmierbar -Schleifspindelantrieb mit stufenloser, elektronischer Drehzahlregelung -stufenlos regelbarer Quervorschub, und Tischdrehung -24V Magnetspannplatte 300 mm -diverse Arbeitsschutzeinrichtungen z.B. Schutzhaubenüberwachung, Betriebszustandsanzeige per Ampel -Schmierölstandsüberwachung -die Maschine wurde 2015 generalüberholt, damals Austausch der gesamten Elektrik auf SPS-Steuerung und 24V Steuerspannung -Papierbandfilteranlage speziell für diese Maschine passend Folgende Arbeiten wurden nun noch durchgeführt: -Austausch Faltenbalg und Riemen -Schleifspindel neu gelager ...

Rear grinding machine with permanent magnetic clamping plate JUNG type HA 20EquipmentNo: 3344Profile depth: max. 15 mmAngle adjustment: 0 to 2Magnetic plate: 115 x 115 mmClamping range: 110 x 75 mmHeight magnetic plate: 119 mmWorkpiece dimensions L x W x H: max. 60 x 100 x 50 mmPower consumption: 1 ampereOperating voltage: 24 volts, direct voltage (V/DC)- mechanically switchable permanent magnetDimensions L x W x H: 500 x 200 x 125 mmWeight: 25 kggood conditionSuitable for cutting tool mold making for conical background cutting plates or

CONTROLS   electronic controls WORKING RANGE SURFACE GRINDING   grinding length: 600 mm   grinding width: 200 mm TABLE (SURFACE GRINDING)   magnetic table: yes MAGNETIC TABLE   length: 600 mm   width: 200 mm   weight: 100 kg SPINDLESTOCK GRINDING SPINDLE   spindle revolutions (max): 4200 /min GRINDING TOOL   type of grinding tool: wheel   diameter (max): 250 mm   borehole: diameter: 51 mm   width: 25 mm ELECTRICAL SPECIFICATIONS   total power consumption: 7.5 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 3000 mm   space requirements -front/back-: 2540 mm   total height: 1850 mm   total weight approx.: 2000 kg

CONTROLS   CNC controls SIEMENS SINUMERIK WORKING RANGE SURFACE GRINDING   grinding length: 880 mm   grinding width: 510 mm TABLE (SURFACE GRINDING)   table surface (left-right): 800 mm   table surface (front-back): 430 mm   workpiece load (max): 800 kg MAGNETIC TABLE   length: 800 mm   width: 400 mm SPINDLESTOCK GRINDING SPINDLE   spindle revolutions (min): 1500 /min   spindle revolutions (max): 3500 /min GRINDING TOOL   type of grinding tool: wheel   diameter (min): 210 mm   diameter (max): 400 mm   borehole: diameter: 127 mm   width: 100 mm ELECTRICAL SPECIFICATIONS   mains power supply: 30 kVA DIMENSIONS / WEIGHTS   space requirements -left/right-: 3150 mm   space requirements -front/back-: 2350 mm   total weight approx.: 6800 kg

Inv. Num. : 6614 Tipo: - Produtor: JUNG Gerado: Parâmetros: Equipamento: DRO Em boas condições técnicas.

Inv. Num. : 4518 Tipo: JA 500 A Produtor: JUNG Criado: 1994 Parâmetros: Sistema de controlo: Siemens Horário de funcionamento: 10662 h Altura máxima de rectificação da peça: 375 mm Velocidade máxima do fuso: 4200 1/min Velocidade mínima de deslocamento longitudinalmente (eixo X): 24 m/min Velocidade máxima de deslocamento longitudinal (eixo X): 24 m/min Diâmetro da roda de moagem nova: 250 mm Potência do fuso: 7,5 kW Comprimento máximo de rectificação sem extensão da roda de rectificação (eixo X): 600 mm Comprimento máximo de lixamento: 200 mm Altura da máquina: 1000 mm Comprimento da máquina: 3700 mm Largura da máquina: 2100 mm Peso da máquina: 2.500 kg

Diâmetro da roda de moagem 250 mm, comprimento máximo de moagem aprox. 600 mm, com dispositivo de refrigeração e sistema de filtro de lã

used Jung HF 40 surface grinder, built in 1977, is for sale. It is a robust, heavy-duty model. | Technical specifications: | Type: hydraulic | Table size: 400 x 150 mm | Grinding length: 400 mm | Grinding width: 150 mm | Grinding wheel diameter: 200 mm | Grinding wheel width: 16 mm | Spindle speed: approx. 2,800 rpm | Table speed: infinitely variable 2–20 m/min | Automatic vertical feed: 0.002–0.013 mm | Machine weight: approx. 900 kg | Machine dimensions: approx. 1,300 x 1,200 x 1,500 mm | The machine can be viewed by appointment. | We reserve the right to make changes and corrections to the technical data and specifications, and to sell the item in the meantime!

Key data: 500 mm, 200 mm

Máquina de moagem superficial Jung (construída em 1949) para venda À venda está uma moedora de superfície Jung, construída em 1949, em condições adequadas à idade. A máquina está funcional e pode ser vista e testada no local. Dados técnicos: Mesa magnética: aprox. 500 x 200 mm Ano de fabricação: 1949 Condição: usada, adequada à idade, funcional A máquina é ideal para uso no setor comercial ou para amantes de máquinas-ferramenta clássicas. Venda apenas a comerciantes. Visualização possível mediante acordo.

Optical dividing head, precision dividing head -Max. tip height: 76 mm -Max. center distance: 200 mm -with collets: 3, 4, 5, 6, 7, 8, 9, 10, 16 mm -wooden box -Total weight per box: 42 kg Quantity: 1 piece available

Magnetic plate, magnetic table, sine table, sine plate, relief grinding device, grinding machine accessories -Design: Cutting tool mold making for conically ground cutting plates or mold inserts -Angle head for surface grinding machine or measuring machine -Magnetic plate -Angle: adjustable -Wooden box -Total weight with box: 35 kg

Cylindrical grinding machine, external cylindrical grinding machine, internal cylindrical grinding machine, centering grinding machine, center grinding machine -Max. shaft diameter: 320 mm -Max. grinding length: 345 mm -Chuck size: Ø 133 mm -Dimensions: 1925/1135/H1755 mm -Weight: 1592 kg -functionally tested

Machine spindle, precision spindle, double grinder spindle, precision spindle for belt drive, belt drive spindle -Manufacturer: Jung, machine spindle -Type: MP 5z -Speed: max rpm -Recording: Dimensions see photos -Dimensions total: 460/210/115 mm -Weight: 16.2 kg

Machine spindle, precision spindle, double grinder spindle, precision spindle for belt drive, belt drive spindle -Manufacturer: Jung, machine spindle -Type: MP 10z -Speed: max rpm -Recording: Dimensions see photos -Dimensions total: 545/210/120 mm -Weight: 23.5 kg

Surface grinding machine, grinding machine -hydraulic horizontal surface grinding machine -Magnetic plate: 300 x 150 mm -Grinding wheel motor: 1.1 kW 2800 rpm -Water cooling with: filter -Grinding disc diameter: 200 mm -Transport dimensions: 1470/1170/H1920 mm -Weight: 1090 kg

Grinding dimensions X/Y: 600mm/305mm, max. workpiece height: 350mm, feed rate X: 24m/min, feed rate Y/Z: 2m/min, machine dimensions X/Y/Z: approx. 3000mm/2700mm/2500mm, weight: approx. 3200kg, control: Siemens Sinumerik. The control has a circuit board defect. Documentation vorhanden. An inspection on site is possible.

JUNG D22 / Máquina de Remoção Cilíndrica Interna - Máquina adequada para moagem circular interior + superfície -Menor diâmetro abrasivo 14mm -Maior diâmetro abrasivo 150mm - Comprimento de leificação sem dispositivo de rectificação facial 250mm -Comprimento de leificação com dispositivo de retificação facial -6x velocidades da peça de trabalho 46-270 rpm -Giro da caixa do fuso direita/esquerda 30 graus - Distância do eixo do fuso em relação ao centro da mesa 250mm - Maior distância de suporte de eixo/rectificação da peça 935mm -Caixa do eixo / posição inclinada 30 graus cada - Mesa de trabalho / inclinar para a frente/para trás 5 graus cada - Operação manual/automática -Dispositivo de moagem afunilada -Moldura -Chuck de três mandíbulas -Fusos de moagem de substituição

Key data: 400 mm, 150 mm

Ano de fabrico: 1983 Comprimento de moagem: 400 mm Largura de moagem 150 mm Altura de instalação 400 mm Carga de mesa 75 kg Todos os avanços são infinitamente variáveis Potência de transmissão 1,5 kW Entrega automática Placa Magnética 400 x 150 mm Puxador Dispositivo de moagem húmida A máquina está em bom estado

Comprimento de moagem: 600 mm Largura de moagem: 200 mm Superfície de fixação da mesa: 600 x 200 mm Maior distância entre a mesa e o centro do eixo de rectificação: 500 mm Dimensões da roda de moagem: 250 x 25 x 51 mm Alimentação longitudinal da tabela hidraulicamente variável infinitamente: 1 - 24 m/min Alimentação transversal da tabela por rotação manual: 4 mm Velocidade do fuso de moagem variável infinitamente via acionamento DC: 800 - 4200 rpm Transmissão DC: 1,5 - 5,0 kW Peso líquido com caixa de controlo aprox.: 2000 kg Necessidade aproximada de espaço: 3100 x 1700 x 1900 mm

workpiece diameter: 350 mm workpiece weight: 99999999 kg workpiece height: 240 mm Control: total power requirement: 7,5 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Mit komplett neuem Schaltschrank und neuer Steuerung mit BEMA Schleifsoftware Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während de ...

grinding length: 500 mm grinding width: 200 mm workpiece height: 300 mm total power requirement: 3 kW weight of the machine ca.: 1,6 t dimensions of the machine ca.: 2,621,7 m Package 5 x JUNG HF 50 EXW near Frankfurt The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A CNC surface grinding machine Jung, overhauled in 2003, is available. Grinding length: 500mm, grinding width: 200mm, max. workpiece height: 250mm, table dimensions X/Y: 600mm/200mm, grinding wheel dimensions X/Y/Z: 225mm/25mm/51mm, speed: 4200rpm, weight: approx. 2500kg, operating hours: approx. 16602h. Documentation available. An on-site inspection is possible.

workpiece diameter: 350 mm workpiece weight: 99999999 kg workpiece height: 240 mm total power requirement: 7,5 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während des Schleifprozesses) Hierdurch werden Schleifzeiten reduziert und Abrichtzeiten eingespa ...

Máquina de moagem de superfície Fabricante: Jung Tipo: JA 500 CNC-C Ano de Marca: 1995 Reformulado em: 2003 Comprimento de moagem: 500 mm Largura de moagem: 200 mm Altura máxima da peça: 250 mm Dimensões da mesa X/Y: 600 mm / 200 mm Diâmetro da roda de moagem: 225 mm Largura da roda de moagem: 25 mm Furo da roda de moagem: 51 mm Velocidade: 4.200 rpm Peso da máquina: aprox. 2.500 kg

: 450 mm Länge x-curso: 500 mm altura da peça: . mm

grinding length: 500 mm grinding width: 200 mm workpiece height: 250 mm turning speeds: 1000 - 4000 U/min table surface area: 600 x 200 mm grinding wheel size: 225 x 20 x 51 mm grinding spindle drive: 1,5 kW table feed: 1 - 20 m/min total power requirement: 2,6 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 2,6 x 1,6 x 1,8 m Automatic feed, 2-axis digital display, stepless speed control, Water-cooled sine angle magnetic clamping plate 400x135mm, 10mm magnetic pitch Sony digital display with scales for transverse and height adjustment Swing-out dresser on the grinding head Table direction reversal with contactless inductive switches LOSMA belt filter coolant system The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
