7 KEMMERICH máquina utilizada para venda

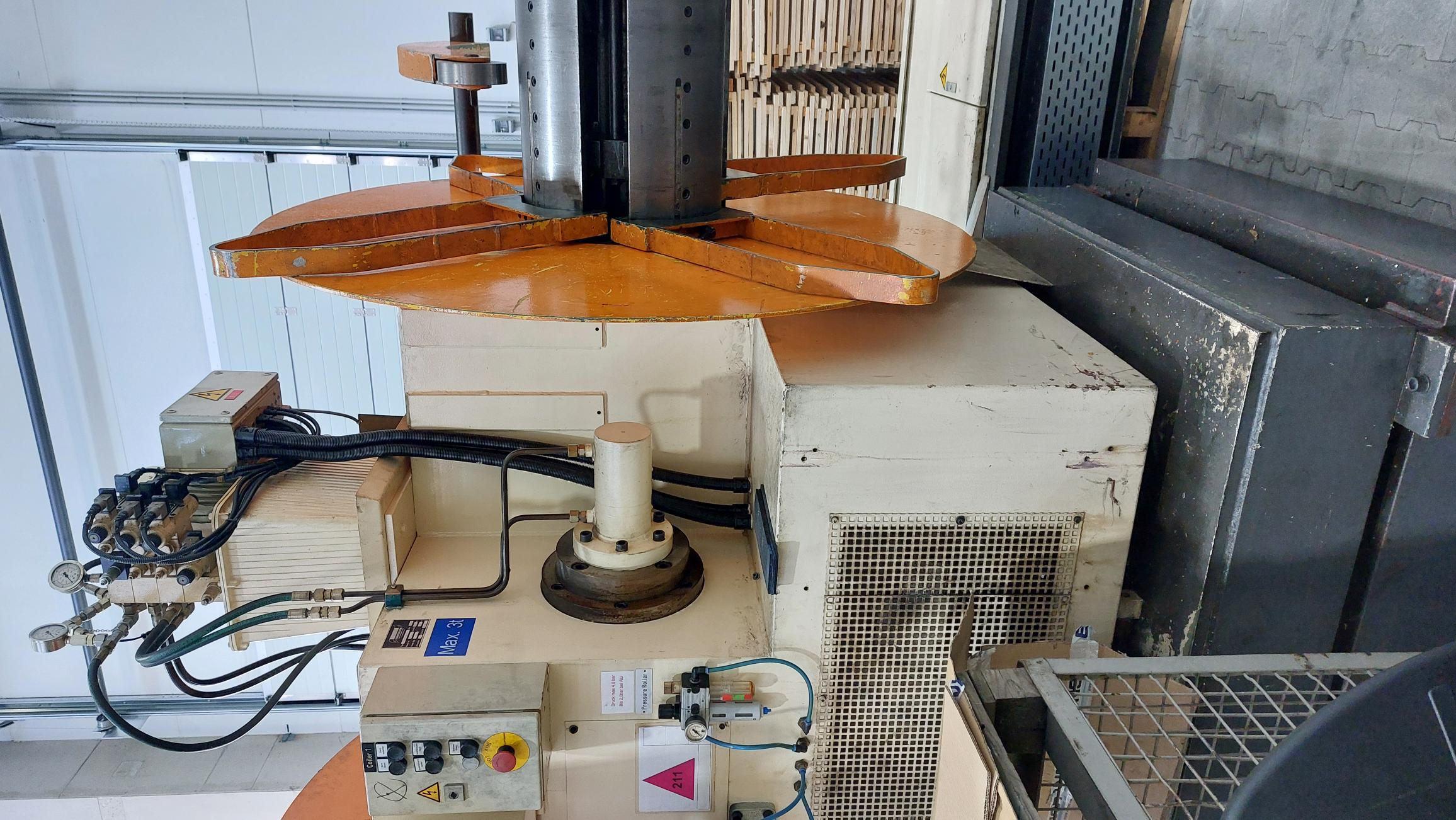

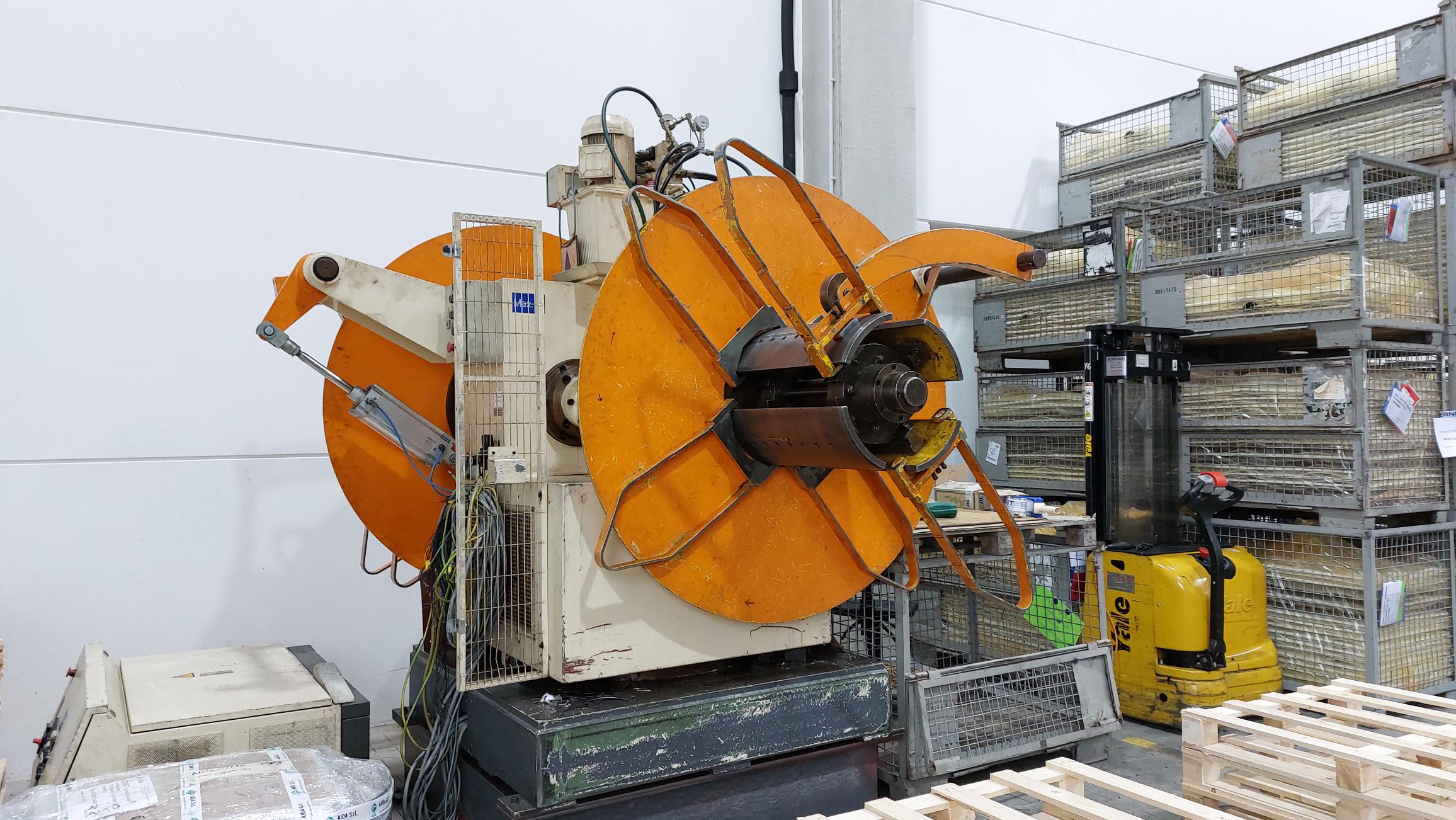

Manufacturer: Kemmerich Model: VD 3000 UF-SH-520-S Type of Machine: Double Decoiling Reel / Uncoiler Year of Manufacture: 1999 Technical Specifications: - Band width: 100 to 520 mm - Band thickness: 0.5 to 2.5 mm - Maximum coil weight: 3,000 kg - Spreading range diameter: 470 to 520 mm - Maximum coil outer diameter: 1,600 mm - Maximum band speed: 25 metres per minute - Reel crown rotation speed: 1 to 15 rpm - Drive power: 2.6 kW - Connection voltage: 480 V AC, 60 Hz - Rated current: 16 A - Control voltage: 24 V DC - Cross shaft height: approximately 1,250 mm - Maximum load capacity per nameplate: 3,000 kg Find more here - .ucymachines/ Contact us at - sales@ucymachines

sheet width - max.: 0240 mm coil weight: 0,150 t coil internal dia.: 320 - 520 mm coil outside - diam. ca.: 800 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m • Motor drive • Rear limit disc • Front limit ring • Switch-on delay adjustable via potentiometer • Manually adjustable brake • Loop control via contact switch on the reel base The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

largura máxima da folha - máx.: 250 mm peso da bobina: 150 kg diâmetro interno da bobina: 300-500 mm

largura máxima da folha - máx.: 250 mm peso da bobina: 150 kg diâmetro interno da bobina: 290-550 mm

largura máxima da folha - máx.: 300 mm peso da bobina: 150 kg diâmetro interno da bobina: 200-520 mm

largura da folha - máx.: 350 mm peso da bobina: 1 t diâmetro interno da bobina: 360-475 mm peso da máquina ca.: 500 kg dimensões da máquina ca.: BxTxH 1500x1500x1900 mm

largura máxima da folha - máx.: 250 mm peso da bobina: 250 kg diâmetro interno da bobina: 290-550 mm
