72 KEYENCE máquina utilizada para venda

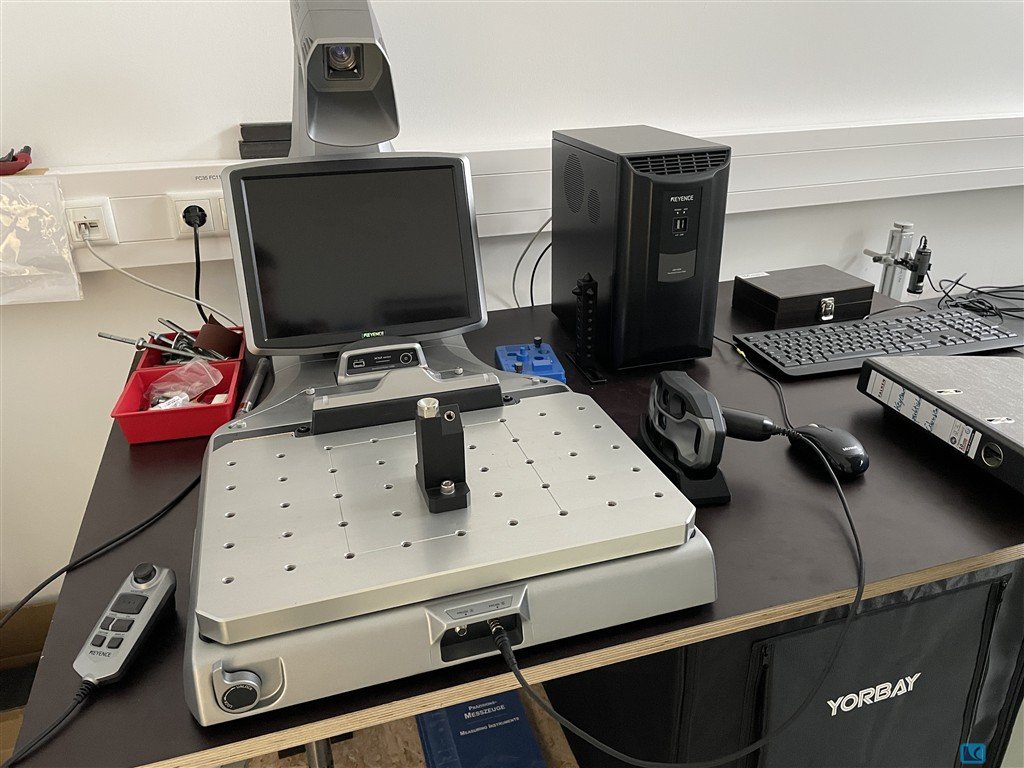

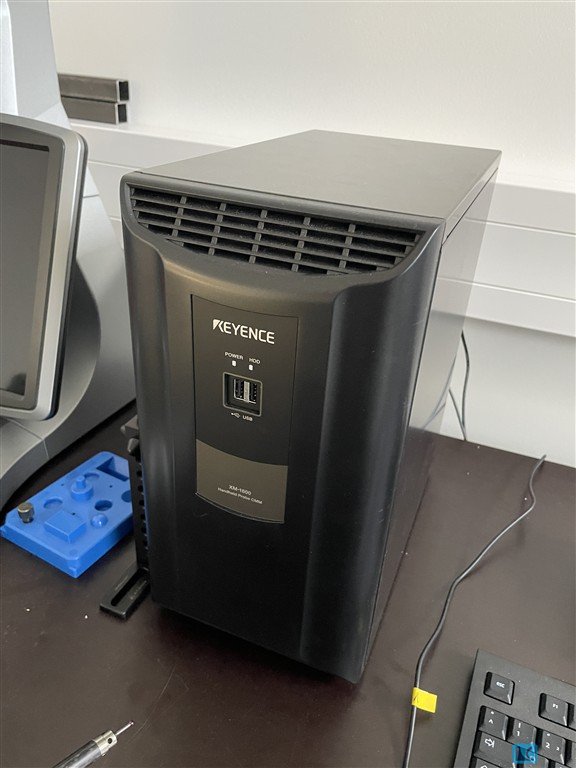

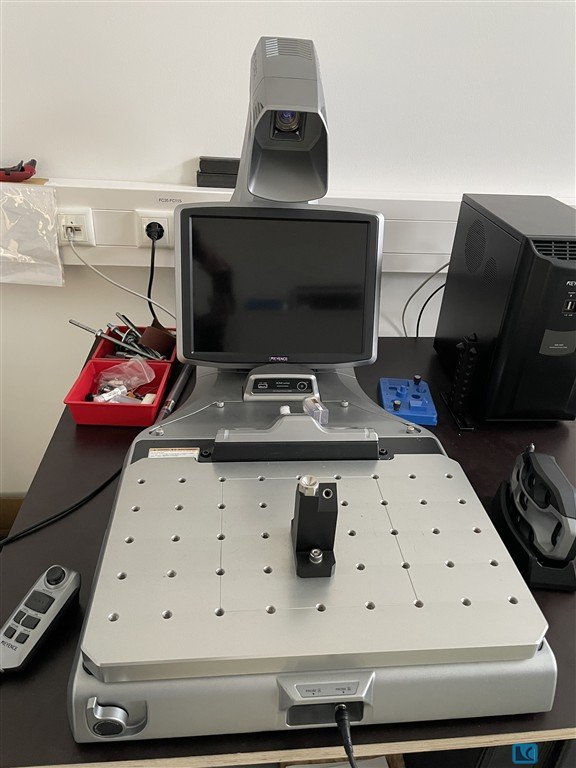

Keyence Digital Measuring Projector ? Model XM-1600 General: Digital measuring projector with a high resolution image measurement system and very easy operation. Place the part on the stage and measure by pressing a button. Supports automated measurements of up to 300 dimensions within seconds. Measuring Head / Control Unit: ·Sensor: Monochrome CMOS 1 inch, 20 megapixels ·Display: 12.1 inch LCD monitor (WXGA 1280 x 800) ·Lens: Double telecentric lens Measuring Field and Measuring Range: ·Standard measuring field: approx. 100 mm diameter ·Precision mode measuring field: approx. 25 x 25 mm Measurement Accuracy and Repeatability: ·Display resolution: 0.1 micrometer ·Repeatability (standard, without stage movement): approx. plus minus 1 micrometer ·Precision mode (without stage movement): approx. plus minus 0.5 micrometer Stage / Travel Axes: ·XY measuring stage: motorized ·Z axis ...

Manufacturer: KEYENCE Model: VL 7701 Type: Optical 3D measuring machine Year of Manufacture: 2025 Find more here - / Contact us at -

Manufacturer: Keyence Model: Agilista 3200W Input Voltage: 100-240V AC, 50/60Hz Power Consumption: 750 VA Certification: CE Find more here - / Contact us at -

The following components make up the full WM-3000 series kit:PositionModel/ArticleDescriptionOrigin1WM-3000Coordinate Measuring System (Main Head) Japan 2WM-S1Camera Stand (Kamerastativ) —3—Laptop with Measuring Software —4WM-8C1Battery Charger (Akkuladegerät) China 5WM-B1Battery (Messstab Akku) China 6—Training Fee for WM series —7WM-V30DService Package —8OP-88032Mouse, German User Manual, and WM accessories Find more here - / Contact us at -

Manufacturer: Keyence Model: IM-8000 Type: Image Dimension Measurement System Software Version: B-13.0.0.28-11.07-20.07.09.01 / A2.05-A1.27-A3.03-9B.06-9B.06-02.01-03.02 Sensor: 20-megapixel CMOS Stage Size: 300 x 200 mm Measurement Capacity: Up to 300 features in a single measurement cycle Condition: Used, fully functional Find more here - / Contact us at -

Manufacturer: Keyence Model: IM 8020 Year of Manufacture: 2023 Find more here - / Contact us at -

Manufacturer:Keyence Model: IM6025 Year of Manufacture: 2016 Find more here - / Contact us at -

Manufacturer: Keyence Model: WM 3000 Year of Manufacture: 2020 Type of Machine : 3D coordinate measuring system The device has already been upgraded to Windows 11 Measurement Specifications - Maximum Measuring Range (W x D x H) 10000 x 3500 x 5000 mm - Guaranteed Accuracy Range (W x D x H) 3000 x 1500 x 1500 mm - Measuring Accuracy +/- (28 + 5L/1000) micrometers - Repeatability +/- 10 micrometers Minimum Display Resolution - Distance Resolution 0.001 mm - Angle Resolution 0.001 degrees Camera Unit Rotation - Theta Rotation (Pan) +/- 90 degrees - Tilt Rotation +/- 30 degrees Connectivity - External Input Voltage-free input, 2 inputs - Bluetooth Bluetooth 5 - USB USB 3.0 - Infrared Communication 945 nm Power Supply - Power Supply Type Supplied via dedicated power supply unit - Rated Voltage DC 24 V - Power Consumption 1.7 A Environmental Conditions - Operating Temperature + ...

The operating times are specified with 1387 h. However, this is the time that the printer was connected to the network. The pure printing time is 40 h The printer was serviced regularly until last year in March 2022. Technical data Model AGILISTA-3200W Printing material AR-M2 (transparent printing material), AR-H1 (heat-resistant printing material), AR-G1L (silicone rubber [low hardness]), AR-G1H (silicone rubber [high hardness]) Support material AR-S1 (water soluble support material) Installation space 297 × 210 × 200 mm (A4 size × 200 mm) Resolution 635 × 400 dpi Layer thickness High resolution AR-M2: 15 µm Normal resolution AR-M2: 20µm AR-H1: 20µm AR-G1L/H: 30µm Power supply Supply voltage 100 to 240 VAC, 50/60 Hz Power consumption Max. 750 VA Interface Ethernet 10BASE-T / 100BASE-TX Operation Interactive color touch panel Software Name Mode ...

This KEYENCE IM-7030T was manufactured in 2018. It features a digital measuring projector with a 300x200 mm measuring field, light probe, and height probe. Accessories include a control unit, AC power cable, mouse, keyboard, and a user manual in German. Consider the opportunity to buy this KEYENCE IM-7030T optical measurement machine. Contact us for more information.

An optical 3D coordinate measuring machine Keyence is available. Measurement accuracy: +/-10µm, repeatability: +/-2µm, measurement points: 9 million, max. measurement diameter: 300mm, max. measurement height: 200mm, max. measurement dimensions (multiple capture) X/Y/Z: 580mm/300mm/200mm, max. workpiece weight: 50kg, table tilt: 45°. Including control and evaluation software, rotary table and calibration accessories. Documentation available. An on-site inspection is possible. The image is an example.

CMM machine manufactured in 2020. This KEYENCE WM c3000 includes a measuring range of up to 25 m and operates within a temperature range of 0 to 40°C. The delivery scope features a camera tripod, laser scanner, handheld tactile probe unit, and various measuring tips. If you are looking to get high-quality measurement capabilities, consider the KEYENCE WM c3000 machine we have for sale. Contact us for further details.

Sistema de Medição IM-6600 Transdutor IM-6120 Sensor CMOS: 6,6 MP monocromático Ecrã 10,4" Monitor LCD a cores Campo de visão: φ100 x 200 mm Unidade de ecrã mais pequena: 0,1 μm Iluminação telecêntrica de luz transmitida (anel de 4 segmentos) Precisão da Medição: Modo de medição de campo amplo: ±5 μm Modo de medição de alta precisão: ±2 μm Modo de medição de grande campo de visão: ±7 +0,02L μm Modo de Medição de Posição Fixa: ±4 +0,02L μm Tabela: Eixo X: 100 mm Eixo Z: 30 mm Capacidade de carga: 1 kg

Olá, À venda está um projetor digital de medição Keyence IM-8030T, incluindo eixo de rotação. A máquina de medir foi adquirida em agosto de 2025 e tem sido usada muito raramente desde então. A unidade de medição completa está imediatamente pronta para uso e disponível imediatamente. Venda anterior e erros excetuados.

An optical CNC 3D coordinate measuring machine Keyence is available. Display resolution: 0.1µm, repeatability: 2µm, measurement accuracy: +/-10µm, low magnification: 300mm/200mm, high magnification: 70mm/50mm, max. load capacity: 20kg, weight: approx. 30kg. Documentation available. An on-site inspection is possible.

Optical measurement machine manufactured in 2018. This KEYENCE IM 7030 features a field of view dimension of 300 x 200 x 150 mm and offers advanced software capabilities including series measurement, statistics/analysis, and automatic measurement. If you are looking to get high-quality optical measurement capabilities, consider the KEYENCE IM 7030 machine we have for sale. Contact us for further details.

Controlador de Microscópio Digital para a Série VHX-7000 Consola para VHX-7000 Unidade de Câmara Câmara de Alto Desempenho VHX 7020 Tripé (motorizado em XYZ 100mm) Objetiva VH Zoom 20x-200x Adaptador tripé para VH-Z20 Adaptador de polarização para VH-Z20 Software de Medição 3D para VHX-7000 Suporte para VHX-S770E/750E Visualização por telef. Disposição possível Usado, comprado como visto, sem garantia Preço = 53000,00 € + IVA Fatura a vencer quando estiver pronta para envio ou entrega

Intervalo de medição: - Modo padrão 200 × 200 mm - Modo de precisão 125 × 125 mm Repetibilidade da medição: até 0,5 μm Medição de sensores fotoelétricos Sistema de iluminação: luz transmitida e luz circular Armazenamento: disco rígido de 500 GB Interfaces: 1 × LAN, 4 × USB 3.1, 2 × USB 2.0 Fonte de alimentação: 240 V

An inkjet-based industrial PolyJet/material jetting 3D printer Keyence for photopolymers is available. Build volume dimensions X/Y/Z: 297mm/210mm/200mm, resolution: 635dpi/400dpi, XY resolution: 63.5µm/40µm, layer thickness range: 15µm-30µm, machine dimensions X/Y/Z: approx. 950mm/700mm/1400mm, weight: approx. 200kg. Documentation available. An on-site inspection is possible.

Camera-based code readers, uEye camera, industrial camera, high-performance camera -Manufacturer: Keyence, Industrial camera, 16x speed, 5-megapixel camera (B/W) -Type: CA-H500MX -Dimensions: 115/70/H60 mm -Weight: 0.4 kg

Proximity switch, proximity sensor, proximity sensor -Manufacturer: Keyence, proximity switch proximity sensor unused original packaging -Type: EM-030P -Number: 2x encoder available -Price per piece -Dimensions packaging: 110/105/H25 mm -Weight: 0.1 kg/pcs

Fiber optic measuring amplifier, fiber optic sensor, fiber optic sensor with digital sensor -Outputs: 2 -Connector: M-8 -Expansion unit: PNP -Weight: 0.2 kg

Fiber optic measuring amplifier, fiber optic sensor, fiber optic sensor with digital sensor -Output: 1 -Connector: M-8 -Expansion unit: PNP -Weight: 0.2 kg

Fiber optic amplifier, fiber optic sensor -Manufacturer: Keyennce -Type: FS-V31CP -Weight: 0.2 kg

Fiber optic measuring amplifier, fiber optic sensor, fiber optic sensor with digital sensor -Output: 1 -Connector: M-8 -Expansion unit: PNP -Weight: 0.2 kg
