Fresadoras de portal CNC APEC G 3060-5L
máquinas para trabalhar metal / fresadoras / Fresadoras de portal CNC
x-travel: 6000 mmy-travel: 3000 mmz-travel: 1000 mmControl: HEIDENHAIN TNC 640 table surface area: 6000 x 3000 mmtable weight: 8000 Kg/m²rapid traverse X-axis: 60000 mm/minrapid motion - y-axis: 60000 mm/minnumber of spindle speeds: 15000 U/min/rpmSpindle power: 35 / 42 kWtaper ISO: HSK A 100 ...
Fabricante: APEC
Modelo:G 3060-5L
Tipo de máquina: Fresadoras de portal CNC
Número do item: 170033615
Quantidade: 1
Data: 26.08.2026
Ano de fabricação: 2022
Localização: ab Standort,ohne Demontage
Preço:
Máquina em estoque:Sim
Seller-item-No.:1020-20576
x-travel: 6000 mm
y-travel: 3000 mm
z-travel: 1000 mm
Control: HEIDENHAIN TNC 640
table surface area: 6000 x 3000 mm
table weight: 8000 Kg/m²
rapid traverse X-axis: 60000 mm/min
rapid motion - y-axis: 60000 mm/min
number of spindle speeds: 15000 U/min/rpm
Spindle power: 35 / 42 kW
taper ISO: HSK A 100
distance between columns: 3000 mm
distance spindle nose and table: 280 - 1280 mm
A-Axis: +125 / -125 °
c-axis: 360 °
total power requirement: - kW
weight of the machine ca.: 65 t
dimensions of the machine ca.: - mm

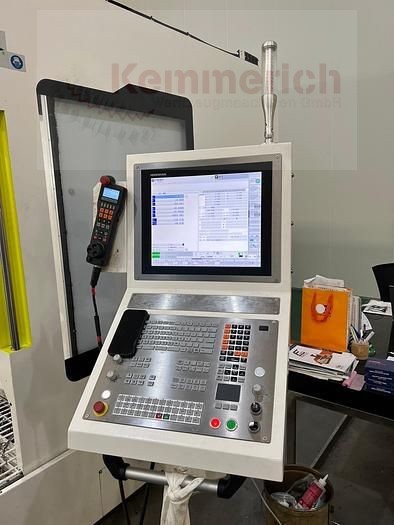

- CNC control Heidenhain TNC 640
- Universal milling head 2-axis
- 5-axis automatic Compensation system
- Automatic tool changer 40-fold (HSK 100)
- Internal spindle cooling
- Blum tool measuring system
- Blum workpiece measuring system
- Heidenhain linear scales
- Portable handwheel
- Chip conveyor
