Centros de fresagem CNC DMG-MORI DMF 260 11

x-travel: 2.600 mm
y-travel: 1.100 mm
z-travel: 900 mm
control: 840 D sl Celos Siemens
Main spindle::
turning speed range - main spindle: 20 - 20.000 min/-1
power capacity - main spindel: 35 kW
max. Torque: 120 Nm
tool taper: SK 40 DIN 69871
swivellable: B: +/- 100 °
work table::
table surface area: 3.200 x 1.100 mm
max. table load: 4.000 kg
max. workpiece height: 972 mm

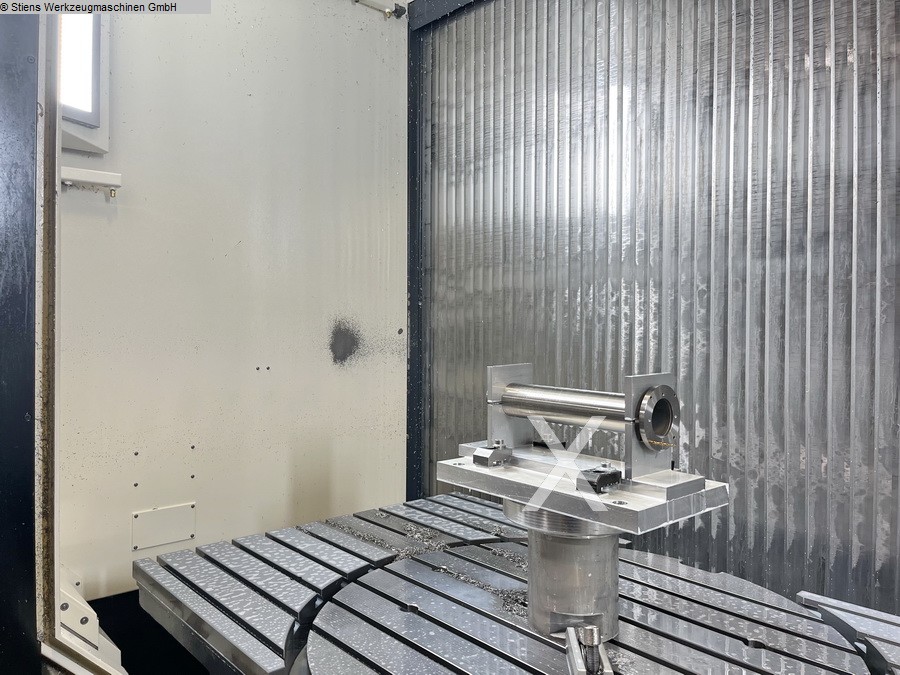

NC-Rotary table::
rotary table dia.: 1.050 mm
C-Axis: 360 °
max. workpiece weight: 1.200 kg
tool magazin::
number of toolpositions: 120 pos.
tool taper: SK 40 DIN 69871
max. tool diameter: 80 mm
max. tool-dia with free toolbox: 130 mm
max. tool length: 300 mm
max. tool weight: 6,0 kg
feeds::
rapid traverse ( X / Y / Z ): 40 m/min
feed speeds: max. 40.000 mm/min
feed power: XYZ: 12 / 10 / 12 kN
total power requirement: 68 kVA
weight of the machine ca.: 28 t
dimensions of the machine ca.: 9,0 x 6,0 x 3,3 m

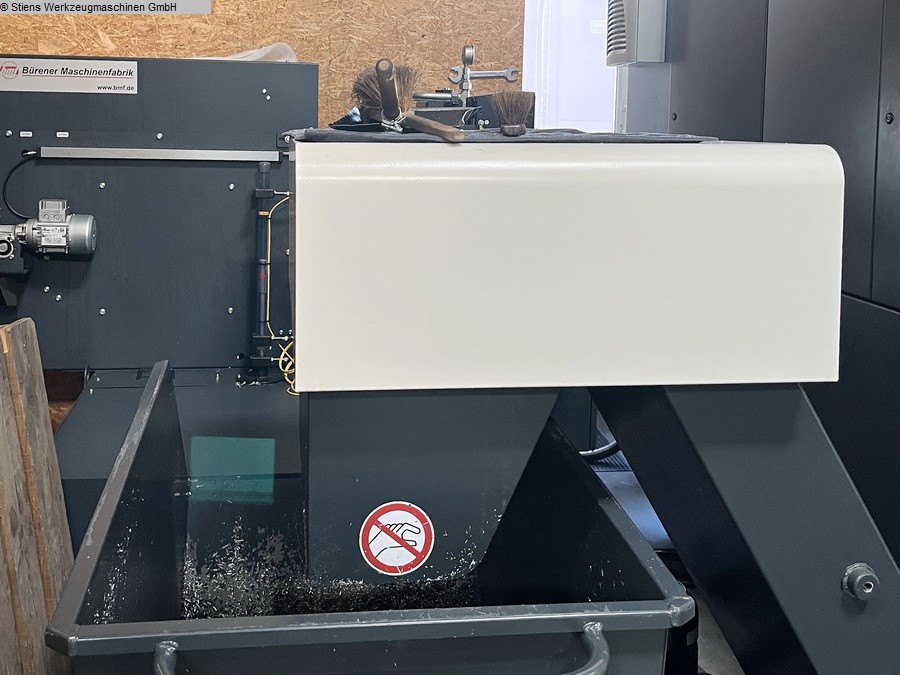

Chip conveyor:
Coolantsystem:
high pressure coolant:
through spindle coolant: 80 bar
paper band filter:
elektr. hand wheel:
Rotary screen: 2x
NC-rotary table:
turning milling head:
test probe: Heidenhain TS 460
tool setting: Blum Laser
3D quickSET: Vorbereitung, Preparation
Operation mode 4:
Oil Dust Skimmer: 2x mechanisch, mechanically
direct travel-measuring-system:

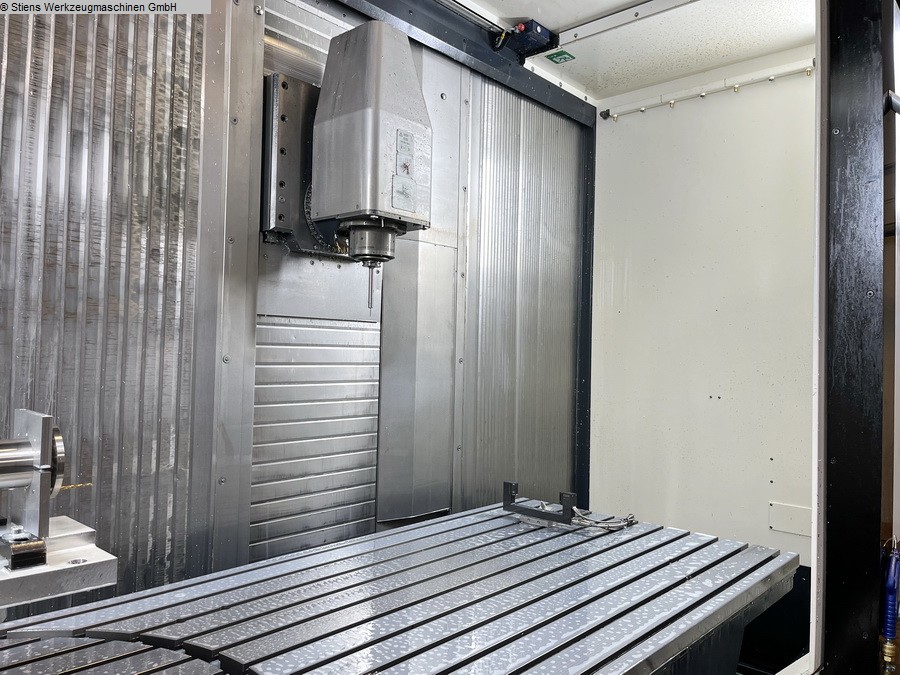

5 Axis CNC - Travel Column Milling Machine
DMG-MORI - DMF 260 11

- Swivel-Millinghead (B-Axis)
- NC rotary table (C-axis)

- only approx. 4,930 spindle hours
- only approx. 15,000 power-on hours

- WITHOUT clamping devices, WITHOUT tools



The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

seller offer No. resale 1039-9484
