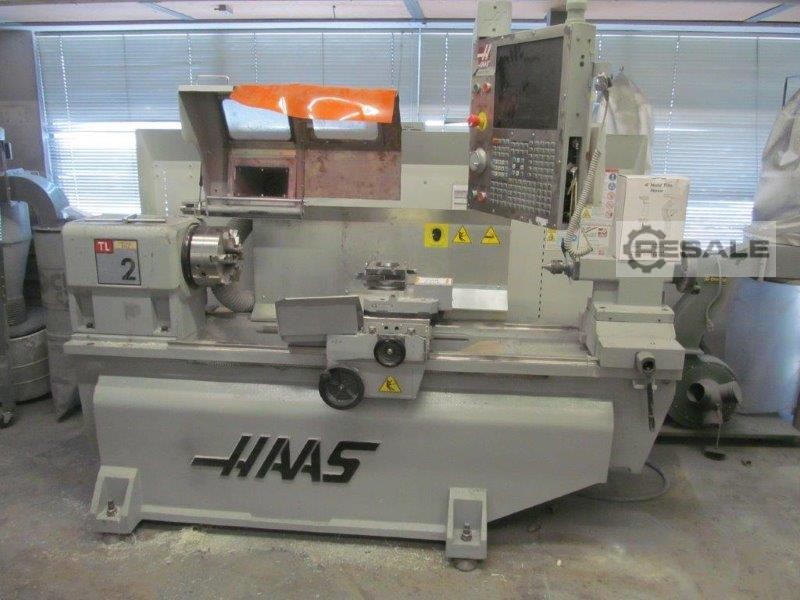

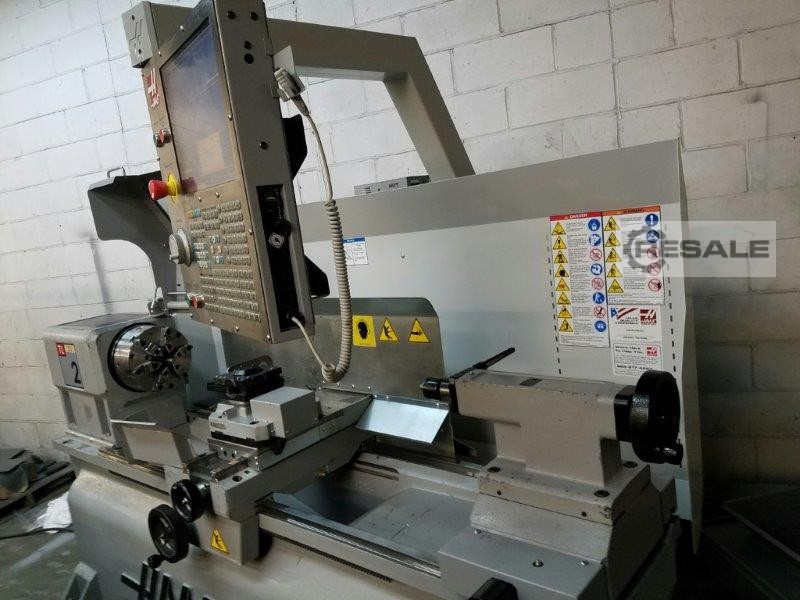

Centros de torno CNC HAAS TL-2

Swing Diameter S.A.E. METRIC
Over Front Apron 20 " 508 mm
Over Cross Slide 11 " 279 mm
Capacities S.A.E. METRIC

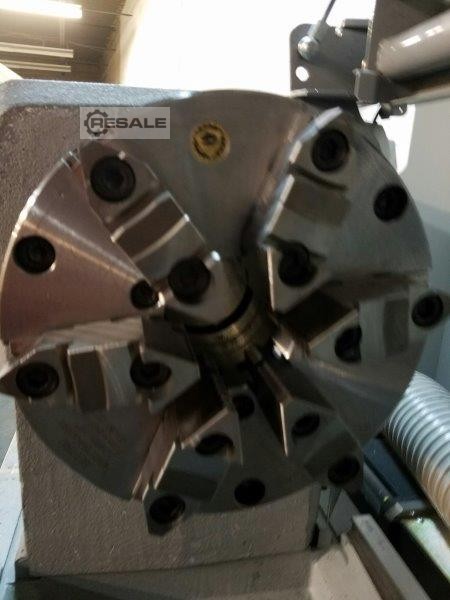

Chuck (optional) 8 " 203 mm
Max Cutting Diameter (varies with turret) 16 " 406 mm
Max Cutting Length (without workholding) 48 " 1219 mm
Between Centers 48 " 1219 mm
TRAVELS & FEEDRATES S.A.E. METRIC
X Axis 8 " 203 mm
Z Axis 48 " 1219 mm
Rapids on X 450 in/min 11.4 m/min
Rapids on Z 450 in/min 11.4 m/min
Max Thrust X 3894 lb 17 321 N
Max Thrust Z 1947 lb 8661 N
SPINDLE S.A.E. METRIC
Max Rating 10 hp 7.5 kW
Max Speed 1800 rpm 1800 rpm
Max Torque 108 ft-lb 355 rpm 146 Nm 355 rpm
Spindle Nose A2-5 A2-5
Spindle Bore ø 2.30 " 58 mm
SPINDLE (OPT) S.A.E. METRIC
Max Rating 10 hp 7.5 kW
Max Speed 3000 rpm 3000 rpm
Max Torque 108 ft-lb 355 rpm 146 Nm 355 rpm
