Centros de torno CNC MAZAK QUICK TURN NEXUS 200-II M

Excellent Condition With Very Low Hours

MAXIMUM SWING.. 26.5"
SWING OVER CARRIAGE 13.78"
MAXIMUM MACHINING DIAMETER. 14.75"
DISTANCE BETWEEN BOTH SPINDLES. 22.7"
BAR WORK CAPACITY.. 2.56"
RAPID TRAVERSE RATE: X-AXIS 1,181 IPM
RAPID TRAVERSE RATE: Z-AXIS 1,299 IPM
RAPID TRAVERSE C-AXIS.. 555 RPM
MAIN SPINDLE:
CHUCK (CAN USE 8" CHUCK) CURRENTLY HAS A ROYAL S26 COLLET CHUCK
SPINDLE SPEED 5,000 RPM
SPINDLE NOSE. A2-6
MOTOR 30/35 HP
SPINDLE BORE. 2.99"
SUB-SPINDLE:
CHUCK 6"
SPINDLE SPEED 6,000 RPM
SUB-SPINDLE STROKE... 23"
MOTOR 15 HP

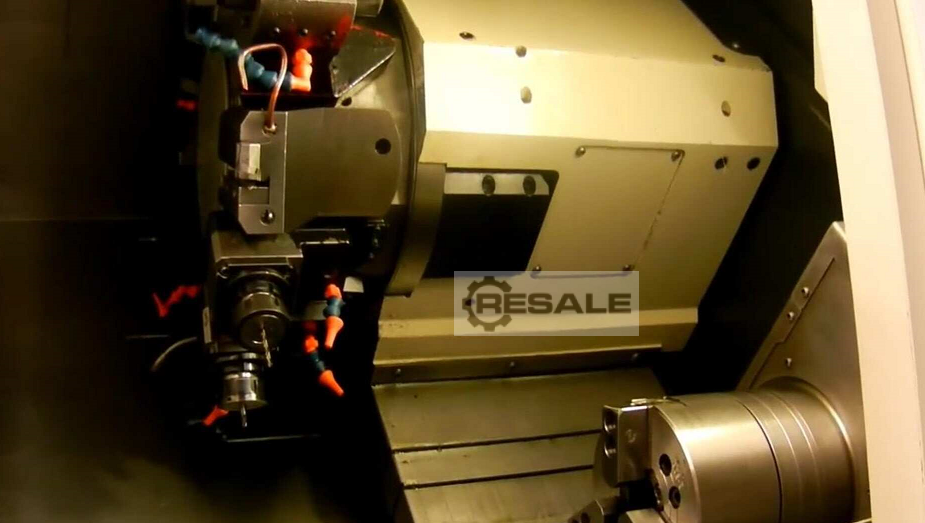

TURRET. 12 POSITIONS
ROTARY TOOLS:
SPINDLE SPEEDS... 4,500 RPM
MOTOR 7.5 HP
MACHINE SIZE. 115.4" X 70" X 72.4" TALL
MACHINE WEIGHT... 11,250 LBS

EQUIPPED WITH:

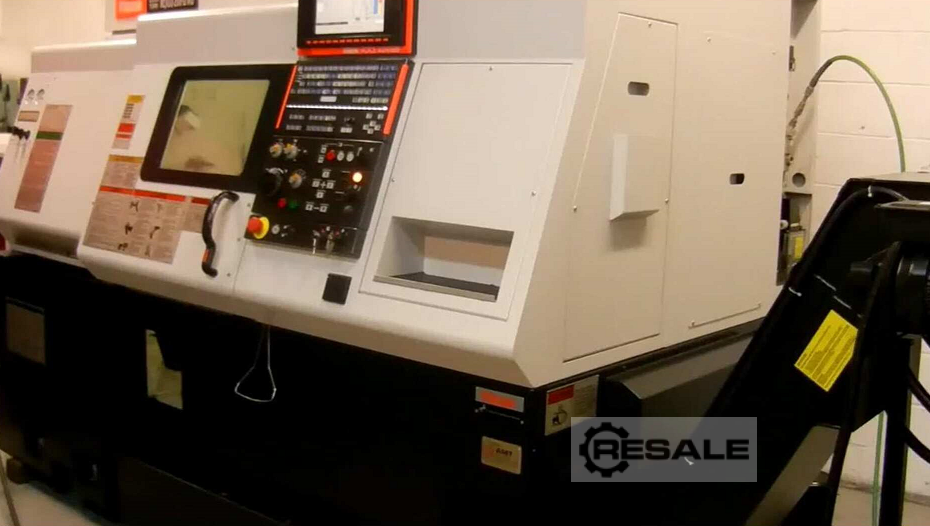

MAZAK MAZATROL MATRIX NEXUS CNC CONTROL
LNS MODEL 65 QUICK LOAD SERVO BAR FEEDER WITH LINERS
CHIP CONVEYOR
TOOL SETTER
PARTS CATCHER

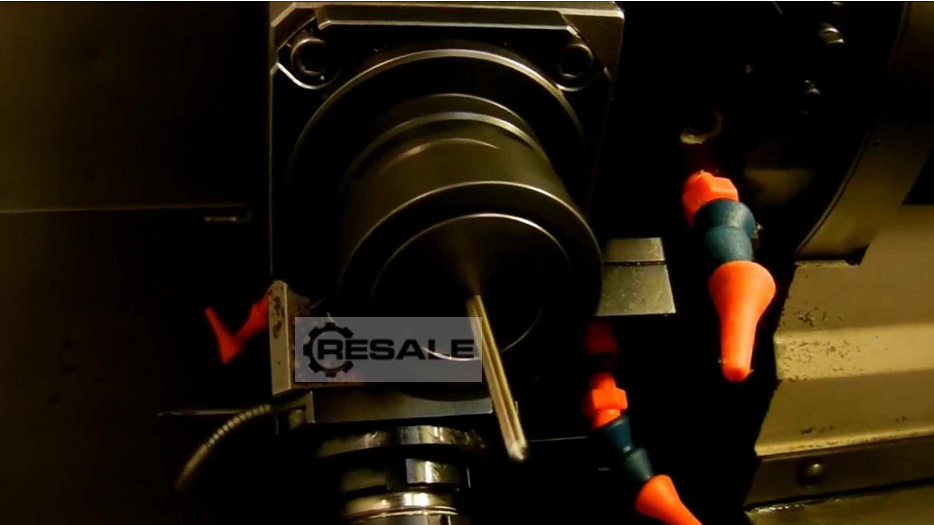

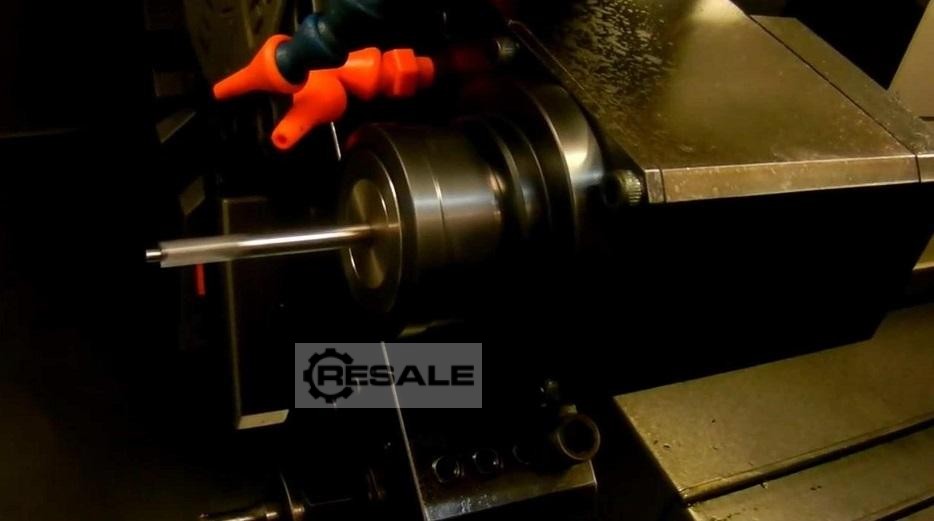

4- LIVE HOLDERS 2-AXIAL & 2-RADIAL
ROYAL ACCU-LENGTH S-26 COLLET CHUCK FOR MAIN

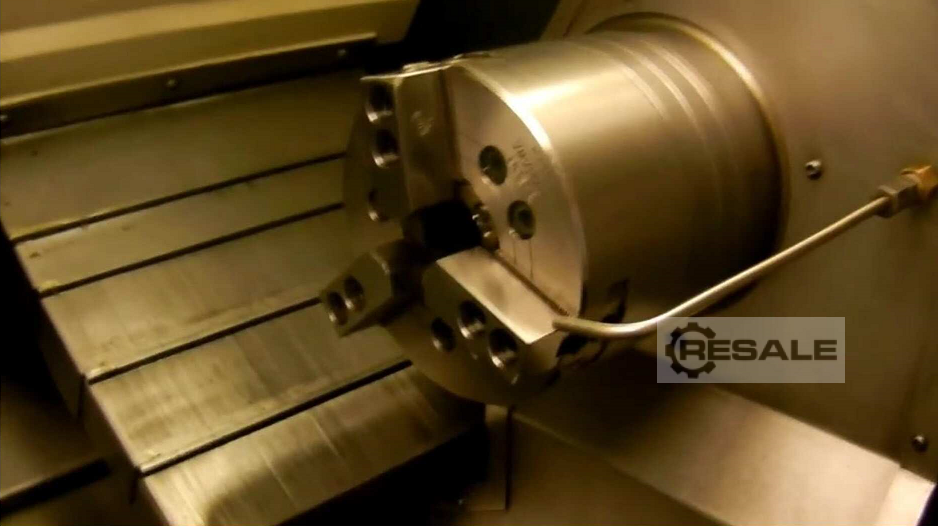

6" CHUCK FOR SUB-SPINDLE
HIGH POWERED COOLANT - 118 PSI
FULL C-AXIS ON MAIN AND SUB-SPINDLE
AUTO PECKING CYCLE WITH LOAD DETECTION
RE-THREADING
MANUALS
