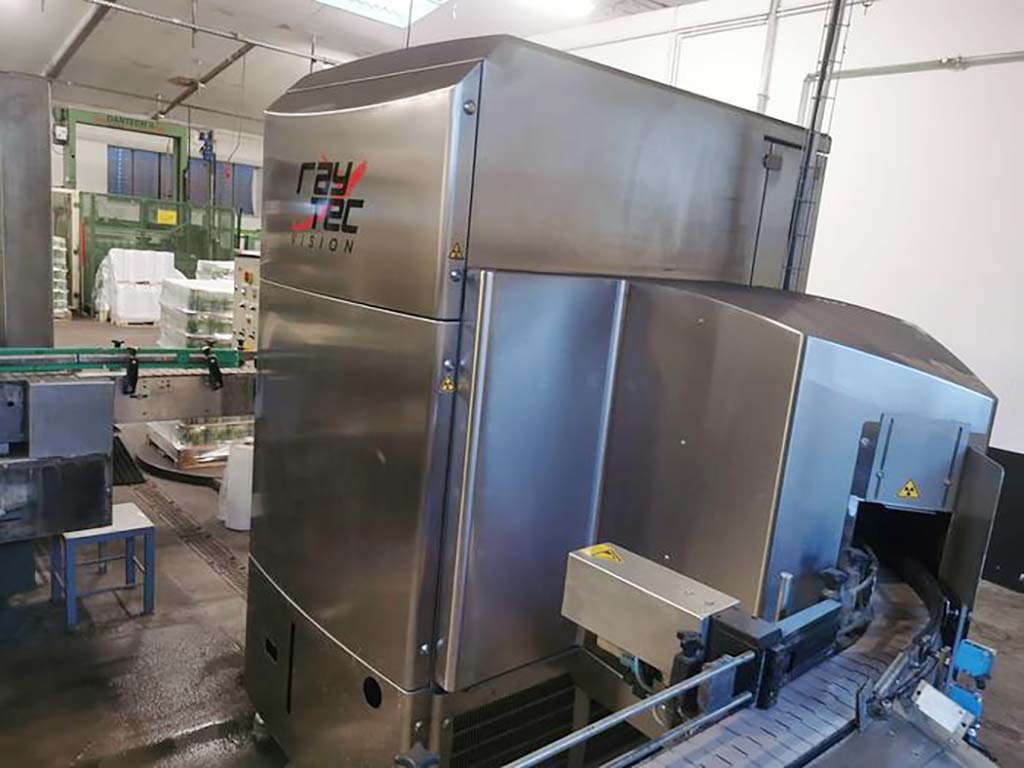

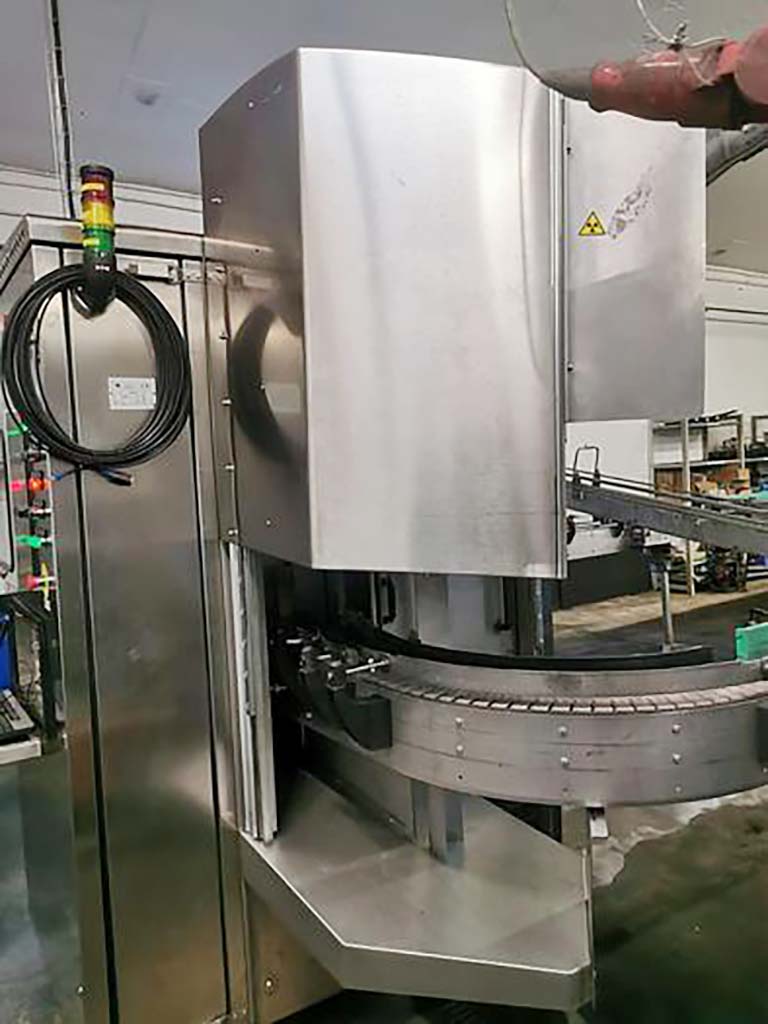

X-Ray Inspection Machine RAYTEC VISION RAYVIEW RV-200

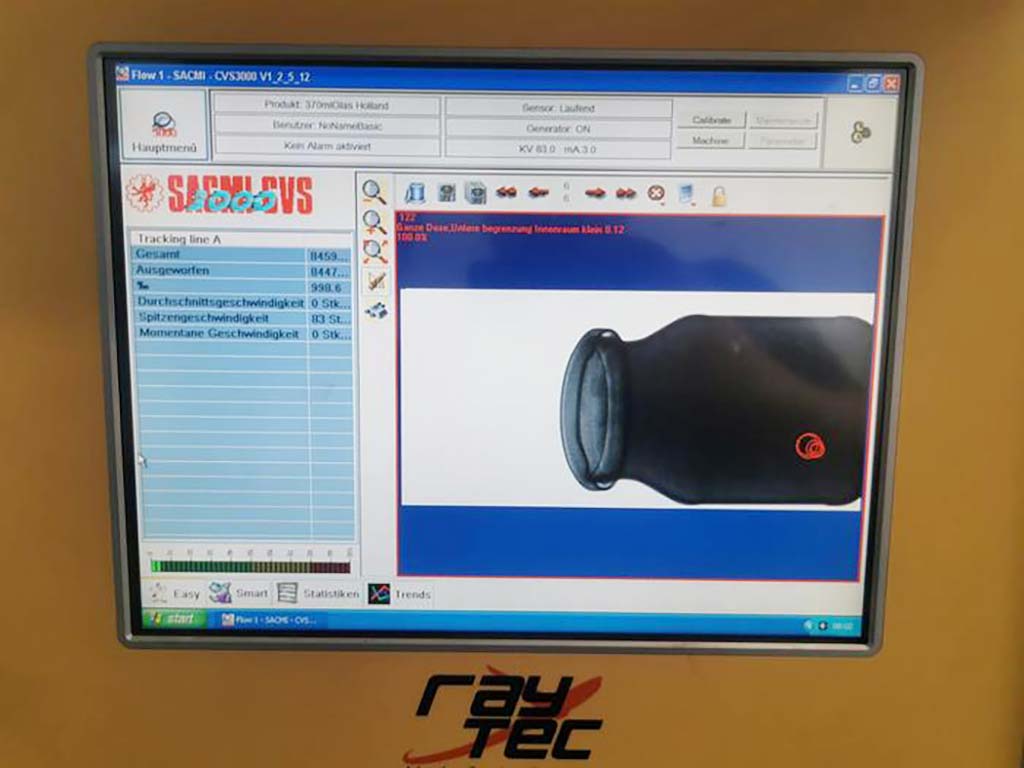

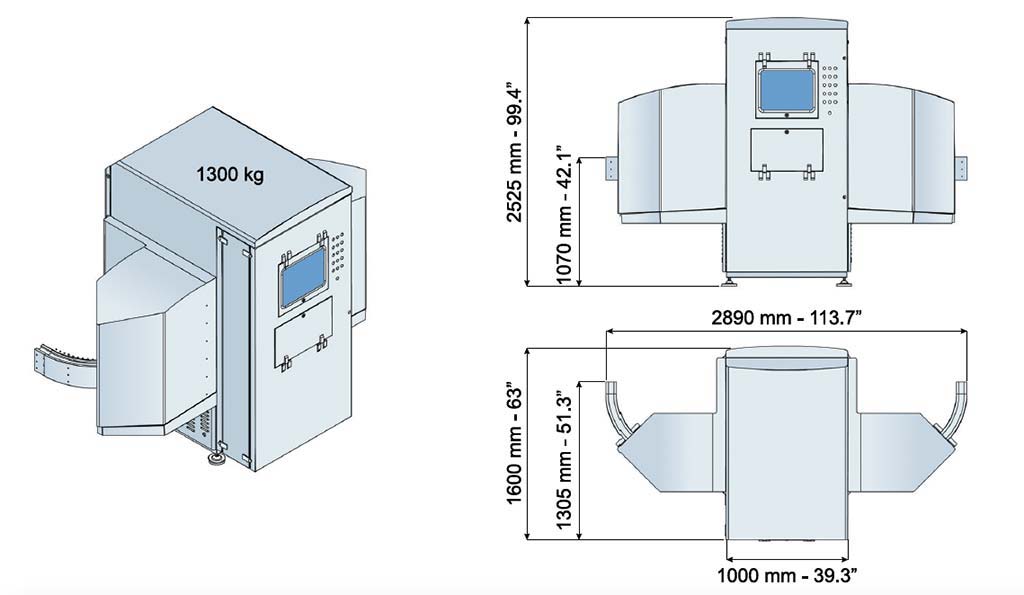

Throughput: approx. 150 jars/min, foreign body detection capability for glass fragments: from approx. 3 x 3 x 3mm, metal: from approx. 1 x 1 x 1mm, stones and bones: from approx. 3 x 3 x 3mm, suitable for glass containers, tinplate cans, beverage cartons (carton bricks), and plastic containers, typical false rejection rate per 10,000 inspected products: approx. 7, maximum container diameter: 155mm, maximum inspection speed: 100m/min, standard sensor speed: 45m/min, sensor height: 256 to 410mm, pixel size: 0.4 x 0.4 to 0.8 x 0.8mm, rejection system: electropneumatic cylinder, operator interface: 17 inch touchscreen, remote access: Ethernet or modem, frame material: AISI 304 stainless steel, sensor protection class: IP55, power supply: 3 phase + protective earth (3PH + GND), operating voltage: 400V, machine power consumption (2 motors): 3kW, processing unit power consumption: 500W, high voltage generator: 0.3 to 1kW, electrical cabinet protection class: IP55, X-ray radiation: 0.1µSv/h, compressed air operating pressure: 4 to 6bar, air consumption: 50Nl/min, infeed and outfeed height: 1305mm, screen and operating height: 1070mm, length: 2890mm, width: 1000mm, height: 2525mm, weight: 1.3t. Equipped with a reject system for contaminated containers and a conveyor belt. The machine was in operation until 2024. Inspection on site is possible.
seller offer No. resale INNO31795
