máquinas de laca usadas para venda (508)

Estou vendendo um túnel de secagem de ar de aquecimento BURKLE Modelo: Easy Dry JET 1300 Filtro: TRDUE / 700 m3/h Ventilador 7,5kW / 6800m3/h / 35 m/s Largura de trabalho 1400mm Comprimento total 6.00m Conexão elétrica 36.5kW Sistema de ar de aquecimento 12 unidades de bexiga Água média de aquecimento até 80°C Capacidade máxima de aquecimento 45 kW Temperatura máxima das superfícies de aquecimento 120°C Siemens Simatic Painel de Controle Touch Ano de construção 2014. Sistema NOVO, já não utilizado! Disponível em breve.

Vendo o autómato de pulverização Renojava yr. 2013 Largura de trabalho 80mm Espessura do elemento até 80mm Comprimento das bandas de alimentação: 1,60 + 2,60m Tecnologia quebra 200mm / Comprimento do elemento min. a partir de 300mm. Comprimento total: 4,40m Sistema de braço de anel para armas de cada lado Bomba incluída. Sistema de alimentação com motores. Bom estado. Disponível imediatamente.

Auction-ID: A1-45406-51

Auction-ID: A1-45406-65

Auction-ID: A1-45406-56

Auction-ID: A1-45406-60

Auction-ID: A1-45406-54

Auction-ID: A1-45406-67

Very robust and solid industrial roller machine / transit device, originating from German mechanical engineering. Ideal for applications in woodworking or workshops where material needs to be passed in a controlled manner. The machine is equipped with multiple drive rollers and a sturdy adjustable arm, making it perfect for use as a feed or feed system for sawing, planing or milling work. Classic German quality – built to last - Power supply: electrically powered Number of rollers: 4 drive rollers Feed system: mechanically driven rollers Speeds (adjustable): approx. 2 – 12 m/min (depending on position) Gear Modes: Multiple positions via shifting/gearing Installation: Equipped with adjustable arm + clamping system (attachment to machine bench) Adjustable: Height Position Pressure/Conductivity - State Used condition (visible signs of wear) but functional, Complete with cables and cont ...

Dimensions (L/W/H): 2300 x 700 x 1300 mmAir consumption: 3500 m³/hMotor output: 1,5 kWweight of the machine ca.: 150 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dimensions (L/W/H): 2394x990x3115 mmWeight: 0 kgTotal power requirement: 2,6 kwThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Dimensions (L/W/H): 1624x950x2345 mmWeight: 0 kgTotal power requirement: 1,5 kwThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Curtain coater for flat pieces2 coating heads, each with a pumpUsefull coating width: 1300 mmWorking heigth: 850 mm.Workpiece transport by interrupted belt 3xlength 3000 mmFeed speed 20 - 120 m/minpower 3,9 kW

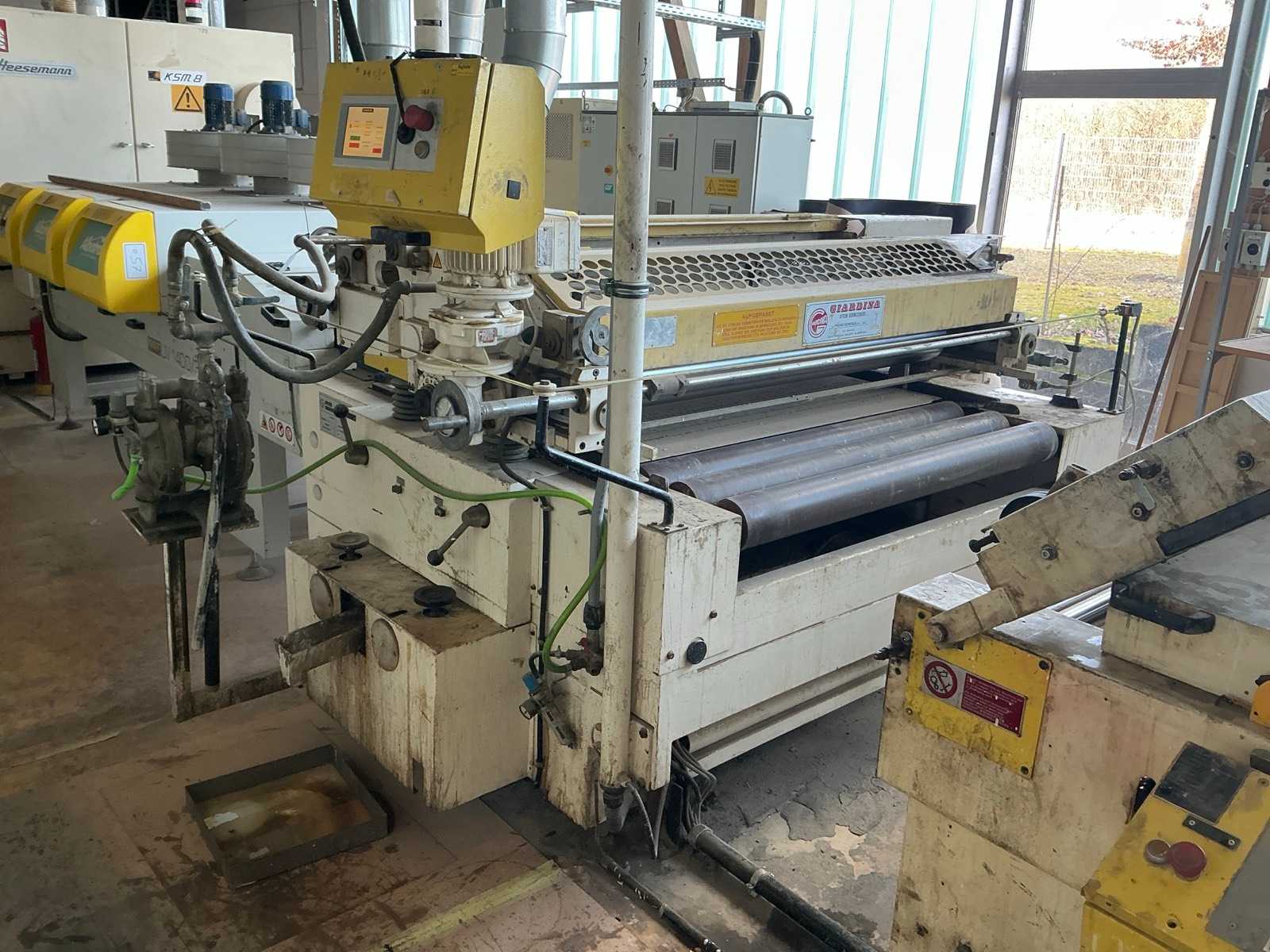

ROLLER COATER with SINGLE SPREADING-COATING ROLLER- Max working width mm 1300- Lenght of the machine mm 1000 approx- Thickness of the panels (working height): mm 0 - 100- Adjustable feeding speed: m/min 4 - 23- Separate (from the machine s body) electric and command cabinet- Total installed power KW 2.4- Equipped with:- 1?) Dosing unit (Chromium plated Doctor roller diam. mm 174), KW 0.37- 2?) Coating unit (Rubbered spreading roller diam. mm 248) KW 0.75, with a rubbered bottomroller, counter-placed to the top one

Usefull width: 1300 mmPanel thickness: 3 - 80 mmPanel feed by carpet, variable feedspeed 6-30 m/minCoating roller 55? Shore with variable speed and scraperChrome doctor roller with variable speed and scraperMachine length in the line: 1000 mm

Usefull width: 1350 mm.Max. pass: 6-80 mm.Working height 880-920 mmApplication rollers foam rubber 30? ShoreMembrane pump 4 kWincluding 2 spare rollers ( 1 is new )

Usefull width: 1300 mmPanel thickness: 3 - 80 mmPanel feed by carpet, variable feedspeed 6-30 m/minCoating roller 55? Shore with variable speed and scraperChrome doctor roller with variable speed and scraperMachine length in the line: 1000 mm

Pintura secadora giardina Forno Statico MOS 3D O Masch. Nº 050354 Construído em 2006 Manual do utilizador disponível Esta planta está em boas condições, pronta para funcionar. Alterações, erros, venda intermediária reservada! Peças de serviço/sobressalentes por MATEC CH-4952 Eriswil/EN-79618 Rheinfelden Sistema MATEC+technik GmbH Engenharia mecânica Tapete de moinho 4 CH-4952 Eriswil/Suíça Tel. 0041 62 966 18 32 Fax 0041 62 966 21 12

Manufacturer: Venyeskob, Type: Venspray Comfort, Year: 2017, Control: EPS CNC Liniensteuerung, Spraying line: yes, Work piece width min-max mm: 1300, Min.-max. workpiece length in mm: 350 - 2500, Min.-max. workpiece height in mm: 3 - 80, Belt conveyor: yes, work piece cleaning: yes, Spraying machine: Venspray Comfort, Spraying heads - total: 4, work piece detection: yes, Conveyour system: Band, Spraying stations: 2, Fast exchange system spray gun carrier: yes, Laquer circles: 3, Laquer system - airless: Airmix, Lackrückgewinnung über Band: yes, Wäscheranlage: 1, by rollers: yes, Dry exhauster: yes, Werstückabmessung max:: 300-4000, Werstückabmessung max:: 300-4000, Jet dryers (number): 2, 2 UV lamps qty.: 3 D Trockner, Belt conveyors (number): 2, Jet dryers (number): 2, Feedin speed m/min: 3-5<CRLF>-, Year :2017

Manufacturer: Heesemann Cefla Türenlackieranlage, Type: Cefla Robot, Year: 2004, Work piece width min-max mm: 1300, Min.-max. workpiece length in mm: 250, Min.-max. workpiece height in mm: 3-80, Working widht max mm: 1300, Spraying line: yes, work piece cleaning: yes, work piece detection: yes, Conveyour system: Band, Spraying stations: 1, Fast exchange system spray gun carrier: yes, Laquer circles: 4, Laquer system - airless: yes, Laquer system - airmix: yes, by rollers: yes, by scraper: yes, Dry exhauster: yes, Jet dryers (number): Hochtrockner, Sanding machines (number): 1, Brushing machine: no, Design sanding machine no 1: Querband/Längs/längs, Dust exhaust (number): yes, UV dryers - 3 lamps inclined (number): yes 120 Watt, Jet dryers (number): Hochtrockner, High dryers (number): 32, Length of pallets mm: 5500, Feedin speed m/min: 3-6, Year :2004

Manufacturer: Venyeskob Venspray Perfect, Type: Lackierstrasse mit Trocknung, Year: 2015, Control: Venyeskob/, Spraying line: yes, Work piece width min-max mm: 50-1300, Min.-max. workpiece length in mm: 150, Min.-max. workpiece height in mm: 3-80, Belt conveyor: yes, Dust exhaust (number): yes, work piece cleaning: yes, Spraying machine: Venspray Perfect, Farbmanagment: yes, work piece detection: yes, Conveyour system: Band, Spraying stations: 1, Fast exchange system spray gun carrier: yes, Laquer circles: 4, Laquer system - airless: yes, Laquer system - airmix: yes, Lackrückgewinnung über Band: yes, Wäscheranlage: 2 Stück, Dry exhauster: yes, Dust exhaust (number): yes, Year :2015
