Tipo de máquina
(Quantidade: > 9)
Fabricante:
(Categoria: 1107)
usava
usava

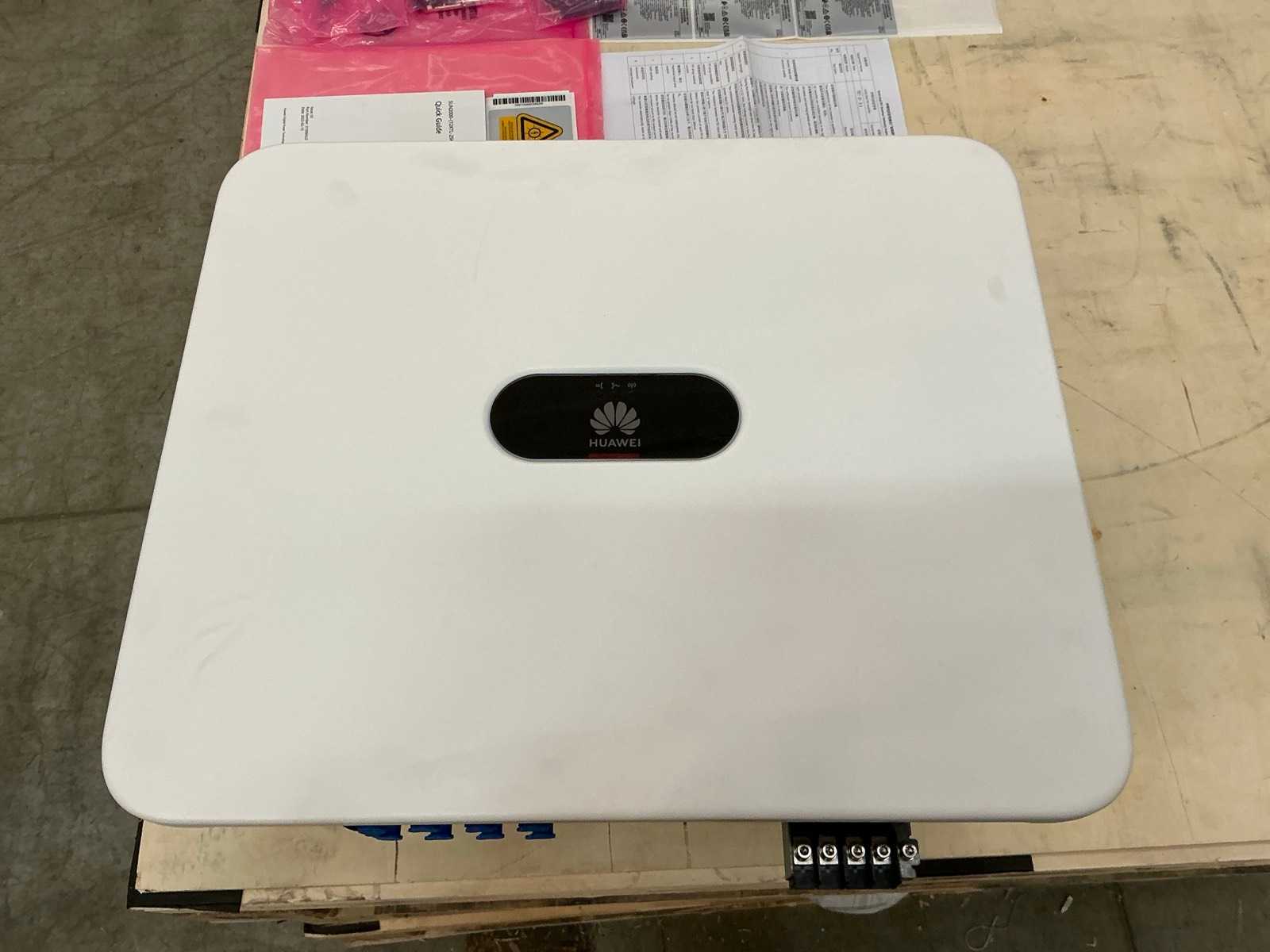

Model: SUN2000-12KTL-M5 EFFICIENCY Max efficiency: 98.50 % European efficiency: 98.00 % INLET (PV) Recommended maximum PV power: 18 000 Wp Max input voltage: 1 080 V Operating voltage range: 160 – 950 V Start-up voltage: 200 V Rated input voltage: 600 V Max input current for MPPT: 27 A Max short-circuit current for MPPT: 39 A MPPT Number: 2 Max number of inputs: 4 OUTPUT (NETWORK) Grid connection: three-phase Nominal AC power: 12 000 W Nominal AC apparent power: 12 000 VA AC max apparent power: 13 200 VA Rated AC voltage: 230/400V, 400V, 3/N/PE Rated AC frequency: 50 / 60 Hz Rated AC Current: 20A Adjustable power factor: 0.8 early to 0.8 late Max Total Harmonic Distortion: ≤3 % PROTECTIONS AND FUNCTIONS Input Side Disconnect Device: Yes Anti-islanding protection: yes AC overcurrent protection: Yes AC Short Circuit Protection: Yes AC overvoltage protection: Yes DC reverse polarity ...
usava

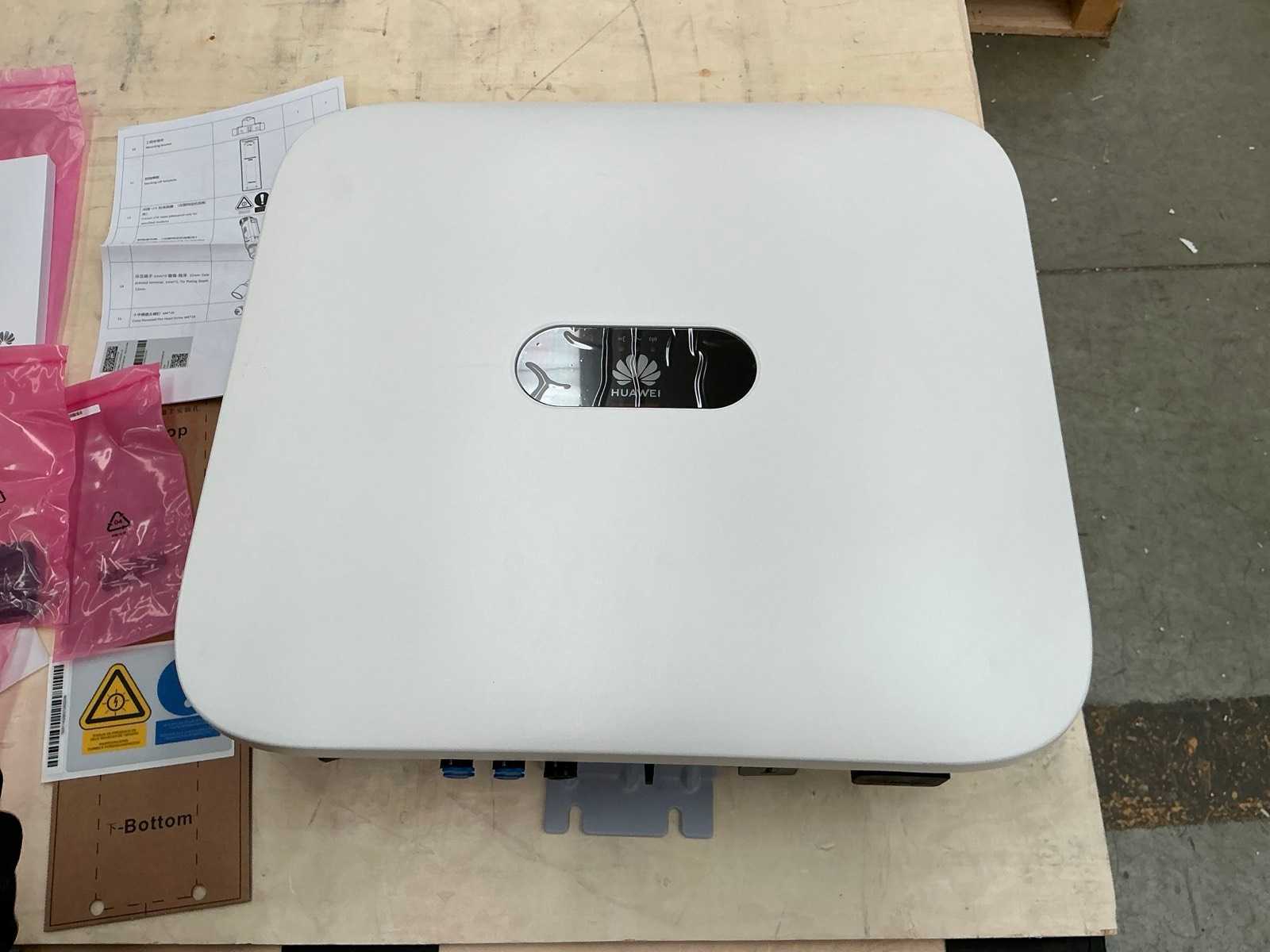

Model: SUN2000-8KTL-M1 EFFICIENCY Max efficiency: 98.6 % European weighted efficiency: 98.0 % INLET (PV) Recommended maximum PV power: 12 000 Wp Max input voltage: 1 100 V Operating voltage range: 140 – 980 V Start-up voltage: 200 V Nominal input voltage: 600 V Max Rated Input Current: 13.5A Max short-circuit current: 19.5 A Number of MPPTs: 2 Max inputs for MPPT: 1 INPUT (BATTERY) Compatible Battery: HUAWEI Smart String ESS LUNA2000 5 kWh – 30 kWh Operating voltage range: 600 – 980 V Max operating current: 16.7 A Max charging power: 10 000 W Max discharge power: 8 800 W OUTPUT (NETWORKED) Grid connection: three-phase Rated AC power: 8 000 W Max apparent power: 8 800 VA Rated output voltage: 220 / 380 V – 230 / 400 V – 240 / 415 V, 3/N/PE Rated mains frequency: 50 / 60 Hz Maximum output current: 13.5 A Adjustable Power Factor: 0.8 capacitive ~ 0.8 inductive Max Total Harmon ...
usava
usava
usava
Model: SUN2000-12KTL-M5 EFFICIENCY Max efficiency: 98.50 % European efficiency: 98.00 % INLET (PV) Recommended maximum PV power: 18 000 Wp Max input voltage: 1 080 V Operating voltage range: 160 – 950 V Start-up voltage: 200 V Rated input voltage: 600 V Max input current for MPPT: 27 A Max short-circuit current for MPPT: 39 A MPPT Number: 2 Max number of inputs: 4 OUTPUT (NETWORK) Grid connection: three-phase Nominal AC power: 12 000 W Nominal AC apparent power: 12 000 VA AC max apparent power: 13 200 VA Rated AC voltage: 230/400V, 400V, 3/N/PE Rated AC frequency: 50 / 60 Hz Rated AC Current: 20A Adjustable power factor: 0.8 early to 0.8 late Max Total Harmonic Distortion: ≤3 % PROTECTIONS AND FUNCTIONS Input Side Disconnect Device: Yes Anti-islanding protection: yes AC overcurrent protection: Yes AC Short Circuit Protection: Yes AC overvoltage protection: Yes DC reverse polarity ...
usava
usava
usava
usava
Model: T10 INPUT (DC) Recommended max DC power: 15 kW Max DC voltage: 1100 V Rated DC voltage: 600 V Max A/B input current: 14A / 14A Max A/B short-circuit current: 18.2 A / 18.2 A MPPT voltage range: 140–850 V Starting voltage: 160 V MPPT Number: 2 Strings per MPPT: 1+1 OUTPUT (AC) Rated AC power: 10 kW Max apparent power: 11 kVA Rated mains voltage: 3/N/PE 220/380 V – 230/400 V – 240/415 V Nominal mains frequency: 50 / 60 Hz ±5 Hz Rated AC Current: 14.5A AC Max Current: 15.9A Power factor: 1 (adjustable from 0.8 capacitive to 0.8 inductive) Total harmonic distortion at nominal power: <3 % EFFICIENCY MPPT Efficiency: 99.8 % European efficiency: 97.8 % Max efficiency at rated voltage: 98.6 % PROTECTIONS DC Reverse Polarity Protection: Yes Anti-islanding protection: yes Insulation monitoring: Yes Residual Current Monitoring: Yes AC Short Circuit Protection: Yes AC overcurren ...
usava
usava
Model: SUN2000-20KTL-M5 EFFICIENCY Max efficiency: 98.65 % European efficiency: 98.30 % INLET (PV) Recommended maximum PV power: 30 000 Wp Max input voltage: 1 080 V Operating voltage range: 160 – 950 V Start-up voltage: 200 V Rated input voltage: 600 V Max input current for MPPT: 27 A Max short-circuit current for MPPT: 39 A MPPT Number: 2 Max number of inputs: 4 OUTPUT (NETWORK) Grid connection: three-phase Rated AC power: 20 000 W Nominal AC apparent power: 20 000 VA AC max apparent power: 22 000 VA Rated AC voltage: 230/400V, 3/N/PE Rated AC frequency: 50 / 60 Hz Rated AC Current: 33.5A Adjustable power factor: 0.8 early to 0.8 late Max Total Harmonic Distortion: ≤3 % PROTECTIONS AND FUNCTIONS Input Side Disconnect Device: Yes Anti-islanding protection: yes AC overcurrent protection: Yes AC Short Circuit Protection: Yes AC overvoltage protection: Yes DC reverse polarity prote ...
usava
Model: SUN2000-8KTL-M1 EFFICIENCY Max efficiency: 98.6 % European weighted efficiency: 98.0 % INLET (PV) Recommended maximum PV power: 12 000 Wp Max input voltage: 1 100 V Operating voltage range: 140 – 980 V Start-up voltage: 200 V Nominal input voltage: 600 V Max Rated Input Current: 13.5A Max short-circuit current: 19.5 A Number of MPPTs: 2 Max inputs for MPPT: 1 INPUT (BATTERY) Compatible Battery: HUAWEI Smart String ESS LUNA2000 5 kWh – 30 kWh Operating voltage range: 600 – 980 V Max operating current: 16.7 A Max charging power: 10 000 W Max discharge power: 8 800 W OUTPUT (NETWORKED) Grid connection: three-phase Rated AC power: 8 000 W Max apparent power: 8 800 VA Rated output voltage: 220 / 380 V – 230 / 400 V – 240 / 415 V, 3/N/PE Rated mains frequency: 50 / 60 Hz Maximum output current: 13.5 A Adjustable Power Factor: 0.8 capacitive ~ 0.8 inductive Max Total Harmon ...
usava

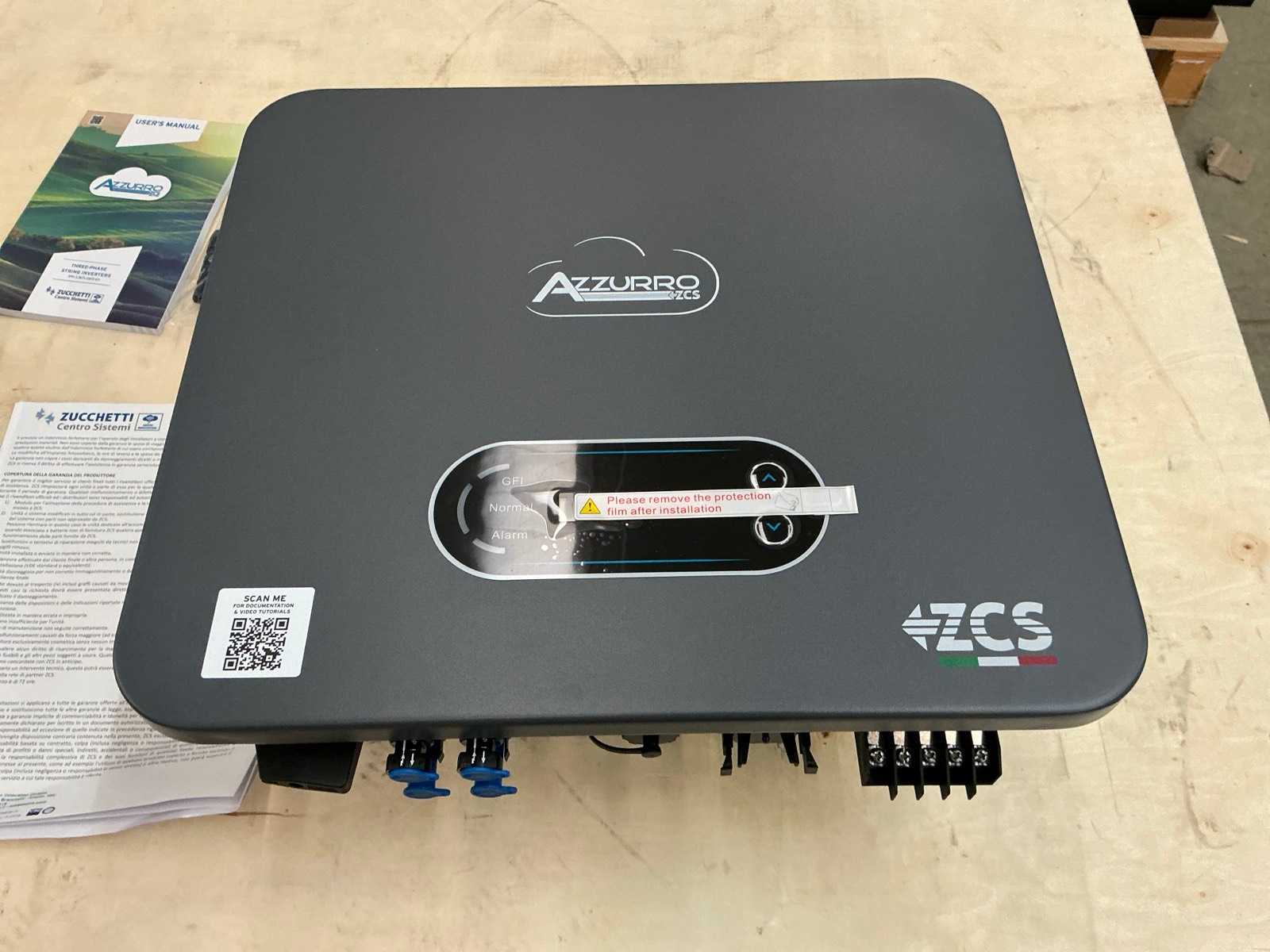

Model: 3PH 8.8KTL V1 DC INPUT (PHOTOVOLTAIC) Typical DC power: 10 560 W Maximum DC power for MPPT: 5600 W (560–850 V) Number of independent MPPTs/strings per MPPT: 2/1 Maximum DC input voltage: 1000 V Trigger voltage: 200 V DC input voltage rating: 600 V DC voltage MPPT range: 160 – 960 V DC voltage range at full load: 380 – 850 V Maximum input current for MPPT: 11 A / 11 A Maximum short-circuit current for MPPT: 14 A / 14 A AC OUTPUT AC Rated Power: 8 800W Maximum AC power: 8 800 VA Maximum AC Phase Current: 12.8A Connection type / nominal mains voltage: three-phase 3PH / N / PE, 220 / 230 / 240 V – 380 / 400 / 415 V (PH-PH) Mains voltage range: 184 – 276 V (PH-N), 310 – 480 V (PH-PH) according to local standards Nominal mains frequency: 50 / 60 Hz Mains frequency range: 45 – 55 Hz / 54 – 66 Hz according to local standards Total harmonic distortion: < 3 % Power Fact ...
usava

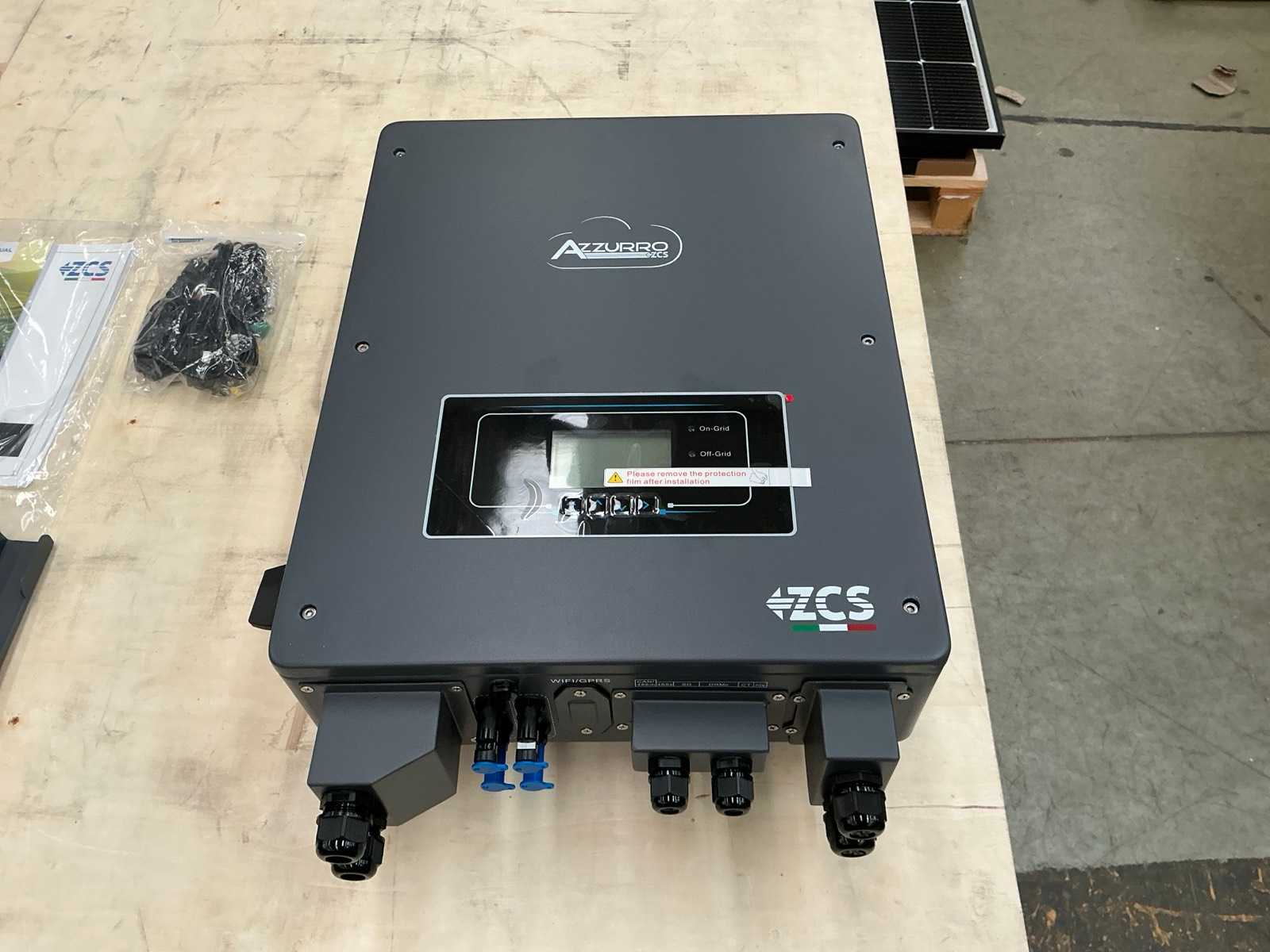

Model: HYD 6000 ES DC INPUT (PHOTOVOLTAIC) Maximum DC power: 6600 W Maximum DC power per MPPT: 3500 W (300–520 V) Number of independent MPPTs/strings per MPPT: 2/1 Maximum input voltage: 600 V Trigger voltage: 120 V Nominal input voltage: 360 V DC voltage MPPT range: 90 – 580 V DC voltage range at full load: 300 – 520 V Maximum input current for MPPT: 12 A / 12 A TECHNICAL DATA BATTERY CONNECTION Compatible battery type: Lithium-ion (supplied by Zucchetti) Battery Rated Voltage: 48V Permissible voltage range: 42 – 58 V Recommended battery capacity: 50 Ah – 200 Ah Maximum charge/discharge power: 3000W Permissible temperature range: −10 °C ~ +50 °C Maximum charging current: 65 A (programmable) Maximum discharge current: 65 A (programmable) Charging curve: managed by battery BMS Depth of discharge (DoD): Lithium-ion 0–90 % (programmable), lead gel 0–50 % (programmable) ...
usava
Model: SUN2000-20KTL-M5 EFFICIENCY Max efficiency: 98.65 % European efficiency: 98.30 % INLET (PV) Recommended maximum PV power: 30 000 Wp Max input voltage: 1 080 V Operating voltage range: 160 – 950 V Start-up voltage: 200 V Rated input voltage: 600 V Max input current for MPPT: 27 A Max short-circuit current for MPPT: 39 A MPPT Number: 2 Max number of inputs: 4 OUTPUT (NETWORK) Grid connection: three-phase Rated AC power: 20 000 W Nominal AC apparent power: 20 000 VA AC max apparent power: 22 000 VA Rated AC voltage: 230/400V, 3/N/PE Rated AC frequency: 50 / 60 Hz Rated AC Current: 33.5A Adjustable power factor: 0.8 early to 0.8 late Max Total Harmonic Distortion: ≤3 % PROTECTIONS AND FUNCTIONS Input Side Disconnect Device: Yes Anti-islanding protection: yes AC overcurrent protection: Yes AC Short Circuit Protection: Yes AC overvoltage protection: Yes DC reverse polarity prote ...
usava

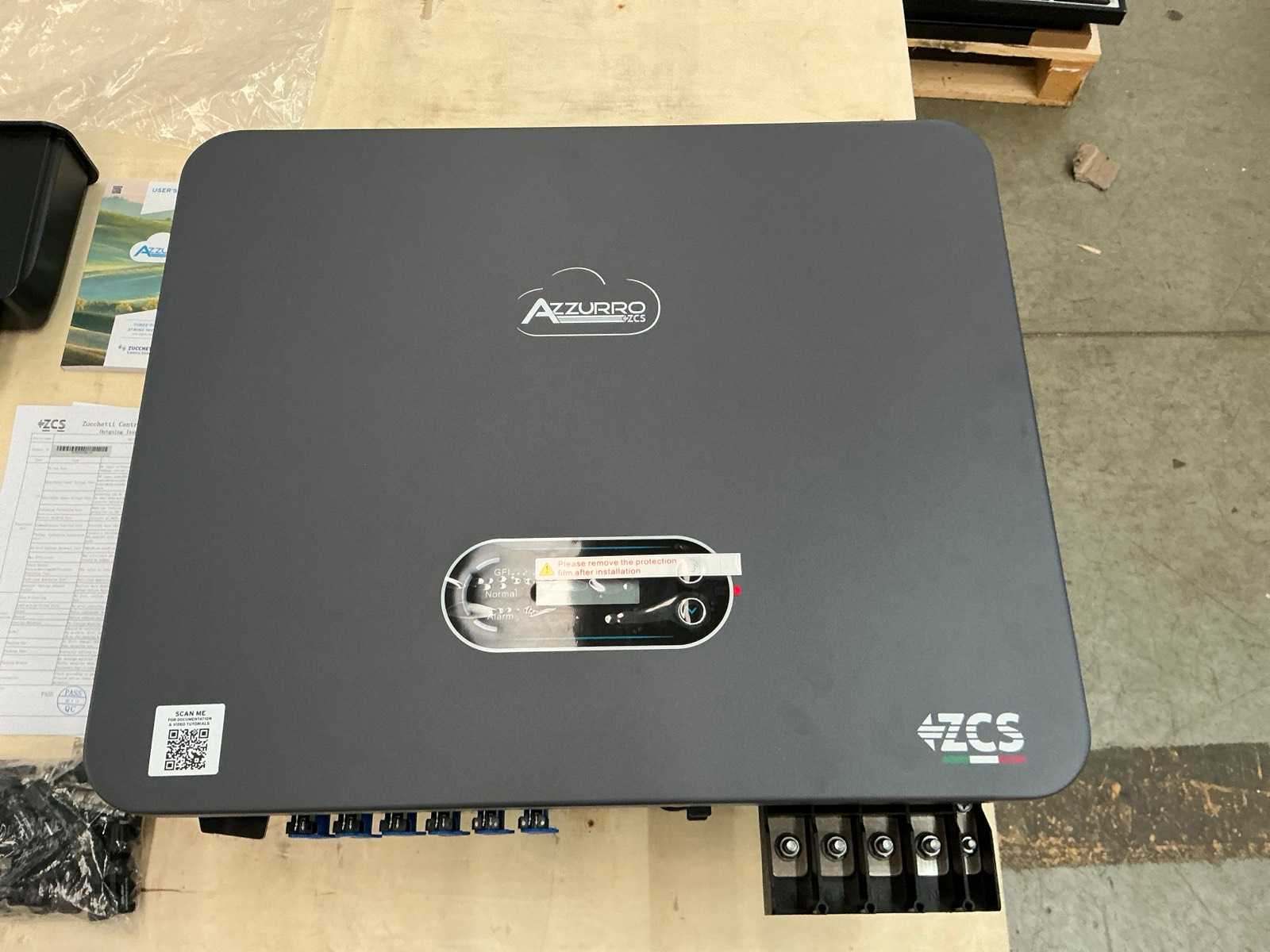

Model: 3PH 30KTL V3 DC INPUT (PHOTOVOLTAIC) Typical DC power: 36 000 W Maximum DC power per MPPT: 25 000 W (625–850 V) Number of independent MPPTs/strings per MPPT: 3/2 Maximum DC input voltage: 1100 V Trigger voltage: 200 V DC input voltage rating: 620V DC voltage MPPT range: 180 – 1000 V DC voltage range at full load: 510 – 850 V Maximum input current for MPPT: 40 A / 40 A / 40 A Maximum short-circuit current for MPPT: 50 A / 50 A / 50 A AC OUTPUT AC rated power: 30 000 W Maximum AC power: 34 000 VA Maximum AC current per phase: 51.5 A Connection type / nominal mains voltage: three-phase 3PH/N/PE 220/230/240 V (PH-N), 380/400/415 V (PH-PH) Mains voltage range: 184 – 276 V (PH-N), 310 – 480 V (PH-PH) according to local standards Nominal mains frequency: 50 / 60 Hz Mains frequency range: 45 – 55 Hz / 54 – 66 Hz according to local mains standards Total harmonic distortion: ...
usava

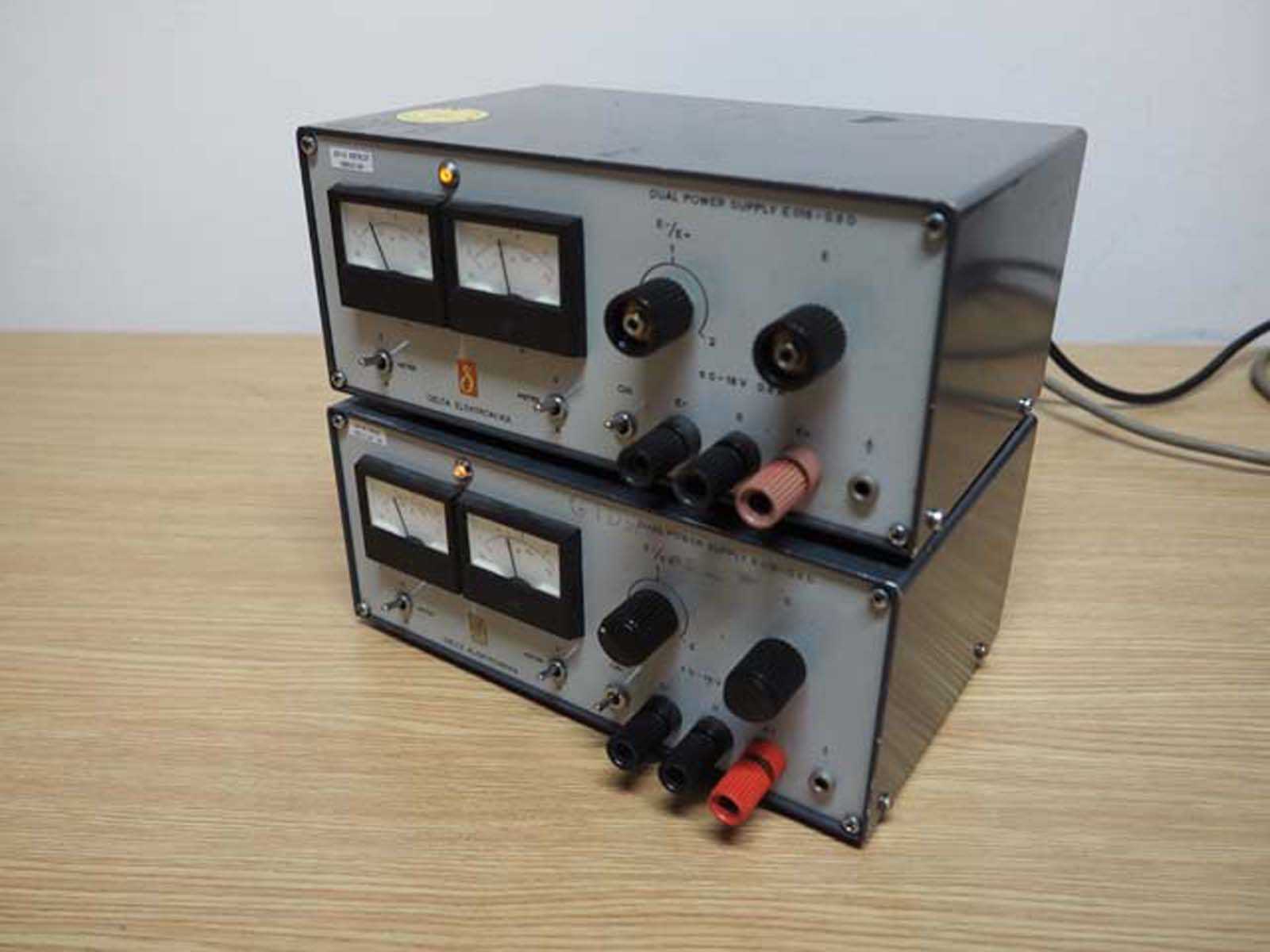

2 x Used Delta Electronics E018-0.6 D adjustable power supply Type: E018-0.6D Manufacturer: Delta Elektronika Range: 0-0.6A | 0-18V Voltage: 220V (50hz) Auction-ID: A1-48529-255
usava
usava

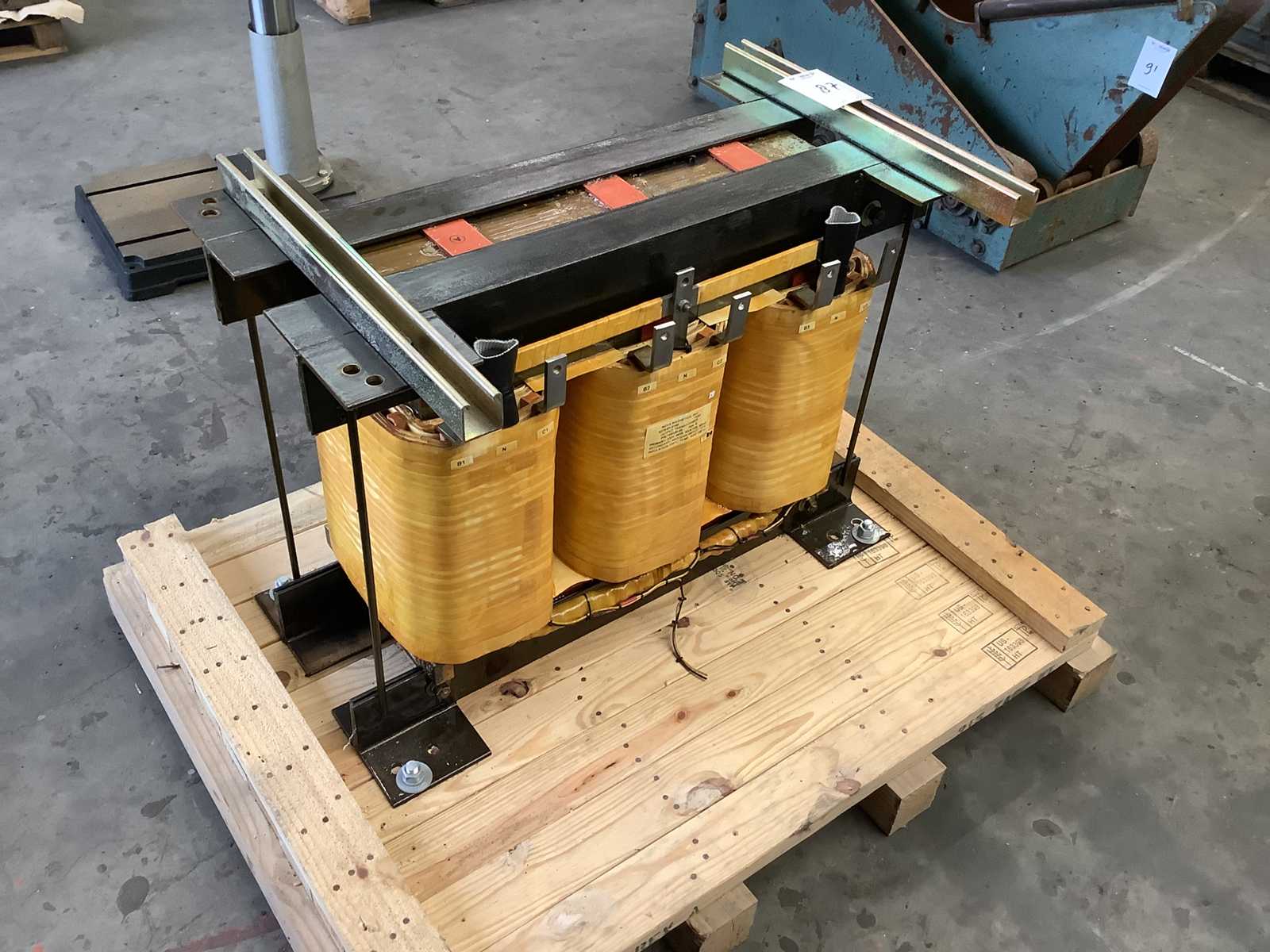

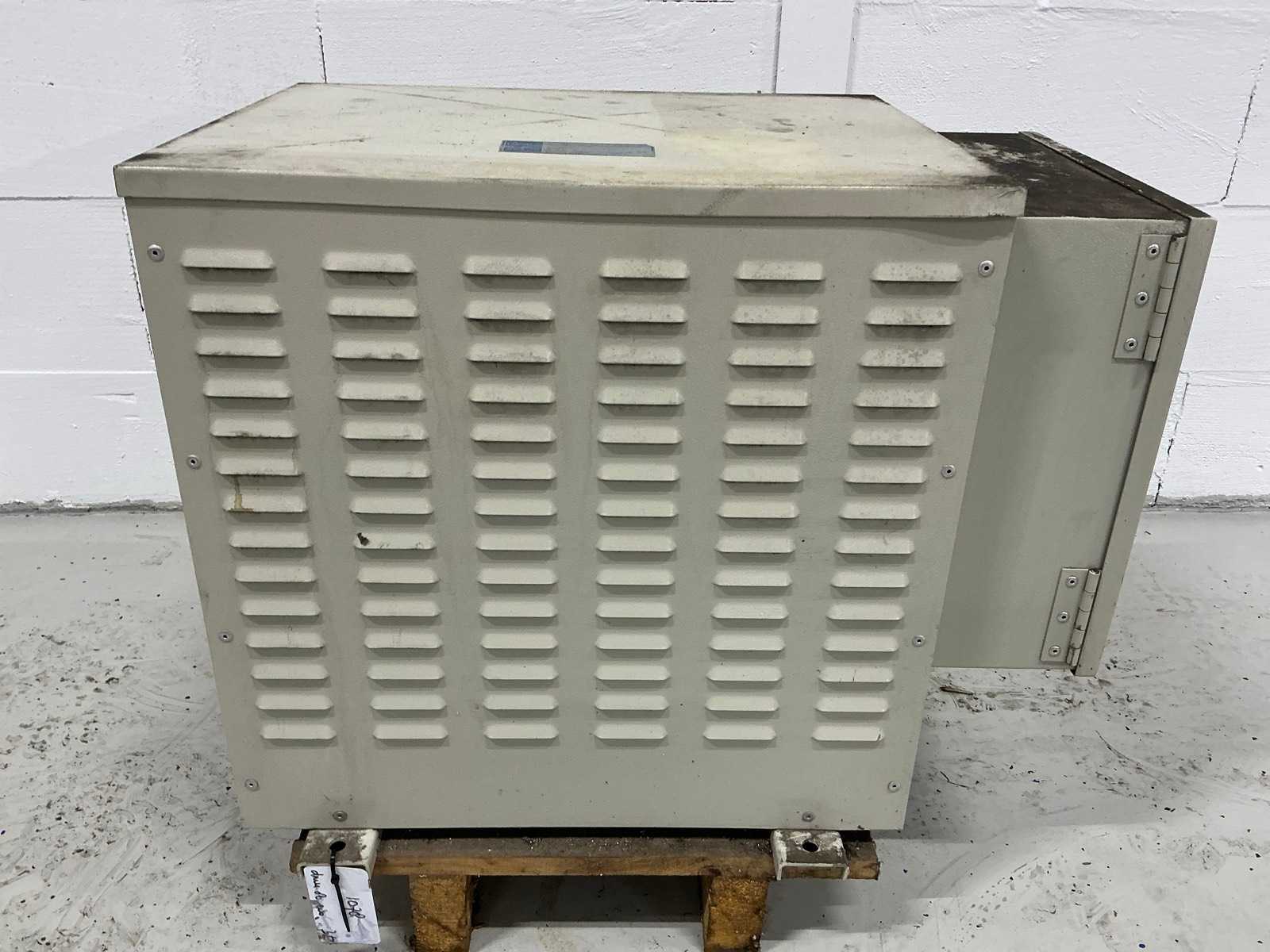

Used Acutran 480V L-L Zig-Zag 3 phase Transformer Manufacturer: Acutran 10 KV Weight: ~17 kg Auction-ID: A1-48529-139
usava

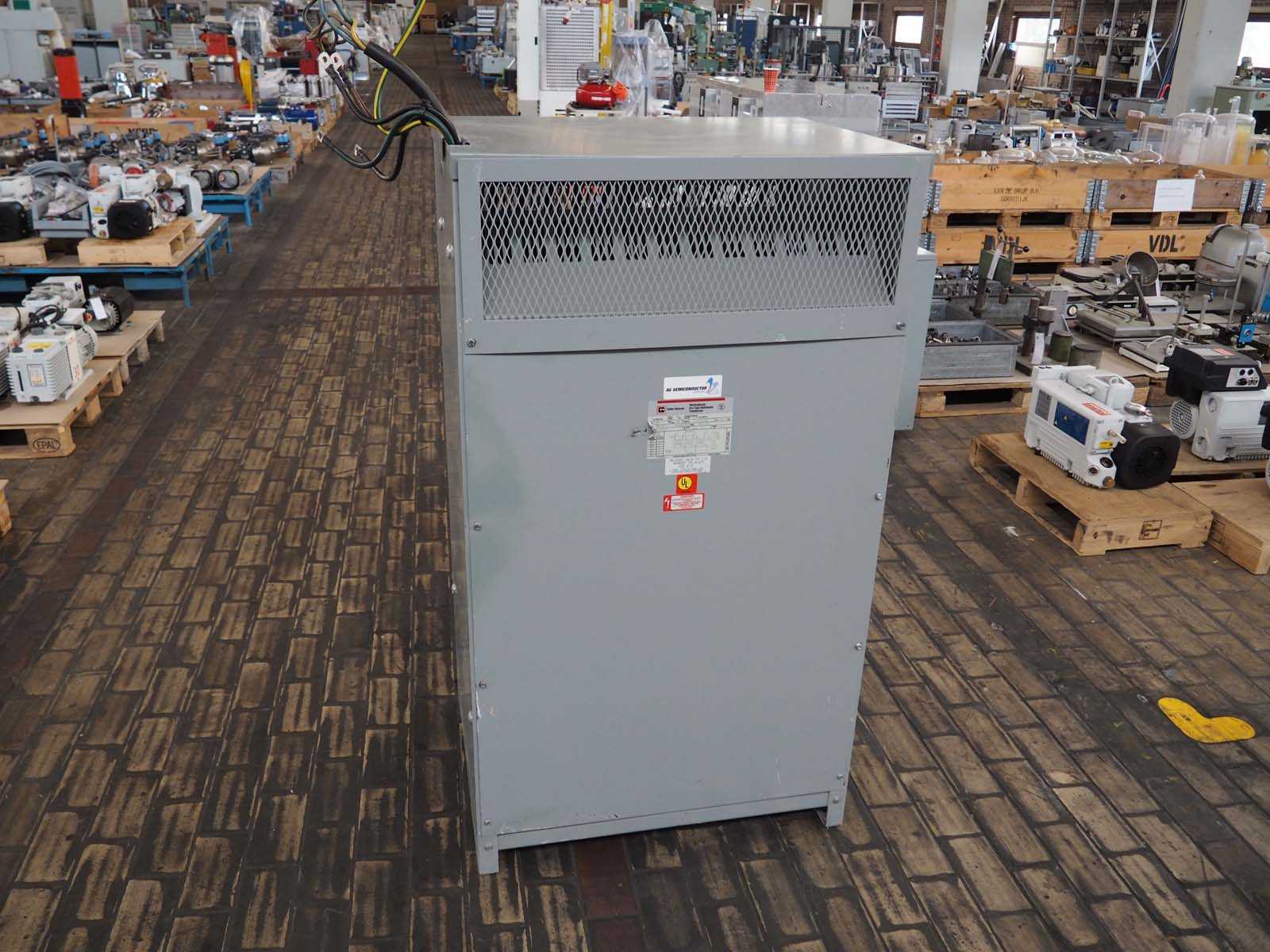

Used Cutler-Hammer 150 KVA Transformer Manufacturer: Eaton Corporation Capacity: 150 Kva 50/60 Hz Prim: 380 Sec: 208 Dims: 79cm x 63cm x 143cm Weight: 564 kg Auction-ID: A1-48529-202
usava
usava
7 x Used Wamplfer GS18KS-08 Slip rings contact Manufacturer: Wamplfer Model: GS18KS-08 / 14ML / 02ML / LI Auction-ID: A1-48529-268
usava
Eurotherm Epack-1PH Thyristor – Power controller Manufacturer: Eurotherm By Scheider Electric Model: Epack-1PH/25A/24V Discription: Thyristor – Power controller With instructions, software cd, and Parts Main Range: 100-500 Vac, 47-63 Hz. Auction-ID: A1-48529-295
usava
usava
usava

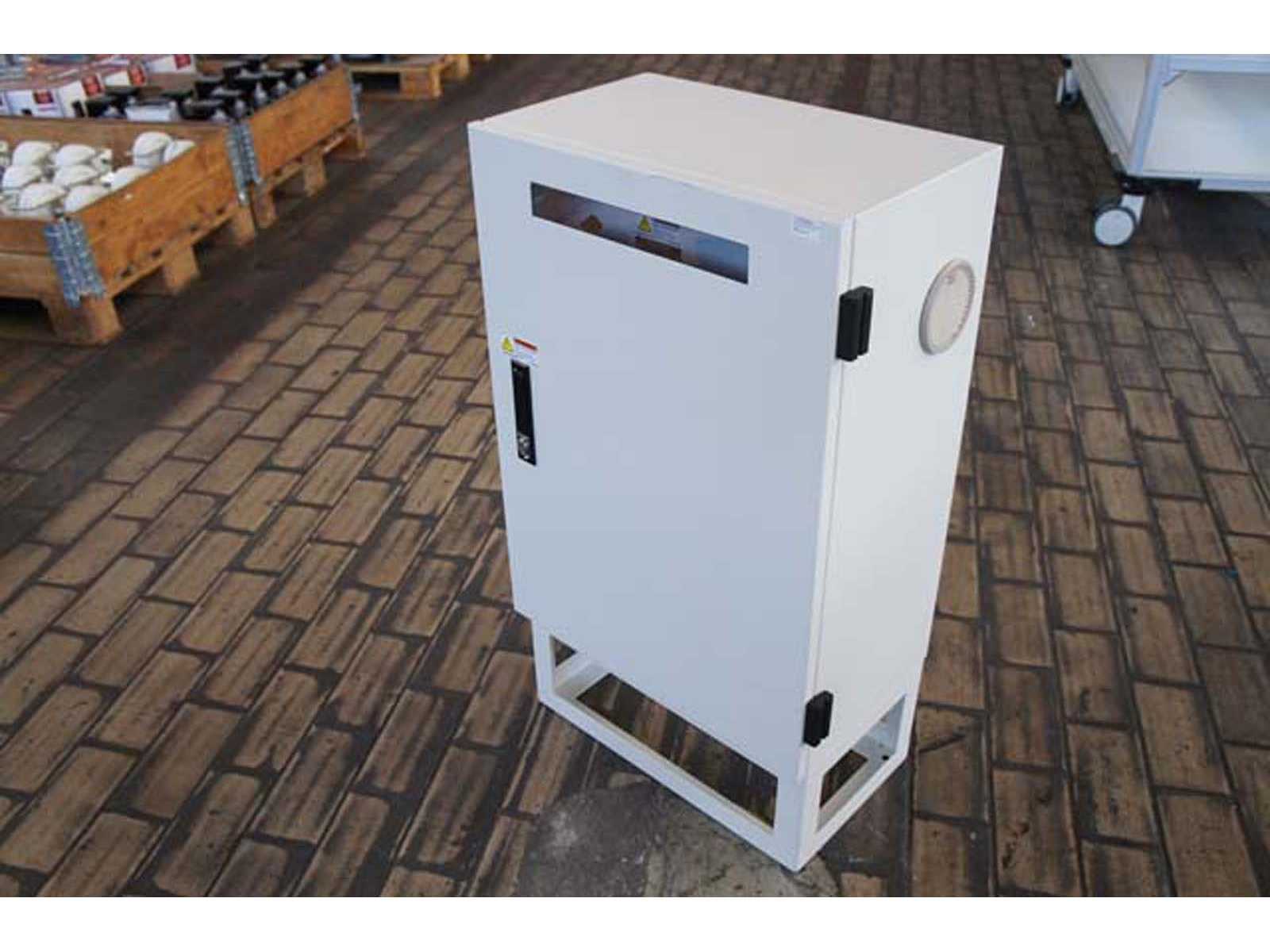

Used Power distributor / switch cabinet WCTB 7001 With internal schedule Lockable Breaker 1, 125 AMP (main POC) Breaker 2, 60 AMP (Power line conditioner) Breaker 3, 60AMP (Computer Rack) Auction-ID: A1-48529-75
usava
usava

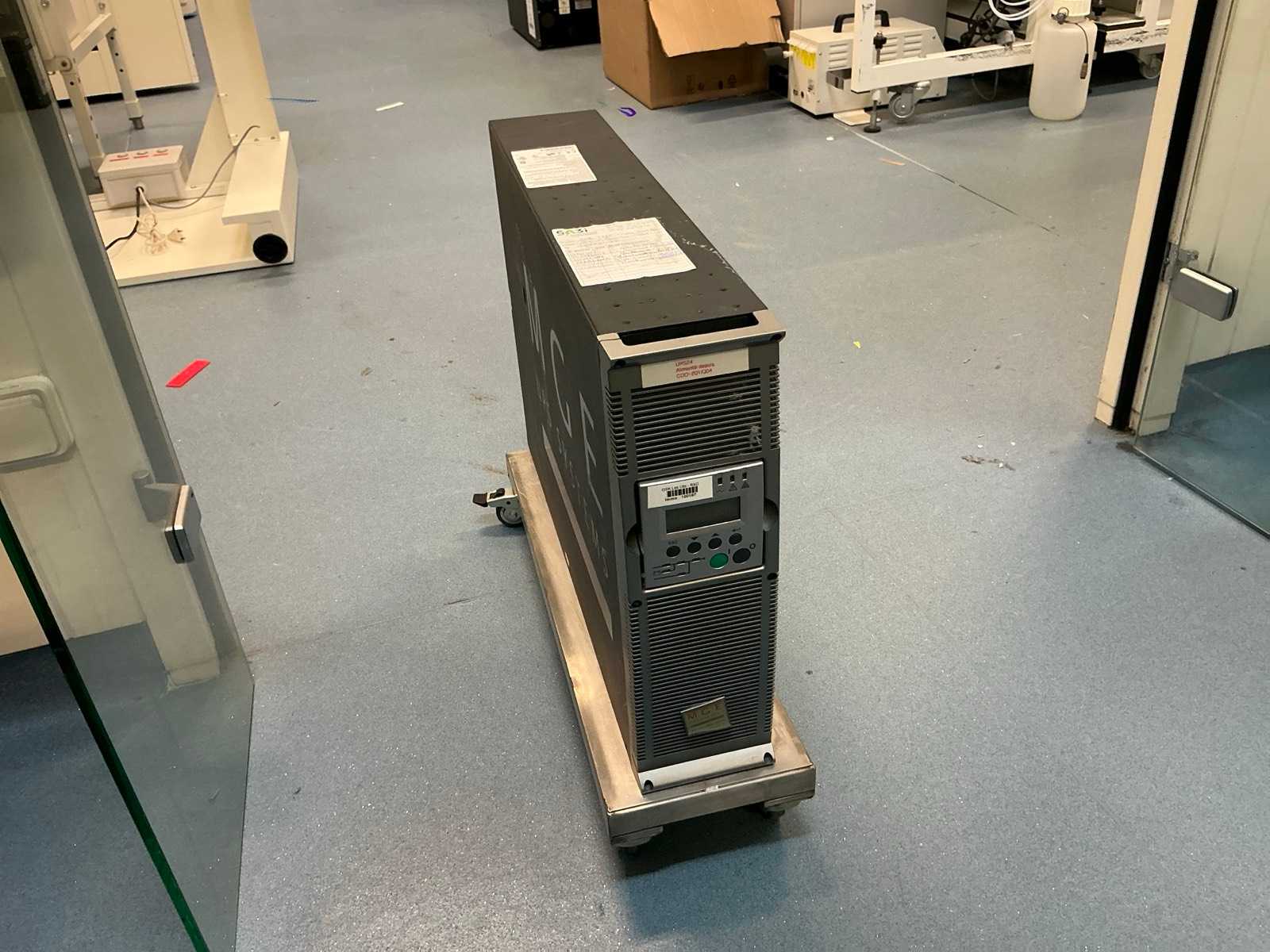

2 x Used ENI RF generators LPG 6A & ACG-10 Manufacturer: ENI Auction-ID: A1-48529-292
usava
