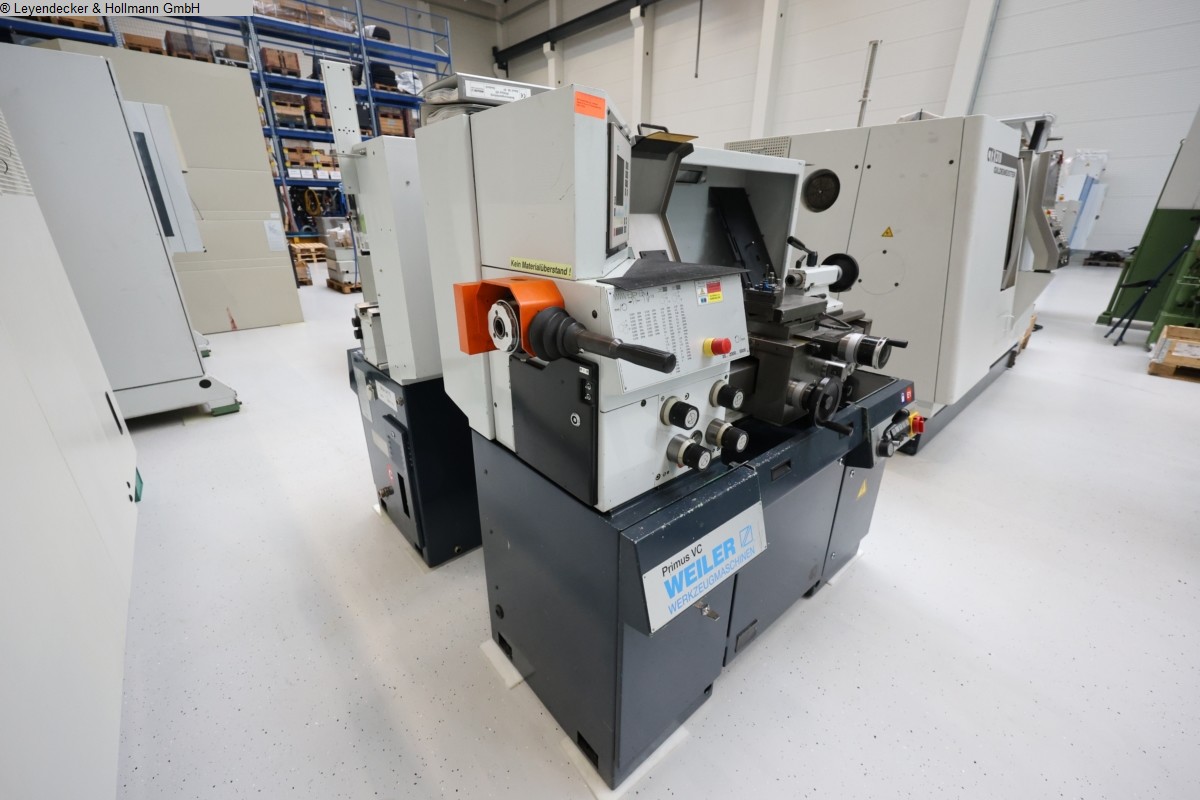

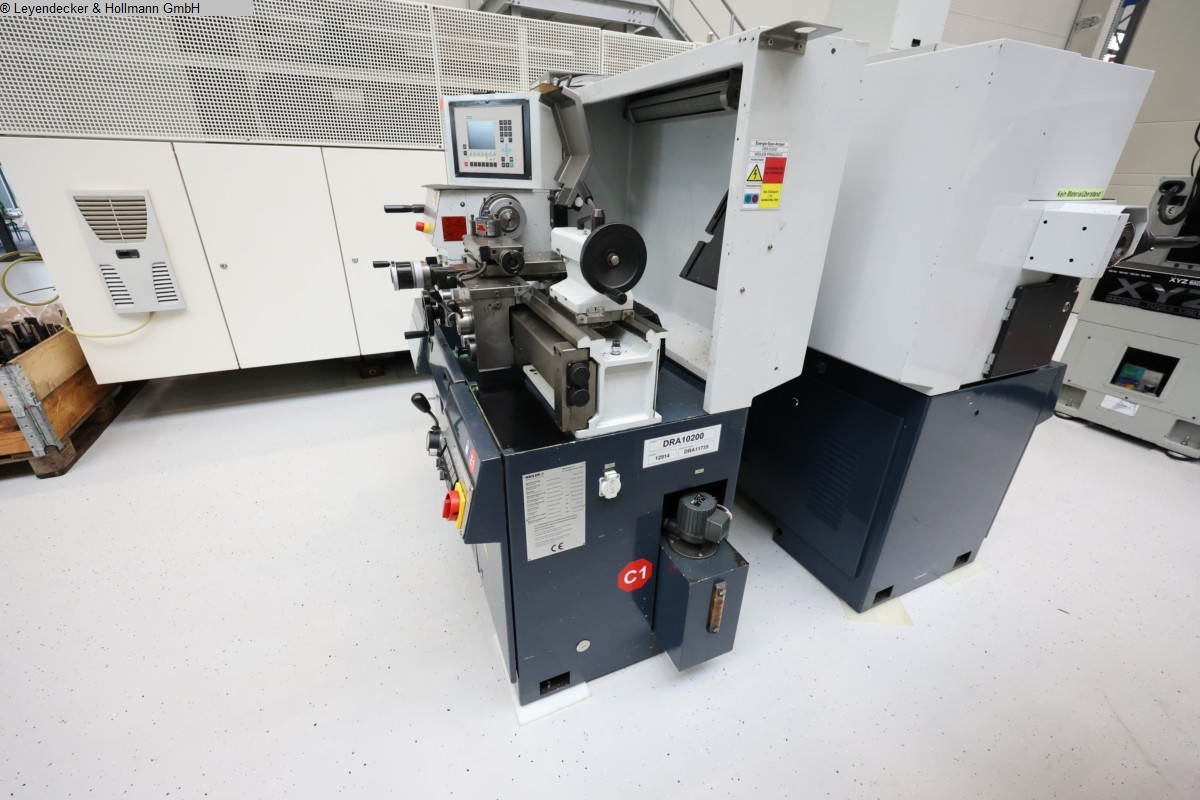

WEILER Primus VC
máquinas para trabalhar metal / tornos / Tornos ferramenteiros de motores e de fuso de avanço
turning diameter over bed: 280 mmturning dia. over face-slide: 150 mmcentre height: 140 mmturning length: 500 mmmain drive stepless adjustable: 0 - 6.000 U/minspindle speed: 30 - 5.000 U/minmax. workpiece weight between centers: 100 kgquill stroke: 85 mmtotal power requirement: 4 kWweight of the ...
Fabricante: WEILER
Modelo:Primus VC
Número do item: 170331462
Quantidade: 1
Data: 16.10.2026
Ano de fabricação: 2000
Localização: Hilden
Preço:
Máquina em estoque:Sim
Seller-item-No.:1083-03498
turning diameter over bed: 280 mm
turning dia. over face-slide: 150 mm
centre height: 140 mm
turning length: 500 mm
main drive stepless adjustable: 0 - 6.000 U/min
spindle speed: 30 - 5.000 U/min
max. workpiece weight between centers: 100 kg
quill stroke: 85 mm
total power requirement: 4 kW
weight of the machine ca.: 800 kg
dimensions of the machine ca.: 1430 x 950 x 1550 mm
Bed Slide (Z-Axis):
- Guide length of the bed slide: 350 mm
- Bed width: 205 mm
- Slide travel: 500 mm
- Max. feed force: 3500 N
Flat slide (X-axis):
- Slide travel: 150 mm
- Slide width: 140 mm
- Max. feed force: 2500 N
Upper slide (Z-axis):
- Slide travel: 100 mm
- Slide width: 92 mm
- Swivel range of the cross slide: 75 °
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
turning dia. over face-slide: 150 mm
centre height: 140 mm
turning length: 500 mm
main drive stepless adjustable: 0 - 6.000 U/min
spindle speed: 30 - 5.000 U/min
max. workpiece weight between centers: 100 kg
quill stroke: 85 mm
total power requirement: 4 kW
weight of the machine ca.: 800 kg
dimensions of the machine ca.: 1430 x 950 x 1550 mm
Bed Slide (Z-Axis):
- Guide length of the bed slide: 350 mm
- Bed width: 205 mm
- Slide travel: 500 mm
- Max. feed force: 3500 N
Flat slide (X-axis):
- Slide travel: 150 mm
- Slide width: 140 mm
- Max. feed force: 2500 N
Upper slide (Z-axis):
- Slide travel: 100 mm
- Slide width: 92 mm
- Swivel range of the cross slide: 75 °
The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
