6 SCHRADER máquina utilizada para venda

Tanque vertical feito de aço inozidável com uma capacidade aproximada de 220 litros. Fundo plano superior com tampa amovível e fechos manuais. Na tampa há a boca de um homem com tampa dobrável manual, tubuladura com fio do tipo NW e tubuladura com fio interno. Fundo plano inclinado com flange para descarga. Montado em 3 pernas. Características gerais: Criador RIO SCHRADER Material Aço inoxidável Tubulações do fundo superior: Thread NW diam exterior 65 mm - diam interno 38 mm Junção de fio interno 30 mm Tubulações inferiores: Flange de descarga: diam exterior de 97 mm - diam interno de 38 mm Especificações: Volume 220 l aprox. Tipo de fundo Declive Envelope 3 pernas Tubulaturas do fundo superior x2 Tubulaturas inferiores x1 Boca do homem 300 mm Corpo de diâmetro exterior 600 mm Altura do corpo 850 mm

Schrader lid applicator, plastic belt, belt width: 80 mm, total dimensions: 4300 mm x 1400 mm x 2680 mm.

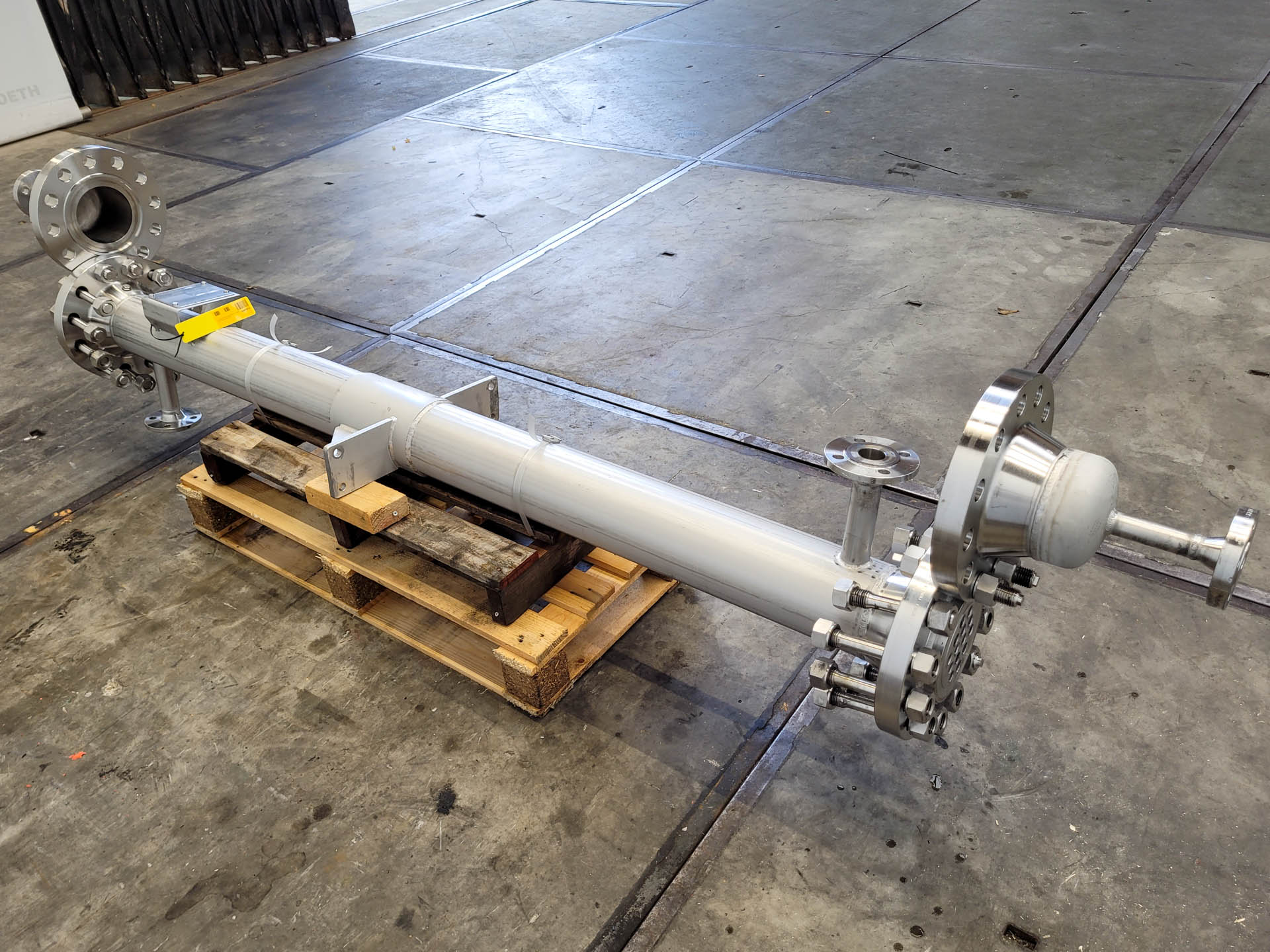

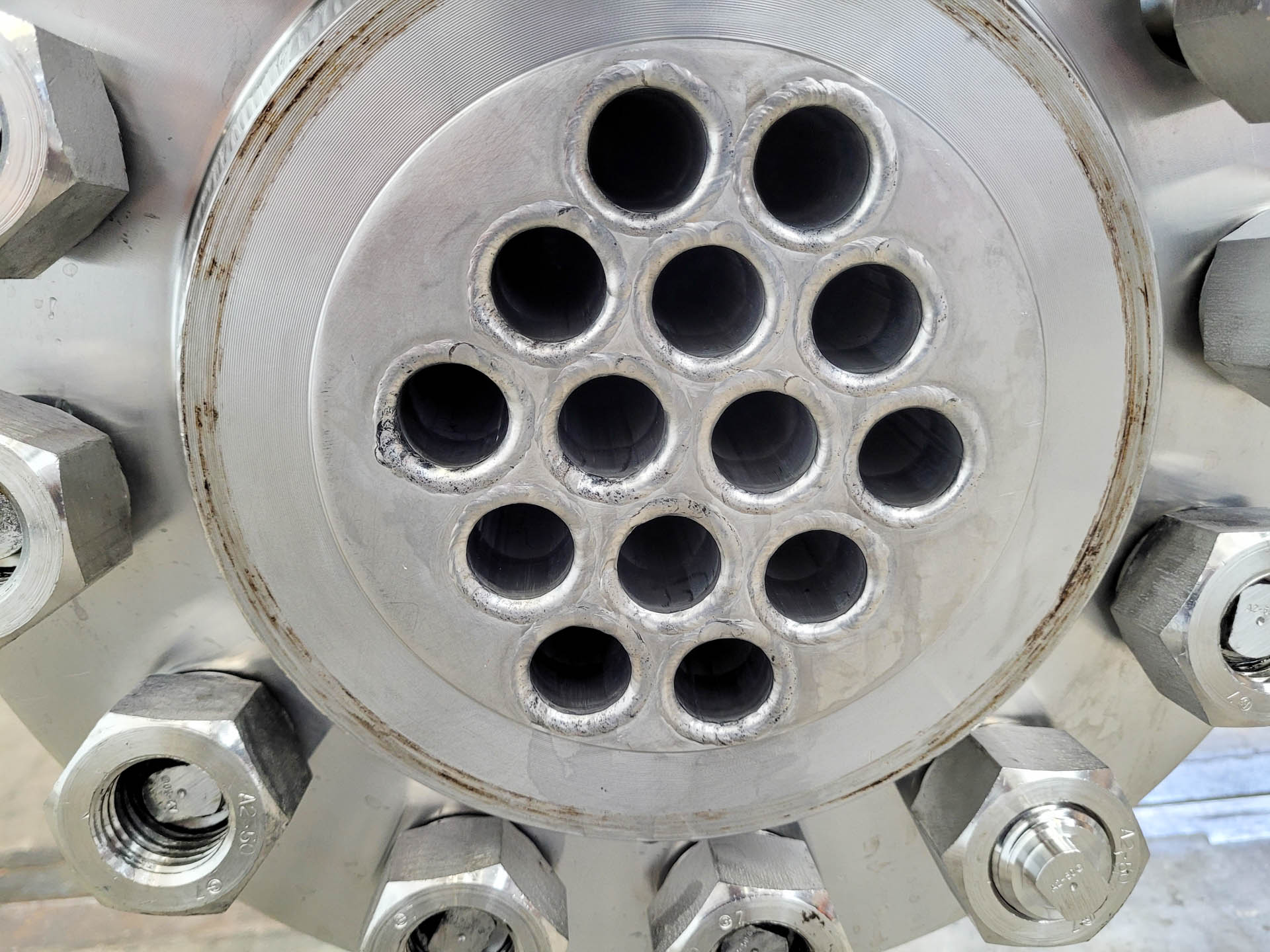

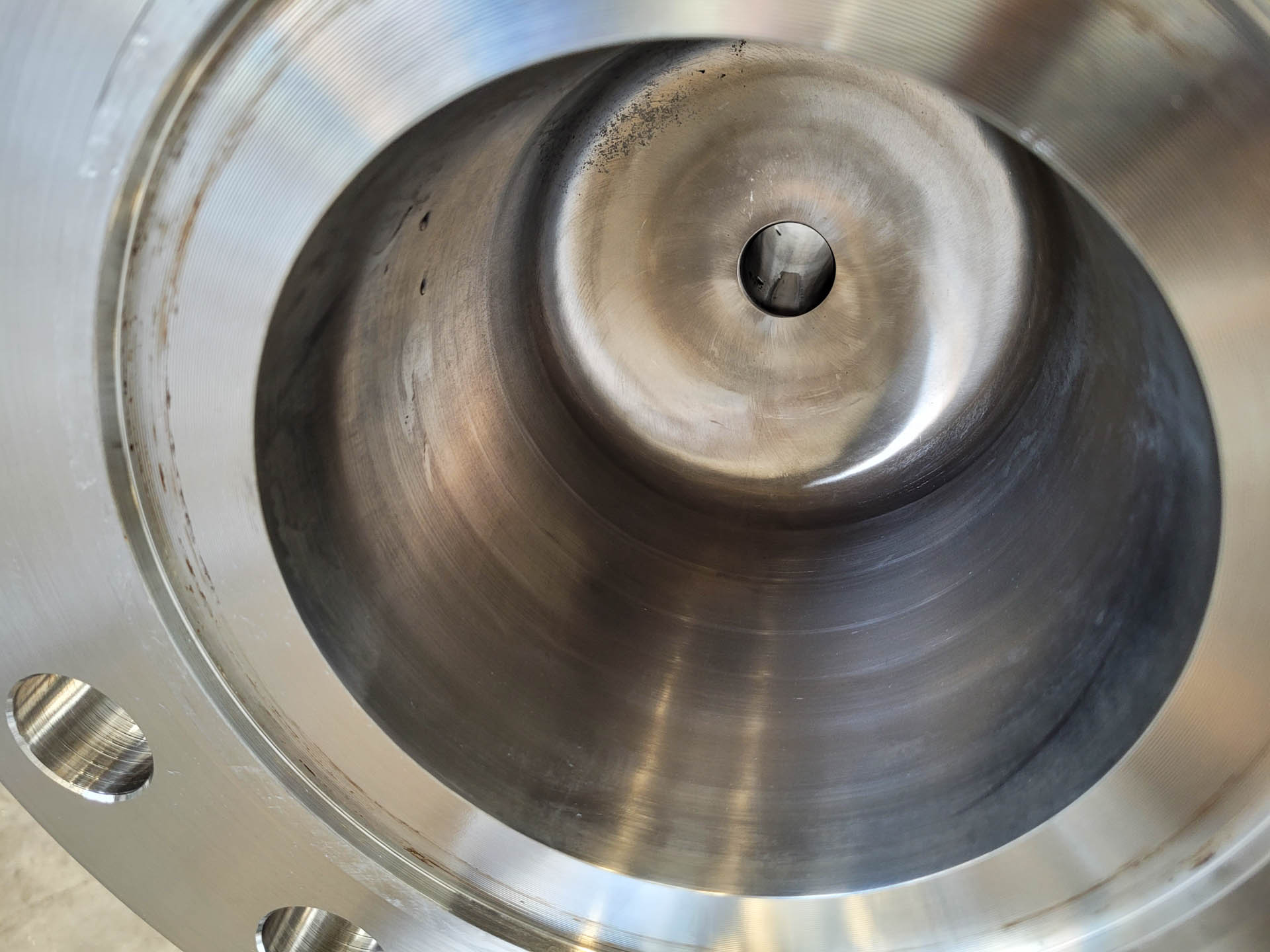

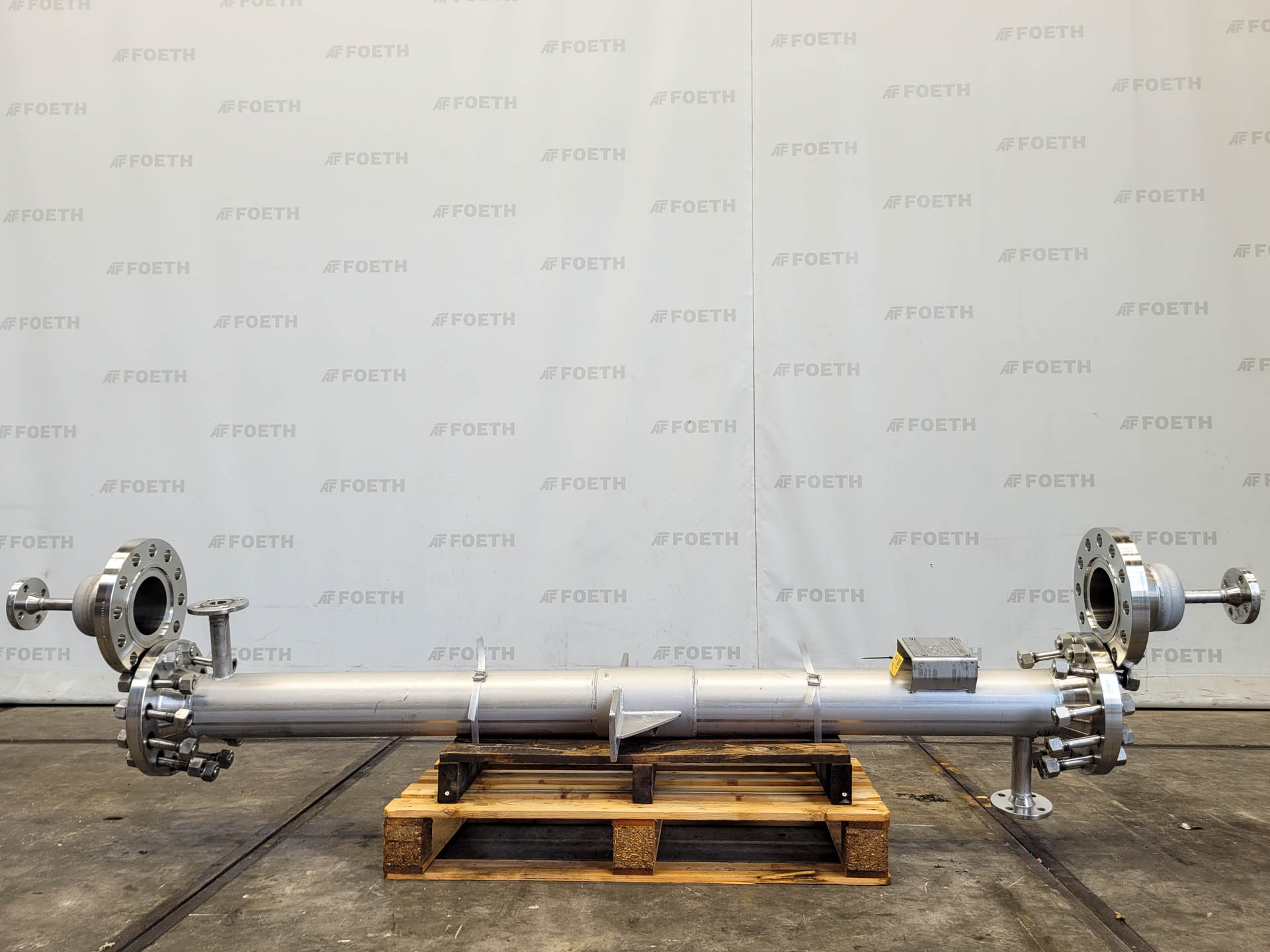

General SKU338T911 MakeSchrader apparatebau GMBH LocationBarneveld Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell10 Bar Vacuum possible shellcheck Working pressure tubes100 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface2.75 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface2,75 m² Tube capacity24 Ltr. Number of tubes:14 Tube diameter25 mm Tube length2500 mm Wall thickness tubes1,6 mm Max. temperature140 °C Shell capacity34 Ltr. Shell diameter218 mm Shell length2500 mm Wall thickness shell4 mm Max. temperature140 °C Shell connectionsDN 40 (2x), R3/8: Cover connectionsDN 25 (2x) MaterialStainless steel 1.4571 (316Ti) With jacketcheck General No.2180 Year of construction1996 Floorspace0,5x0,5 m  ...

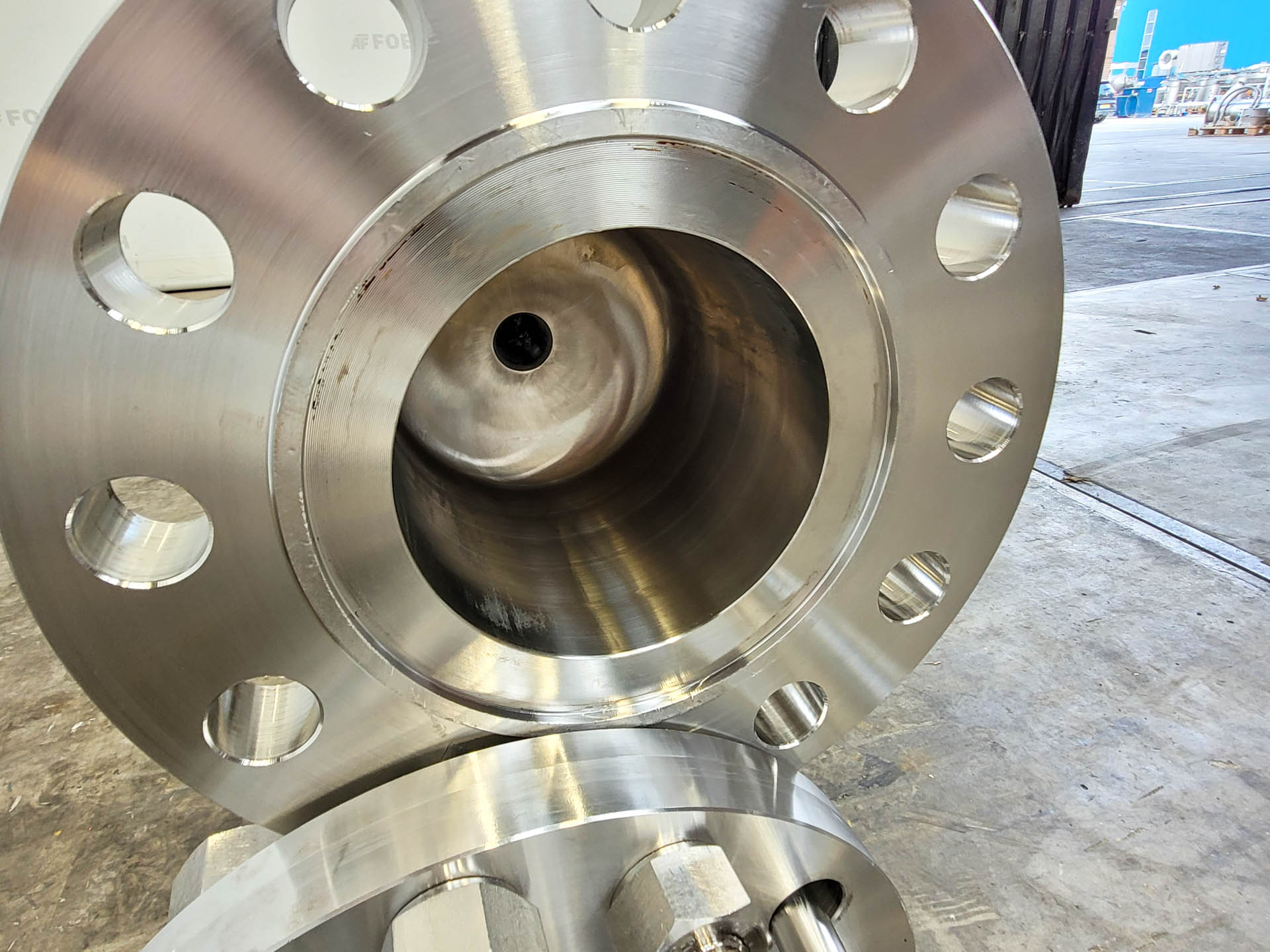

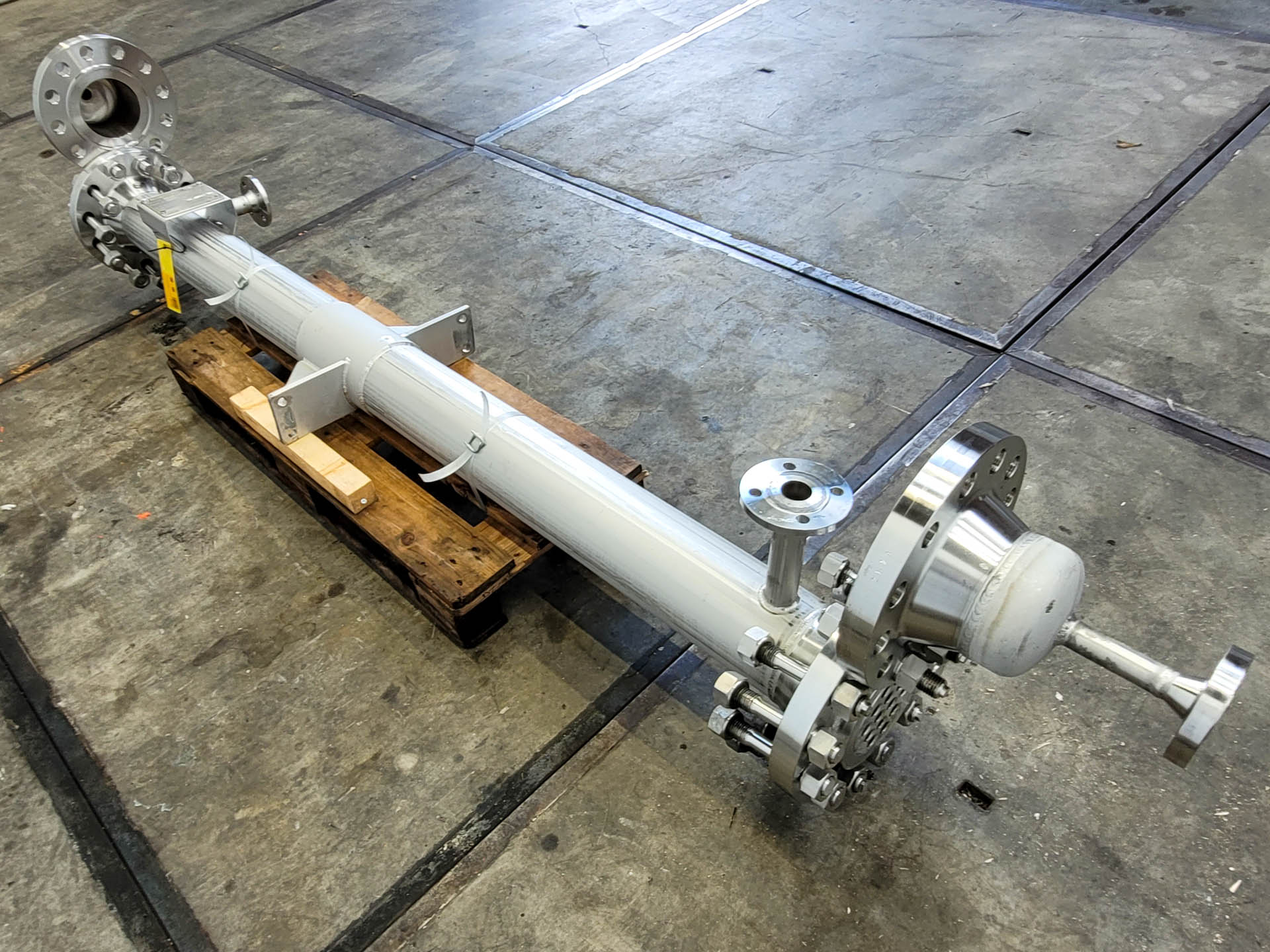

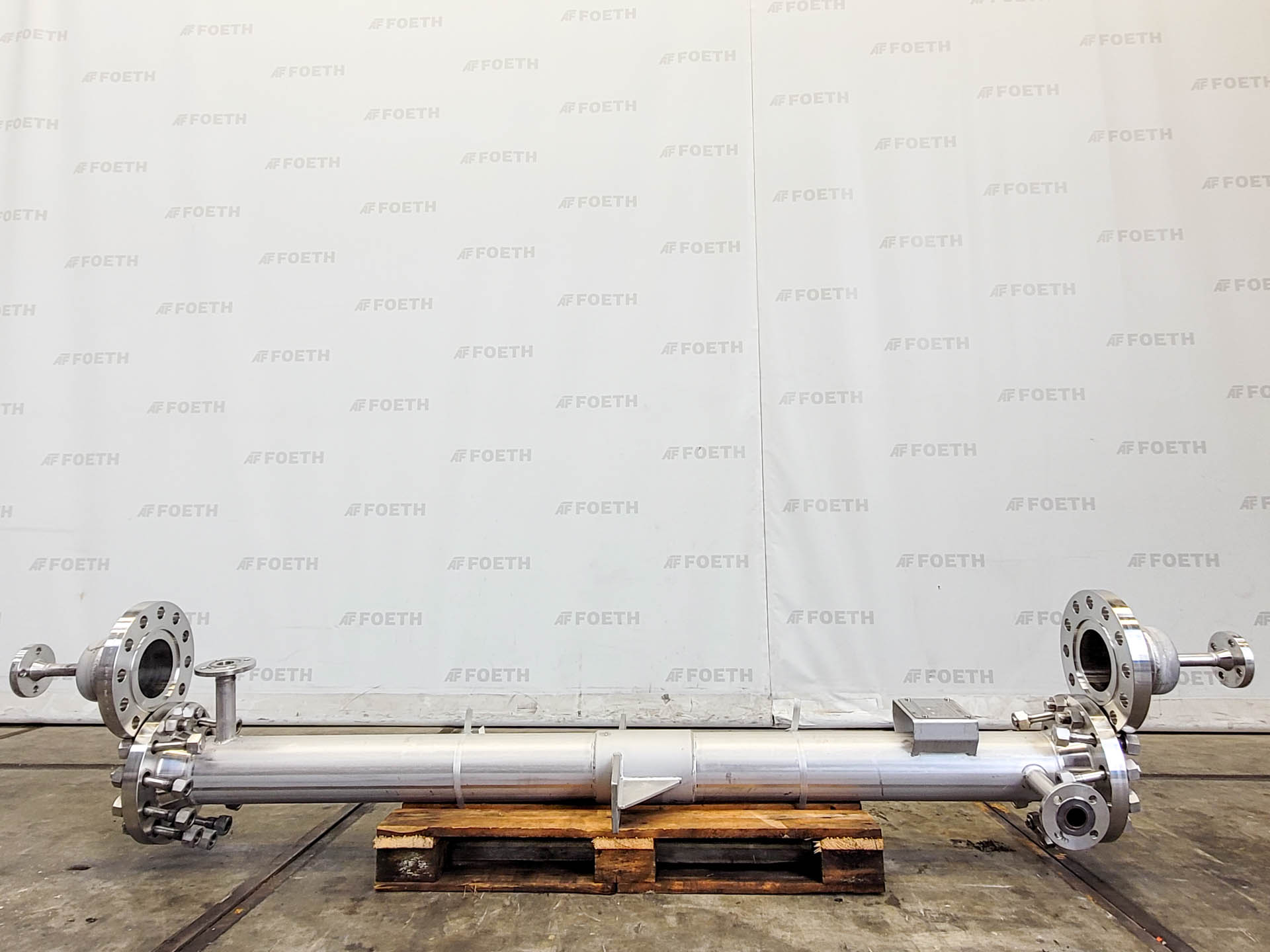

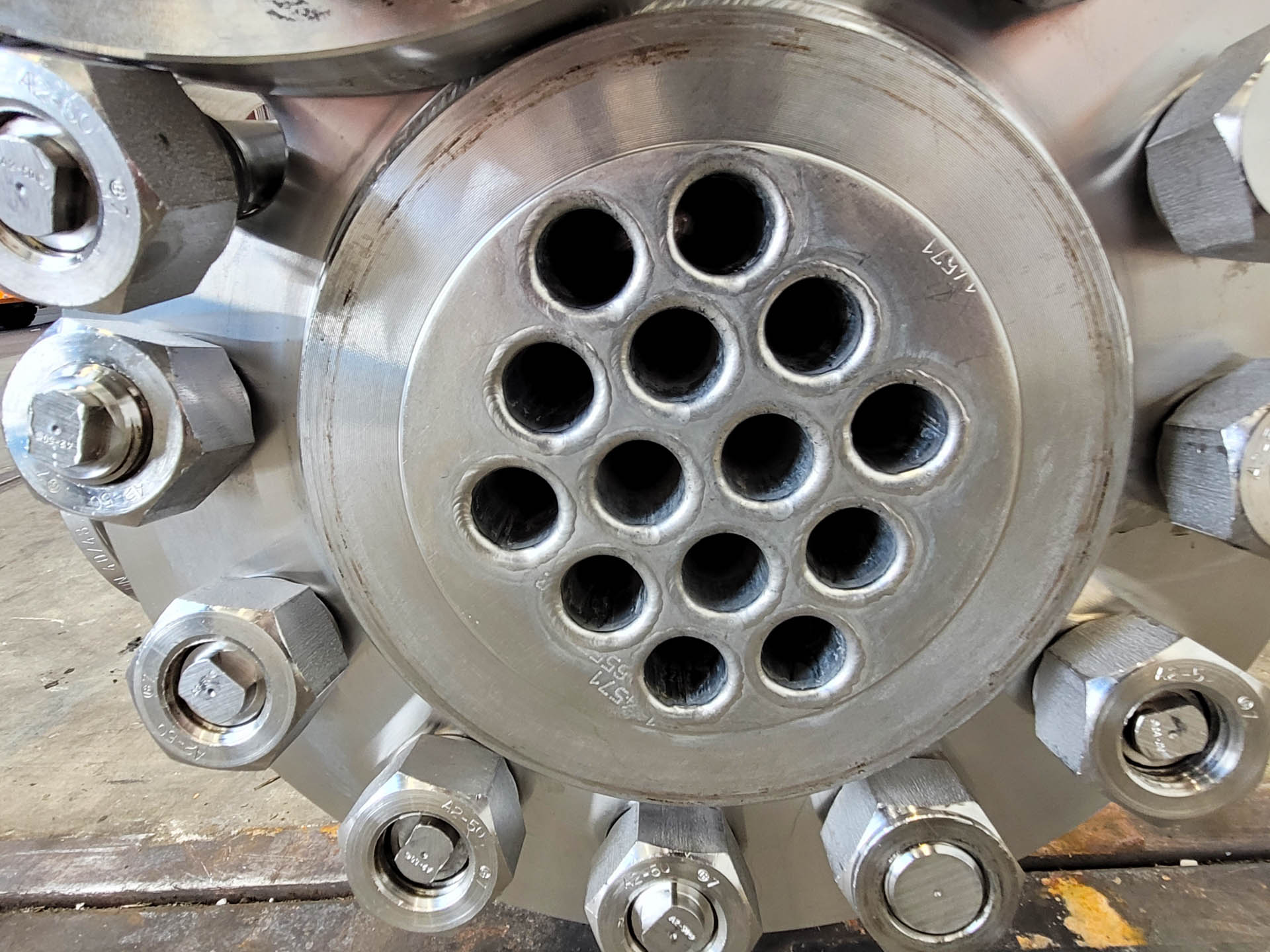

General SKU338T909 MakeSchrader apparatebau GMBH LocationBarneveld TypeW 513 Pressure Vacuum possiblecheck Working pressure shell10 Bar Vacuum possible shellcheck Working pressure tubes100 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface2.75 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Notified bodyTUV Heating surface2,75 m² Tube capacity24 Ltr. Number of tubes:14 Tube diameter25 mm Tube length2500 mm Wall thickness tubes1,6 mm Max. temperature140 °C Shell capacity34 Ltr. Shell diameter168 mm Shell length2500 mm Wall thickness shell4 mm Max. temperature140 °C Shell connectionsDN 40 (2x) Cover connectionsDN 25 (2x) MaterialStainless steel With jacketcheck General No.2179 Year of construction1996 Floorspace0,5x0,5 m Total height3,3 m We ...

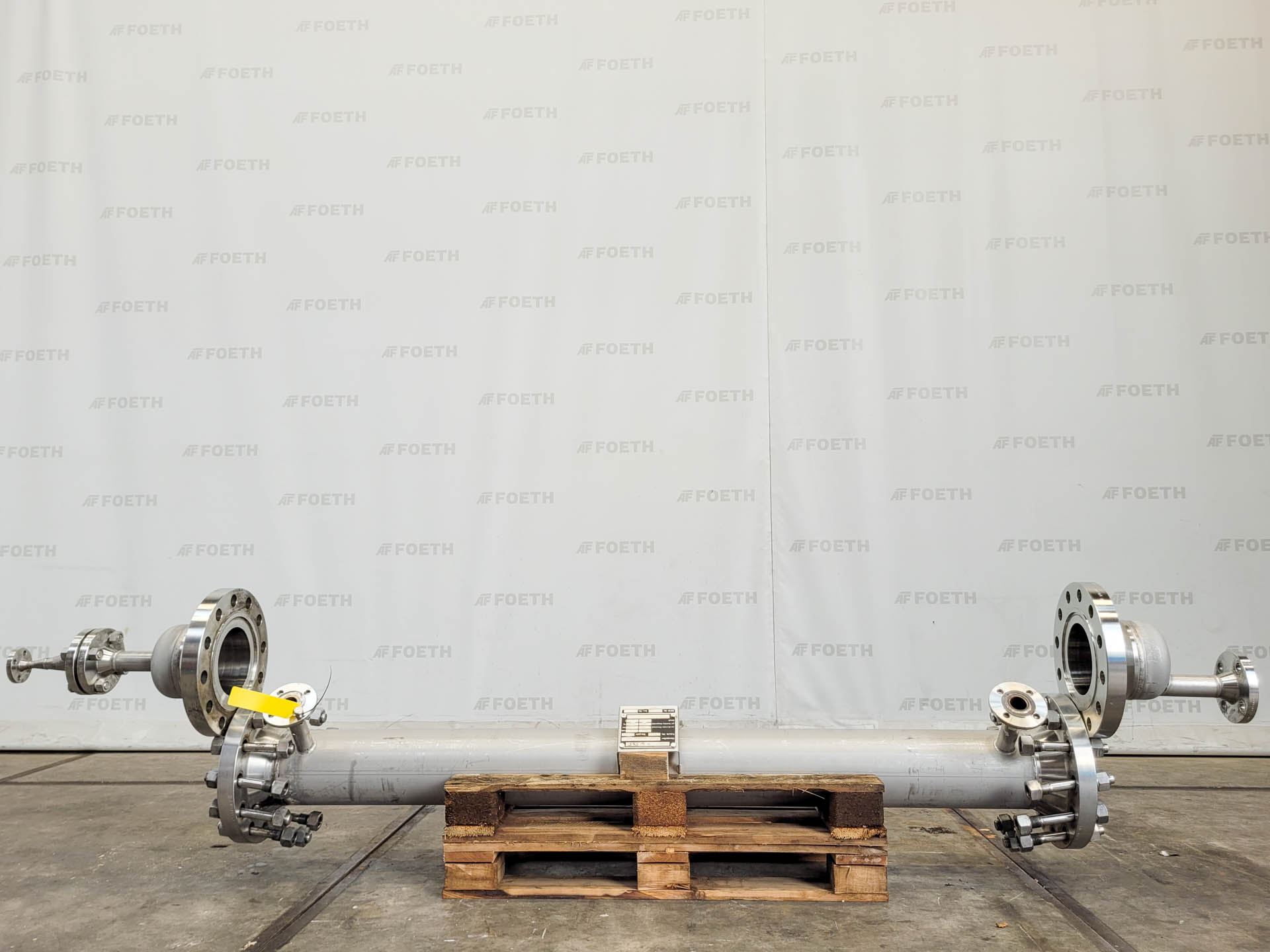

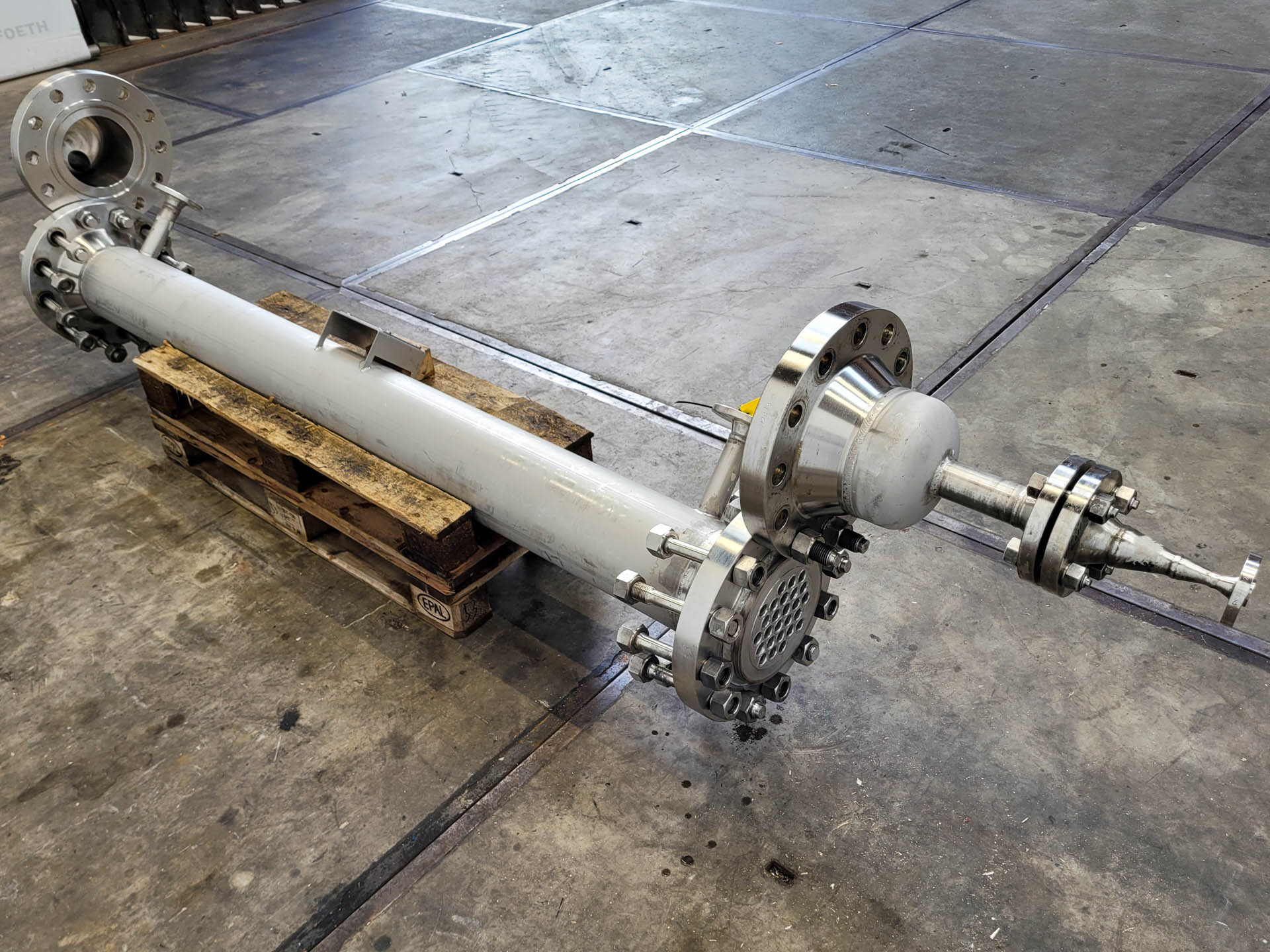

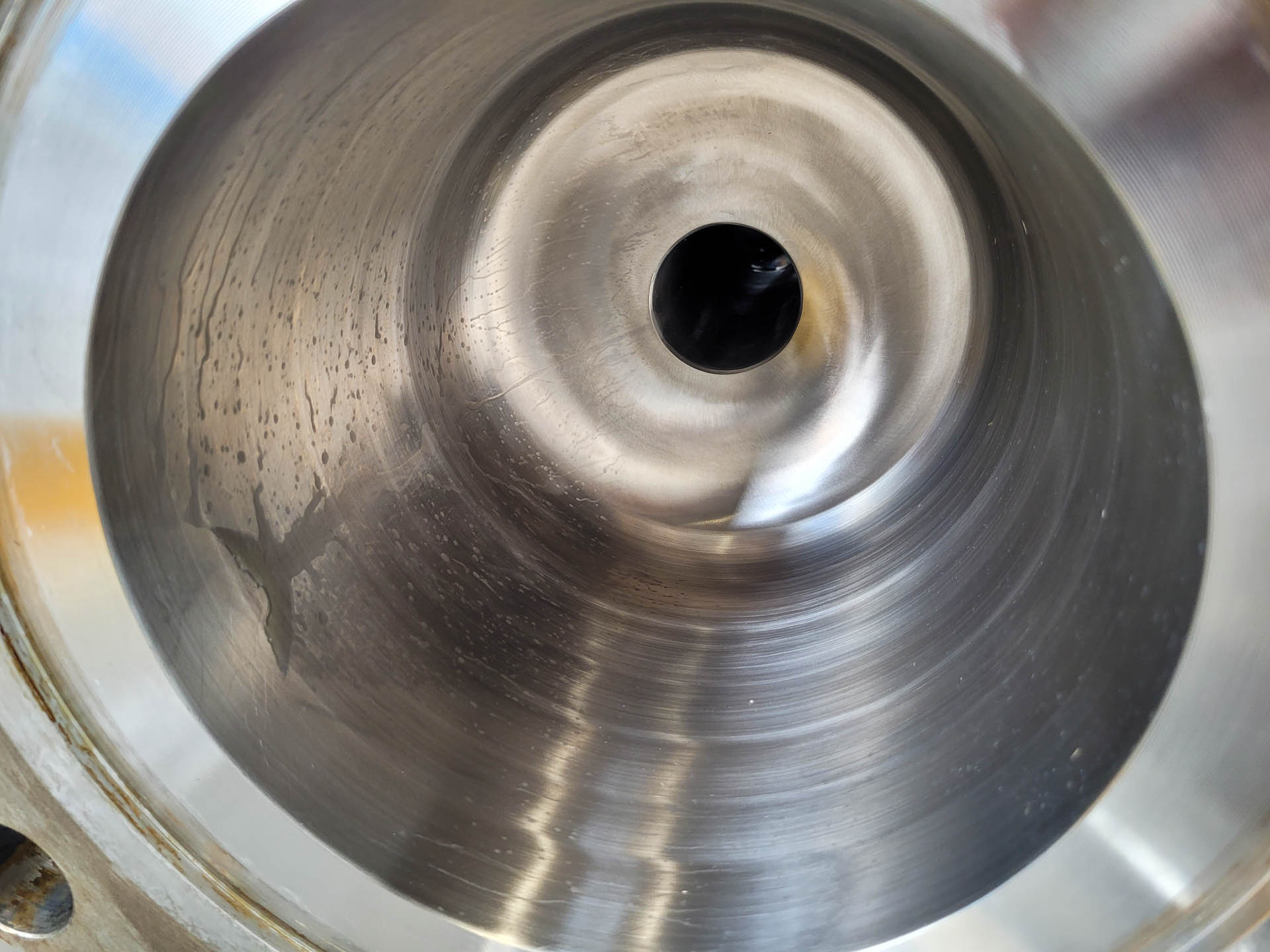

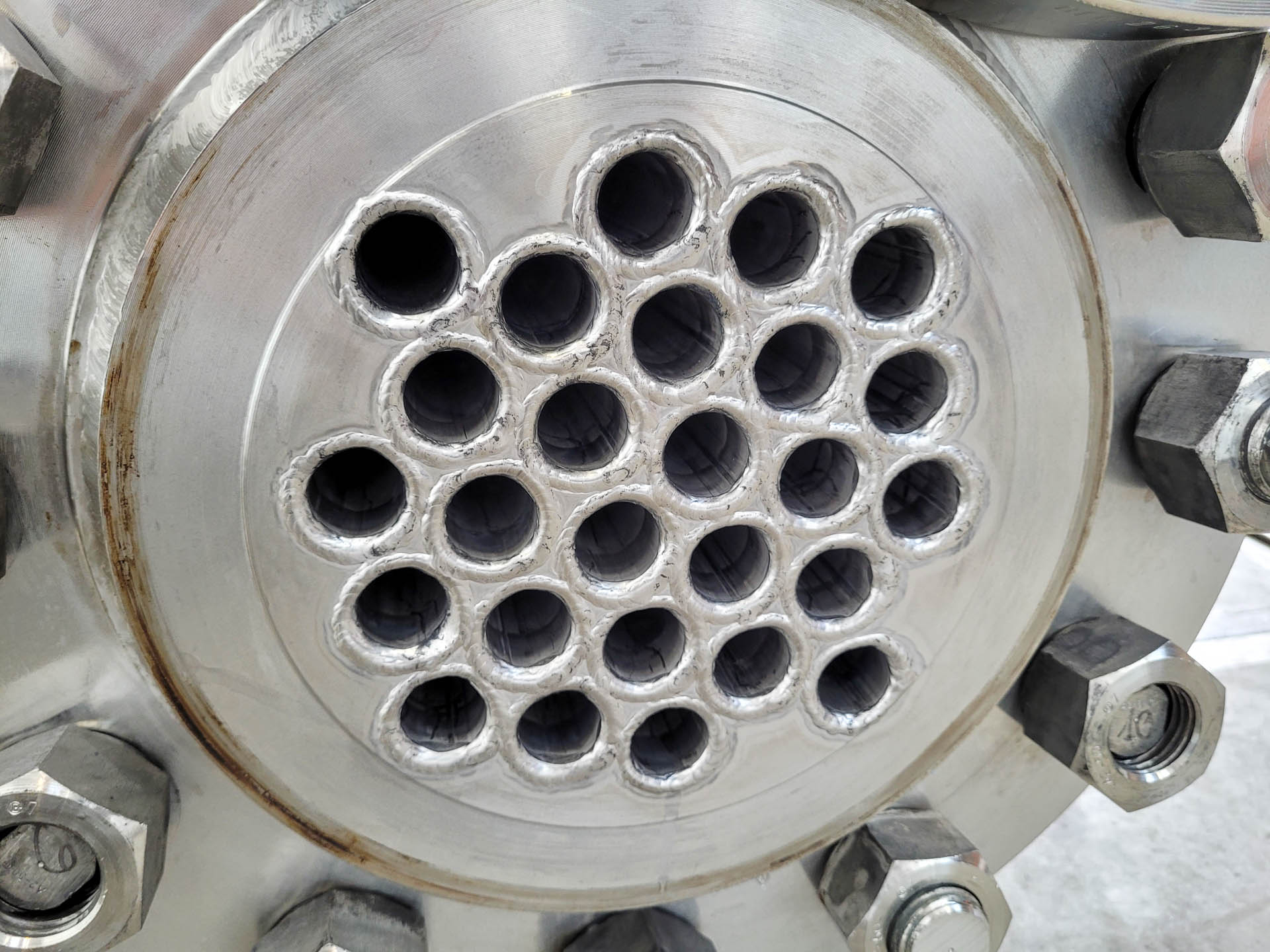

General SKU338T919 LocationBarneveld MakeSchrader Pressure Working pressure100 Bar Vacuum possiblecheck Working pressure vapour evaporator13 Bar Main Features Surface5 m2 Specified Features - Shell and tube heat exchanger Falling film evaporatorcheck Capacity46 Ltr. Heating surface5 m² Tube capacity46 Ltr. Number of tubes:26 Tube diameter25 mm Tube length2500 mm Shell capacity56 Ltr. Max. temperature140 °C Capacity50 kW With jacketcheck Heat exchangers MaterialStainless steel 1.4571 (316Ti) General Type3,2x Mach.No.2181 Year of construction1996Shell and tube heat exchangersOils & fatConsumer wastePaints & coatingsPowdered foodsGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalAgrochemicalsRubberBiotechnologySpicesPlastic & polymersCatalysts & fillersFeed additivesPaper & otherSolventsDetergent & surf.Other pharmaceuticsCosmeticsO ...

General SKU297T690 MakeSchrader No.1082 Year of construction1989 Mounted on legscheck Pressure Working pressure jacket6 Bar Vacuum possible jacketcheck Main Features MaterialStainless steel Volume215 Ltr. Motor1.5 KW Specified Features - Stirring vessel With paddle stirrerEKATO agitator type EM040 ( without mechanical seal) With jacketcheck Stirring vessels Closed stirring vesselcheck Capacity215 Ltr. Vessel sizesDia. 600x700 mm Dished bottomcheck Dished top sidecheck OutletDN 50 With jacket26 Ltr. Max. temperature200 °C With paddle stirrerEKATO agitator type EM040 ( without mechanical seal) Counter rotating stirrercheck Motor1,5 kW 220/380 Volt Speed mixing shaft80-400 rpm MaterialStainless steel 1.4571 (316Ti) General LocationBarneveld Floorspace0,9x0,9 m Total height2,5 m Weight500 kgStirring vesselsSchraderStirring vessels > Stirring vesselsBrand > ...
