64 SCHUETTE máquina utilizada para venda

Número de eixos 8 Controlador Siemens 810D Diâmetro do manco: 130 mm Diâmetro máximo da peça: 135 mm Curso total: 125 mm Comprimento de trabalho: 100 mm

Article: profile turning trip dog Manufacturer: Schütte Many different sizes for Schütte profile turning attachment 68AE Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

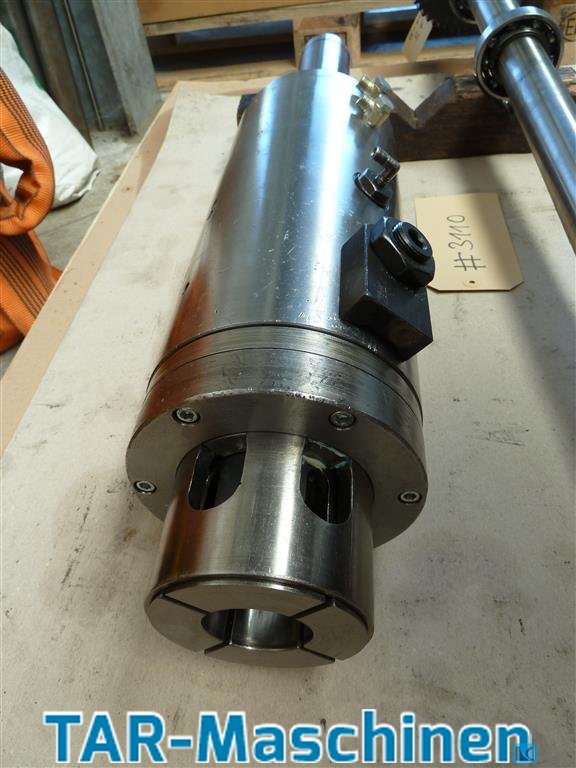

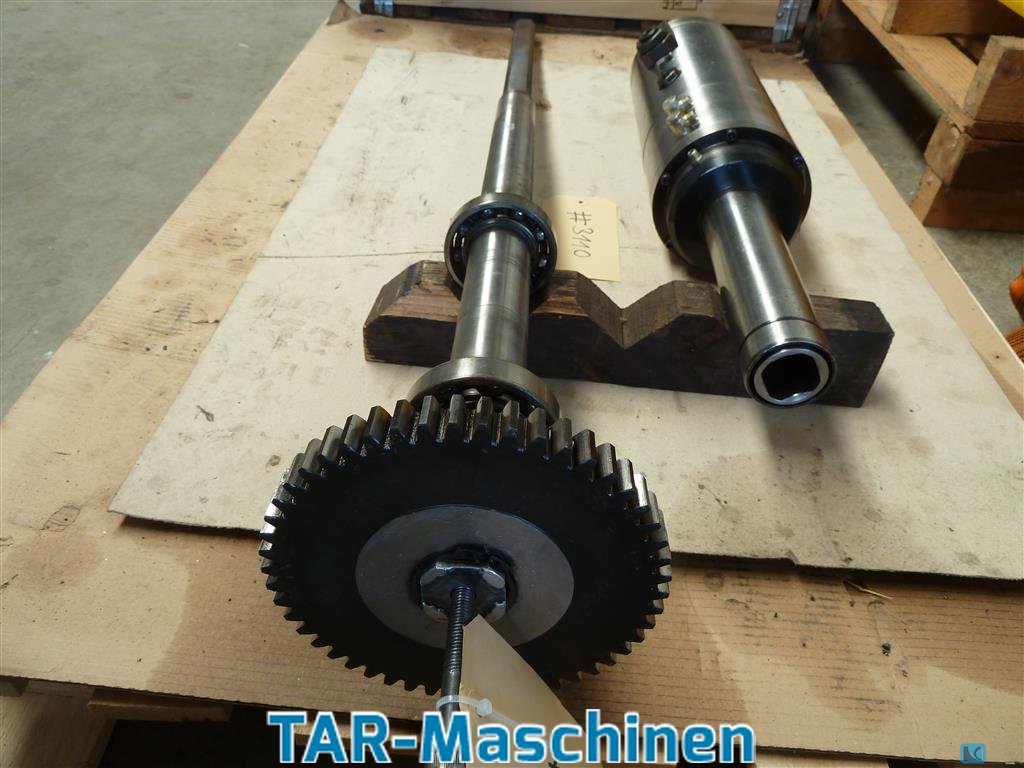

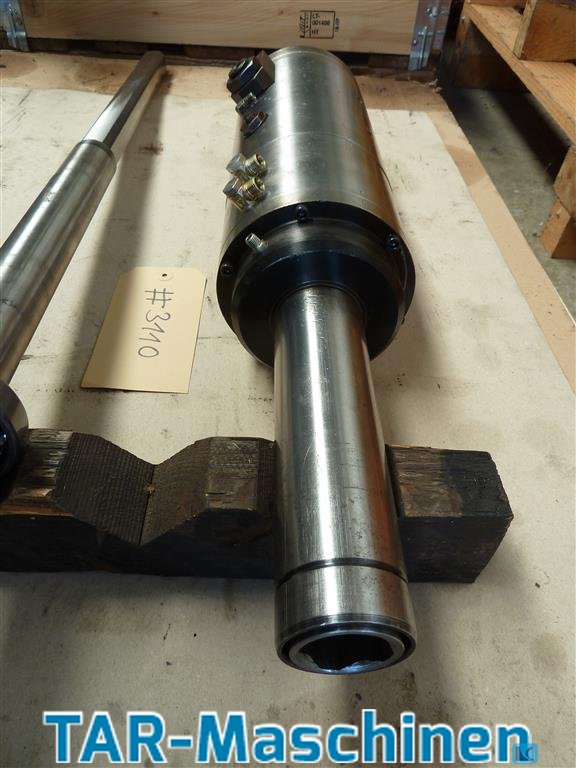

pickoff with shaft for Schutte multi spindle automatic lathe SF67, used pickoff C26GF pickoff shaft C26GF9S1 gear WG-67S Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: draw bar Manufacturer: Schütte For multi spindle automatic lathes of different sizes Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

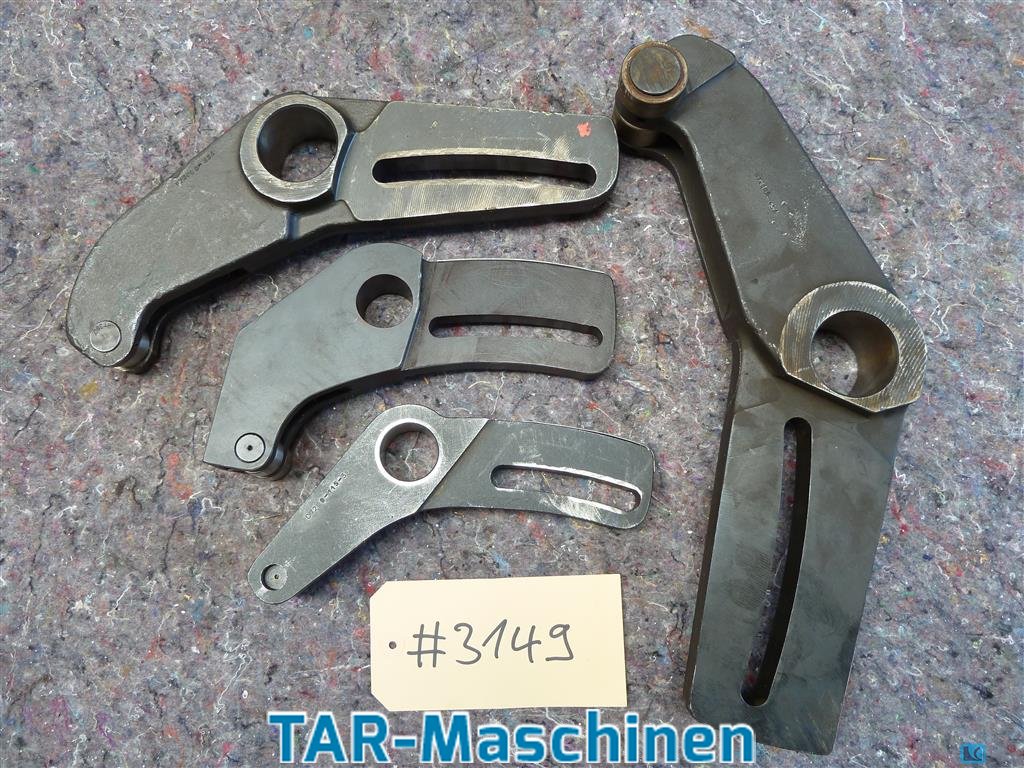

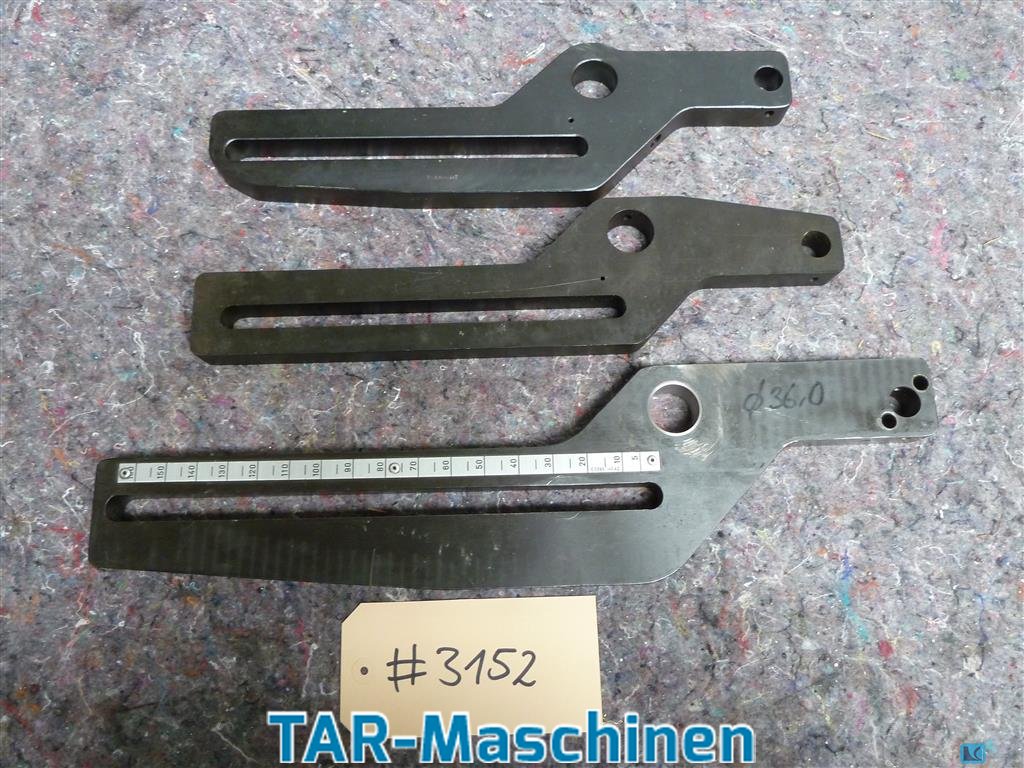

Article: quadrant lever Manufacturer: Schütte For multi spindle automatic lathes of different sizes Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: feed lever Manufacturer: Schütte For multi spindle automatic lathes of different sizes Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

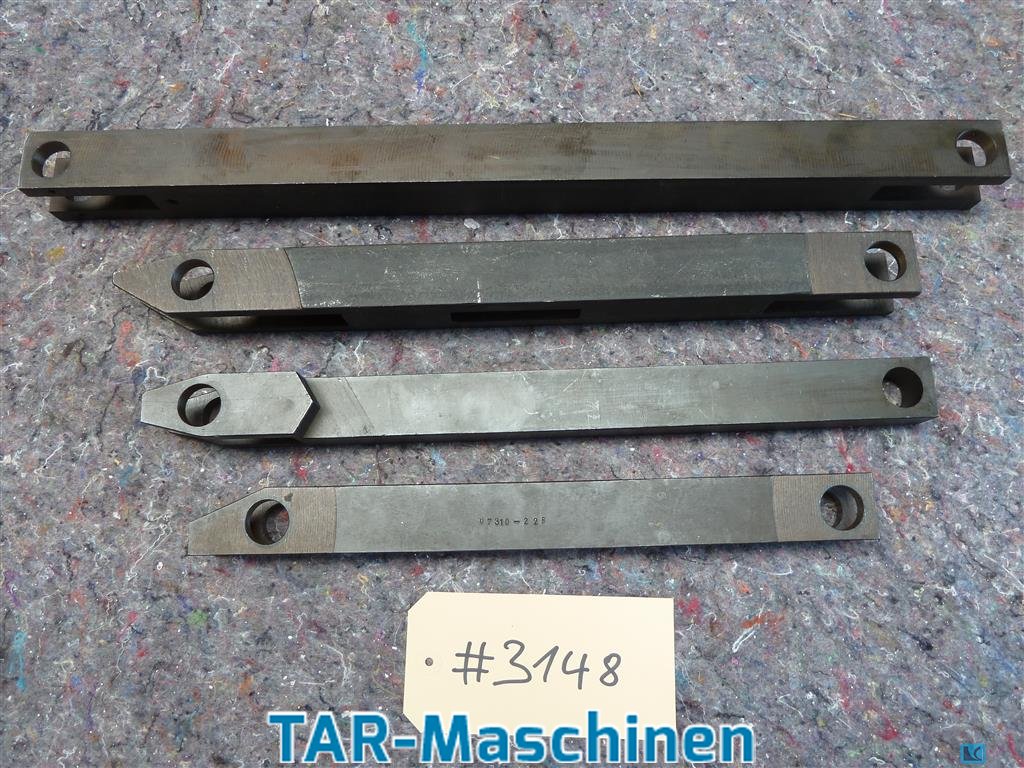

Article: push rod Manufacturer: Schütte For multi spindle automatic lathes of different sizes Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

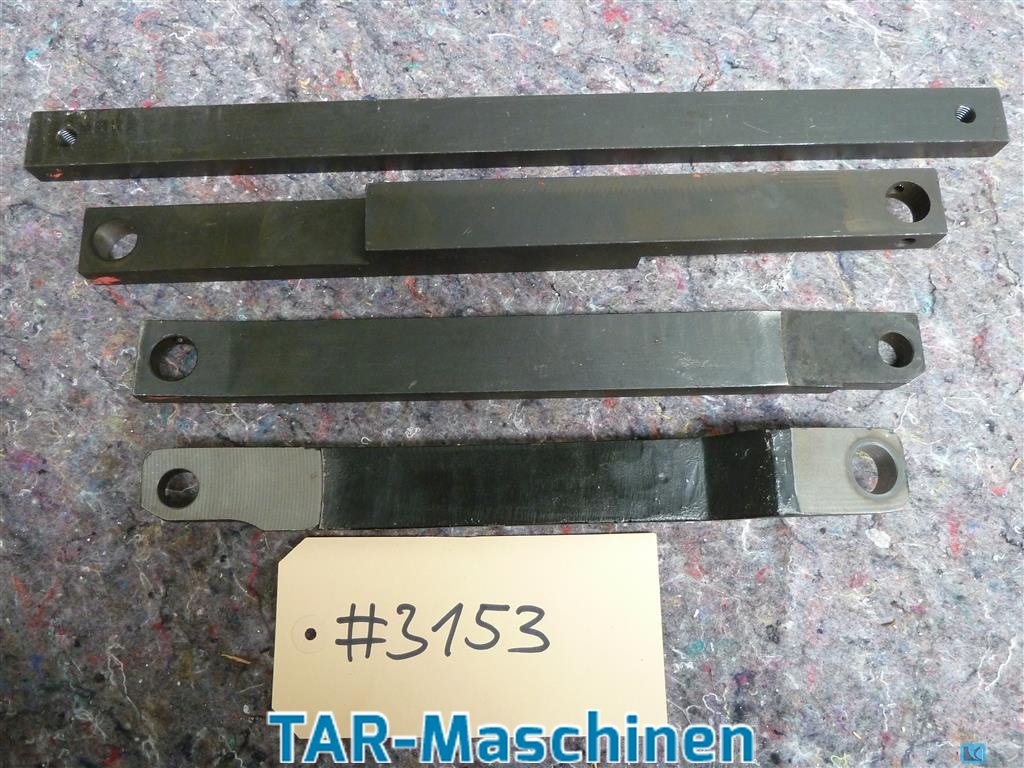

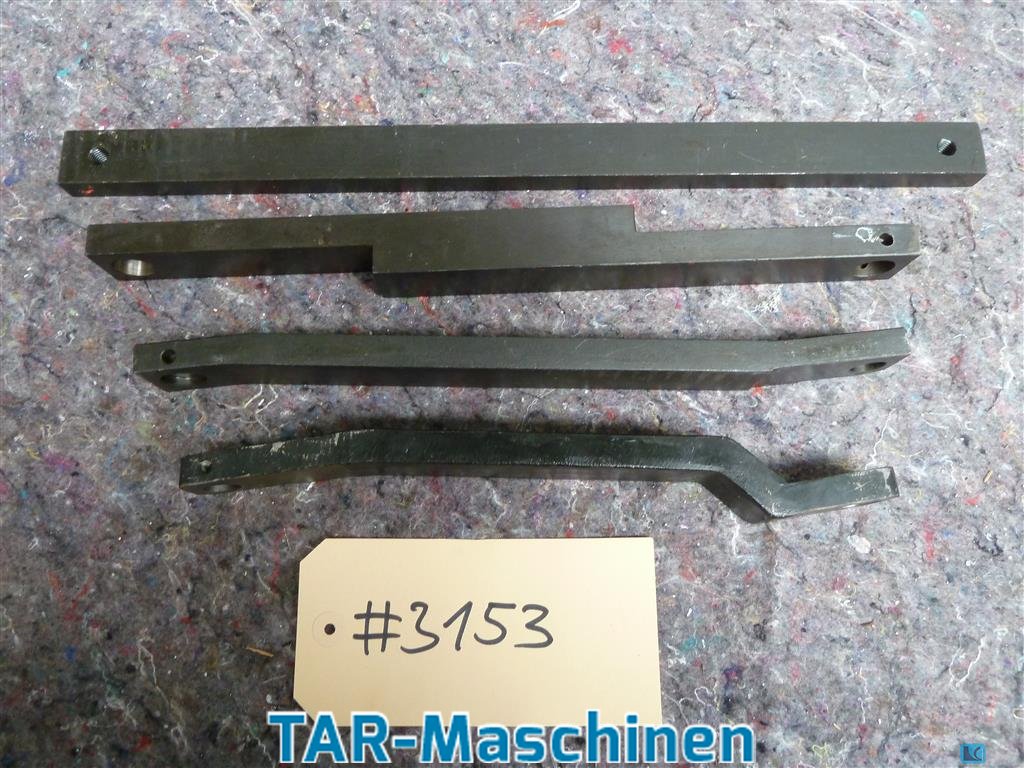

Article: push lever Manufacturer: Schütte For multi spindle automatic lathes of different sizes Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

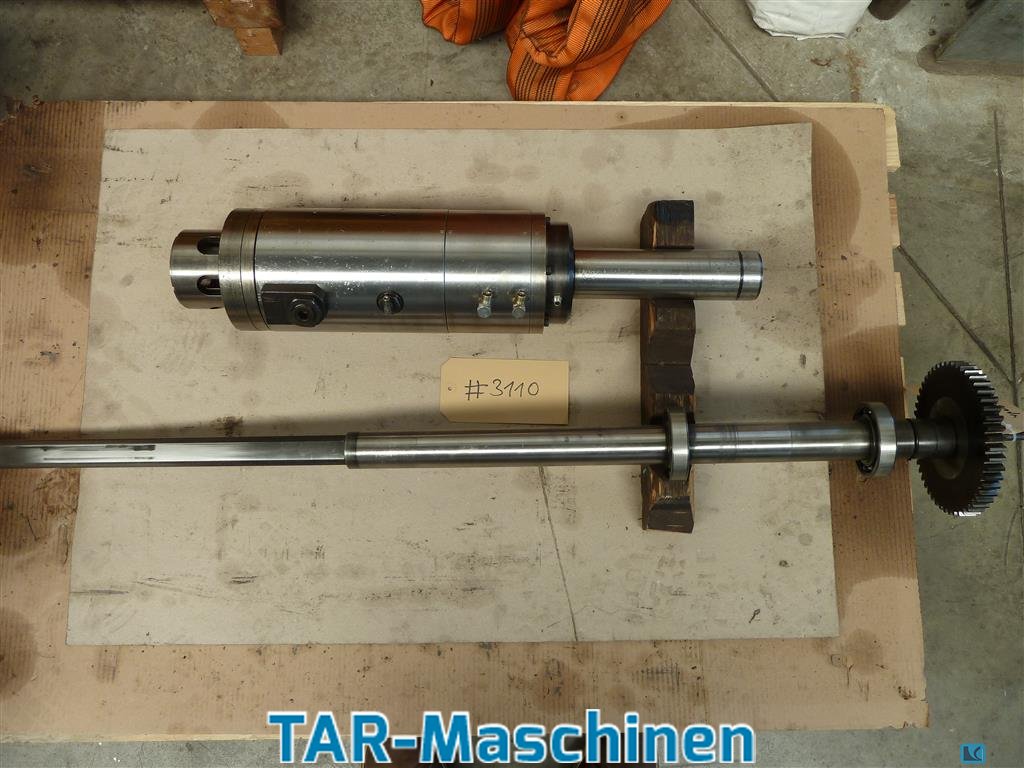

Article: pickoff with shaft Manufacturer: Schütte pickoff with shaft for Schutte multi spindle automatic lathe SF67 pickoff C26GF pickoff shaft C26GF9S1 gear WG-67S holder B73GF1S1 Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8

number of spindles:6 spindle passage:18 mm turning length:63/50 mm weight of the machine ca.:4,5 t spindle drive motor:11 kW

number of spindles:6 spindle passage:18 mm turning length:63/50 mm weight of the machine ca.:8,6 t spindle drive motor:11 kW

number of spindles: 8 spindle passage: 36 mm turning length: 250 mm spindle bearing diameter: 358,2 mm bar material dia.: 36 mm bar length: 4000 mm longitudinal slide -travel: 145 / 250 mm cross slide - travel: 80 mm spindle turning speed - stepless: 560 - 4000 U/min spindle motor: 28 kW Total weight, approx.: 8500 kg dimensions of the machine ca.: 5850 x 1900 x 2580 mmxmmxmm - Beckhoff CNC control system (Win2000) - IEMCA 4m bar feeder (PRA52/P-Typ42) + Hydraulic catch chute + Mechanical end-piece chute with container + Parts conveyor belt + 3–4 bar oil connection + 100 bar high-pressure connection + 1 HYDAC hydraulic oil cooler + 1 oil cooler for cutting oil + 1 chip conveyor + 1 magnetic roller for sludge removal + 1 new air conditioning unit for control cabinet / year of manufacture 2025 + Feed block: new brass strips fitted in 2023, making the machine as good as new + Spindle coup ...

CNC Univ. Tool Grinding Machine SCHÜTTE Type BU 400 CNC 4Machine - Defect - without ControlMachine not ready for operation - electric without function - without CNC controlFabr. No: 03-02 Year of manufacture 19904 axes (X, Y, Z and R)Table clamping surface 1300 x 250 mmCenter width 700 mmCenter height 155 mmGrinding length (X-axis) max. 400 mmGrinding width (Y-axis) max. 260 mmGrinding spindle speed max. 6000 rpm. Grinding spindle drive 3 kWNet connection 380 Volt, 50 Hz, 25 Amp.- CNC control

number of spindles:8 spindle passage:67 mm Cam controlled multi spindle automatic lathe, used 8 main spindles pick up in pos. 8 threading attachment CNC compound slide in pos. 5, also 2. speed in pos. 2 Hydraulic spindle brake in pos. 4 Incl. length measurement, incl. Brankamp cutting force monitoring tooling: could be different like pictures Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:51 mm Article: multi spindle automatic lathe Manufacturer: Schütte Type: AF51 Yob: 1987 eight main spindles max. bar diameter D=51mm control SIEMENS SIMATIC S5 pick up in pos. 7, for rear machining thread cutting drive independent feed in positions 2/3 electronical trip dog control ?Balluff? clear text display Wöhrle coolant pump magnetic cartridge filter oil running incl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type) Painting in light blue and light grey The configuration of tooling will be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:51 mm Schutte SF51 DNT, yob. 1987, our ID #61868 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF51 DNT Yob: 1987 Six-spindle automatic lathe with 6 main spindles max. nominal diameter D=51mm electronic cam control Balluff gripper in position 6 for backworking, sorting chute independent longitudinal feed layer 5 screw chip conveyor Tapping couplings Interface for: Bar feeder IEMCA PRA Bar feeder IEMCA PRA40/33/F Scope of delivery without the blue chip conveyor The tooling will differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 S DNT Yob: 1994 Eight-spindle automatic lathe with 8 main spindles max. nominal diameter D=32mm control: Siemens SIMATIC S7 electronic cam control Balluff gripper in position 8 for backworking CNC cross slide position 6 CNC cross slide position 7 Workpiece belt Coolant cooling Schimpke Chip conveyor with magnetic separator Tapping couplings The tooling shown may differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 Dnt Yob: 1993 eight-spindle automatic lathe eight main spindles for bars up to D=32mm Modernized control: Siemens Sinumerik Motors: renewed modern motors suitable for modernized control system Electronic trip dog control: Balluff CNC cross slide position 5 cross CNC cross slide position 6 cross Preparation for gripper in position 8 (gripper optional) Independent feeds Thread cutting couplings integrated bar loader: Pietro CUCCHI; type: rack type magazine The scope of delivery regarding the tooling equipment could be different like pictures.

number of spindles:9 spindle passage:46 mm Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SC9-46 Yob: 2016 Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindles Main spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 Nm Cross slide units, transverse: 6 units, in positions I to VI, Slide units, longitudinal: 5 units, in positions I to V, Slide units, longitudinal: 5 units, in positions I to V, Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpm Cross slide units, transverse: 2 units, in positions VIII and IX, Control: Siemens SINUMERIK 840SL with double NCU Software: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted, Spindle coupling package ?CP-Expert?, for up to 8 spindle couplings (maximum expansion) Synchronous action package ?Level? 2, incl. cross-mode actio ...

number of spindles:8 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AG20 Yob: 2002 eight-spindle automatic lathe 8 main spindles for bars up to D=20mm control: Siemens 840D 1x polygonal turning/thread milling device (new 2011) 1x polygonal turning/thread milling device for long turning (new 2011) 1x thread cutting/quick drilling spindle (new 2011) 1x pick-up device incl. various pick-up collets 4 cnc-cross slides Double cross slide in position 7 Loading magazine PRA 52/P type 33 (bar length 3m), year 2004 High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004 Tool monitoring Brankamp Air conditioning unit Rittal in the front switch cabinet incl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slides The machine has been run with oil and has processed brass Please, con ...

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SFH130 Yob: 1995 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC Dnt drive loading and disloading in position 6 additional cooling pump with magnetic spark plug filter Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SG18 Yob: 1999 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC loading and disloading in position 6 spindle brake Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF20 S Dnt Yob: 1999 Six-spindle automatic lathe with 6 main spindles max. nominal diameter: D=20mm Spindle drum hirth coupled, CNC cross slide in positions 4, CNC cross slide in positions 5, pick up in position 6, sorting chute, 1x independent feed, thread cutting couplings, workpiece belt, Coolant tank with hinged belt chip conveyor Ruez, Oil/steel operation, PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611, The scope of delivery regarding the tooling equipment could be different like pictures. Interface for: IEMCA PRA bar loading magazine (optional: IEMCA PRA40/31/ built in 1997 rear loader)

number of spindles:6 spindle passage:36 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=36mm! Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images; various collets are included in delivery up to D36mm Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2000 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm pick-up unit, Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Package of 3 Schütte S32PC Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: S32PC Yob: 1998 One machine is operational; the other two can be used for spare parts Includes IEMCA PRA40/33/P loading magazine, built in 1997 (rack type loader) Includes IEMCA PRA40/42/F loading magazine, built in 1999 (bundle loader) Includes IEMCA SIR325 loading magazine (integral loader with bundle magazine) tooling included in delivery may differ from the pictures Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Excelente estado - Totalmente operacional - Carregamento / Transporte possível! Peça de trabalho: Máximo. Diâmetro de clampagem. 26 mm 9 fusos principais: Fuso 1 a 6: binário nominal 18,5 Nm Binário máximo 50 Nm Velocidade máxima: 7.000 rpm Fusos 7 a 9: binário nominal 15 Nm Binário máximo 30 Nm Velocidade máxima: 10.000 rpm Viagens (deslizamento cruzado): X (fusos 1 a 6): 70 mm X (fusos 8 a 9): 110 mm Z: 125 mm Alimentações: 30 m/min Potência de alimentação: 3kN Corridas (escorrega longitudinal): X: 16 mm Z: 300 mm Potência de alimentação 3kN Alimentações: 30 m/min CNC Siemens 840 D Transportador e arrefecedor de envergadura 21,1 Kw Knoll chiller Com alimentador compacto de barras CUCCHI 26 mm (arredondado), 19 mm (quadrado), 22 mm (hexagonal) Comprimento da barra: 4200 mm
