9 TBT máquina utilizada para venda

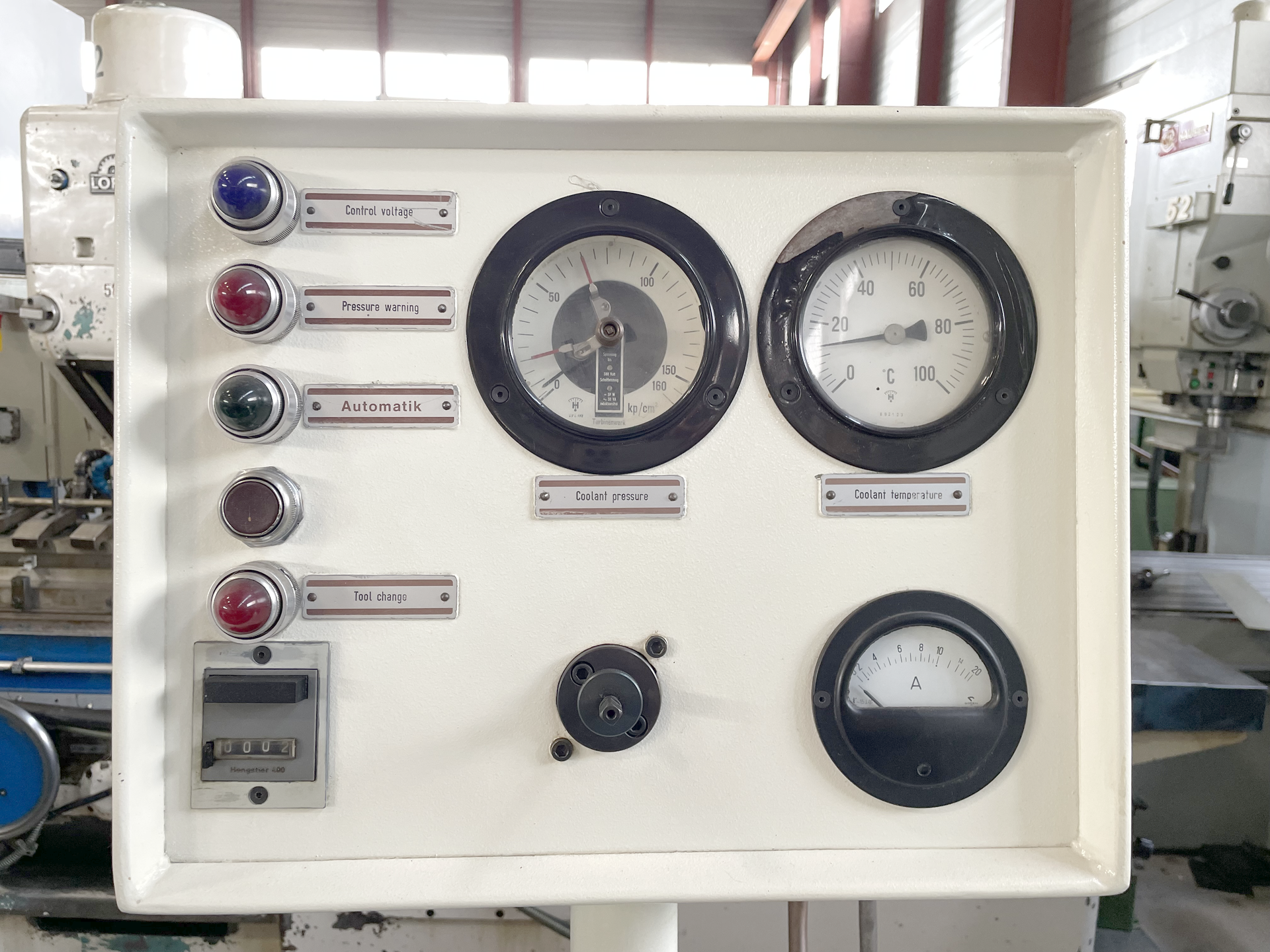

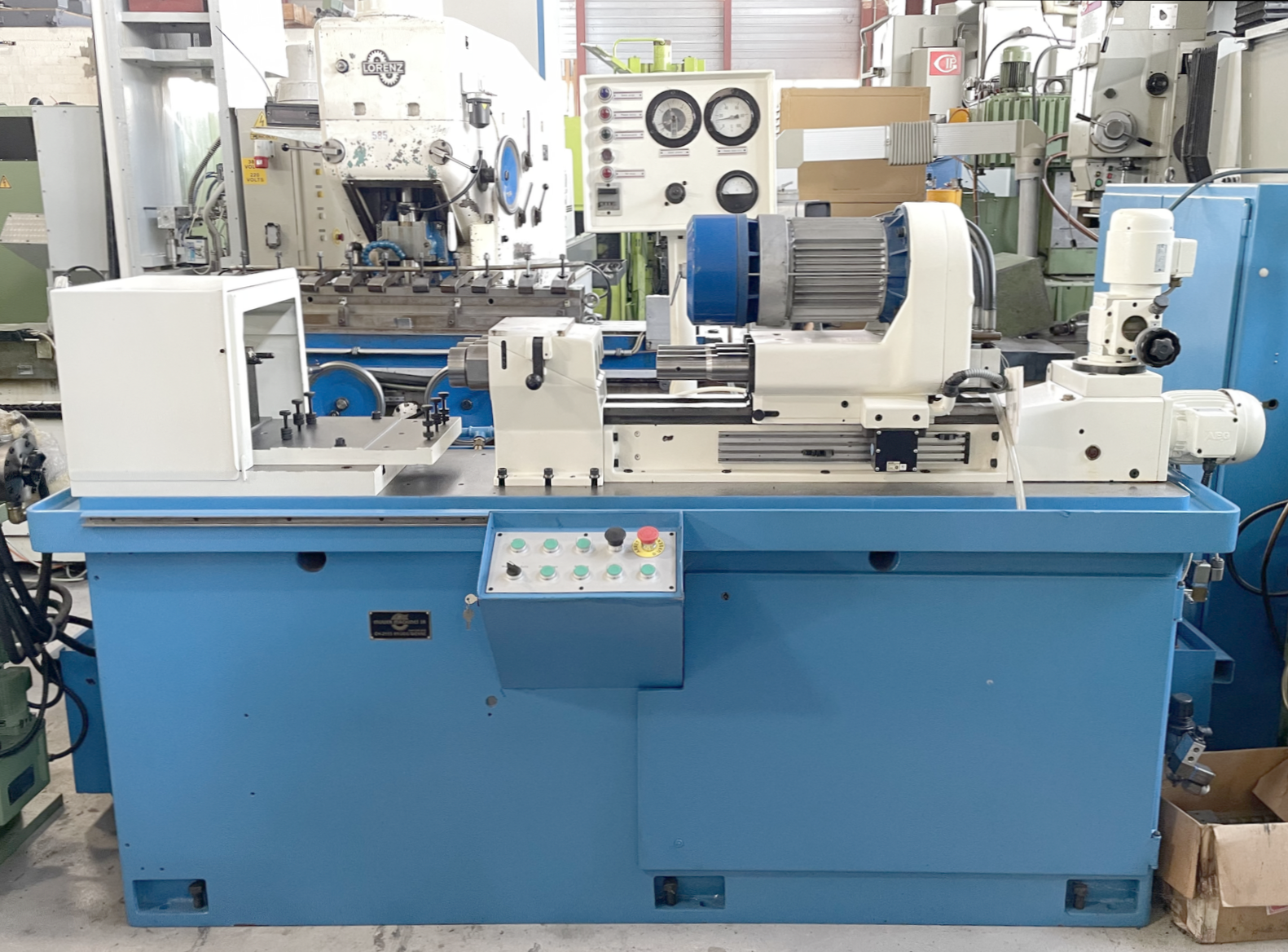

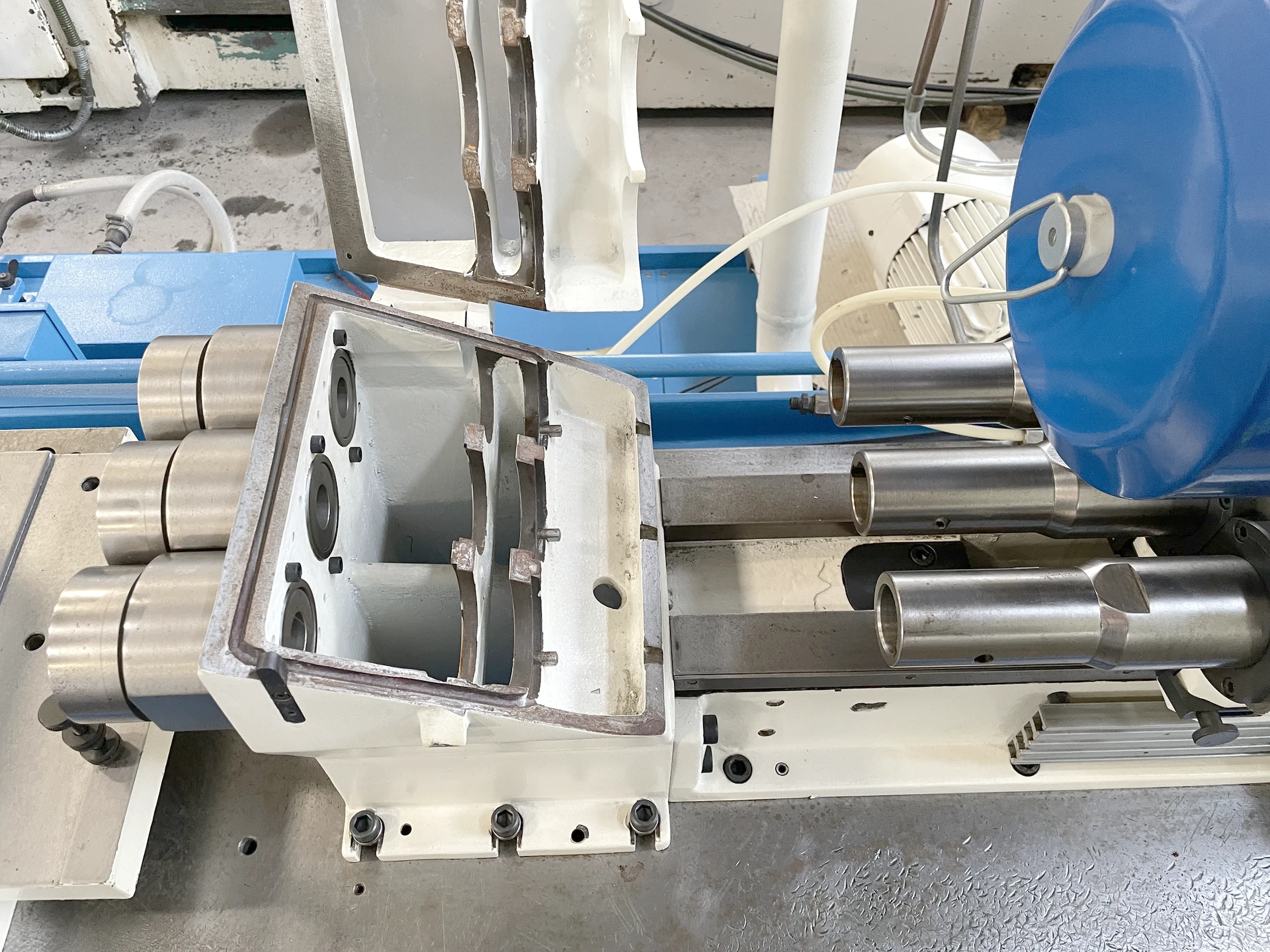

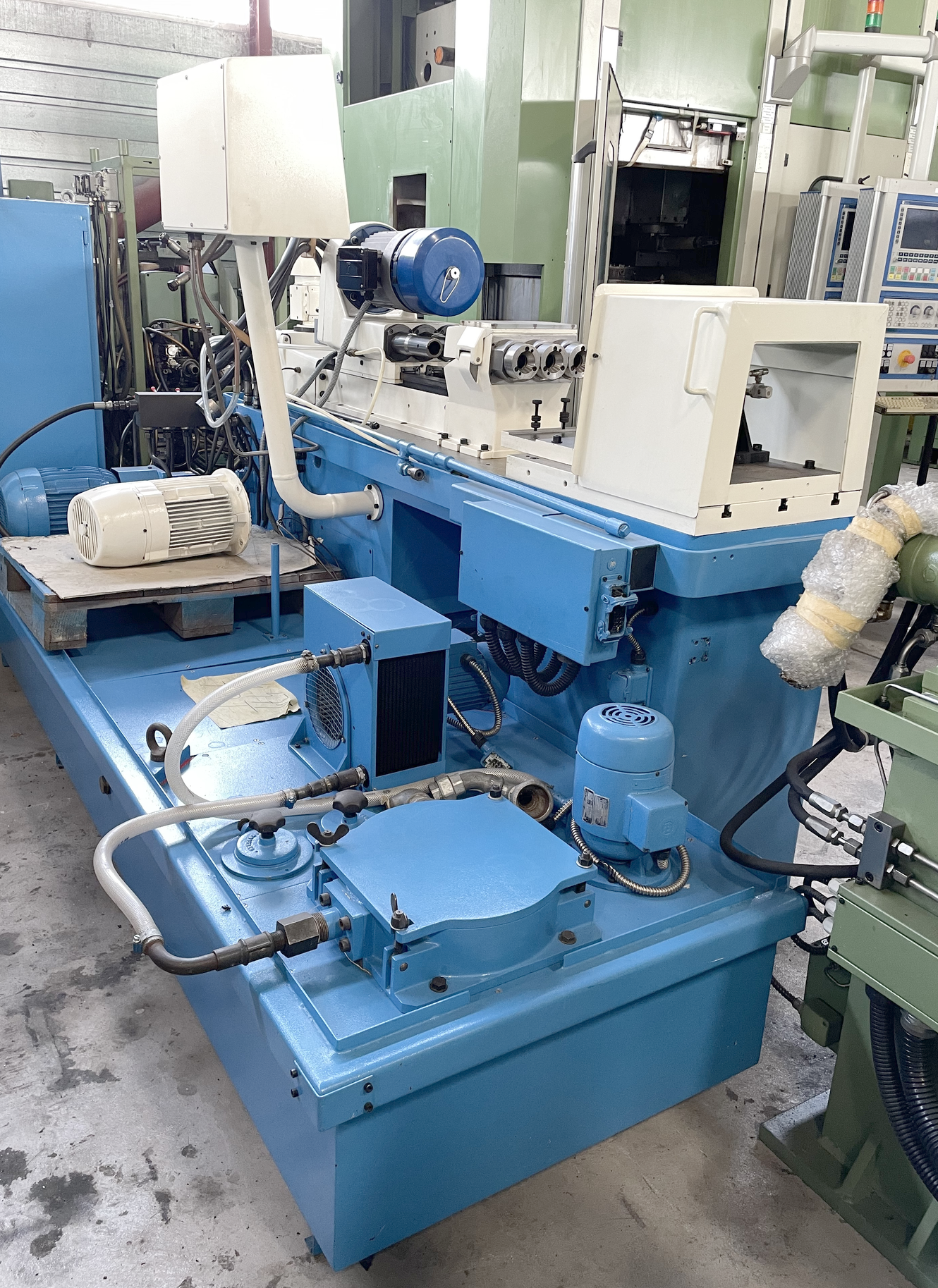

TBT T 120-3-250 ist eine Tieflochbohrmaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Drei Bohrspindeln, Bohrtiefe max. 400 mm; Bohrbereich Stahl Ø 2–10 mm; Aufbohren Stahl bis Ø 18 mm, Guss bis Ø 20 mm; Spitzenhöhe 180 mm; Spindelhub und Einspannlänge 700 mm; Tisch 1280×420 mm. Drehzahlen 3 Stufen 700–6400 min-¹; Vorschübe 15–500 mm/min; Eilgang 3 mm/min; 50 Hz 3×420 V; 4 kW; Gewicht ~2500 kg; Abmessungen 3450×900×1500 mm. Eignet sich für enge Toleranzen; Branchen: Automotive, Luftfahrt, Werkzeugbau, Medizintechnik. Technische Daten ohne Gewähr

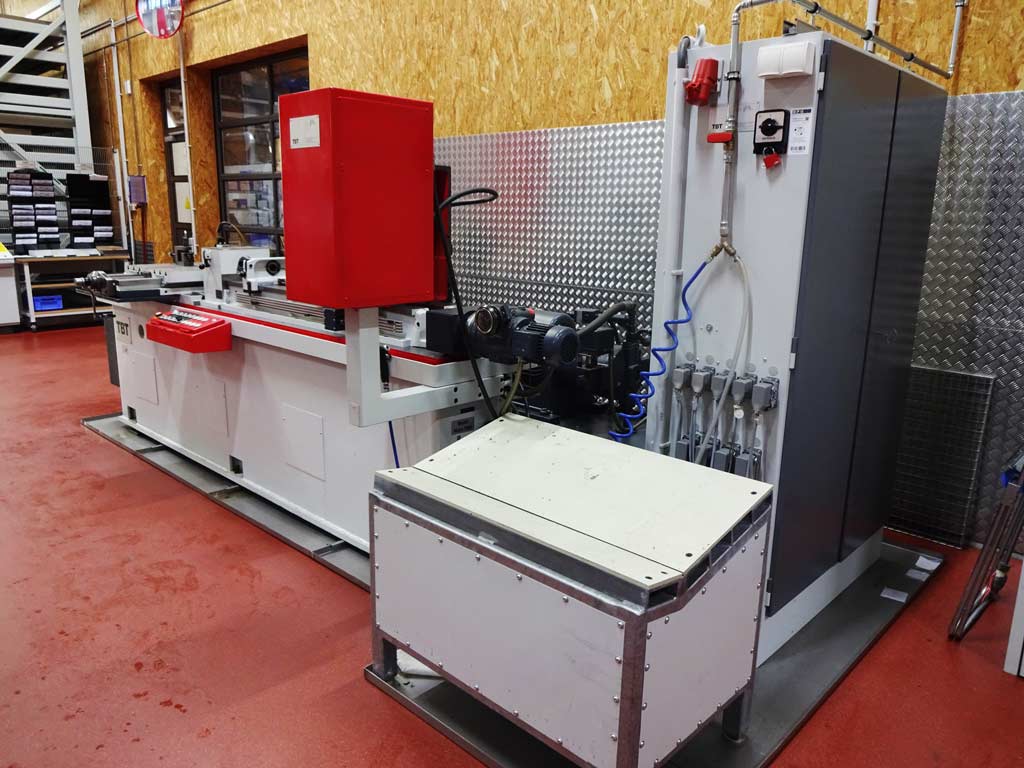

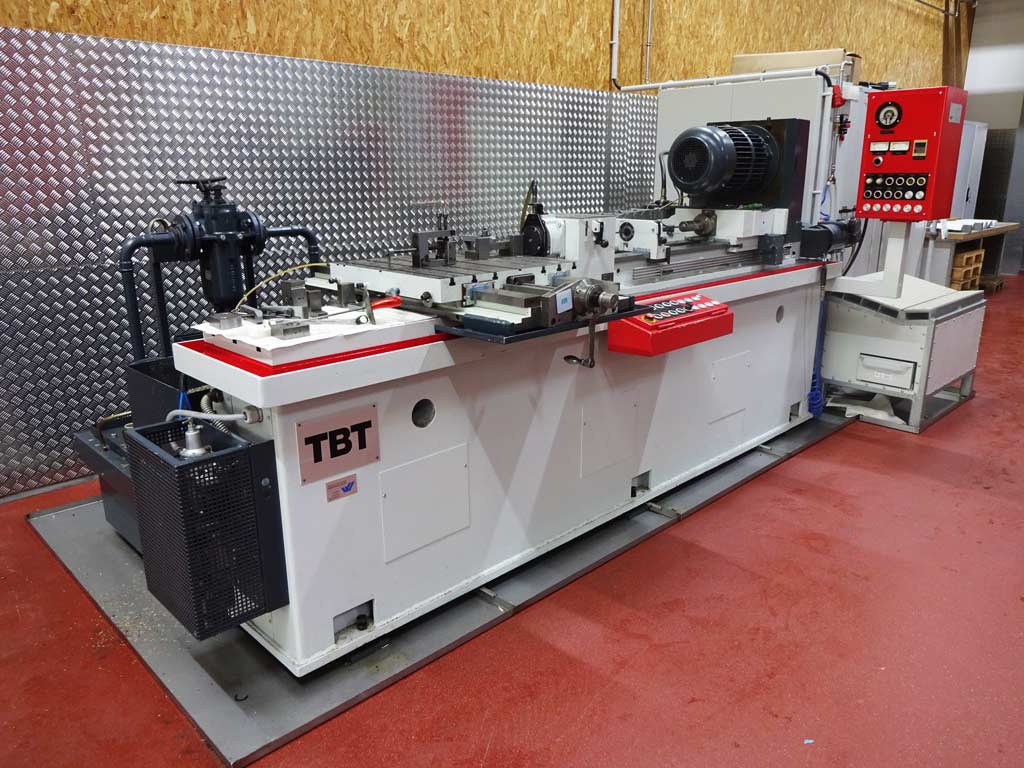

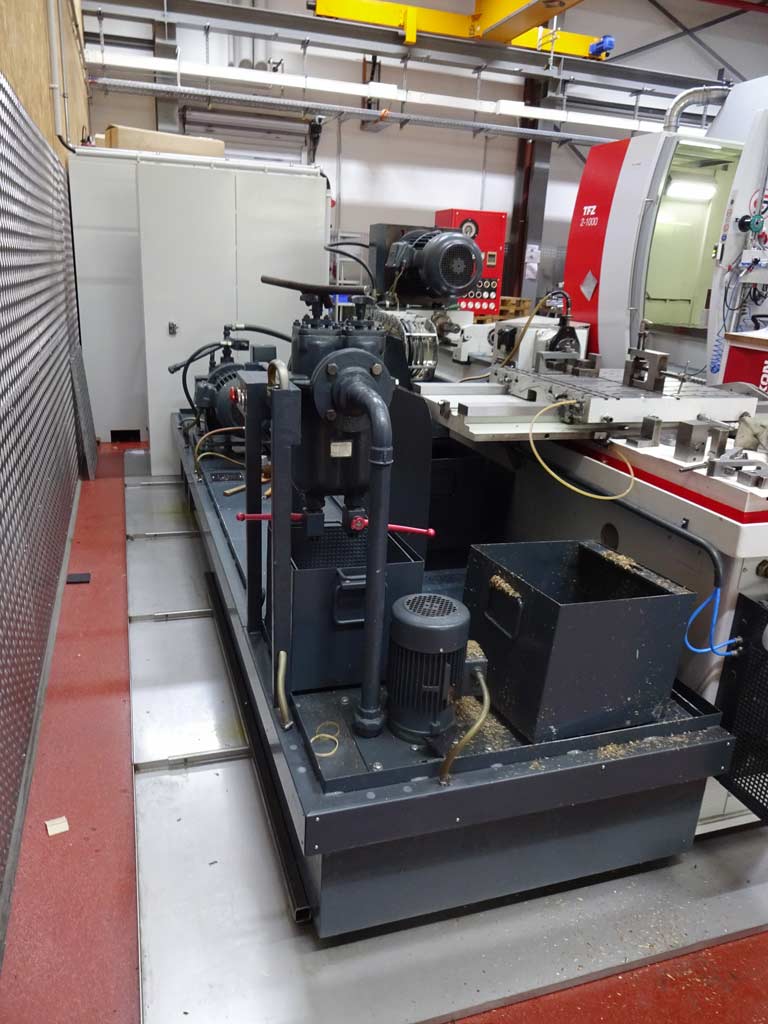

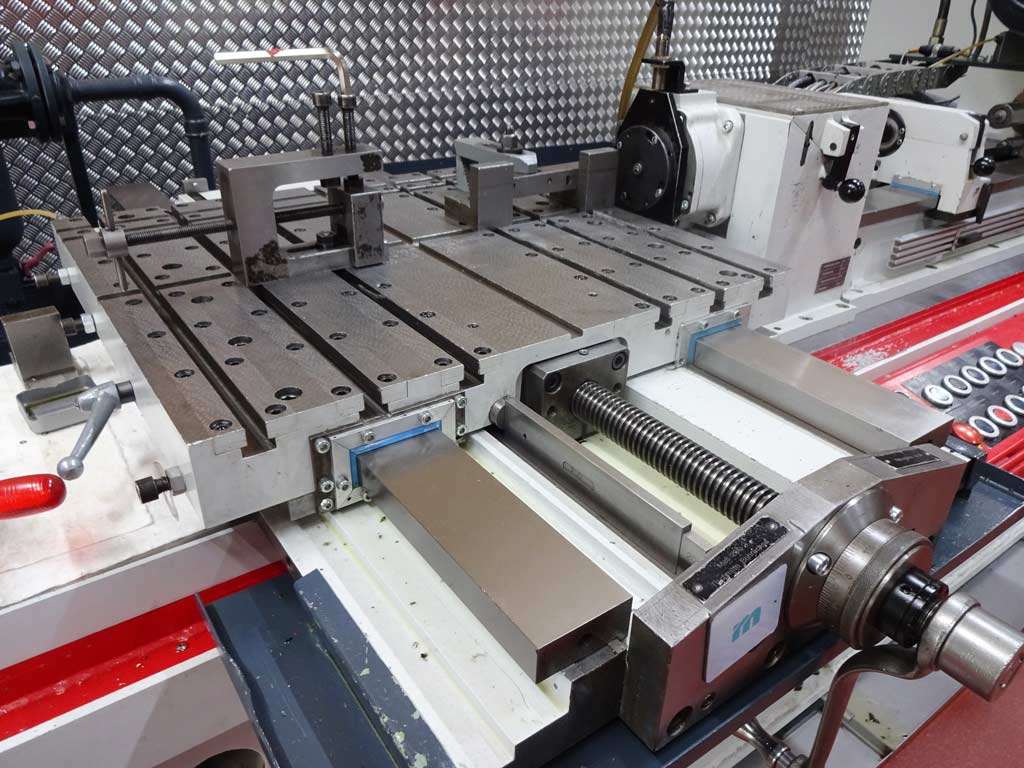

Drilling process: single-lip gundrilling, operating method: rotating tool, number of working spindles: 1, nominal drilling depth: approx. 750mm, drilling range for solid drilling in steel: approx. 30mm, drilling range for counterboring in steel: approx. 40mm, spindle drive: 11kW, max. spindle speed range I: 1800rpm, max. spindle speed range II: 5700rpm, max. feed rate range I: 320mm/min, max. feed rate range II: 160mm/min, rapid traverse: 3.5m/min, clamping table X/Y: 420mm/1280mm, cross-slide table manually operated, max. transverse travel: 400mm, table clamping surface X/Y: 600mm/600mm, high-pressure coolant system for deep-hole drilling oil with 1000l coolant tank, flow rate: approx. 2-94l/min, max. pressure at max. flow rate: 45bar, pump power: 11kW, separate control cabinet. The machine underwent an extensive partial overhaul in 2018, during which the machine was disassembled and cl ...

Profundidade nominal de perfuração 750 mm Perfuração completa em aço aproximadamente 30 mm Velocidade máxima do fuso: 5700 min-1 Mesa de fixação 1280 x 420 mm Tabela Deslizante Transversal Depósito de líquido de arrefecimento Acessórios Diversos

Drilling diameter: 3-25mm, drilling depth: 1000mm, connected load: 36kW, control: EST, 99 drilling memory positions per program, grinding and coordinate programming, plain text programming via input mask. Accessories: paper band filter, coolant cooling system, 4-door control cabinet, high-pressure pump up to 150bar, oil tank, 1 steady rest for smaller diameters at large drilling depths, direction-adjustable holder for drill bushing holders, various drill bushing holders, long clamping table for 0-height, tailstock stop and base plate for machine vice freely movable on the additional table, matching precision machine vice optionally available. Speed, high pressure, Z-axis (feed), X/Y-axes, and W-axis (approach slide) programmable via control. CPU and card rack defective (fan fault), machine therefore not operational, drives and guideways were fully functional until last operation. An on-s ...

CONTROLS   CNC controls SIEMENS 840 D WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 5   X-axis travel: 800 mm   Y-axis travel: 600 mm   Z-axis travel: 800 mm   W-axis travel: 1250 mm   rotating range B-axis from: 0 °   rotating range B-axis up to: 360 ° WORKING RANGE -BORING-   drilling depth (max): 800 mm   drilling capacity full bore (steel): 25 mm SPINDLE / HEAD   tool fixture: HSK A50   drive power: 15 kW AXIS DRIVES   feed velocity (max): 15000 mm/min TOOL MAGAZINE   number of positions: 20 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 5600 mm   space requirements -front/back-: 4910 mm   total height: 2700 mm   total weight approx.: 10800 kg 20 toolstations with rotating table 800x600 approx 46300h Including chip conveyor and vari ...

core drilling diameter max.: 25 mm bore depth: 1000 mm swing diameter: mm total power requirement: 25 kW weight of the machine ca.: 12,5 t dimensions of the machine ca.: m T B T (Germany) CNC-Controlled Horizontal Deep Hole Drilling Centre Model BWP 250 Year 1996, but reconditioned mechanically and electrically in 2006 ______________________________________________________________________ _____________ Working range: X Axis, machine column cross 2,000 mm Z Axis, drilling slide horizontal 1,200 mm Drilling depth 1.000 mm Y Axis, drilling slide vertical 1,100 mm Table clamping area 1,200 x 2,000 mm Drilling capacity in solid material, approx. 4 - 25 mm Tool holder taper HSK 50 Spindle speeds 1.260 - 15,000 rpm Feed rates / quickfeed, XYZ, infinitely variable 100 - 10,000/15.000 mm/min. Force rate of feed  ...

Vender um bloco de penas TBT, Condição nova. O pinol nunca foi instalado. O preço original é de 30.800,00 euros líquidos. ..VB

TBT M1-4-320 Máquina chata de buraco profundo 4-Spindle, tiro preço interessante Máquinas-ferramentas Mimu (Itália) - Nota: no nosso armazém Máquinas-ferramentas Mimu (Itália)
