10 TRANSFLUID máquina utilizada para venda

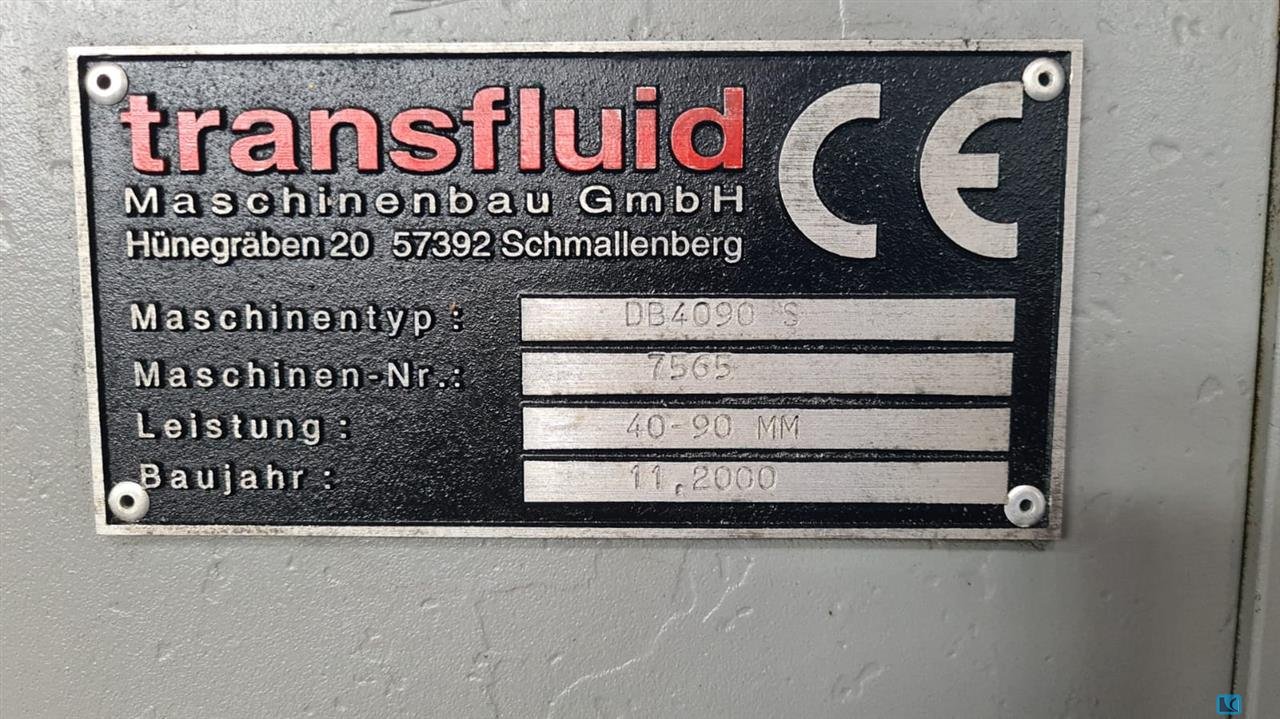

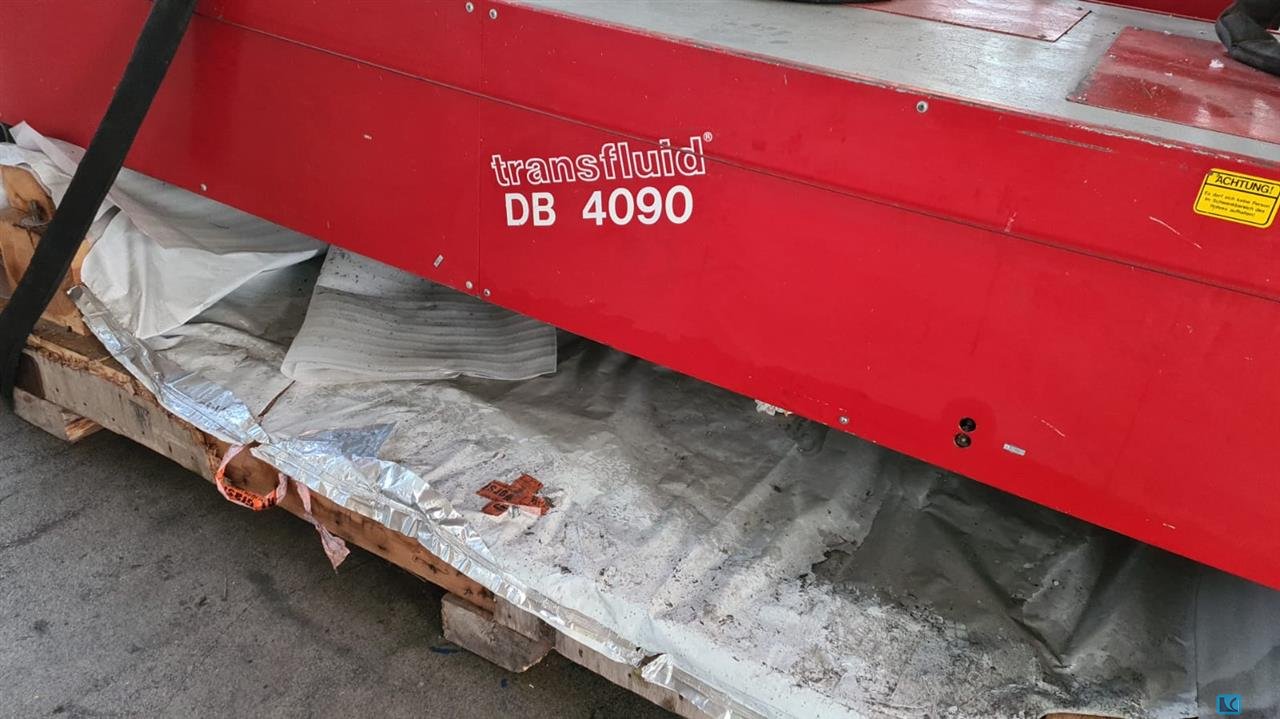

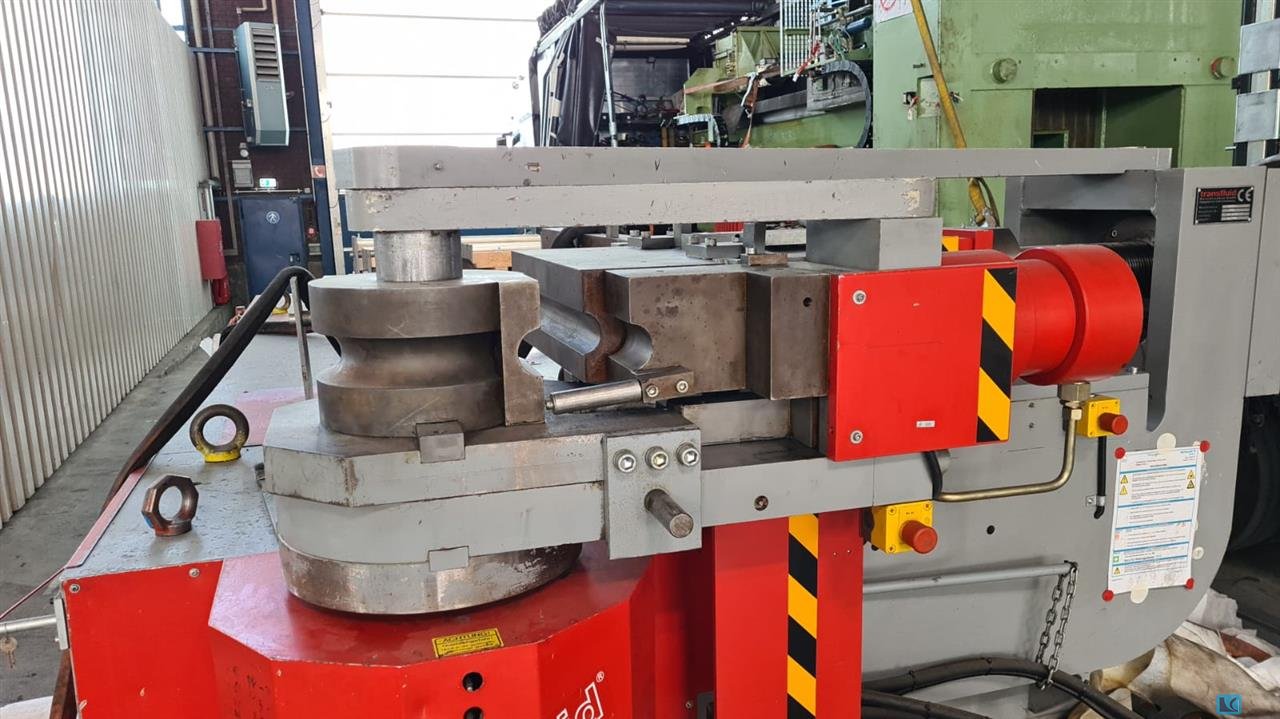

tube diameter:40-90 mm wall strength:20 mm weight of the machine ca.:11 t dimensions of the machine ca.:4 x 1,6 x 1,35 m bending radius max.:270 mm This machine is a mandrel bending machine that was designed exclusively for the production of pipe bends with pipes of 40 mm ? 90 mm outer diameter with a maximum wall thickness of 20 mm or for processing solid materials up to 70 mm outer diameter (max. section modulus 64.7 cm³) and is therefore intended only for this purpose. Scope of delivery, machine equipment, basic equipment ? Pipe length/usable length for mandrel bending: 3000 mm ? Radius range max. 270 mm ? Bending height 1050 mm ? Electro-hydraulic drive ? Clockwise bending direction ? With hollow shaft to achieve small radii ? Counter bearing rotates ? Rotates up to 180 degrees with a maximum tool radius of 270 mm ? Forward movement controlled via hydraulic cylinder with pressure va ...

tube: 6000 mm tube diameter: 42 x 3,0 mm wall strength: 3,0 mm bending radius min.: 150 mm total power requirement: 5,5 kW weight of the machine ca.: 1,2 t dimensions of the machine ca.: 7500 x 1.400 x 1.300 m Round steel tube: up to Ø 42 × 3.0 mm Round stainless steel tube: up to Ø 42 × 2.0 mm Square tube: 25 × 2.5 mm Max. section modulus: 4.1 cm³ Bending angle: up to 180° + 10° overbending Bending time at 90°: 2.7 sec. (forward stroke) Longitudinal feed speed: 450 mm / 1.5 sec. Rotary positioning speed at 90°: 1.0 sec. Repeatability of bending axis: ± 0.2° Controlled length tolerance: ± 0.3 mm Controlled rotation tolerance: ± 0.2° Tube loading length / usable length for mandrel bending: 4,100 mm Max. radius range: 150 mm Bending height: 850 mm Free-standing bending head: 850 mm long Bending axis drive: electro-hydraulic Rotation and length positioning: automatic via gear ...

tube diameter: 60 mm wall strength: 6 mm bending radius min.: 180 mm total power requirement: 5,5 kW weight of the machine ca.: 1300 t dimensions of the machine ca.: 3500 x 1250 x 1300 m Description: Round tube steel (S235): 60.0 x 6.0 mm Round tube stainless steel (S 355): 60.0 x 4.0 mm Square tube steel: 50 x 50 x 4.0 mm Rectangular tube steel: 60 x 40 x 2.0 mm max. usable length: 3048 mm Bending speed: 10°/sec including tools (see photos) Mandrel is no longer available, can be retrofitted The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

tube diameter: 4-28 mm wall strength: / mm bending radius min.: 1,5 x D - 2,0 x D mm control: Siemens LOGO delivery rate: 4,5 l/min bending angle max. +/-: 190 ° nominal pressure: 250 bar operating pressure: 3095 bar delivery rate: 4,5 l/min total power requirement: 1,5 kW Tube diameter: 4 – 28 mm Wall thickness: on request Minimum bending radius: 1.5 × D – 2.0 × D Control system: Siemens LOGO! Hydraulic flow rate: 4.5 l/min Max. bending angle: ±190° Rated pressure: 250 bar Operating pressure: 3,095 bar Total power requirement: 1.5 kW Additional Information Hydraulic cylinder drive with roller chain transmission. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

tube diameter: 40-168 x10,0 mm wall strength: . mm bending radius min.: ohne Rohr 190 mm voltage: 380 V operating pressure: 200 bar total power requirement: . kW weight of the machine ca.: 22 t dimensions of the machine ca.: 7,50x2,8x1,6 ( 30 m²) m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoT ...

tube diameter: . mm wall strength: 15 St52 und Edelstahl mm bending radius min.: 6-120 mm bending angle max.: 150 ° weight of the machine ca.: 1,7 Kg dimensions of the machine ca.: 2000x2000x1300 m The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Faixa de desempenho: 20mm-60mm, ângulo de flexão máximo: 180+10, raio de flexão máximo: 150mm, comprimento efetivo: 3048mm, altura de flexão: 1050mm, módulo máximo da seção: 12,1cm³, tolerância de flexão: +/-0,1, pressão de operação: 200bar, carga conectada: 4kW, dimensões da máquina X/Y/Z: aprox. 2000mm/900mm/1200mm, peso: aprox. 500kg. Documentação disponível. É possível uma inspeção no local.

- Área de trabalho tubo de aço  até 30 mm x 2 mm - Área de trabalho do tubo em aço inoxidável  até 30 mm x 1,5 mm - Comprimento de extensão do tubo 2.000 mm - Ângulo de flexão até 180 + 10 overbending - Sequência de flexão automática (flexão, torção, longitudinal) - Controlo CNC - PC de entrada com software Transpro V2 + pacote Tanspro V2 (indicação do proprietário anterior) - Função de acionamento via interruptor manual - Sentido de curvatura no sentido dos ponteiros do relógio - Raio máx. 125 mm mm -Automático. Lubrificação de mandril - Scanner a laser para área de segurança - Inclui ferramenta usada existente para tubo de aço inoxidável 1 mm  15, 18, 22, 28 mm Raio de curvatura 1,5 D (vários alisadores de rugas, mandris

- Tubo redondo de aço DM 6 – 42 x 5 mm - Tubo redondo em aço inoxidável DM 6 – 42 x 3 mm - Comprimento do tubo push-on máx. 6.000 mm - Controlador lógico programável até 20 ângulos - Visor digital de deslocamento longitudinal - Visor digital de torção - Retração programável e antecipatória do mandril - Sistema de lubrificação Mandrel por bomba manual - Recetáculo mais suave para rugas - Velocidade de flexão máx. 13/seg - Ângulo de curvatura até 180 + 10 deflexões - Alimentação manual - Torção manual - Direção de curvatura direita - Raios de 1,5 D - Ferramenta de flexão: - DM 12 mm - raio 36 mm ) / DM 15 mm - raio 37,5 mm - DM 18 mm - raio 36 mm - DM 22 mm, raio 44 mm com mandril - DM 42 mm, raio 44 mm com mandril
